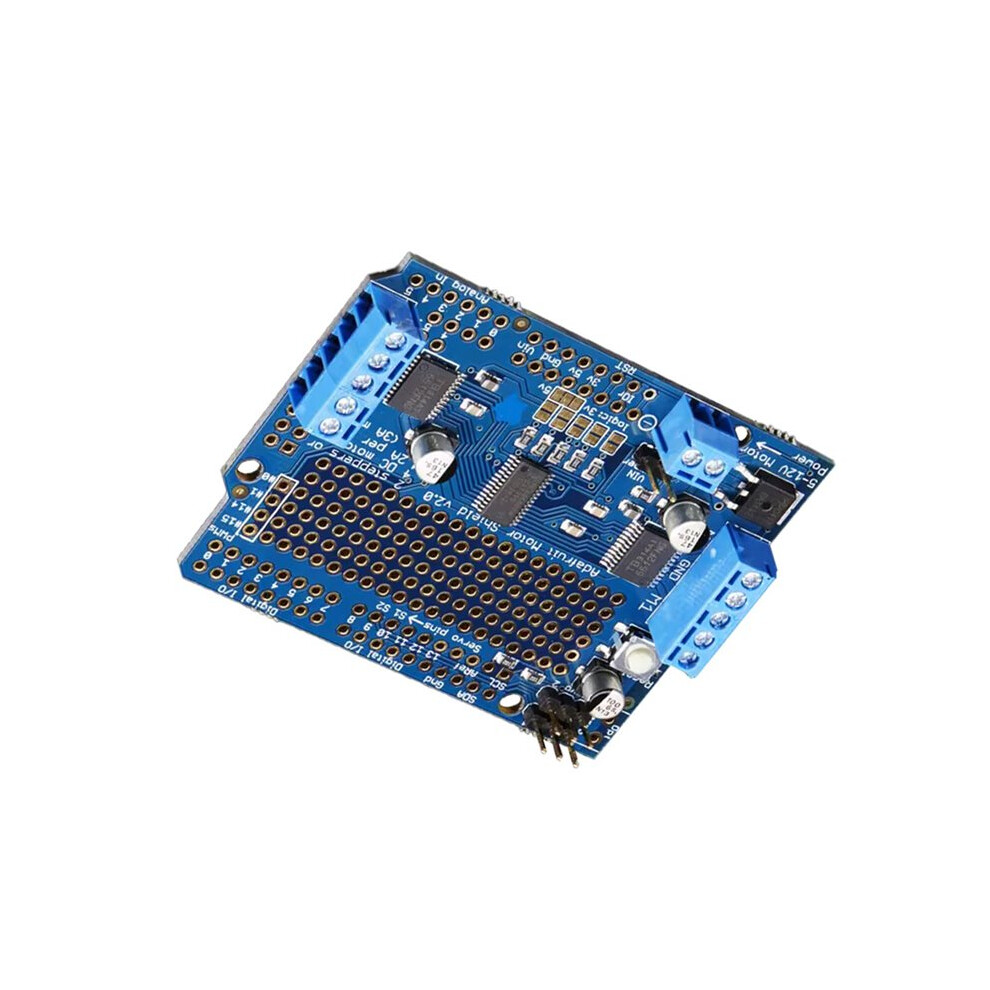

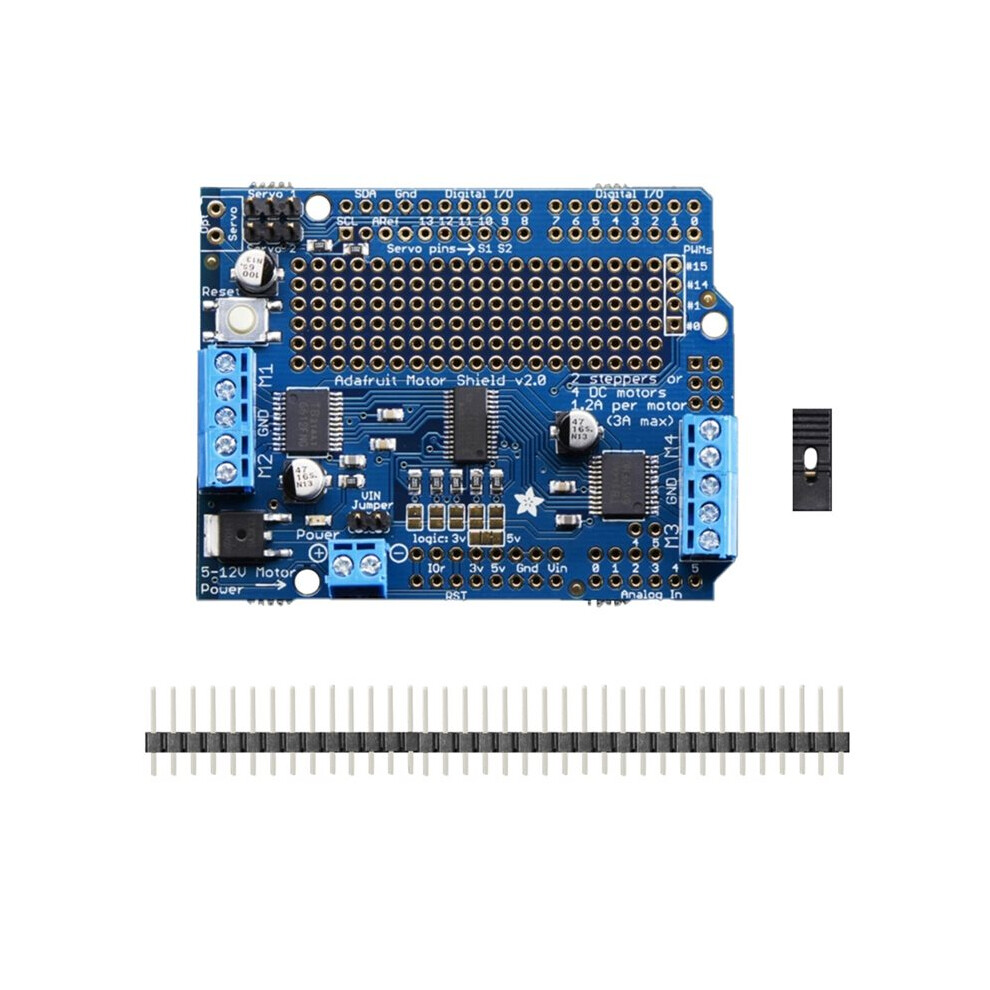

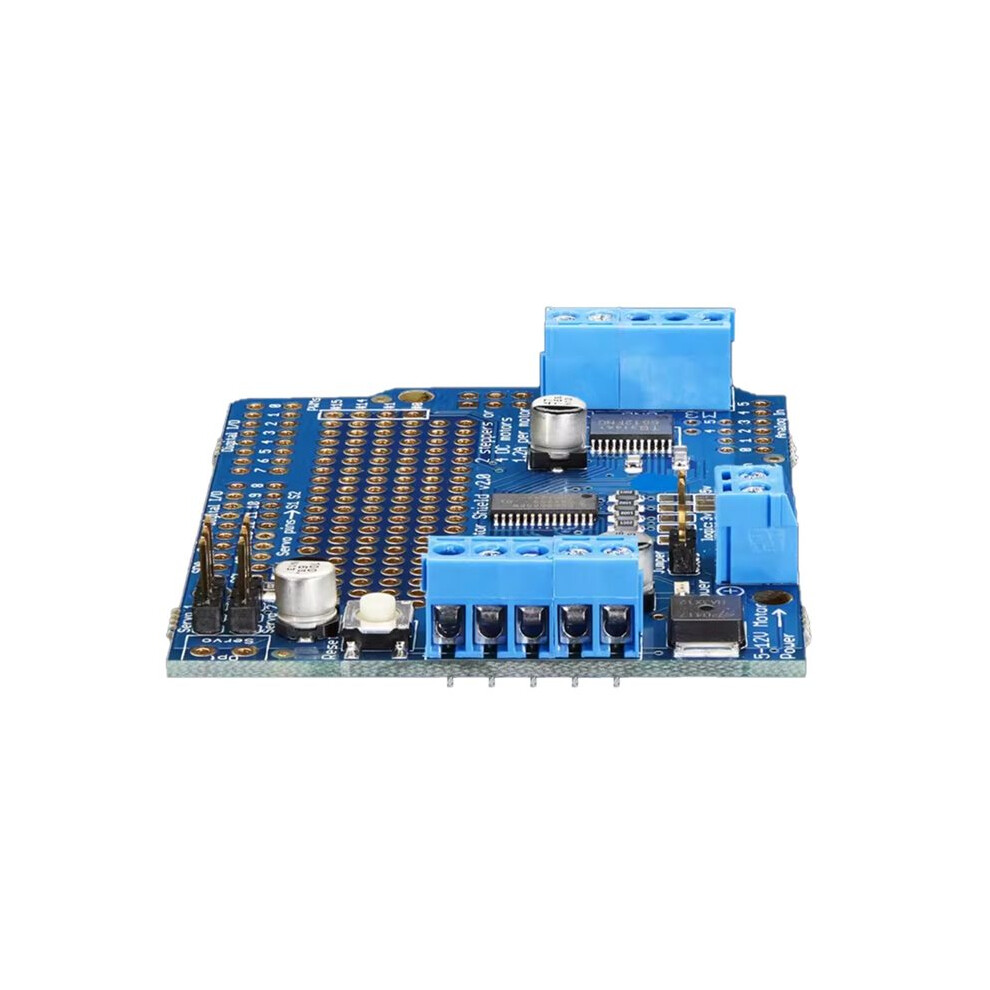

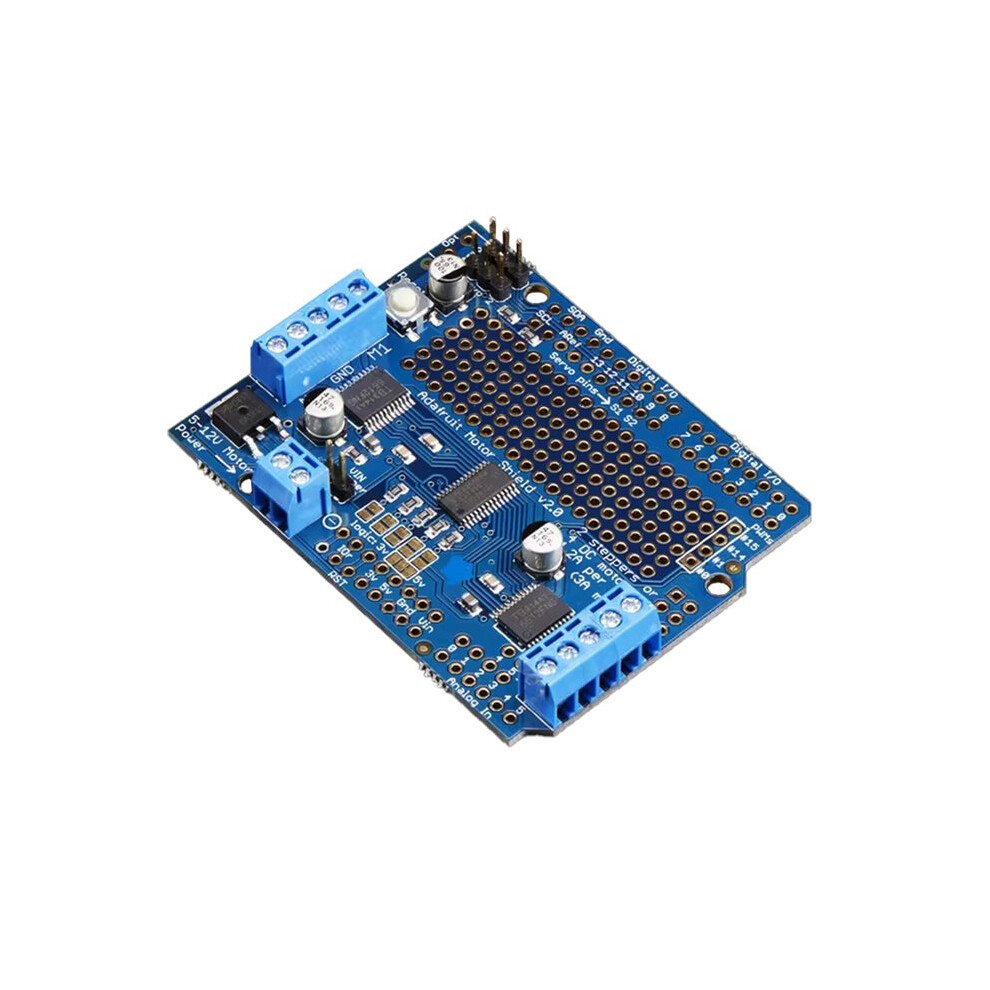

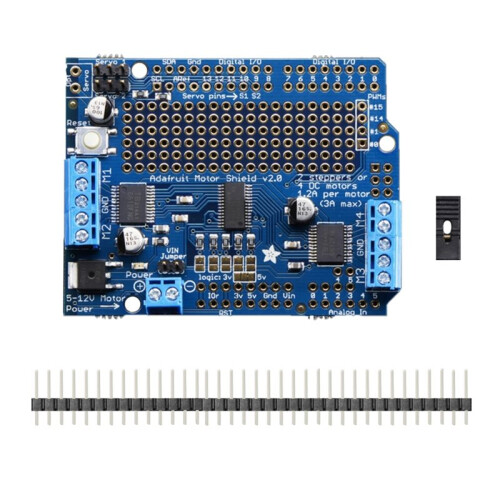

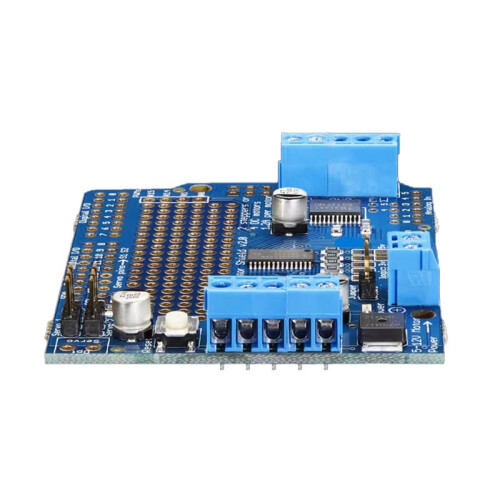

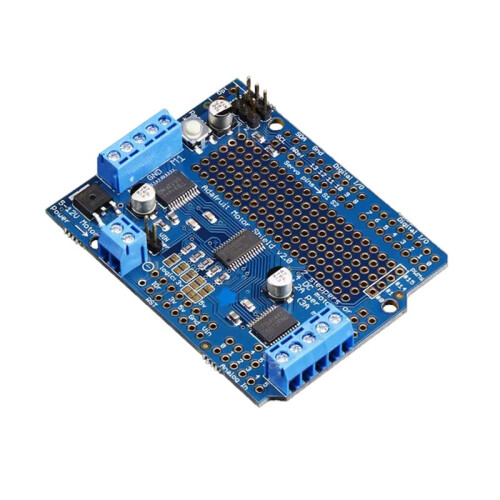

Adafruit Motor/Stepper/Servo Shield for /Mega, Kit, V2.3, 1438
Brand Saudism
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 135,000 Trustpilot reviews and an 'Excellent' rating
£29.78
£32.37
8% off!
FREE Delivery
1%
What is instant Cashback?
Learn More
Interest-free payment options available
See full product description & details
Delivery: Priority (Free) | Wed 14th - Fri 16th Oct
Returns: 30 days
180-day payment protection
You might also like
Description & Details
Summary

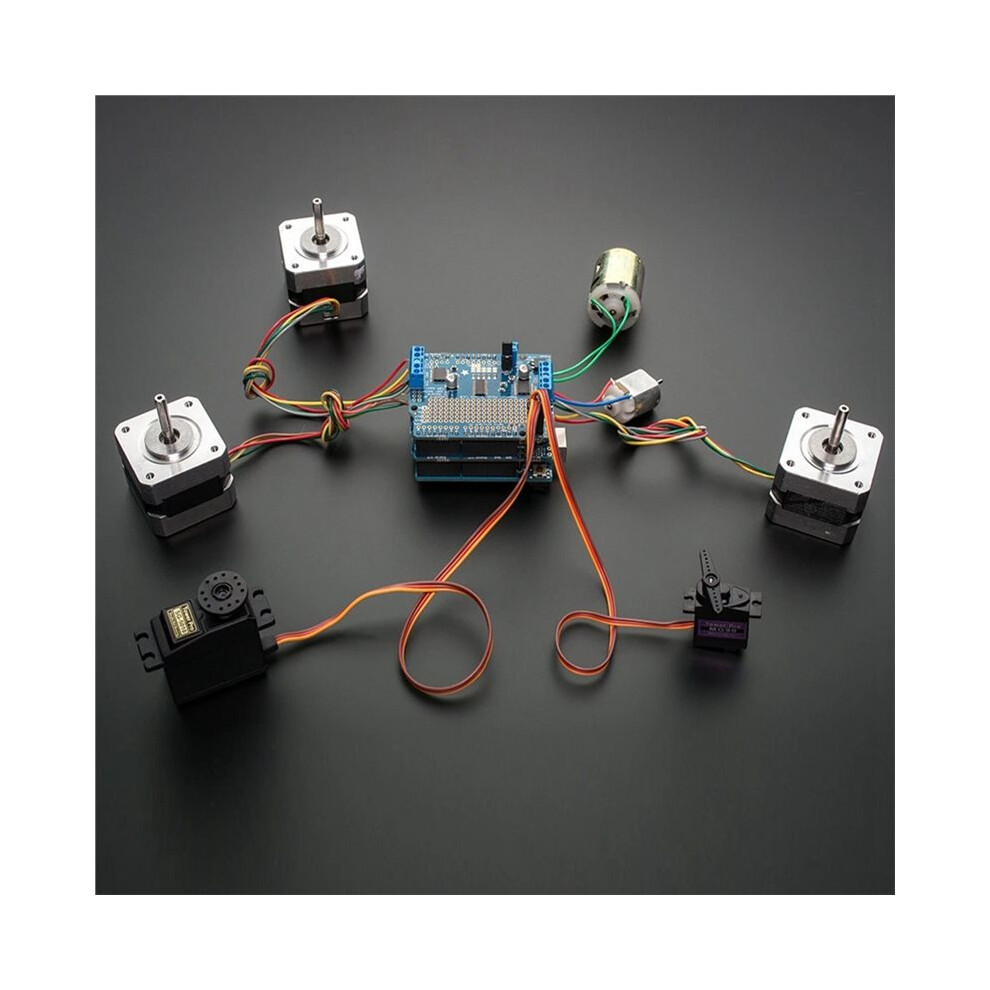

- The Adafruit Motor/Stepper/Servo Shield for Arduino allows control of up to 4 DC motors or 2 stepper motors.
- It features TB6612 MOSFETs that provide an output current of 1.2 A per channel, with peak currents up to 3 A for short durations.
- An additional PWM driver is included on the board, controlled via I2C, freeing up the Arduino's PWM outputs.
- Only two pins, SDA & SCL, are needed for controlling multiple motors, simplifying the wiring process.
- The I2C address can be set using 5 address-select pins, allowing for the use of up to 32 stackable shields, enabling control of up to 64 stepper motors or 128 DC motors.
Adafruit Motor/Stepper/Servo Shield for /Mega, Kit, V2.3, 1438 Description
The Adafruit Motor/Stepper/Servo Shield for allows control of to 4 motors or 2 stepper motors.
It features TB6612 MOSFETs that provide an output current of 1.2 A per channel, with currents to 3 A for short durations.
An additional PWM driver is included the board, controlled via I2C, freeing the 's PWM outputs.
Only two pins, SDA & SCL, are needed for controlling multiple motors, simplifying the wiring process.
The I2C address can be set using 5 address-select pins, allowing for the use of to 32 stackable shields, enabling control of to 64 stepper motors or 128 motors.
The second, improved version of the Adafruit Motor-Shield offers the easiest and fastest way to control motors and stepper motors. The L293D Darlington drivers have been replaced with TB6612 MOSFETs, which provide enhanced performance. The motor control is facilitated by an extra PWM driver the board, ensuring efficient operation.
Color: As Shown
Material: ABS
Package Contents:
1*Motor Servo Shield
Details
| OPC | PVN5R8V |
|---|---|
| Brand | Saudism |
| Codes | 6031065895878 (EAN) |
Product Data
| Height | 2cm |
|---|---|
| Width | 5cm |
| Length | 8cm |
| Weight | 0.025kg |
| Colour | As Shown |
| Material | ABS |
