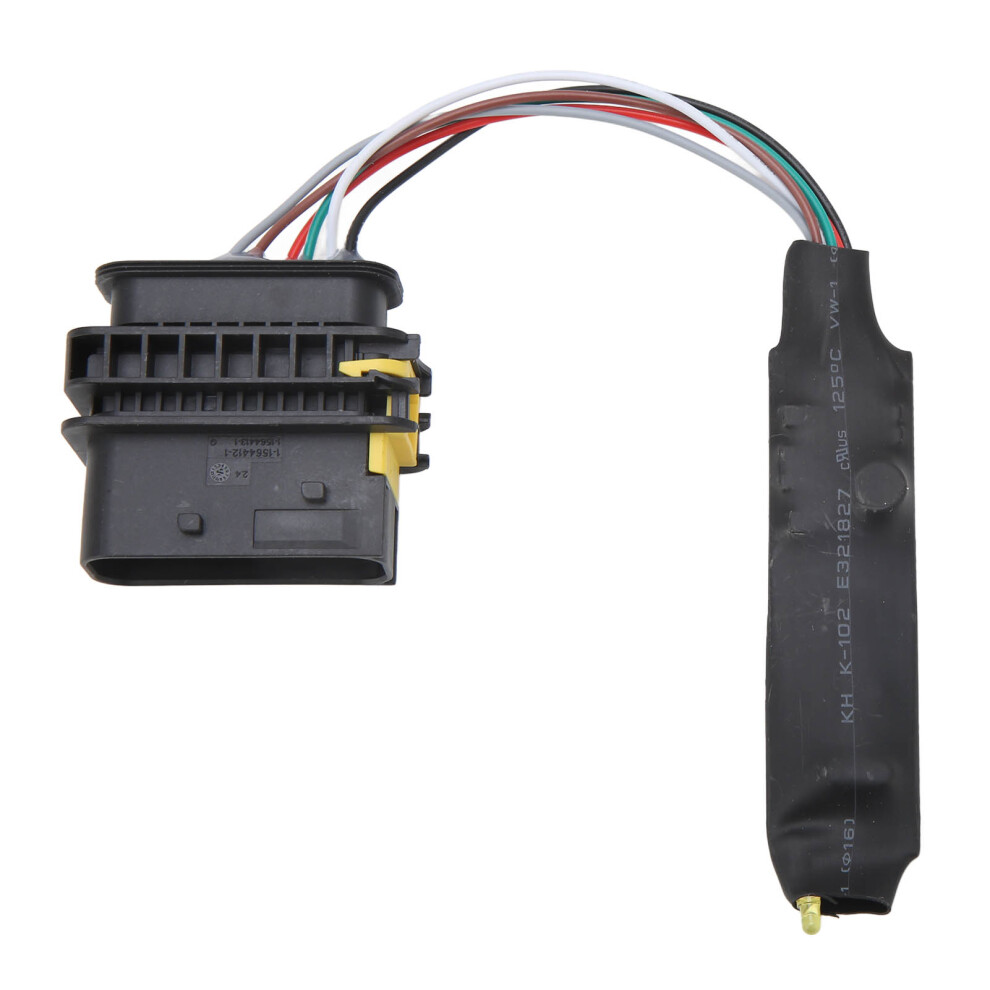

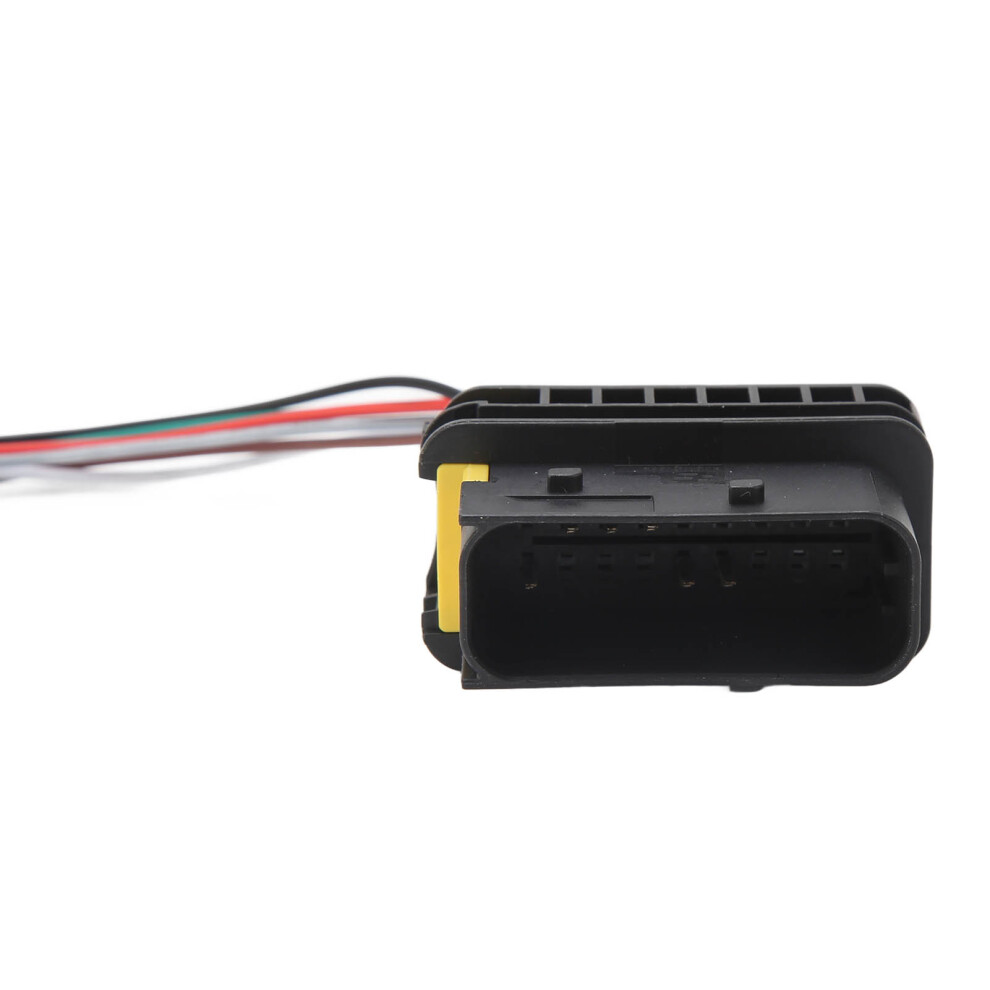

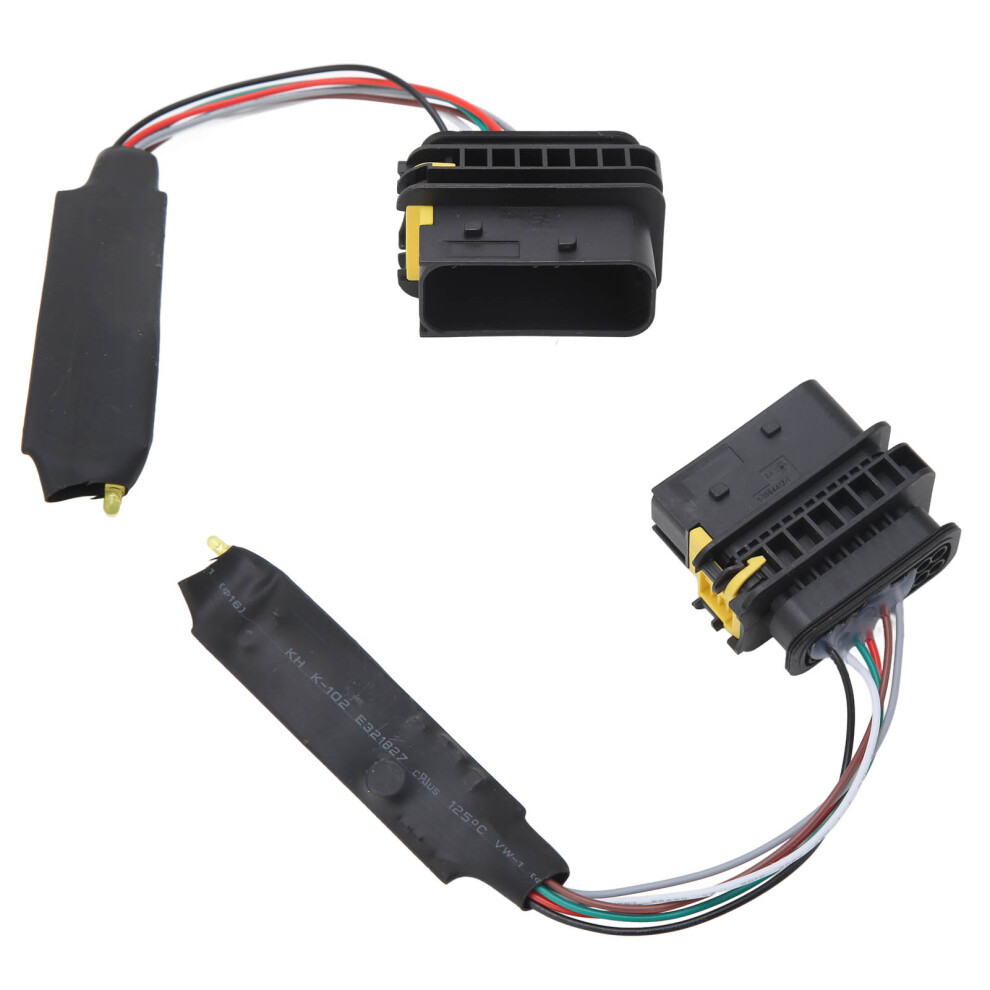

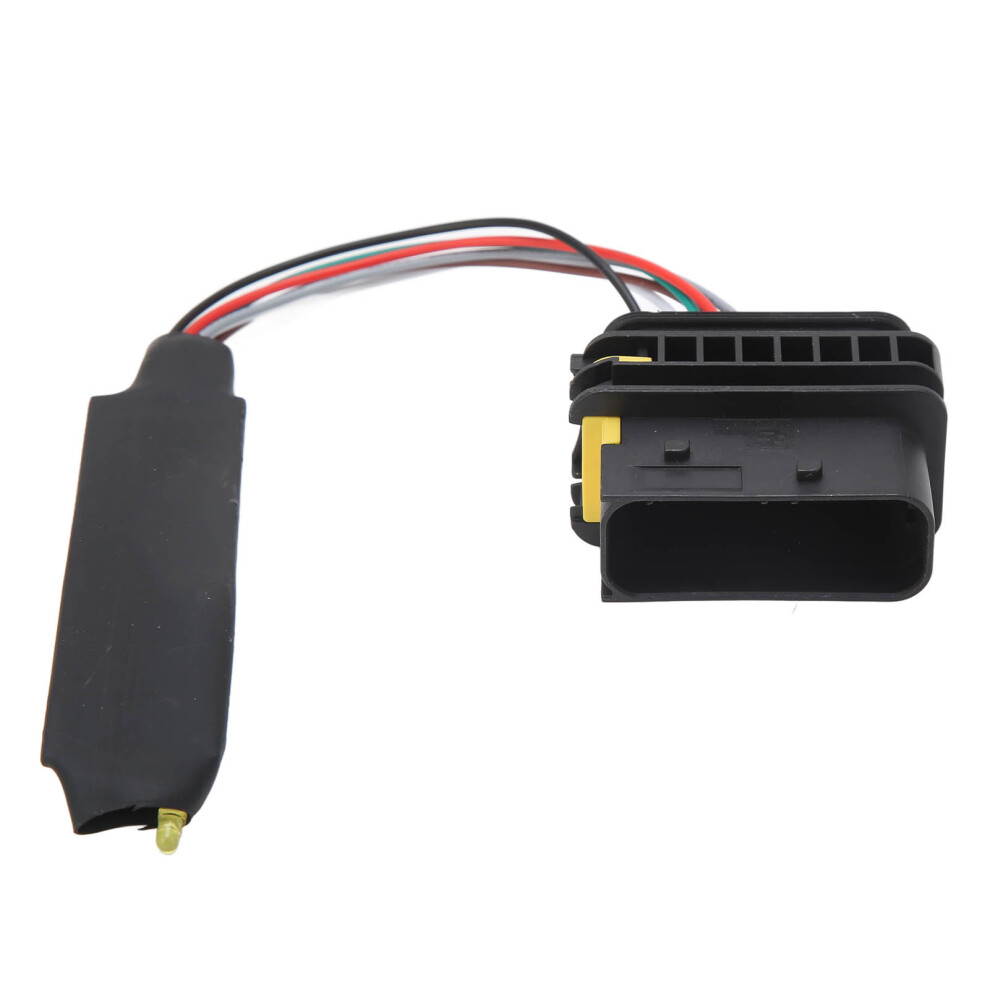

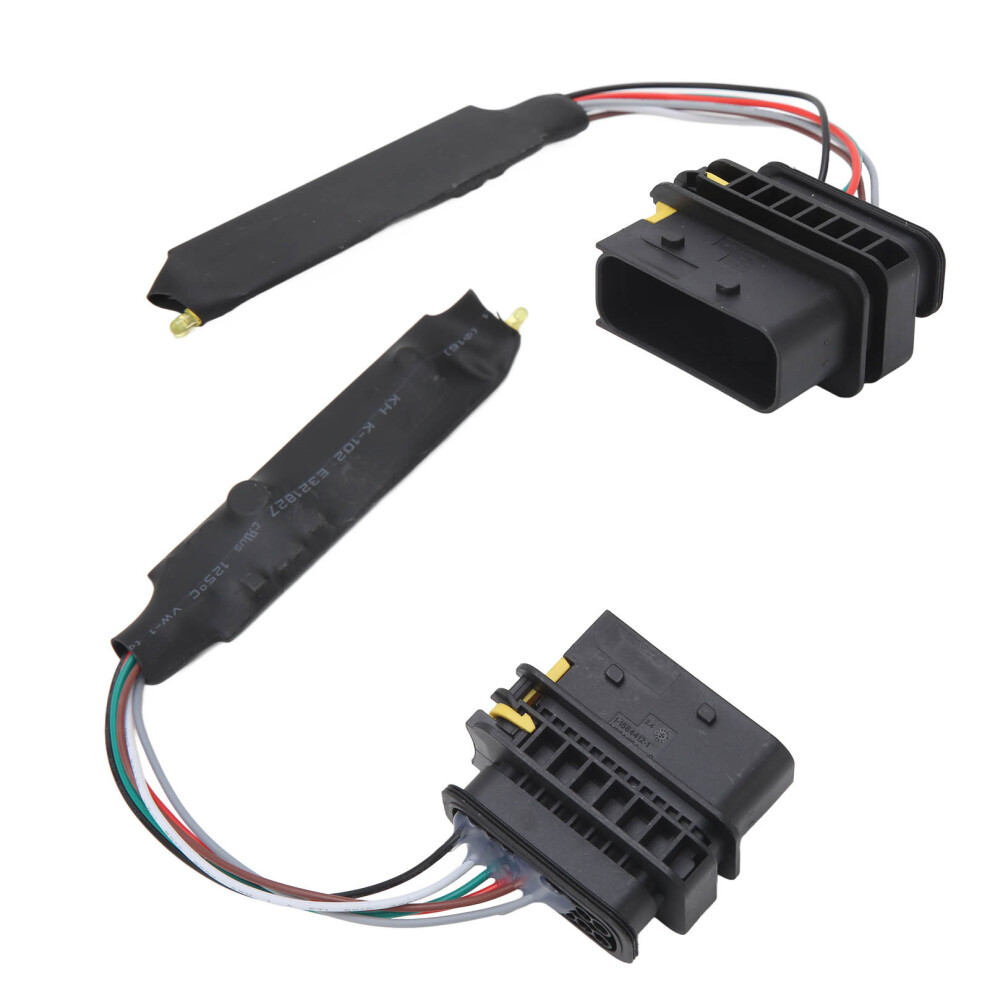

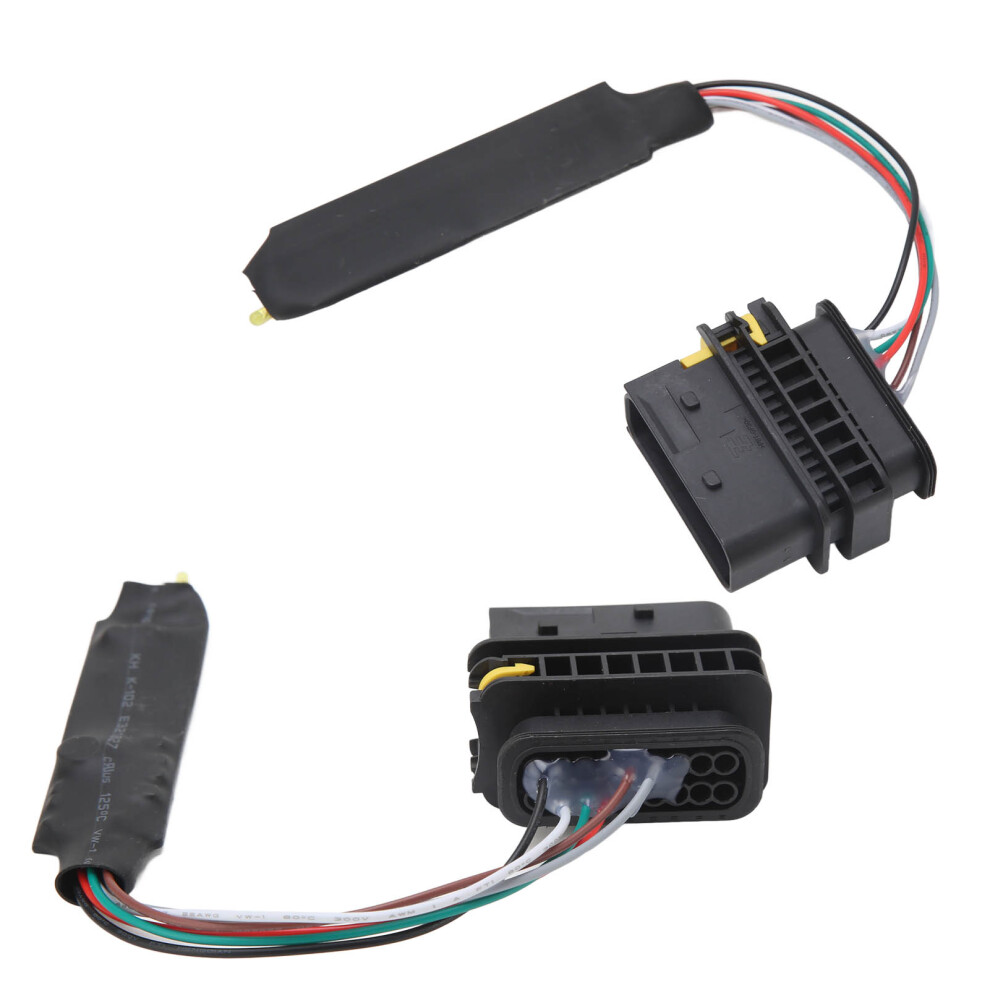

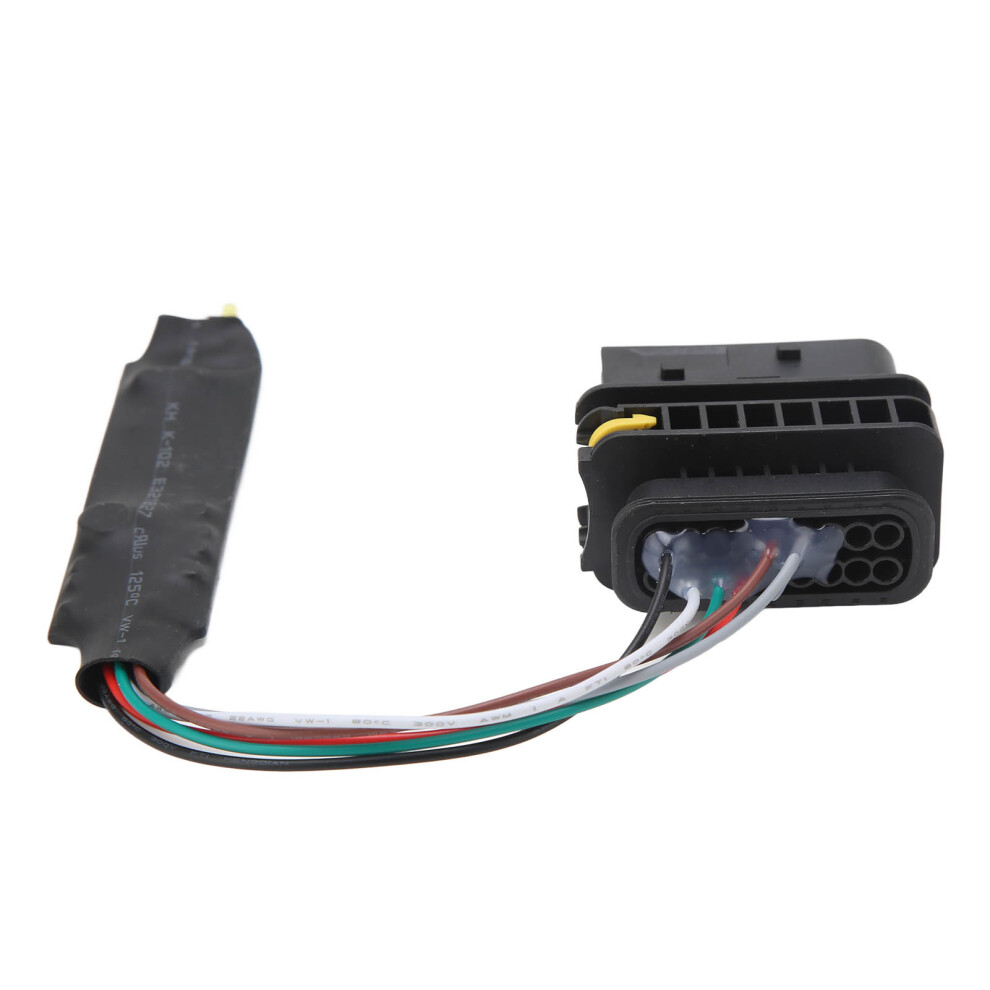

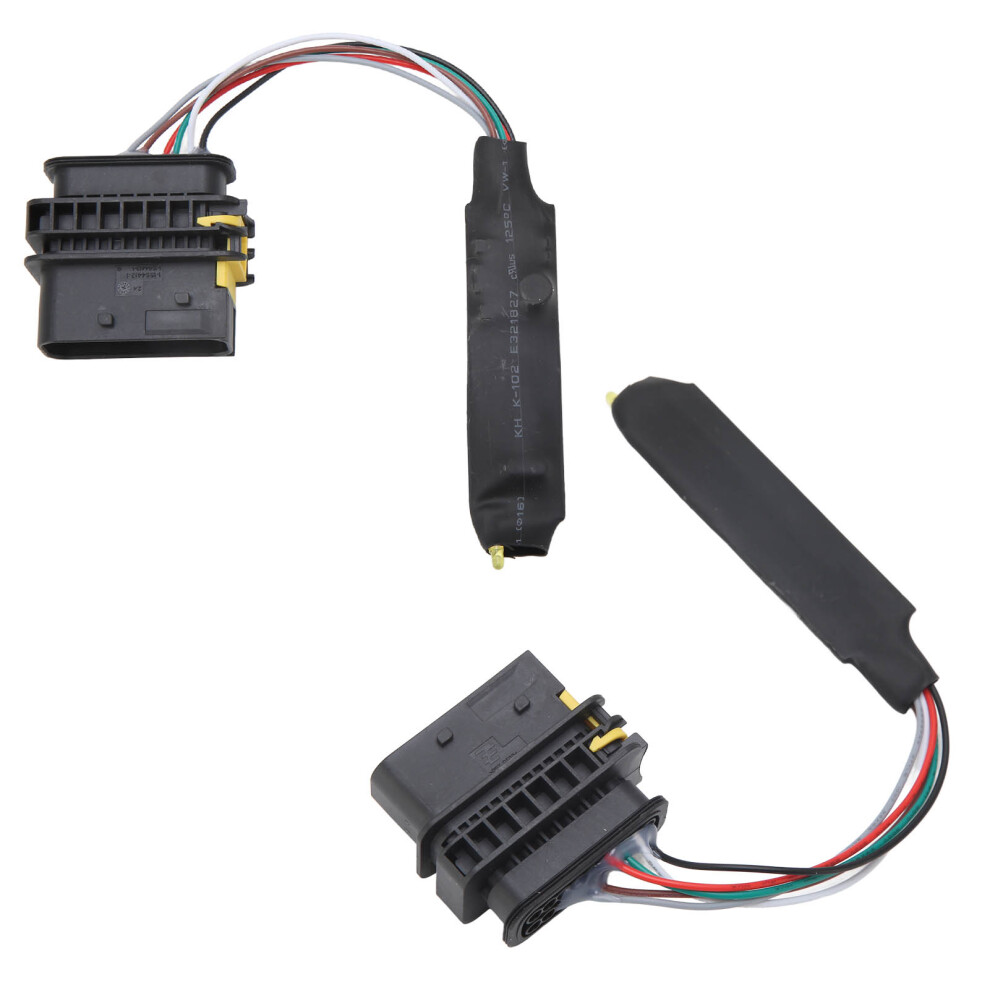

Adblue Emulator for MEN Euro6 Trucks OBD Diagnostic Tool Replacement

Adblue Emulator for MEN Euro6 Trucks OBD Diagnostic Tool Replacement Description

for Adblue Emulator Professional OBD Car Diagnostic Tool Replacement for MEN Truck Euro6
Item Type: OBD Diagnostic Tool
Material: ABSDisable System:
AdxBlue system (Fully)
AdxBlue NOX sensor
DPF system
DPF temperature sensors
DPF regenerationAfter installing emulator, you can remove:
DPF sensors: YES
NOx sensor: YES (only in DAF don't remove first NOx sensor !!!)
For Adblue temp. sensor (s): YES
For Adblue pump: YES
For Adblue level sensor: YES
For Adblue ECU: YESUsing Guide:Emulator Man Euro 6 does not need to be learned. You install emulator under the metal cover of for AdBlue Pump on the right side behind the cab, and disconnect plug from for AdBlue Pump and connect emulator.
Next, you need to remove the fuses:
F894(Multisensor In for AdBlue tank)
F738 (+30 Signal of for AdBlue pump)
F1084 (NOx sensor Upstream)
Fuse F737 is now fuse of emulator.
Fuse F1109 is the fuse of NOx sensor Downstream and A1191 mufler temperature sensor. This sensor needs to work correctly for DPF regeneration.
Finally you need to remove Power from NOx downstream sensor. There are two ways options, one is to cut pin 1 in NOx sensor plug, the other way (better) is to remove pin 10 in X3212 plug. This plug is visible on rear of engine on the right side. This is TE plug (16 pin) with yellow key.
Fitment: Replacement for MEN Truck Euro6
