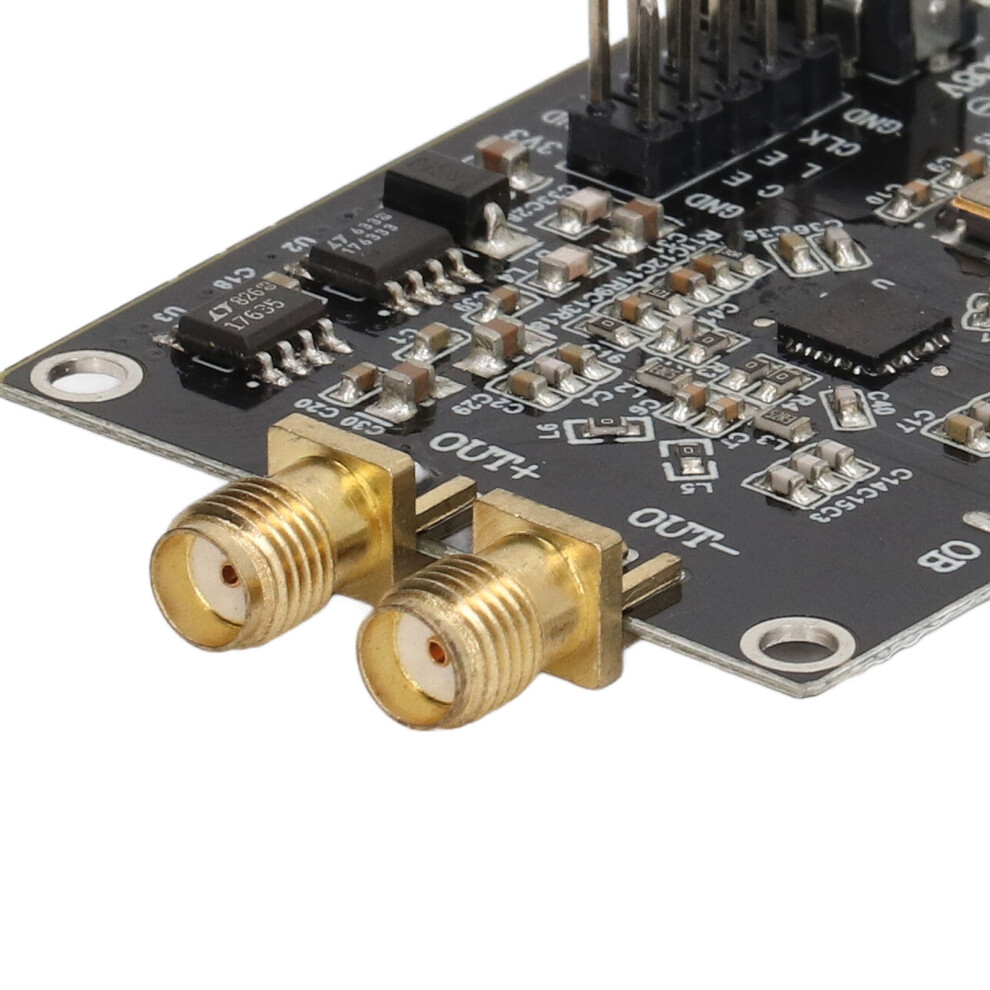

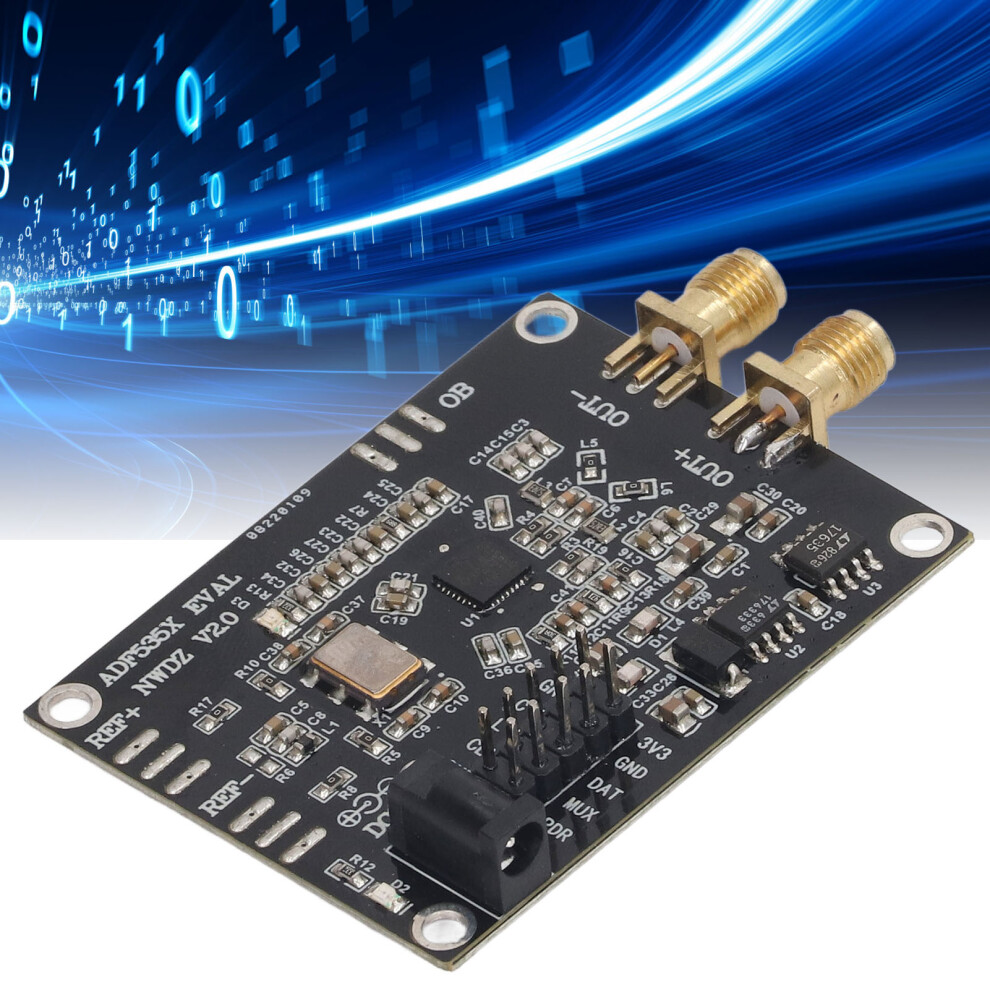

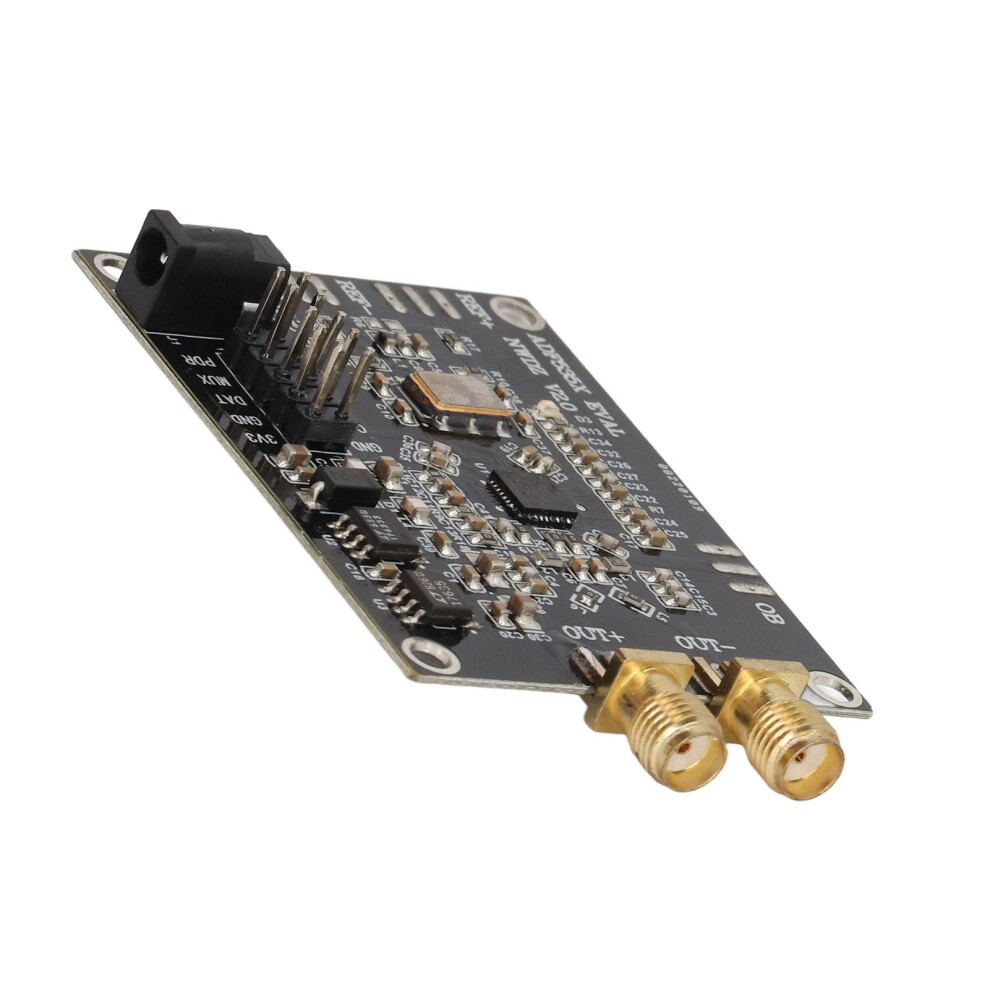

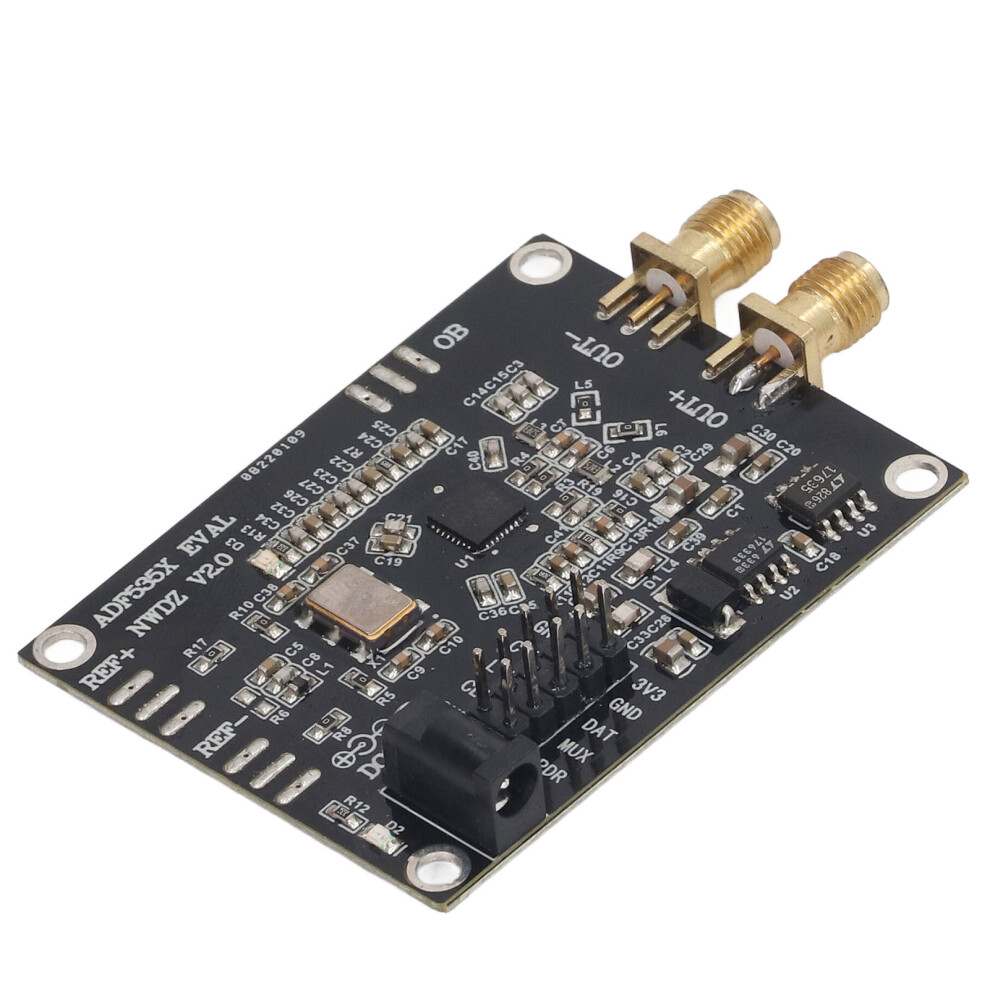

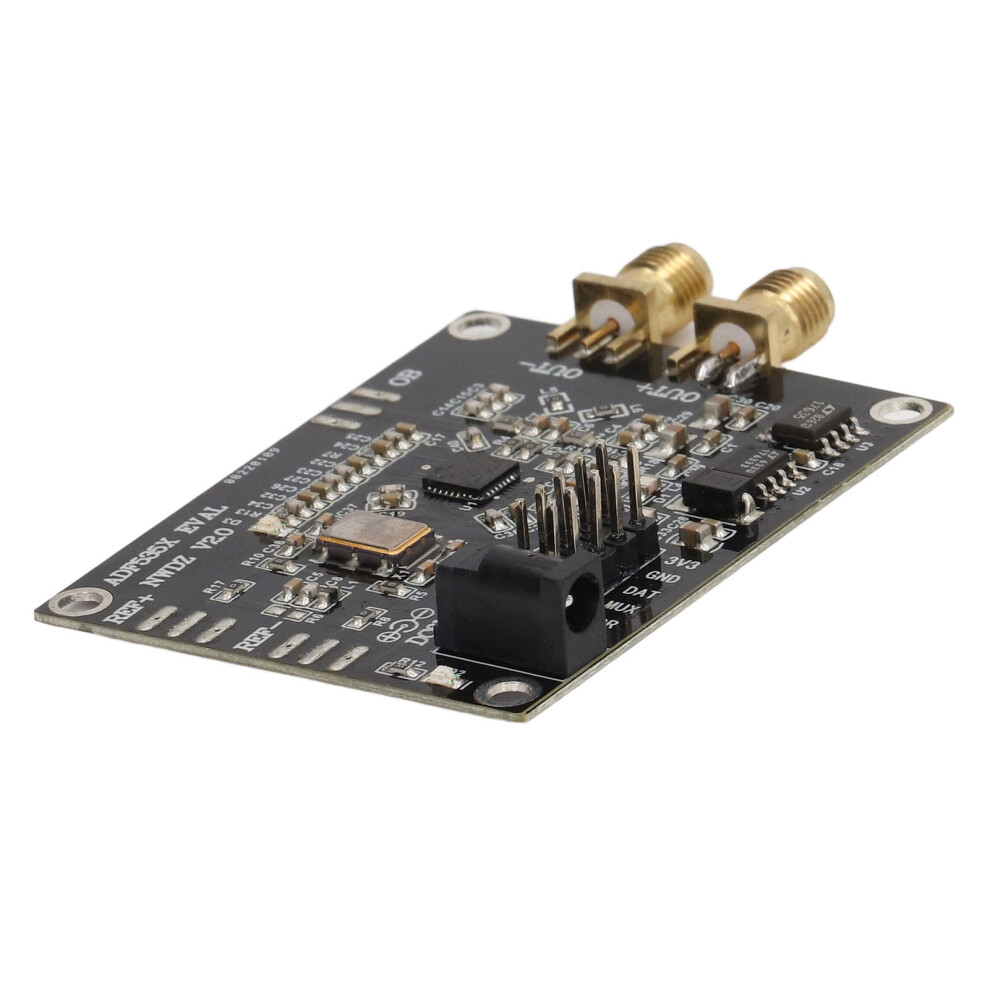

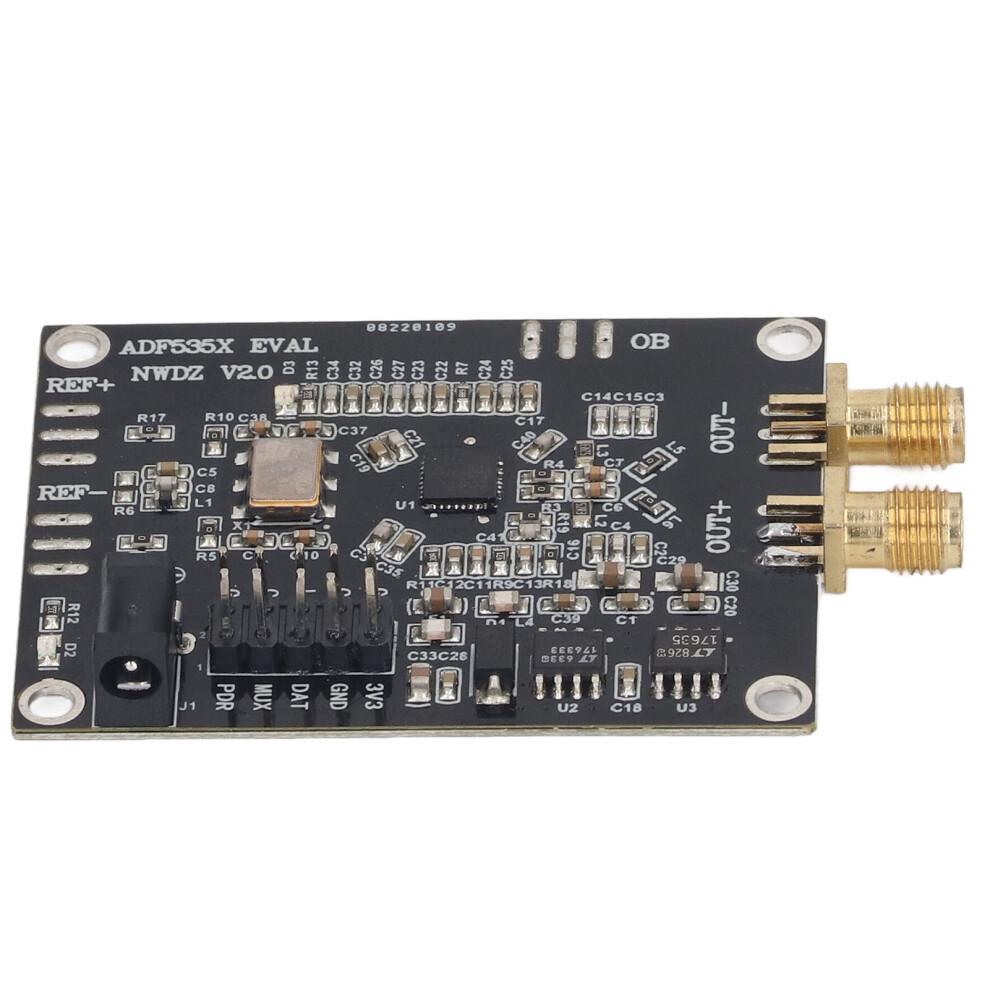

ADF 5355 Development Board Signal Generator Module

ADF 5355 Development Board Signal Generator Module Description

ADF 5355 Development Board Signal Generator Module Phase Locked Loop RF PLL Output 54M to 13.6GHZ

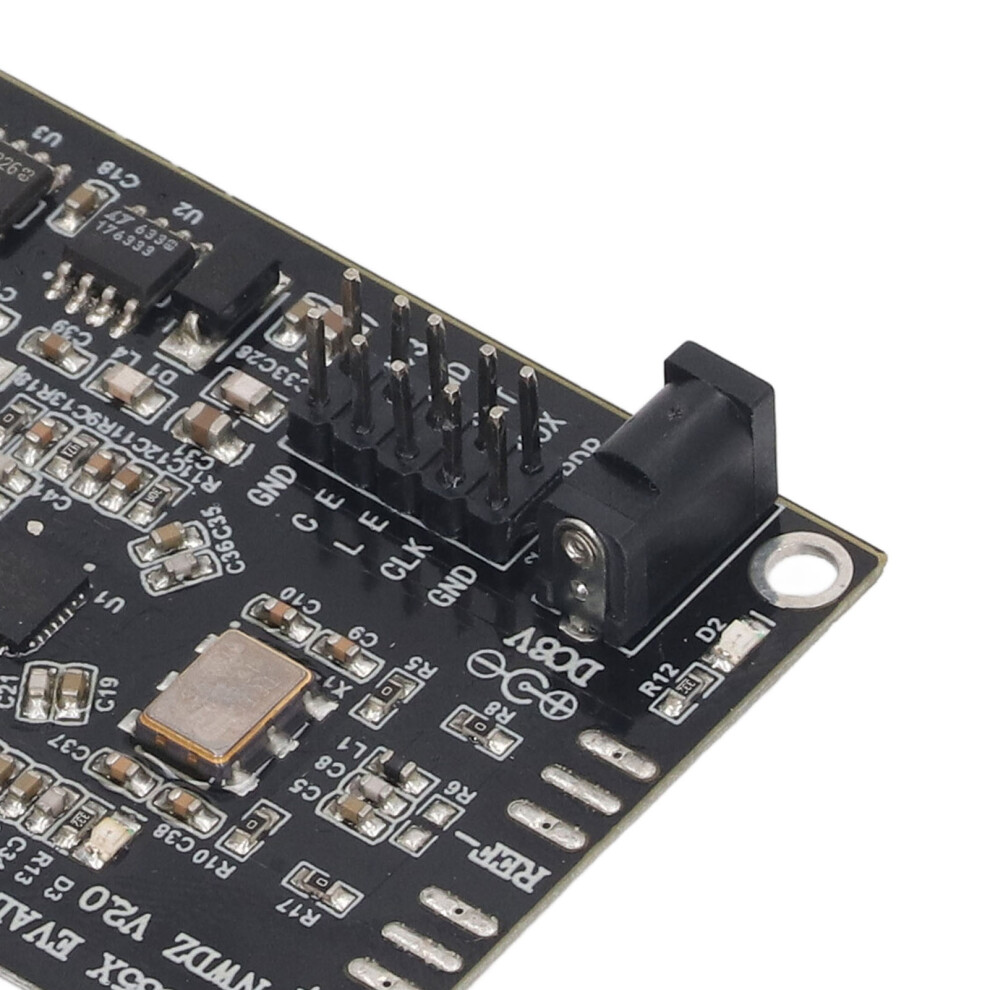

1、LDO Power Supply: The development board is powered by an ultra low noise LDO regulator, which is able to reduce spurious and noise to a greater extent. 2、High Common Mode Rejection: The development board uses a accuracy low noise 25M differential crystal with higher common mode rejection and phase discrimination frequency. 3、External Clock Interface: The development board is equipped with an external clock interface, which allows the user to solder a clock of the appropriate frequency according to their needs. 4、Multifunctional Development Board: The development board has programmable output power, RF output muting function, analogue and digital lockout detection. 5、Wide Application: The development board can be used in wireless infrastructure, point to point or point to multipoint microwave links, satellite or V SAT, test equipment or instrumentation and clock generation.



Item Type: Development Board Material: PCB Model: ADF5355 RF Output Frequency Range: 54 MHz to 13.6 GHz Fractional N division frequency synthesizer and integer N division frequency synthesizer High resolution 38 bit modulo Frequency Discriminator (PFD) operating at frequencies up to 125 MHz Reference frequencies up to 600 MHz Frequency locking maintained over the -40C to +85C range Low phase noise voltage controlled oscillator (VCO) Programmable 1/2/4/8/16/32/64 crossover outputs Programmable Dual Mode Prescaler: 4/5 or 8/9 Programmable output power RF output squelch function Analogue and digital lockout detection Module applications: Wireless infrastructure (W CDMA, TD SCDMA, WiMAX, GSM, PCS, DCS, DECT) Point to point, point to multipoint microwave links Satellite, V SAT Test equipment, instrumentation Clock generation

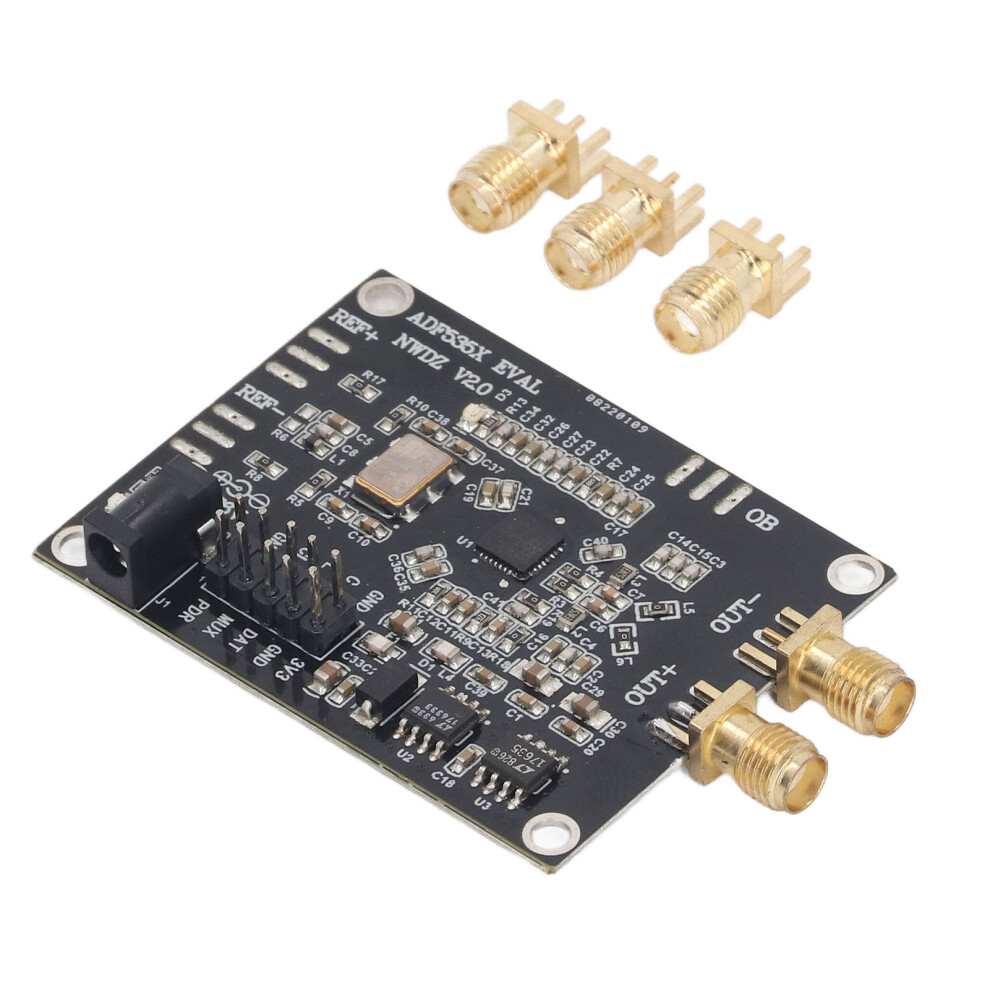

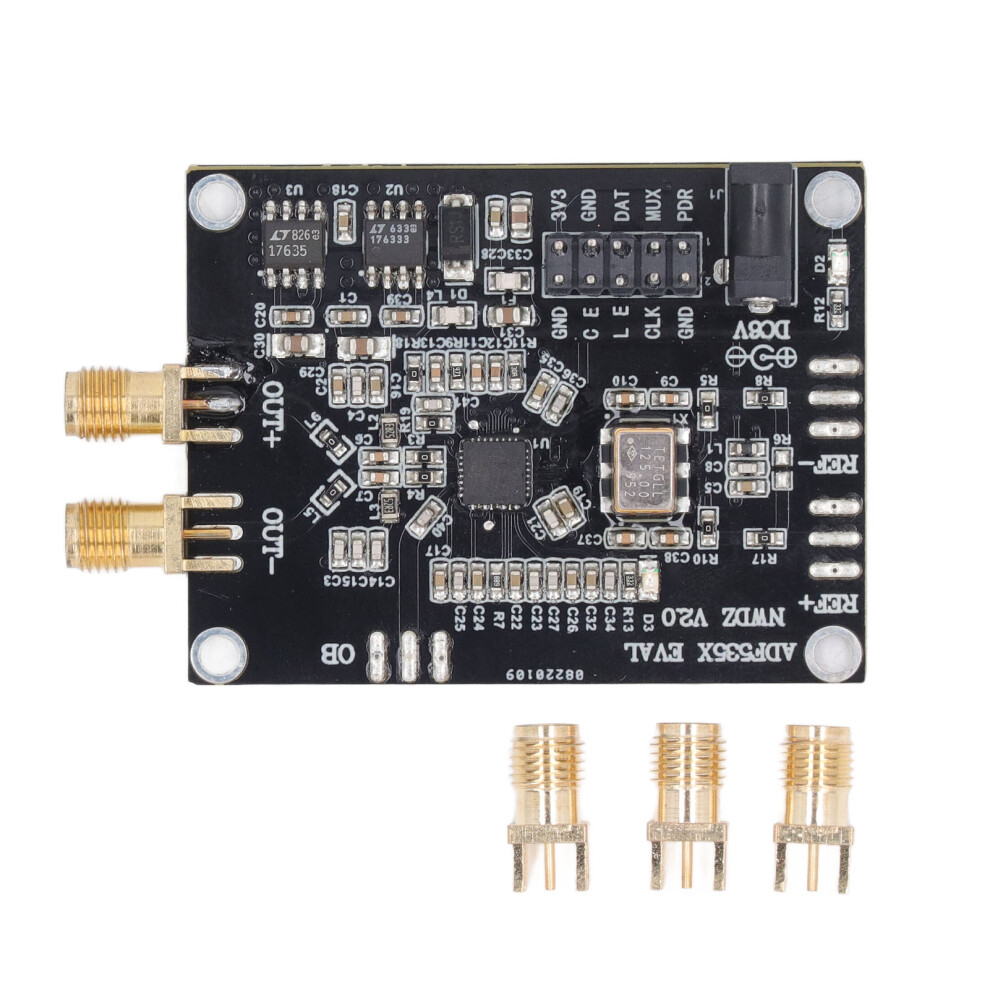

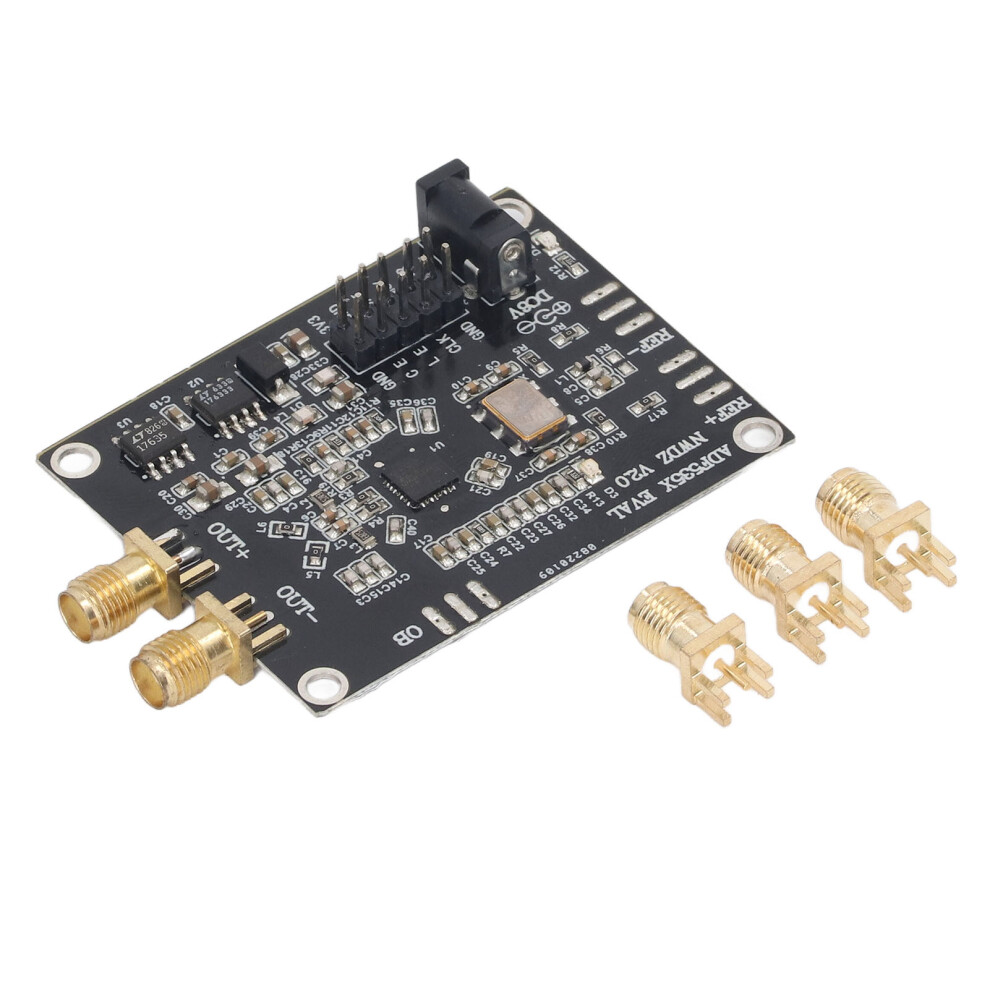

1 x Development Board 3 x Accessory
