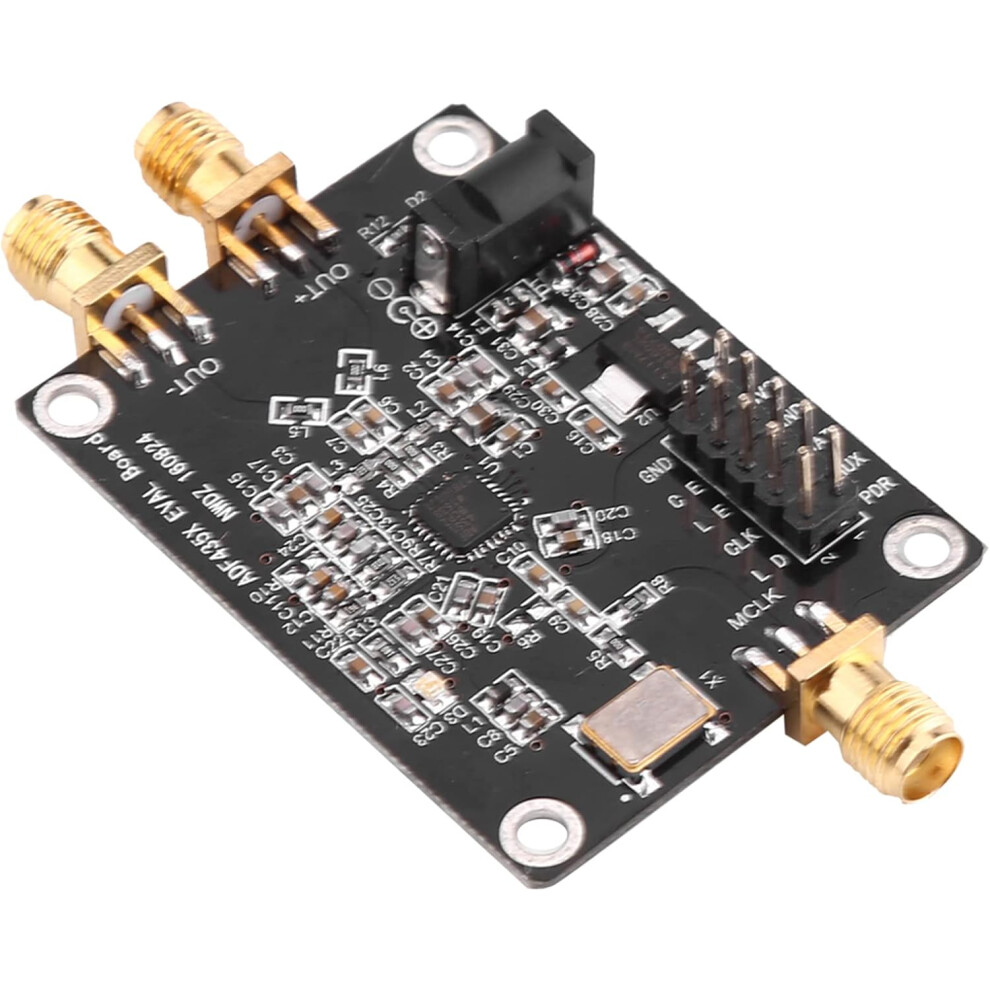

ADF4351 PLL Frequency Synthesizer Board With Simple Control And Jump Capability For Frequency Scanning

ADF4351 PLL Frequency Synthesizer Board With Simple Control And Jump Capability For Frequency Scanning Description

ADF4351 Development Council Precision frequency synthesis across a wide range of frequencies for varied applications. The module provides precise and stable RF generation to support testing, prototyping, and development work. Seamless control via official software. Configure,, and operate the device with a user friendly workflow. Extended functionality for advanced tuning. Access punctual frequency scan, frequency leaps, and exact step control to refine and process signals effectively. Reliable performance with an active crystal oscillator. Crystal oscillator accuracy specified as 50 ppm at 25 MHz, ensuring coherent and consistent frequency generation. Practical applications and use scenarios RF test bench: generate LO signals for mixer and receiver testing with configurable frequency steps and scans. Wireless transceiver prototyping: explore LO frequencies and stepping methods to optimize CCP and RF paths. Educational labs: demonstrate PLL synthesis principles, software controlled frequency selection, and real time parameter adjustment. Why this product stands out. Combines the established ADF4351 platform with software driven control and flexible tuning options, delivering precise, repeatable results for development and testing without unnecessary complexity.
