ADF5355 PhasE locked loop RF output 54M-13.6G

ADF5355 PhasE locked loop RF output 54M-13.6G Description

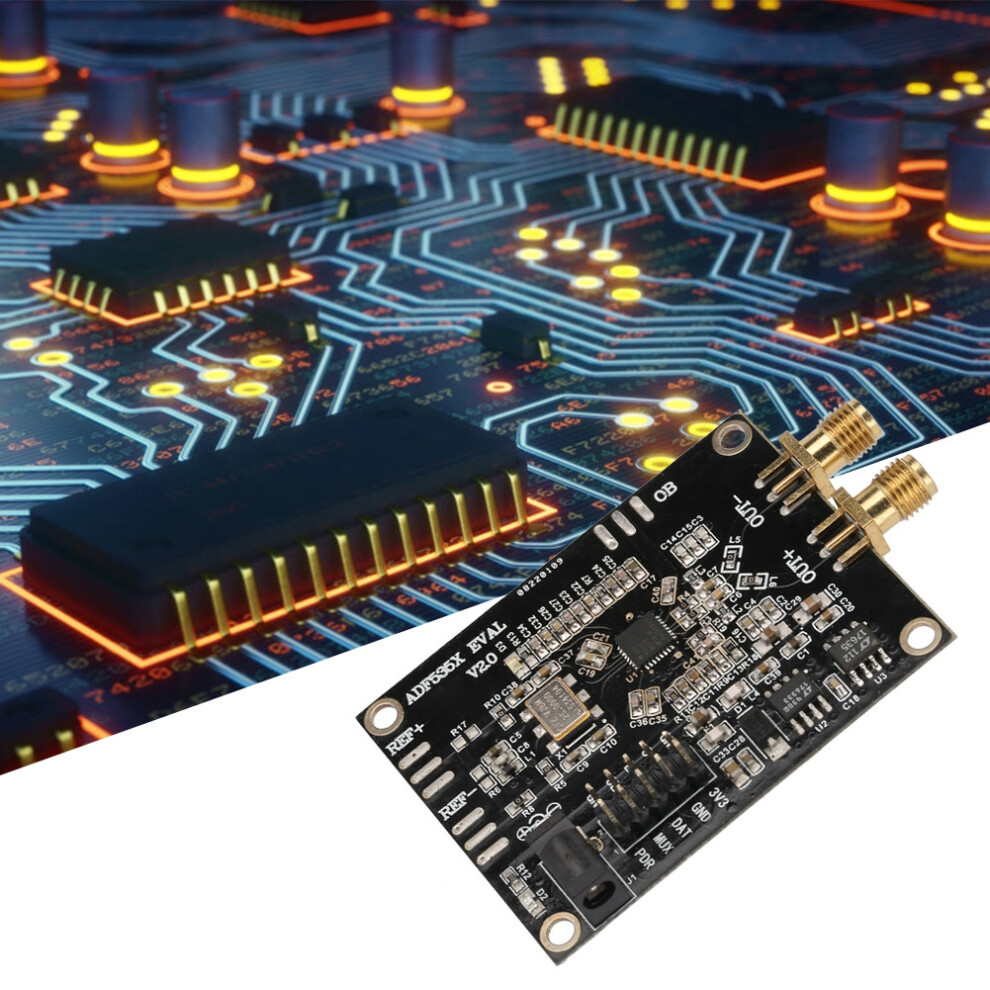

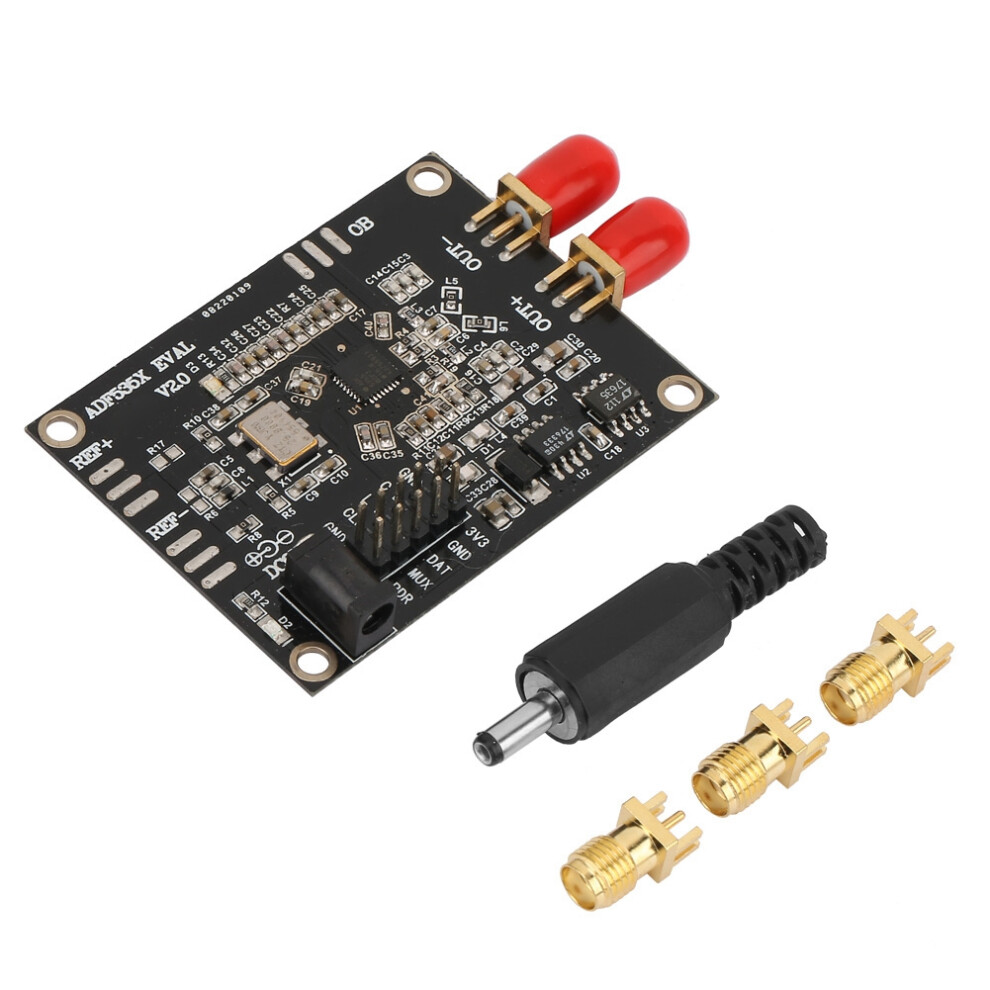

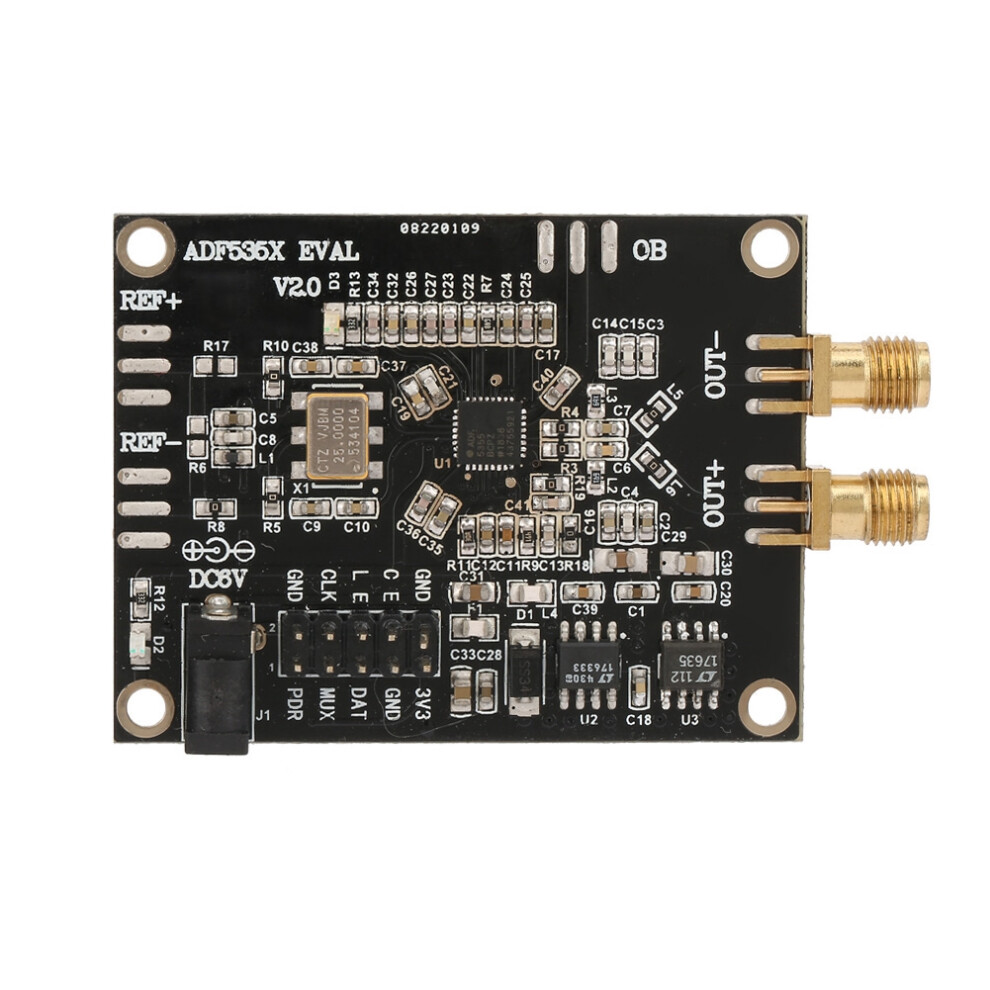

ADF5355 PhasE locked loop RF output 54M-13.6G Development Board PLL VCO



1、RF output frequency range: 54 MHz to 13,600 MHz 2、Fractional N minute frequency synthesizer and integer N minute frequency synthesizer 3、High resolution 38-bit module 4、Frequency detector (PFD) with operating frequency up to 125 MHz 5、Reference frequency up to 600 MHz



Features: RF output frequency range: 54 MHz to 13,600 MHz Fractional N minute frequency synthesizer and integer N minute frequency synthesizer High resolution 38-bit module Frequency detector (PFD) with operating frequency up to 125 MHz Reference frequency up to 600 MHz Low phase noise voltage controlled oscillator (VCO) Maintain lock frequency in-40C to +85C Low phase noise voltage controlled oscillator (VCO) Programmable 1/2/4/8/16/32/64 crossover output Programmable dual mode predivider: 4/5 or 8/9 Programmable output power RF output mute function Analog and digital lock detection Power supply: ultra-low noise LDO power supply is adopted to reduce stray and noise. Interface DC002 [email protected] or so Precise low-noise 25M differential crystal vibration is adopted, with higher common mode suppression ability and phase discrimination frequency. Reserve external clock interface Module application:Wireless infrastructure（W-CDMA,TD-SCDMA, WiMAX, GSM,PCS,DCS,DECT,point-to-point/point-to-multipoint microwave link,Satellite/V - SAT, test equipment/ instrumentation, clock generation Specification: Model:ADF5355 RF output frequency range: 54 MHz to 13600 MHz Weight: Approx.20g/0.7oz Package list: 1 x ADF5355Development Board
