Adjustable 4-20mA Signal Generator DC12/24V, 50x50mm PCB
New
£16.52
Would you like us to let you know when it's back?
Description & Details
Summary
- Knob operation, adjust output response fast, no delay.
- The power port has polarity protection and will not damage components when the power is reversed.
- Can be used for signal source, valve regulation, output meter test, LED test, analog transmitter.
- To test whether the output is normal, you can use a multimeter to short the "4-20mA output" terminal.
- Easy to use and convenient to connect wire with good performance.
Adjustable 4-20mA Signal Generator DC12/24V, 50x50mm PCB Description

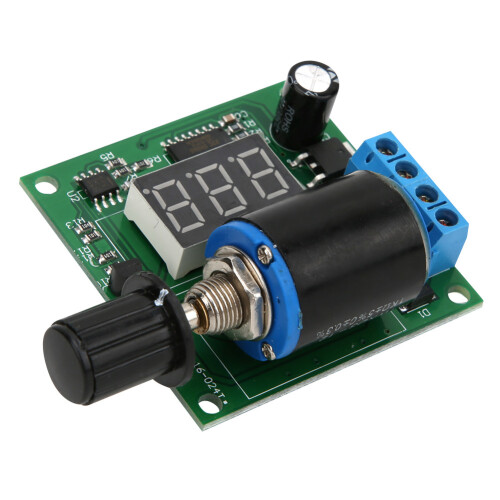

Adjustable Current Signal Generator 4~20mA DC12/24V Current Signal Generating Module
Item Type:Current Signal Generator
Power Supply: DC 12V or 24V
Current: 4-20mA
Total Power: <1W
Output Load Impedance: 0-350 Ohms (DC12V); 0-800 Ohms (DC 24V)
PCB Board Size: 50 x 50mm / 1.97 x 1.97in
Details
| OPC | PSX56CW |
|---|---|
| Codes | 6911392681330 (EAN) |
