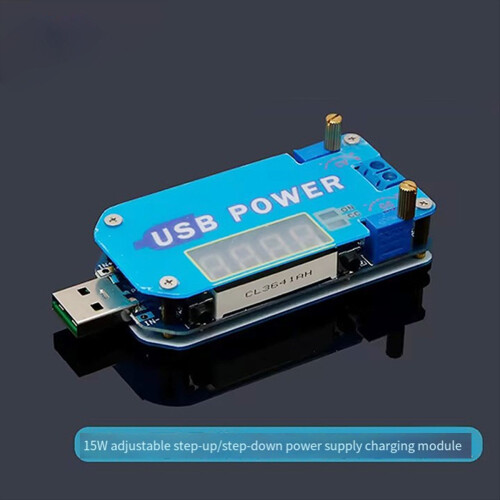

Adjustable DC-DC Converter Module 15W with CC CV USB Step Up/Down Boost Buck 5V to 30V Output Shell Case

Adjustable DC-DC Converter Module 15W with CC CV USB Step Up/Down Boost Buck 5V to 30V Output Shell Case Description

4-Bit digital tube display
Three input power modes
Support short circuit protection
Support constant voltage constant current adjust
Multiple parameters can be displayed in turn

This is a DC adjustable constant voltage constant current step up/down power supply module with LED digital tube display.Display output voltage, output current and output power.Adjustable output
voltage and current.Set output current to meet the require.It can be used as ordinary buck power supply module, charger and LED constant current driver.Simple and efficient, practical
Input Voltage for Pads: DC 4.0V-13.0V
Input Voltage for USB: DC 5.0V
Output Voltage: DC 0.5V-30.0V
Output Current: 2A
Output Power: 15W(Max)
Voltage Display : +/-0.1V
Voltage Display Resolution: 0.1V
Current Display Range: 0-2.2A
Current Display : +/-0.05A
Voltage Display Resolution: 0.001A
Power Display Range: -99.99Ah
Capacity : 0.00W-15.0W
Protection Temperature Threshold: 100
Conversion efficiency: 95%
Working current: 30mA
Short Circuit Protection: Yes
Anti-backflow Protection: Yes
Over-Current Protection: Yes
Over-Voltage Protection: Yes
Over-Power Protection: Yes
Working Temperature range: -20C-85C
Working Humidity Range: 0%-95%RH
Color: As Shown
Material: PCB

Package Contents:
1 x DC-DC Converter Module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
