Adjustable frame mounts for larger solar panels Description

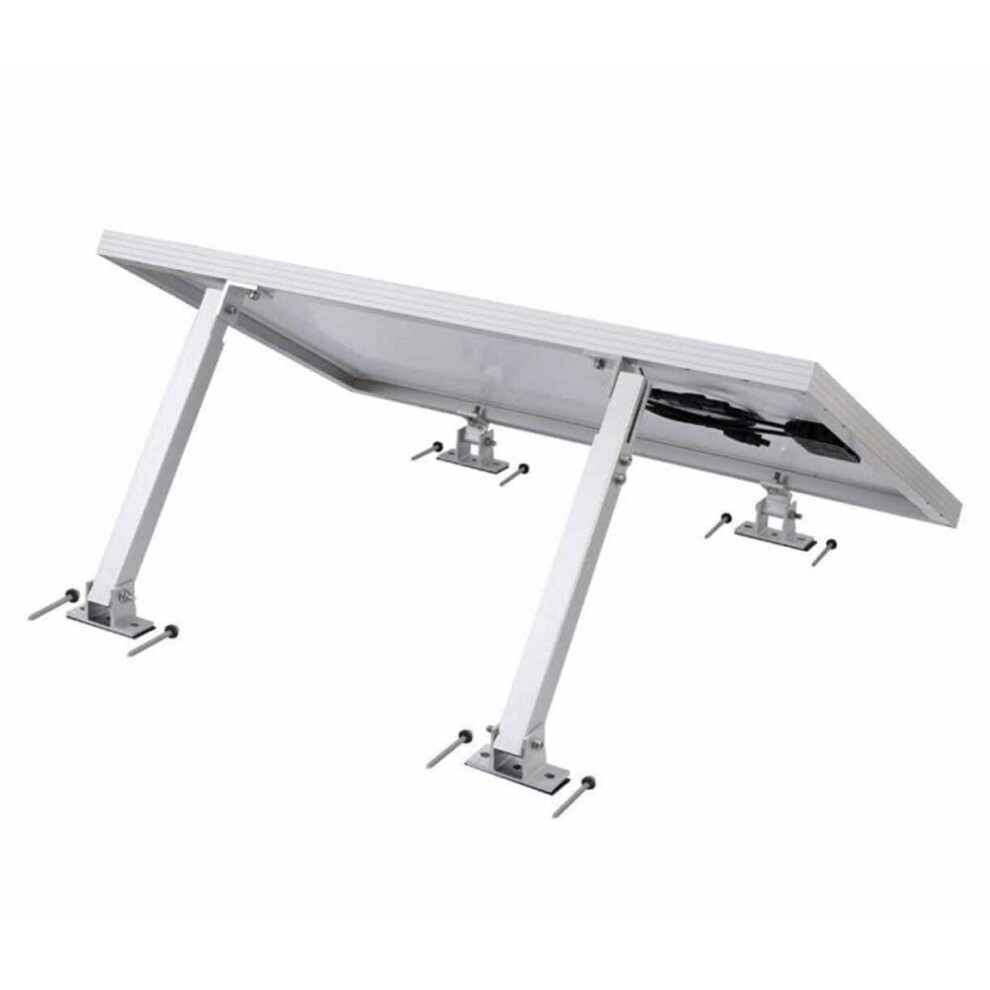

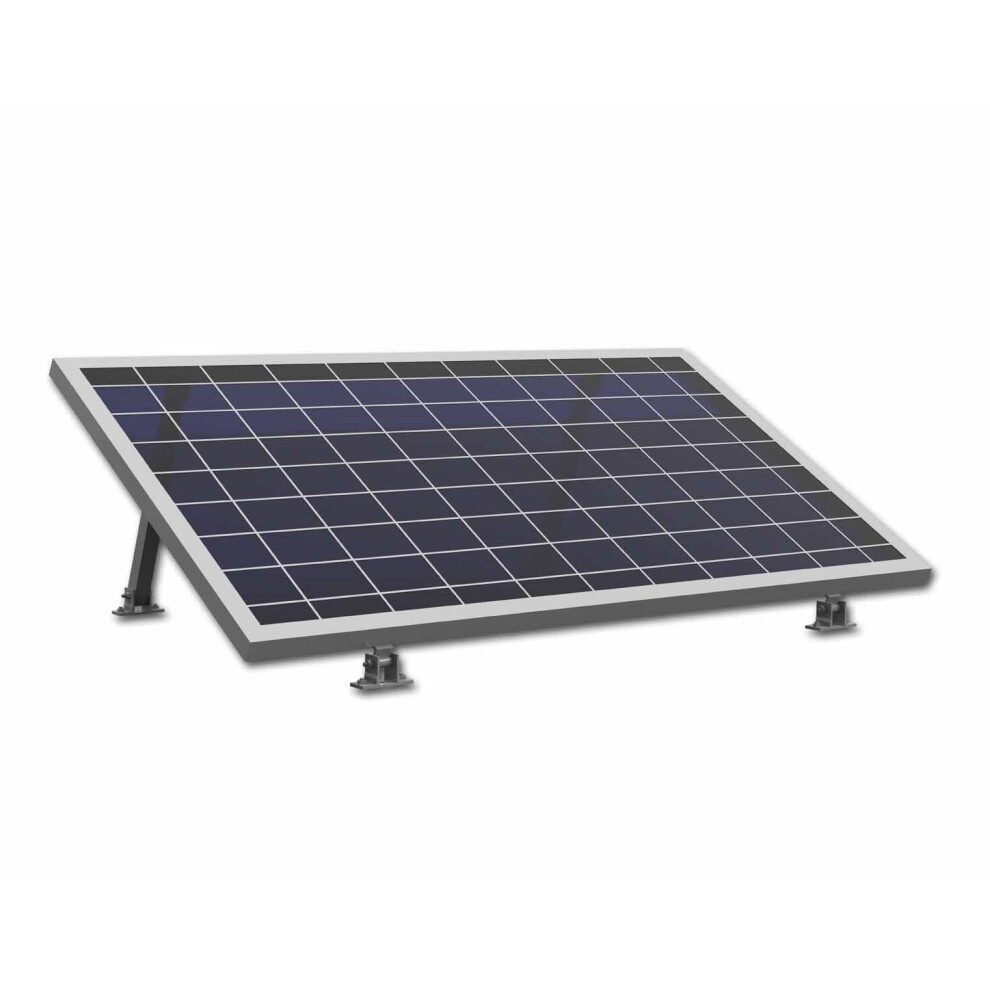

Adjustable Angle Mounting Frame

Adjustable range depending on width/length of solar panel, generally between 20 - 60 degrees.

Gain up to 25% more solar panel efficiency by tilting your panels towards the sun instead of laying them flat. This is especially beneficial over winter months when there is less sunlight.

Suitable for large solar panels due to the individual legs design, we recommend nothing smaller than 770mm.

To work out your optimum solar panel angle, simply take the value of your global latitude location and subtract 15 degrees. e.g. we are based 52 degrees North, 52 - 15 = 37 degrees, therefore, in this example, this solar panel would reach its best power output if it is pointed south (in the northern hemisphere) and angled at 37 degrees towards the sun.

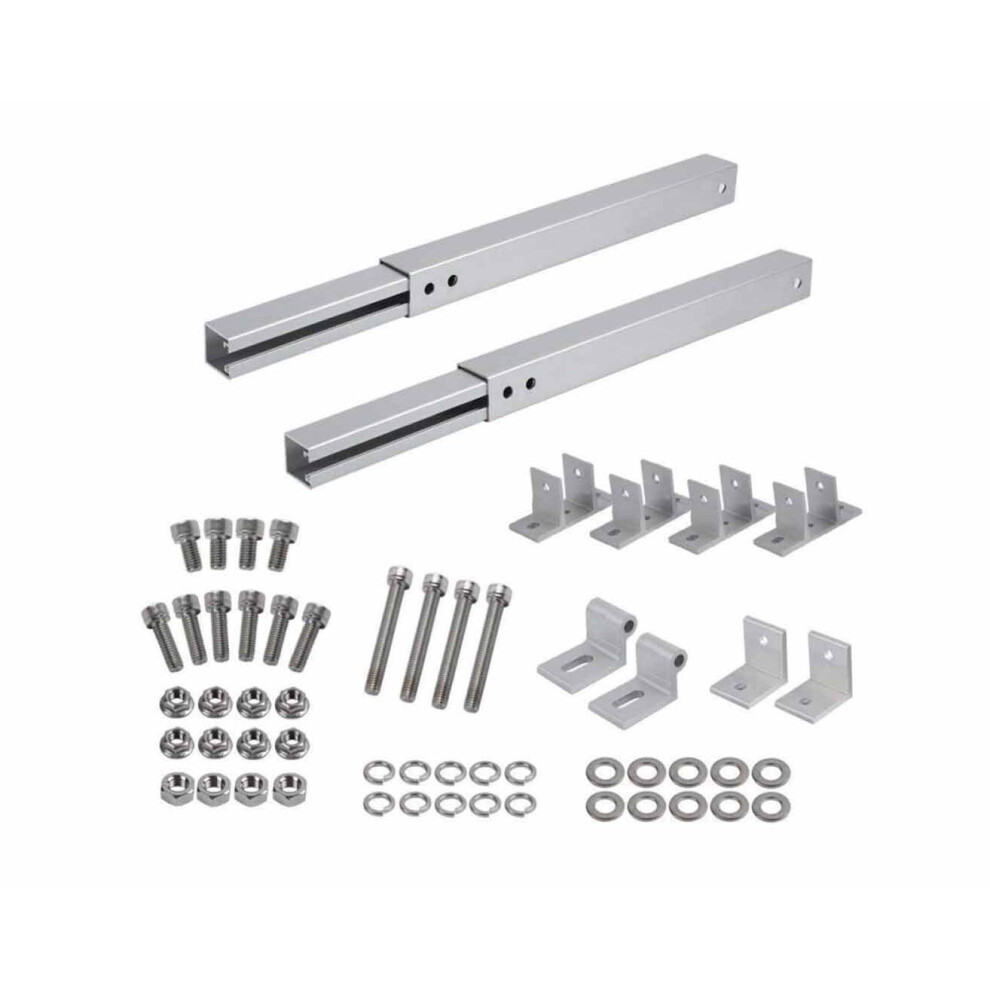

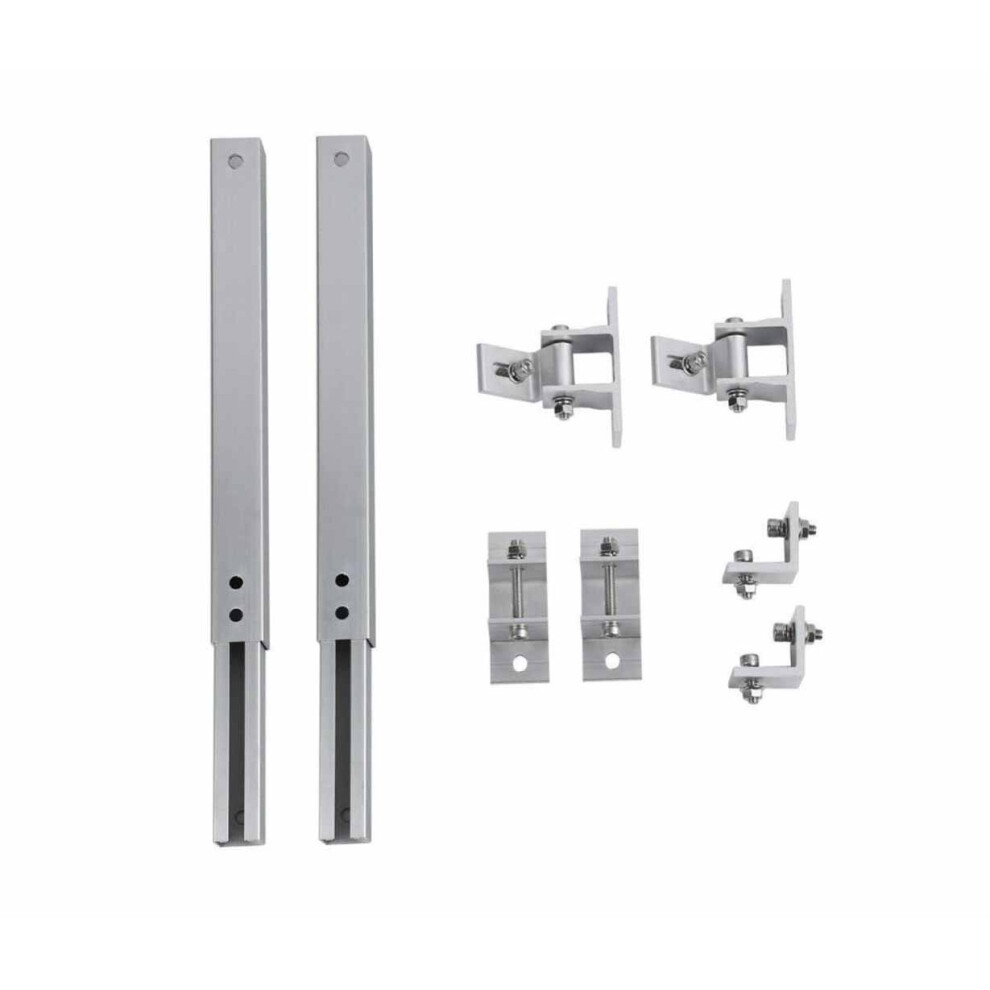

Kit Contents

• 2X Aluminium Adjustable legs

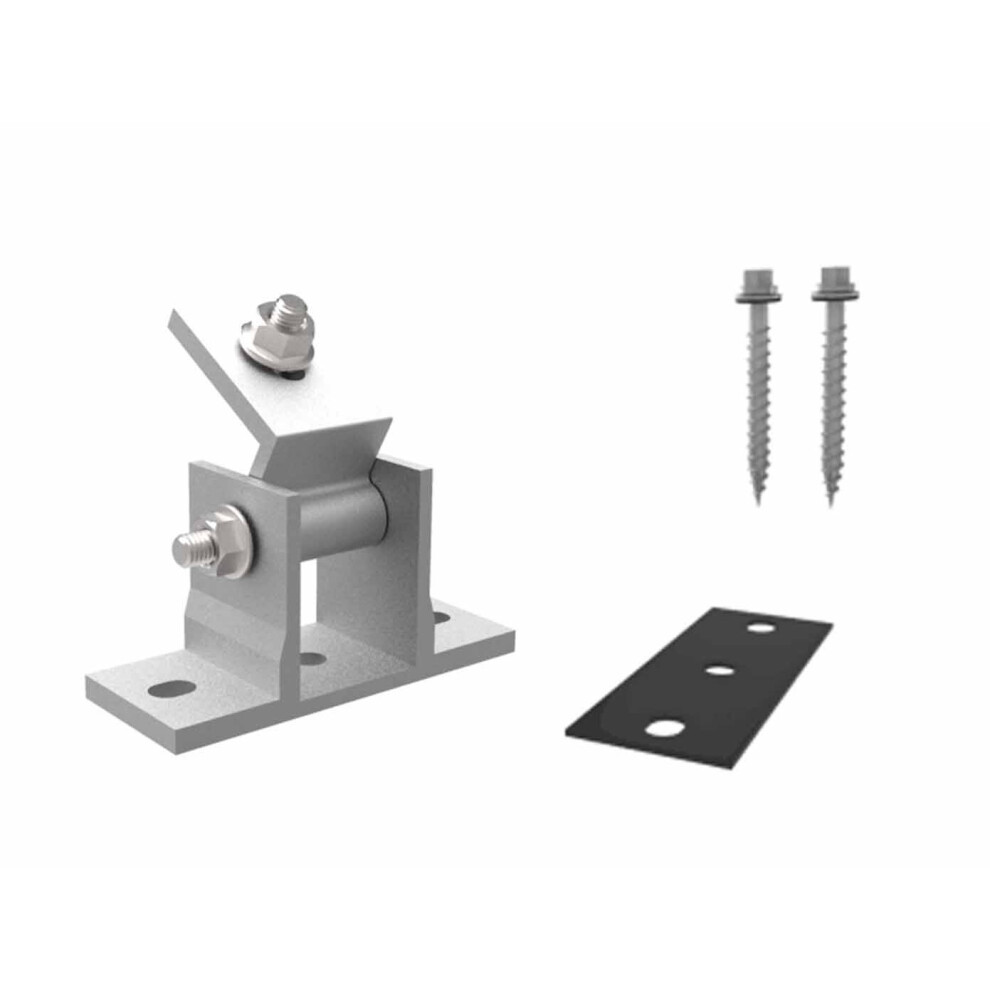

• 4X Feet
• Solar Panel Fixing nuts, bolts, and washers

Solar panel not included
