ADS1220 ADC 24 Bit Converter Module Low Power Analog-to-Digital

ADS1220 ADC 24 Bit Converter Module Low Power Analog-to-Digital Description

Product description:
is a 24-bit analog-to-digital converter (ADC) that provides many integrated features to reduce system cost and component count for small sensor signals. The device passes a flexible input multiplexer (MUX), low noise, programmable gain amplifier (), two programmable excitation current sources, a voltage reference, an oscillator, a low side switch and a Temperature sensor to implement two differential or four single-ended inputs.
The device can be converted at a data rate of 2000 samples per second (SPS) with a single cycle of precipitation. At 20 SPs, the digital filter provides simultaneous 50 Hz and 60 Hz rejection for noise industrial applications. The internal provides high gain to 128 V/V. The makes the ADS1220 ideal for measuring small sensor signals such as resistance temperature detectors (RTDs), thermocouples, thermistors, and resistive bridge sensors.
The device supports measurement of or fully differential signals when using the programmable gate array. Alternatively, the device can be configured to pass through the internal while still providing high input impedance and gain of up to 4 , allowing single-ended measurements.
In the duty cycle mode, when the is disabled, the power consumption is as low as 120pa. The ADS1220 is available in a leadless VQFN-16 or ATSSOP-16 package and is specified over the -40C to +125C temperature range.

K type thermocouple measurement
Product Features:
Low current consumption: as low as 120μA in duty cycle mode (typical)
Power range: 3 V~5 V
Up to 20 effective resolutions
Two differential or four single-ended inputs
Dual matched programmable current source: 10μA to 1.5 mA
Internal 2.048-V Reference: 5 ppm/C (typical) Drift
Internal 2% oscillator
Internal temperature sensor: 0.5C (typical) accuracy
SPI compatible interface (mode 1)
Applications:
Temperature sensor measurement:
1.Thermistor
2.Thermocouple
3. Resistance Temperature Detector (RTD): 2-wire, 3-wire or 4-wire type
Bridge sensor measurement:
1.Pressure sensor
2.Strain gauge
3. Scale
Portable instrument
Factory automation and process control
Color: As Shown
Material: PC

Package Contents:

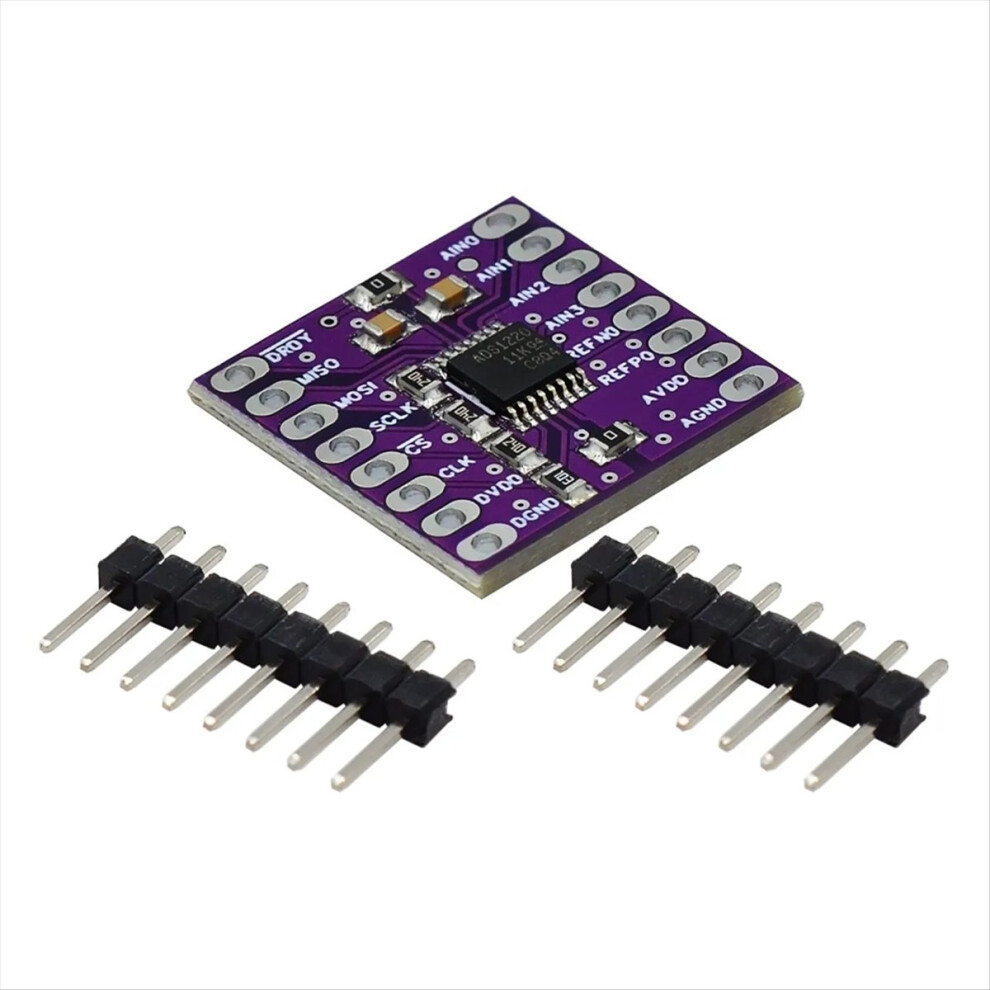

1 x ADS1220 ADC 24 Bit Converter Module
