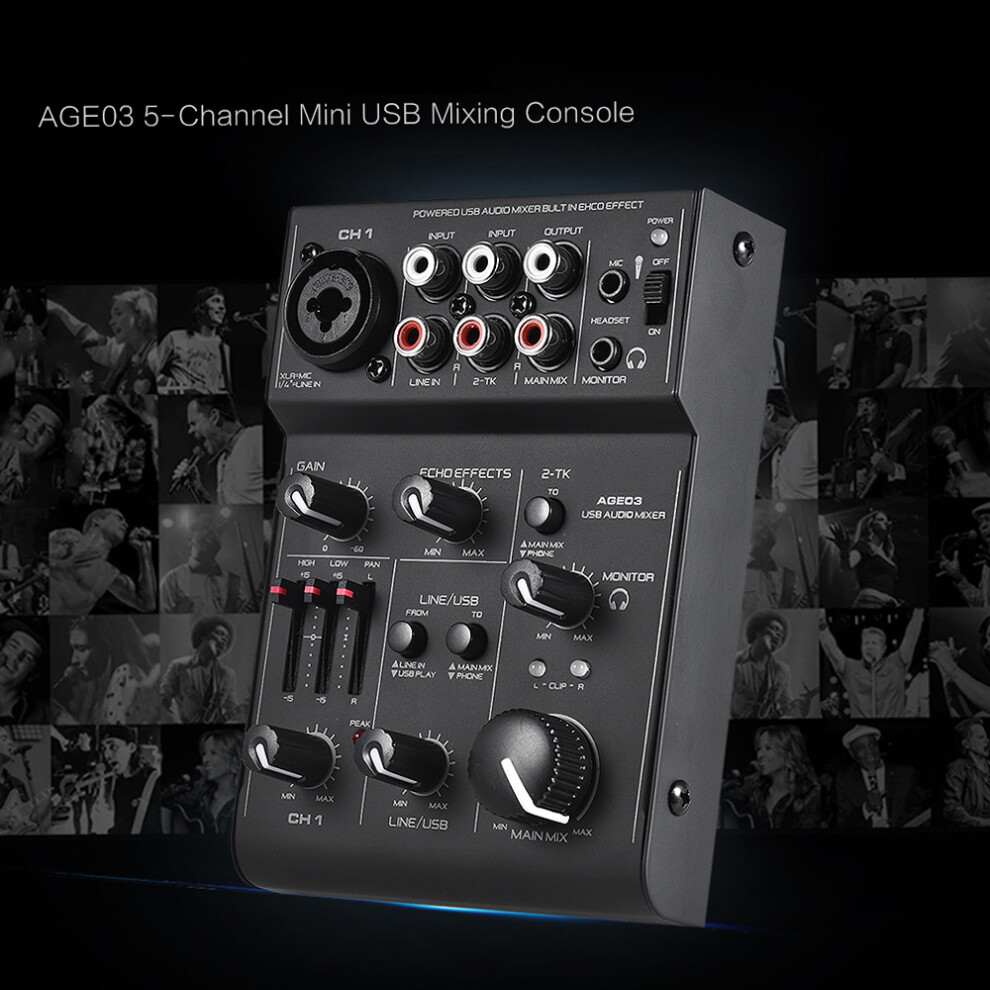

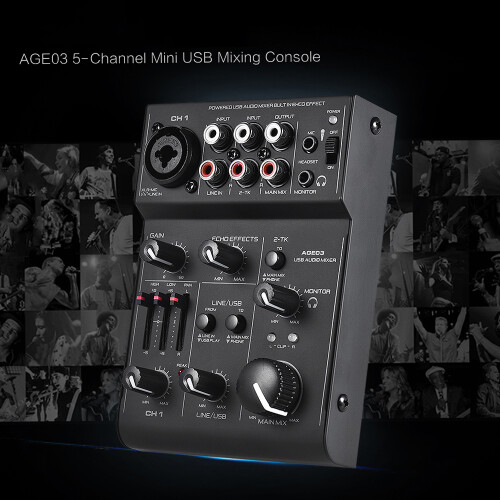

AGE03 5-Channel Mini Mixer USB Audio Interface Echo Effect USB Powered

AGE03 5-Channel Mini Mixer USB Audio Interface Echo Effect USB Powered Description

1、Compact size 5-channel mixing console with USB 2.0 audio interface, and audio data can be sent between the mixer and computer. 2、DC 5V low voltage powered, supports 5V power bank or computer power supply via the including USB cable, convenient usage. 3、It features 5 total inputs including a COMBO(XLR+TRS) jack with phantom 18 V power and EQ on Channel 1,which can be used to connect mono signal, such as XLR microphone or 1/4\" line level. 4、It also delivers two stereo channels（Stereo LINE IN (RCA jacks) \u0026 stereo S-TK input(RCA jacks) , which connects an audio source with line level like CD player. 5、Other features: 2-band EQ(HIGH \u0026 LOW) and PAN control; Built-in echo effect; GAIN control; headphone volume control; LED indicator lights; etc. 6、MIC/LINE combined jack can be used to connect mono signal, such as XLR microphone or 1/4\" line level. With 3.5mm microphone input jack \u0026 3.5mm headphone output jack.
Features:
Compact size 5-channel mixing console with USB 2.0 audio interface, and audio data can be sent between the mixer and computer.
DC 5V low voltage powered, supports 5V power bank or computer power supply via the including USB cable, convenient usage.
It features 5 total inputs including a COMBO(XLR+TRS) jack with phantom 18 V power and EQ on Channel 1,which can be used to connect mono signal, such as XLR microphone or 1/4" line level.
It also delivers two stereo channels（Stereo LINE IN (RCA jacks) & stereo S-TK input(RCA jacks) ），which connects an audio source with line level like CD player.
Stereo MAIN MIX output (RCA jacks) for connecting the input of and amplifier or a recorder.
With 3.5mm microphone input jack & 3.5mm headphone output jack.(MIC and MONITOR jacks must be connected at the same time to avoid unnecessary noise)
Other features: 2-band EQ(HIGH & LOW) and PAN control; Built-in echo effect; GAIN control; headphone volume control; LED indicator lights; etc.
Specifications:
Model: AGE03
Material: Metal
Phantom power (Mic Pin2/Pin3 and Pin1): +18 V
Power Supply: DC 5V 500mA via USB interface

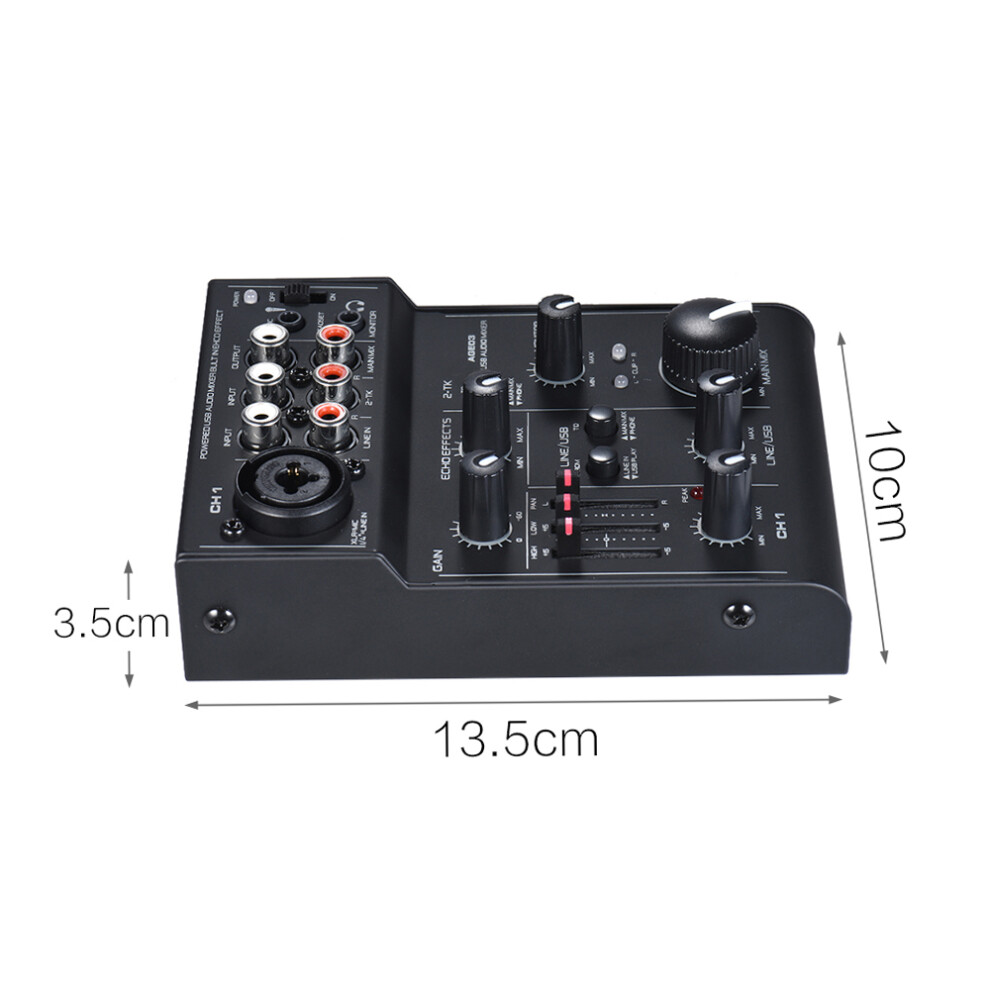

Item Size: Approx. 10 * 13.5 * 3.5cm / 3.9 * 5.3 * 1.4in
Item Weight: Approx. 430g / 15.2oz
Package Size: Approx. 17.5 * 13.5 * 10.5cm / 6.9 * 5.3 * 4.1in
Package Weight: Approx. 620g / 1.4lb
Note:
This unit were using the best and the most stability brand TI USB chip set , it is an integrated USB sound card and can be used with no external system driver, and supports both MAC and Windows with many versions. Not supports ASIO drivers.

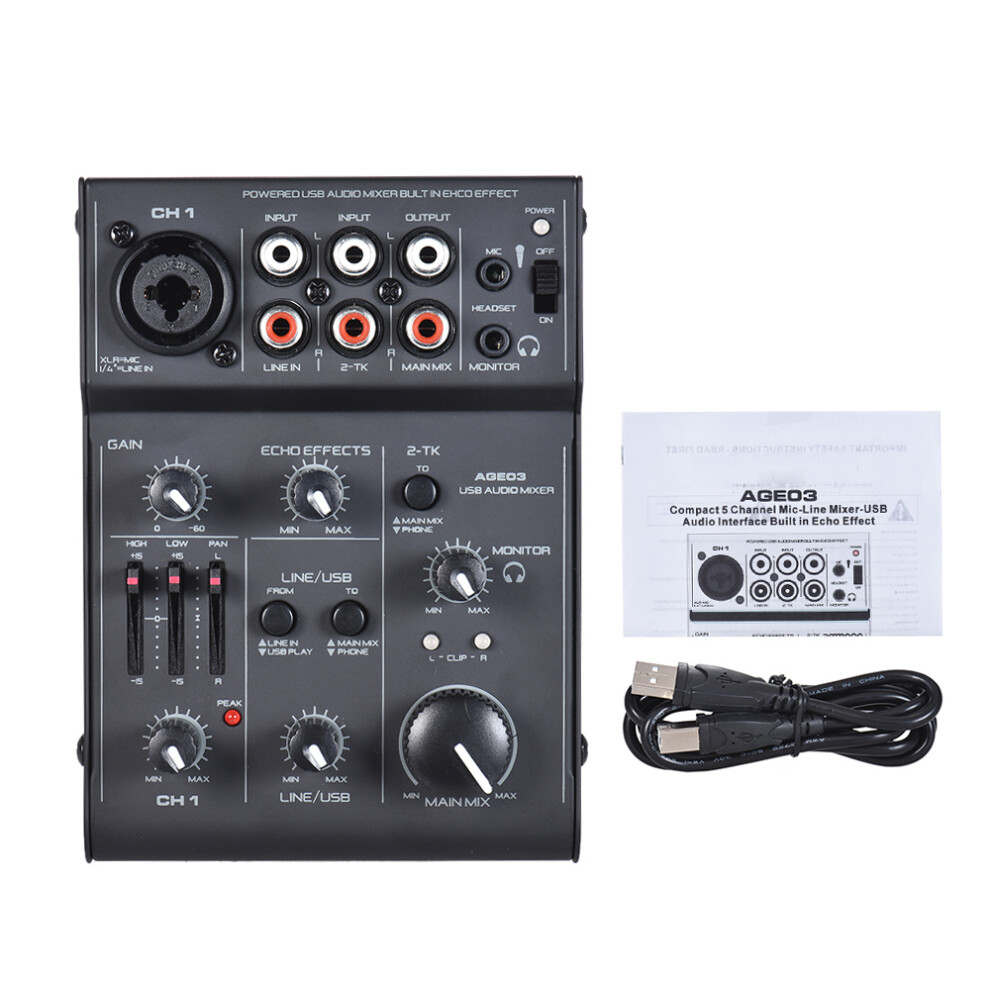

Package List:
1 * Mixing Console
1 * USB Cable(about 1m)
1 * User Manual(English)
