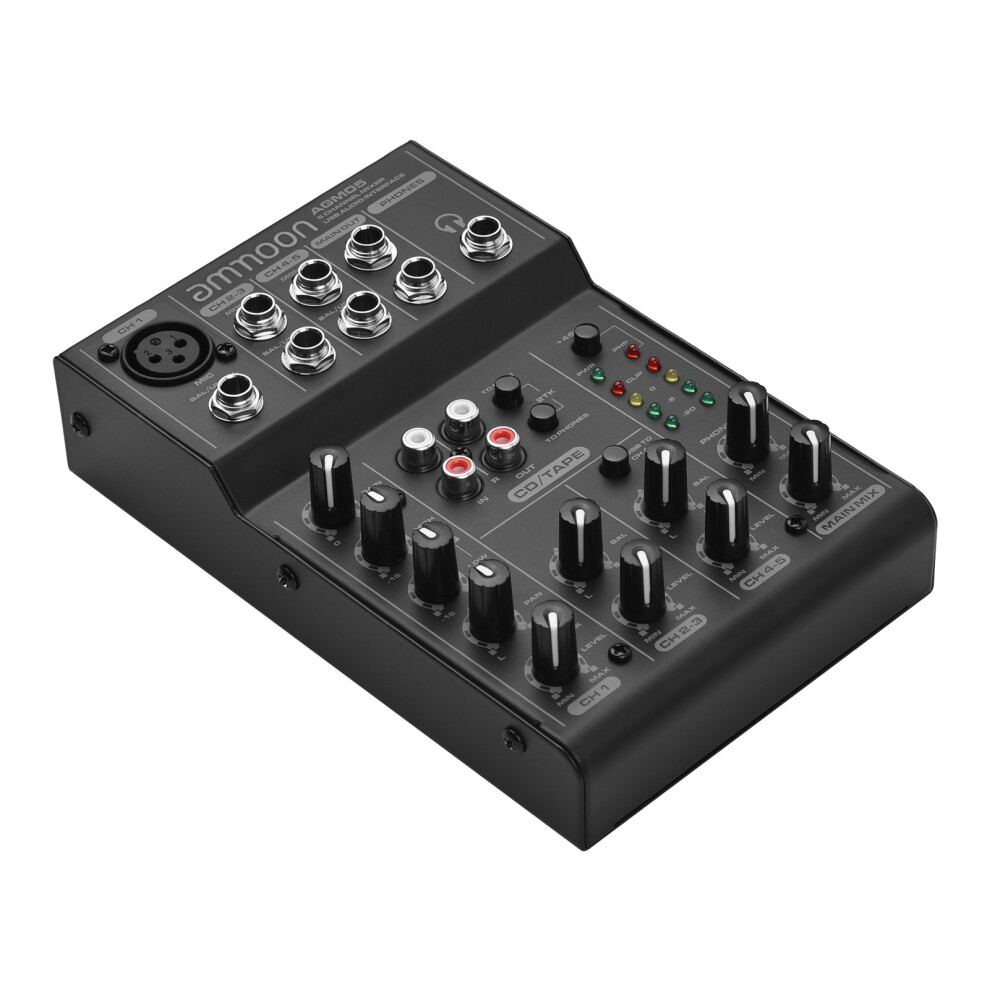

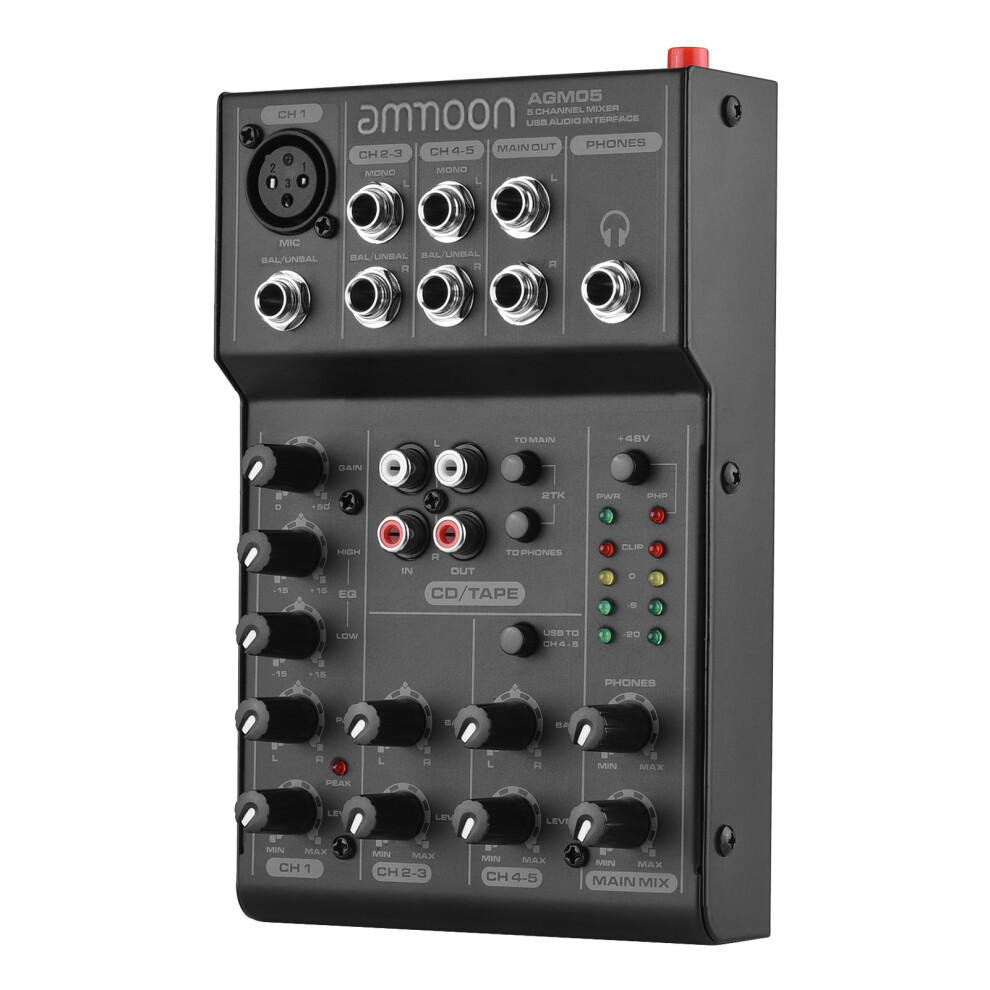

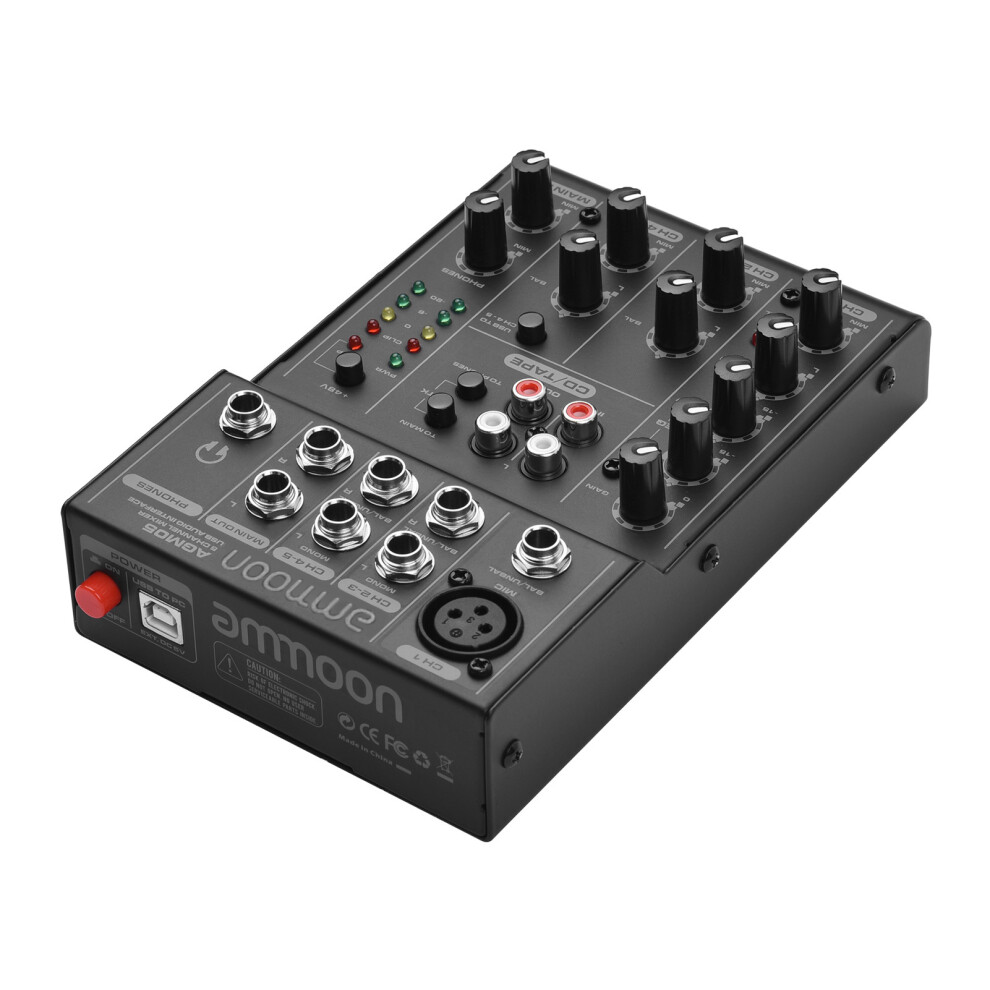

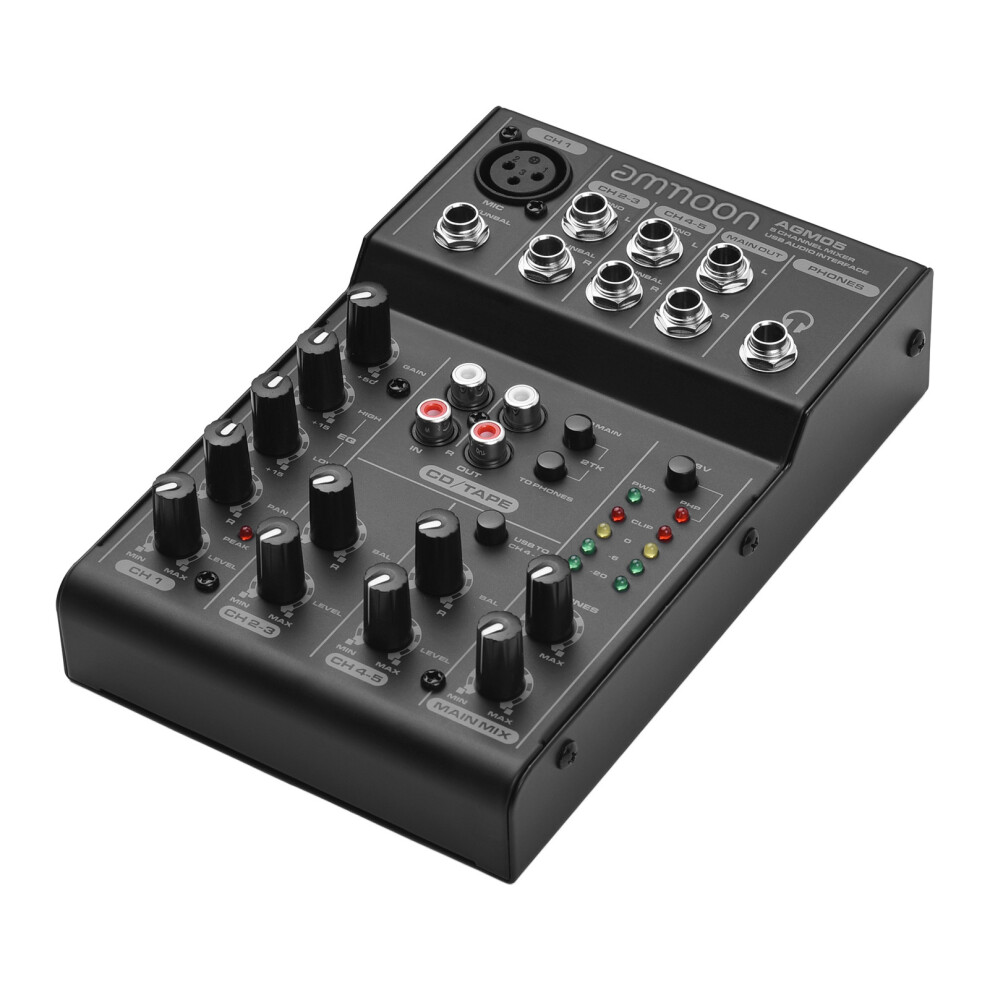

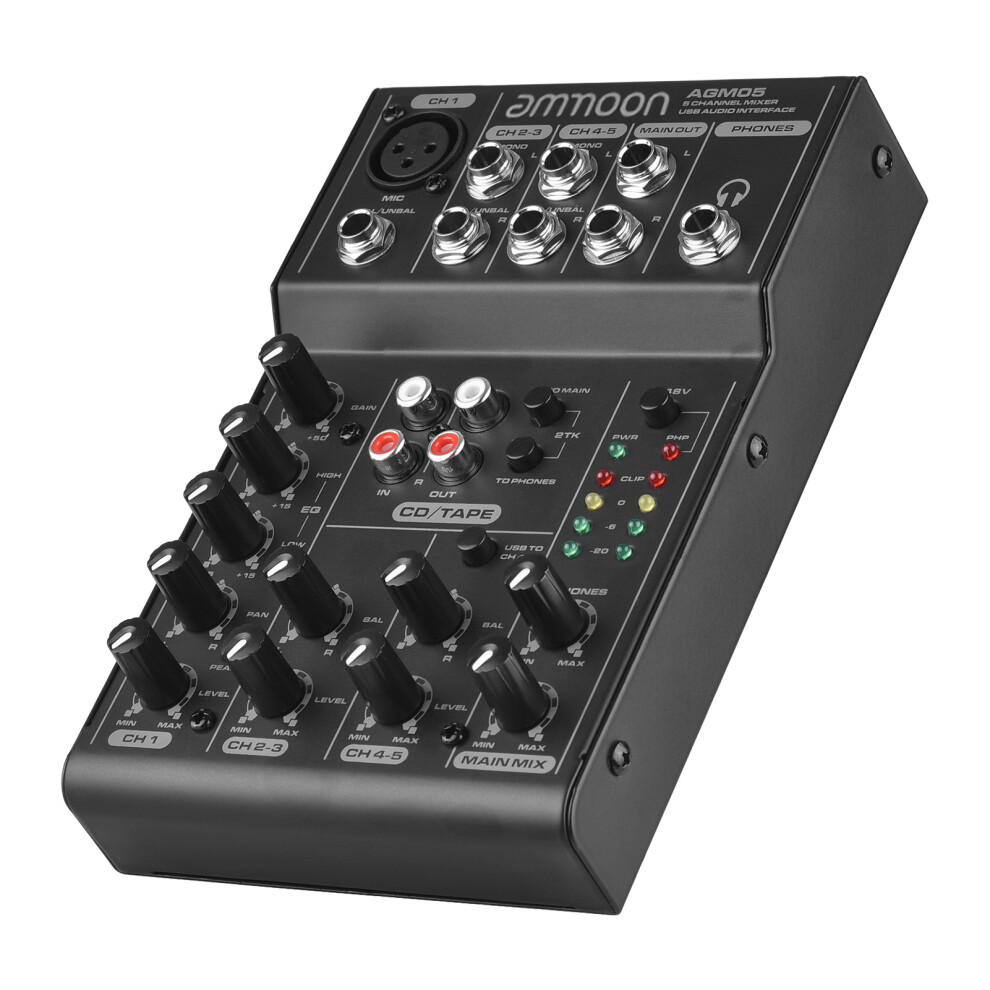

AGM05 5-channel mixer USB interface 48V phantom

AGM05 5-channel mixer USB interface 48V phantom Description

1、Female XLR \u0026 1/4 inch TRS inputs on CH 1 for connecting microphone, musical instrument; stereo/mono 1/4 inch TRS inputs on CH 2-3 \u0026 CH 4-5 for connection of an audio source with line signal level and other audio devices. 2、Main output 1/4 inch TRS(L \u0026 R) plug to connect amplifier, receiver or other mixer; 1/4 inch monitor interface to connect headphone for real time audio recording monitoring. 3、CH 1 has GAIN, 2-band EQ(HIGH \u0026 LOW), PAN and LEVEL controls; CH 2-3 \u0026 CH 4-5 support balance and output volume adjustment; and there are independent control knobs to adjust headphone volume and master volume, simple to operate. 4、Supports +48V phantom power for condenser microphone; 5V low voltage power supply design, can be powered by computer or 5V power bank through the including USB cable. 5、When connected with computer, the integrated USB audio interface will be identified and addressed as an external sound card, and audio data can be transferred between the computer and the mixer.
Features:
Female XLR & 1/4 inch TRS inputs on CH 1 for connecting microphone, musical instrument; stereo/mono 1/4 inch TRS inputs on CH 2-3 & CH 4-5 for connection of an audio source with line signal level and other audio devices.
Main output 1/4 inch TRS(L & R) plug to connect amplifier, receiver or other mixer; 1/4 inch monitor interface to connect headphone for real time audio recording monitoring.
CH 1 has GAIN, 2-band EQ(HIGH & LOW), PAN and LEVEL controls; CH 2-3 & CH 4-5 support balance and output volume adjustment; and there are independent control knobs to adjust headphone volume and master volume, simple to operate.
Supports +48V phantom power for condenser microphone; 5V low voltage power supply design, can be powered by computer or 5V power bank through the including USB cable.
When connected with computer, the integrated USB audio interface will be identified and addressed as an external sound card, and audio data can be transferred between the computer and the mixer.
Compact size design, and the metal housing adopts black matte spray coating processing, very delicate and exquisite, suitable for home studio audio recording, live streaming, karaoke, etc.
Specifications:
Model: AGM05
Color: Black
Material: Metal
Phantom Power: 48V
Power Supply: USB interface
Item Size: 11.8 * 18 * 4cm/ 4.6 * 7.1 * 1.6in
Item Weight: 710g/ 25oz
Package Size: 23 * 19 * 10cm/ 9.1 * 7.5 * 3.9in
Package Weight: 985g/ 2.2lbs
Packing List:
1 * Mixer
1 * USB Cable
1 * Mixer
1 * USB Cable
