AHD TVI CVI Video Multiplexer for Cctv Camera 2Ch

AHD TVI CVI Video Multiplexer for Cctv Camera 2Ch Description

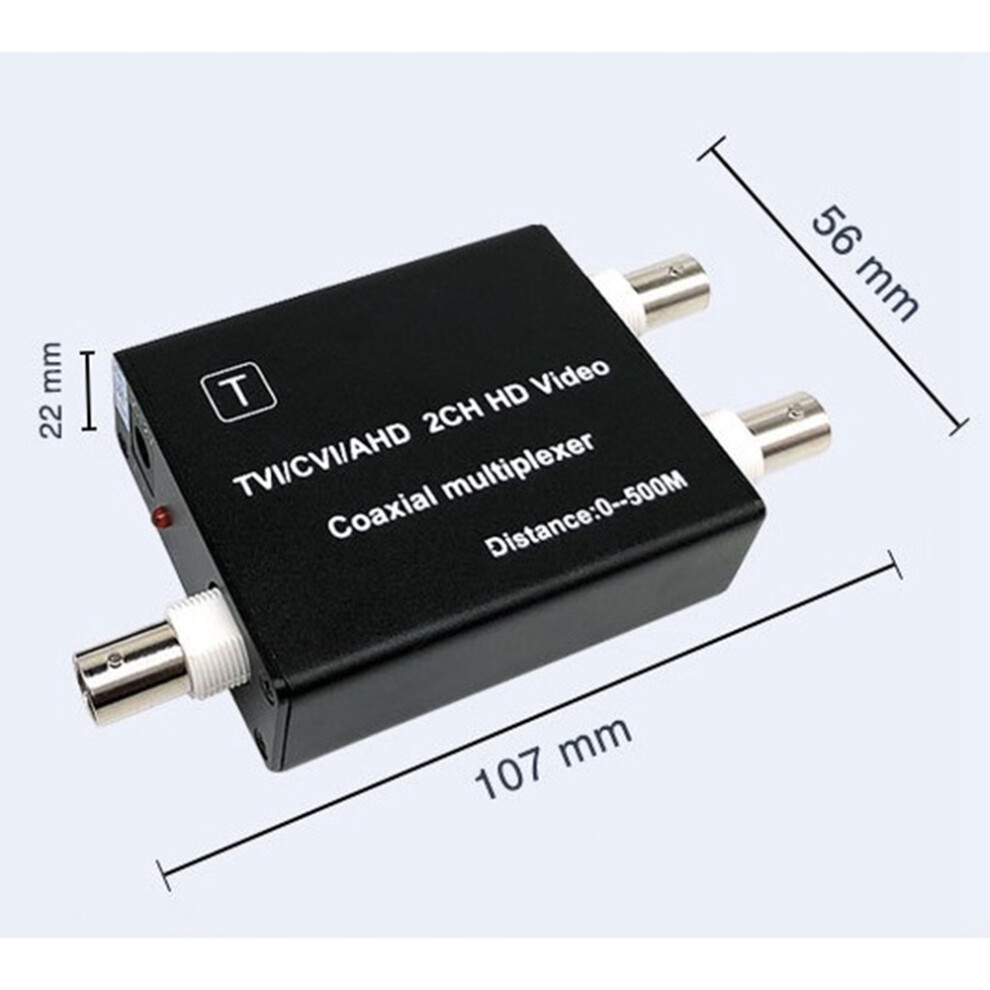

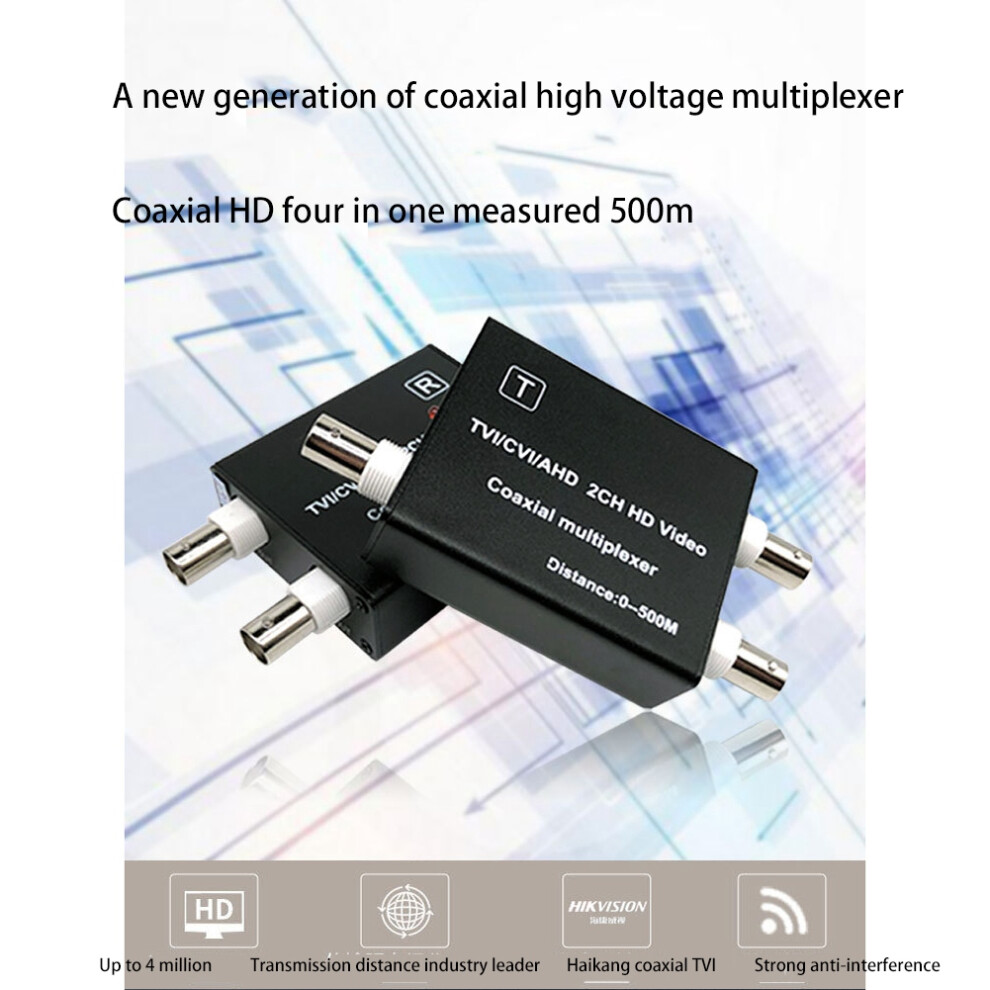

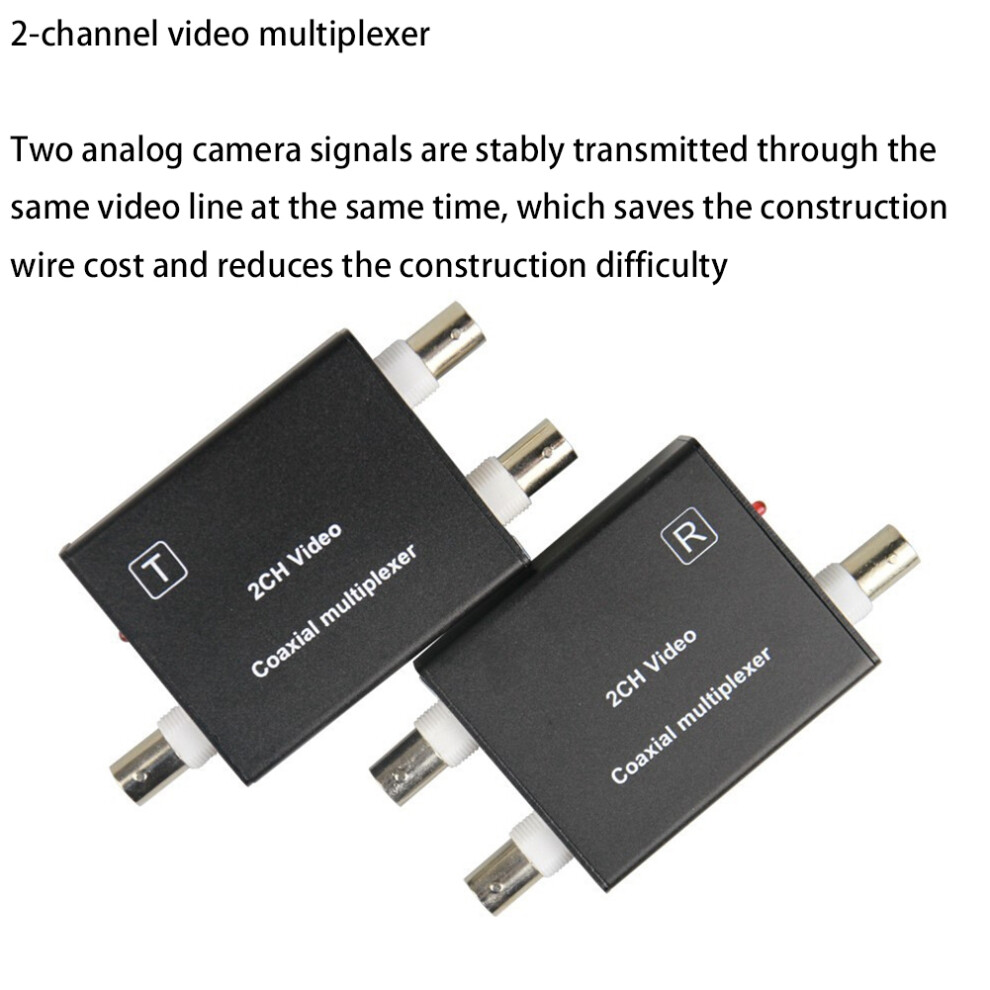

2CH Video Multiplexer for Security System with Signal Transmission Distance up to 500m.
SUPPORT: 1. AHD 1080P max. 500m; 2. TVI 1080P max. 400m; 3. CVI 960p max.500m; 4. ANALOGUE.

Product Parameters:
composite video transmitter:
Video input: two video inputs
Input amplitude: 1.0Vp-p
Input port : BNC
Input impedance: 75 ohm
RF output: less than or equal to 100dBuV
Output Ports: BNC (75 ohm)
Input power: positive inside, with a short reverse power protection circuit
Transmission distance: less than or equal to 500m ( Note: Different transmission cable affect the quality of the transmission distance, suggested the use of high-quality video cable SYV-75 or RF cable SYWV-75, diameter -5 and above )
Dual composite video transmitter receiver:
A: RF input: two -way RF input
Maximum input level: 90dBuV
Minimum input level: 60dBuV
Input port: 75 ohm
B: Video output
Road video output signal
Output Ports: BNC Block (75 ohm)
Output Level: 1.0Vp-p
Colour: black
Material: aluminum alloy

Package Contents:

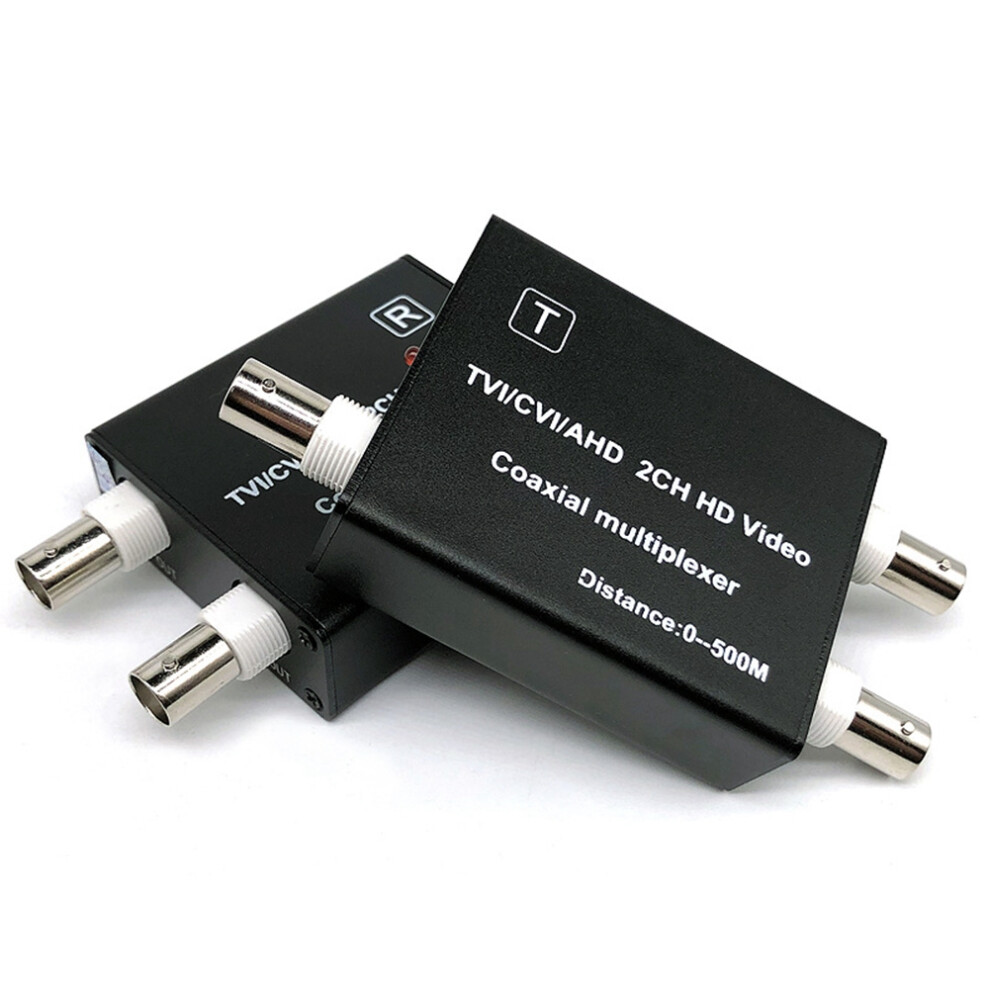

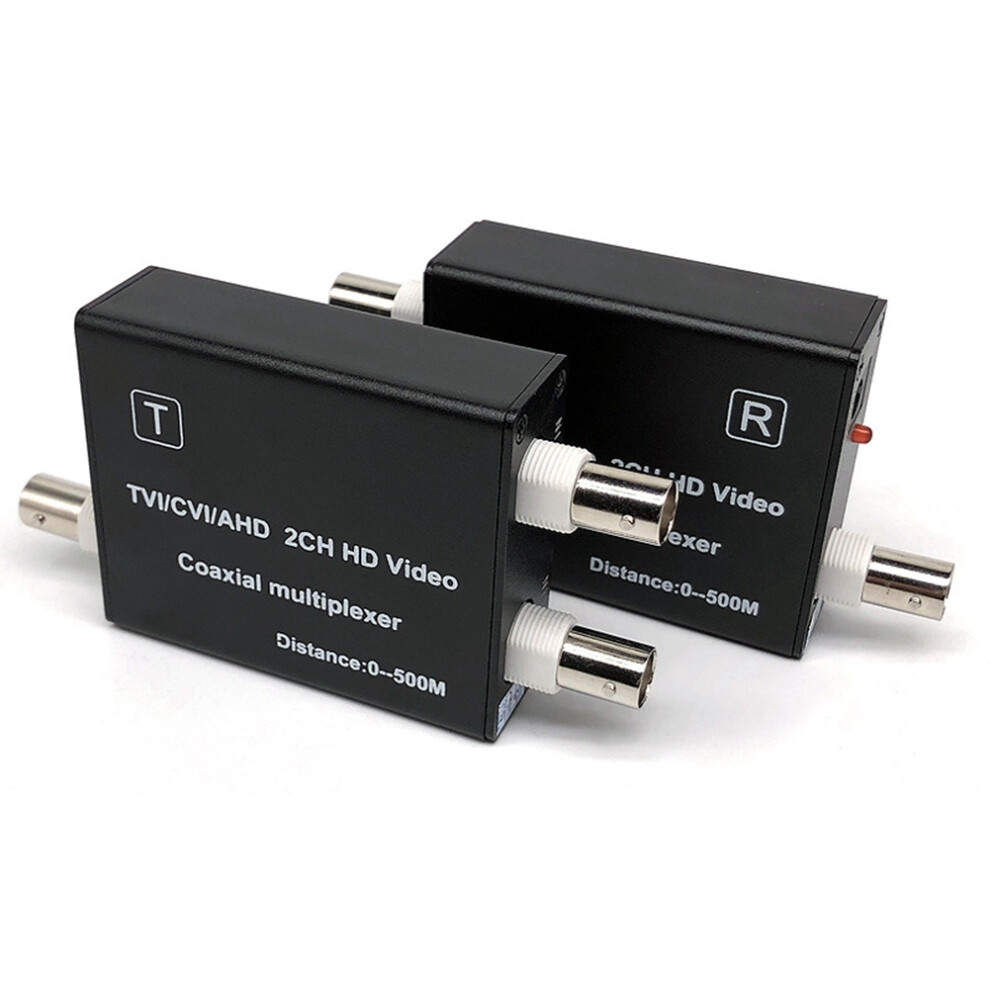

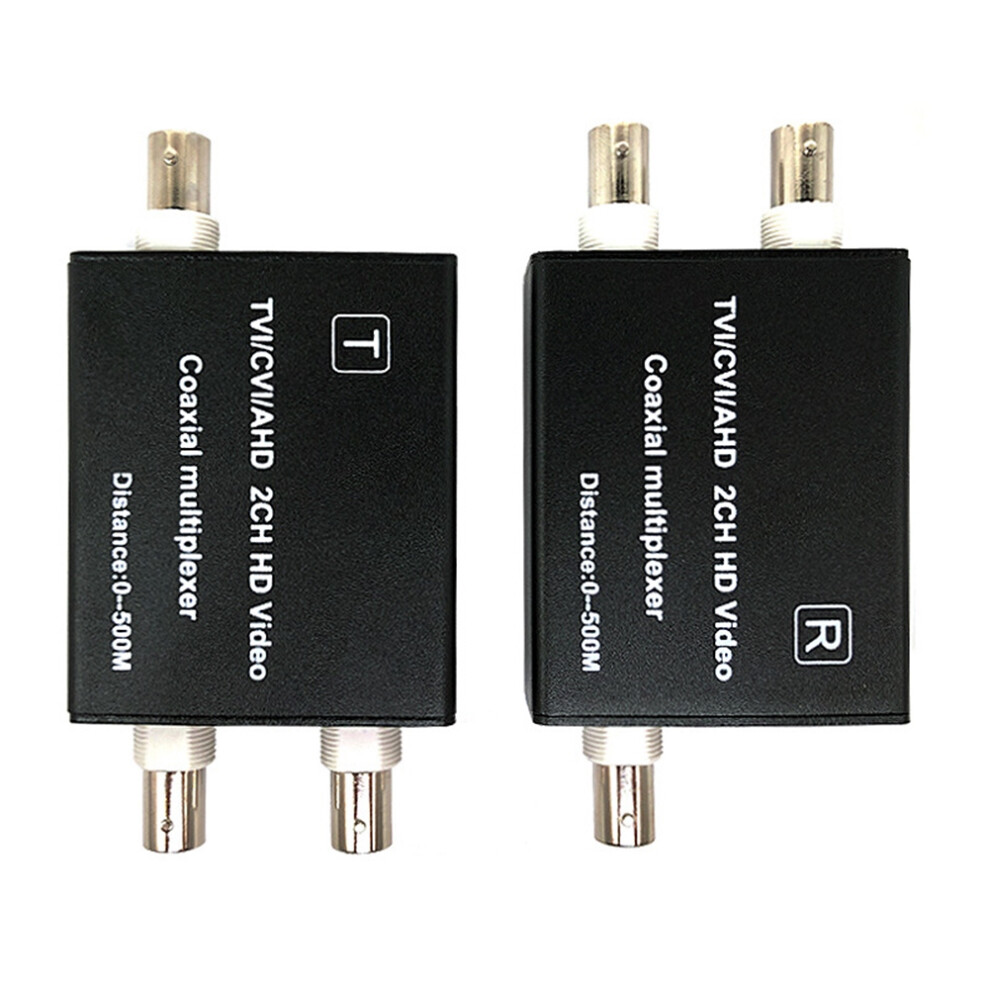

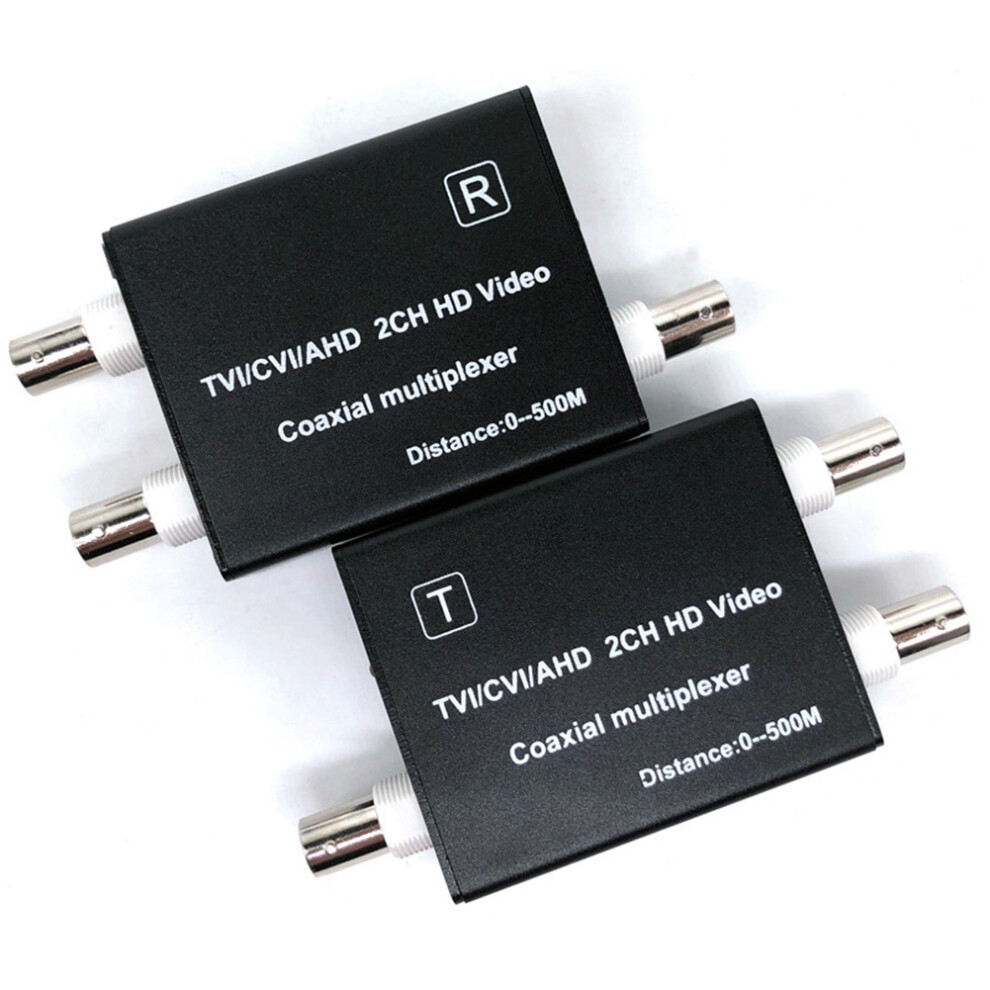

1 Pair x video multiplexer

Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
