Air Compressor Gasket Kit Central-Pneumatic Parts

Air Compressor Gasket Kit Central-Pneumatic Parts Description

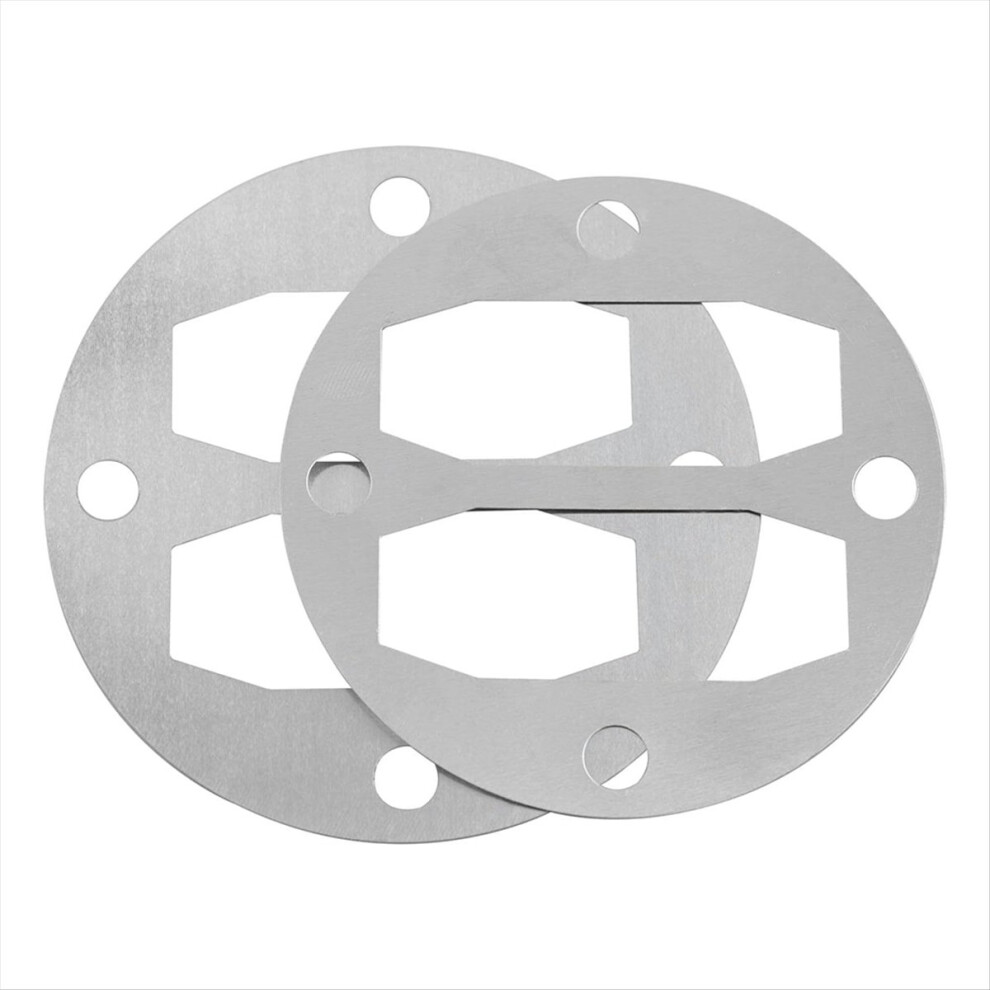

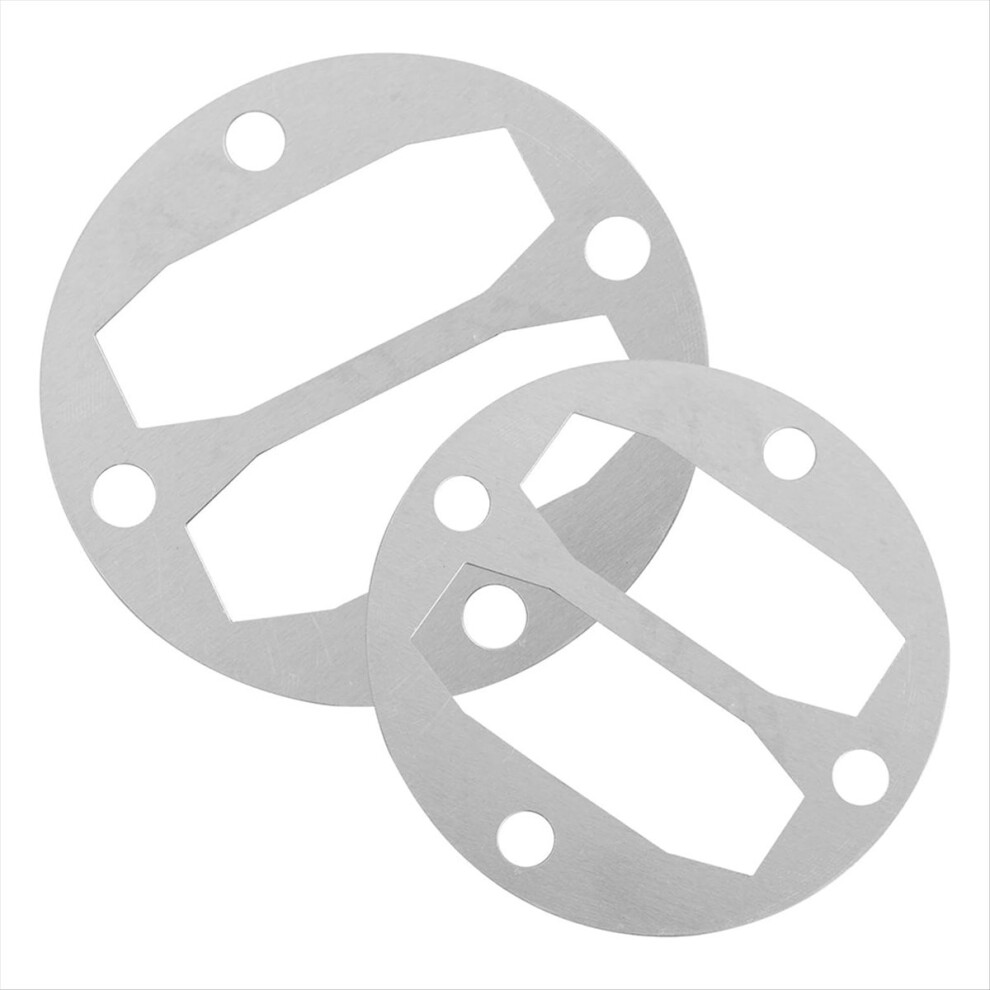

The carefully prepared package is carefully equipped with 2 aluminum gaskets with a diameter of 73mm (2.87inch) and 2 aluminum gaskets with a diameter of 79mm (3.11inch), plus 8 long valve discs. The dimensions of each component are accurate, as shown in the figure.
The air compressor gasket is carefully made of superior aluminum, which is excellent in resistance and sealing, which can the hidden danger of gas leakage from the root, and build a solid foundation for the stable and efficient operation of the air compressor.

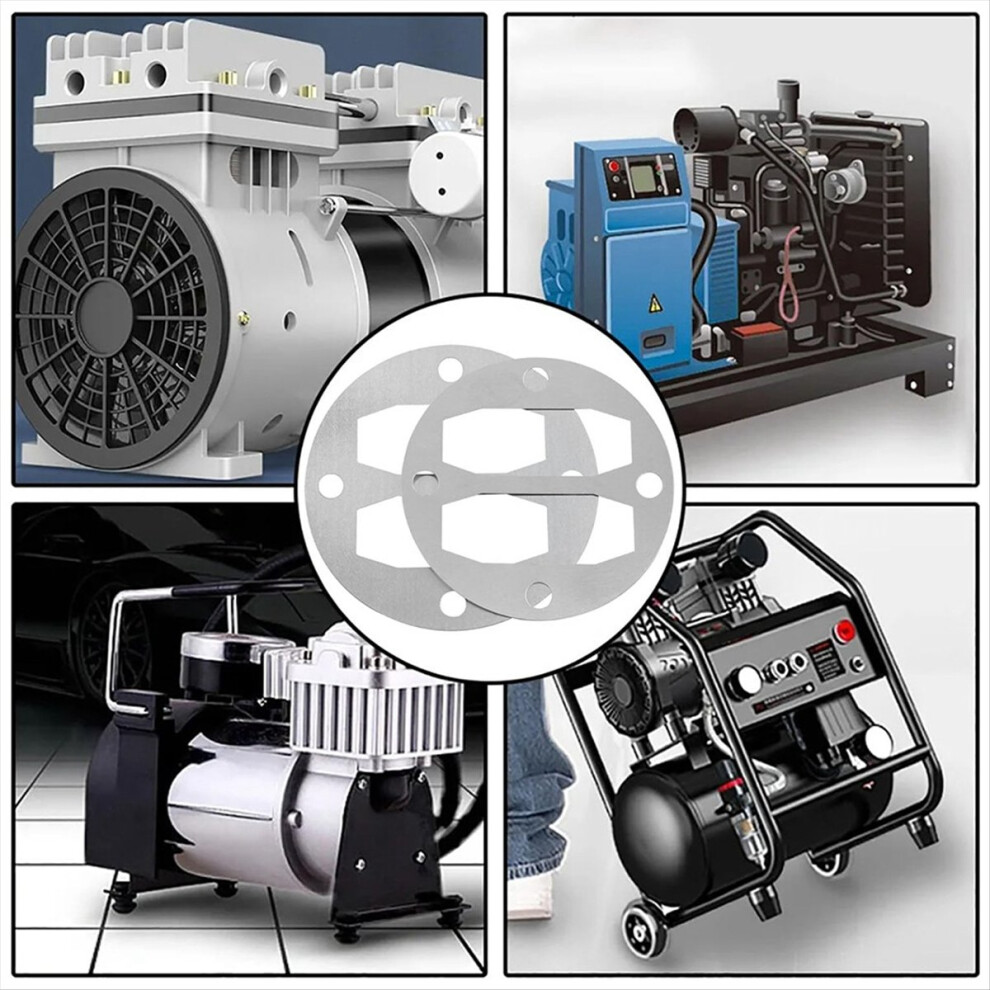

compressor parts accurately adapt to air compressor 68740, 69667, 67501 and other models, a of compatibility reduces the trouble caused by adaptation errors, installation can be used.
The long valve disc of the component has been deeply polished by a special process to achieve a perfect balance between flexibility and strength, and can always maintain a stable shape and greatly extend its service life even under harsh conditions of high frequency opening and closing.
At the beginning of the design of the entire kit, the installation convenience is put in the first place, and the specifications of each component are accurately controlled, without complicated debugging process, even ordinary maintenance personnel with little experience can easily control the installation work, greatly saving maintenance time and cost.

Product Description:A better seal can be formed between the aluminum valve disc and the seat to reduce gas leakage and the quality and pressure of compressed air.
Please note: When installing a replacement, it is absolutely necessary to install/position the lower valve with a small amount of grease. Failure to do so can lead to premature valve rupture.
Product name: Air compressor gasket
Product weight:30g

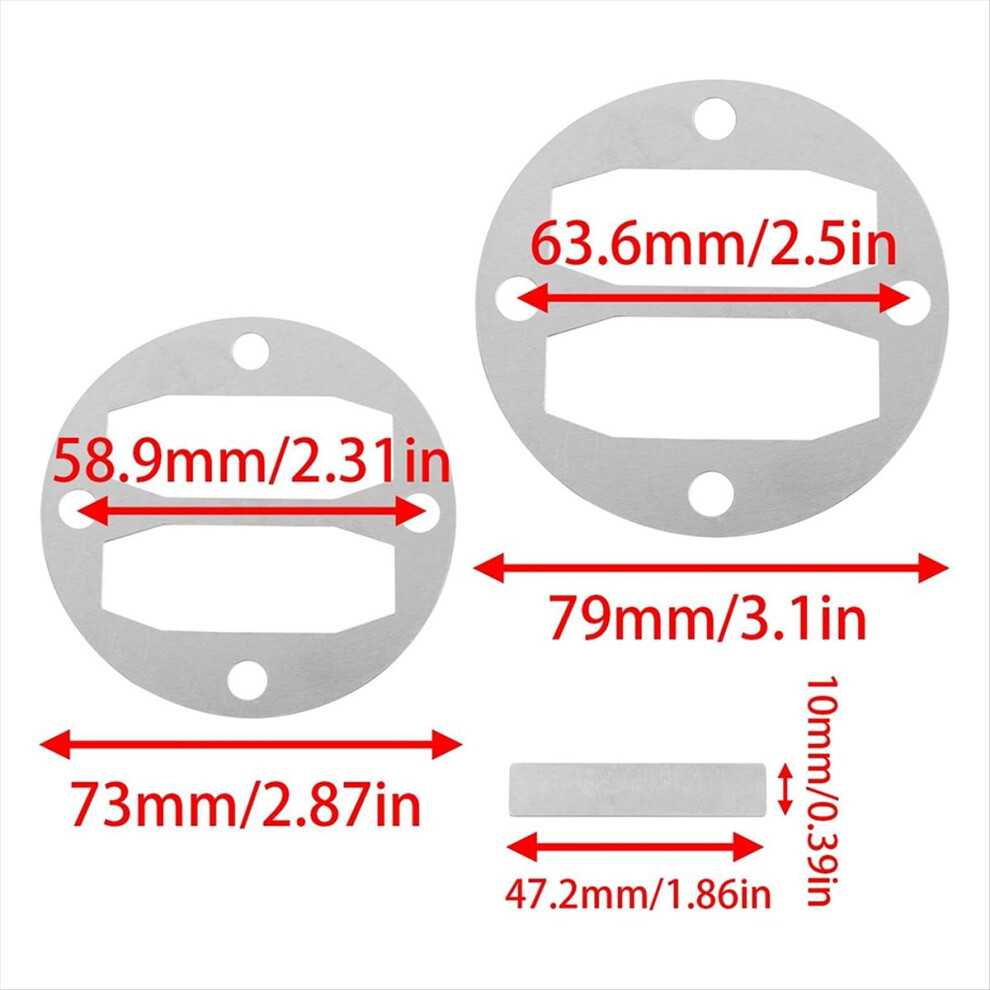

Product size:
Small diameter aluminum pad: 73mm/2.87in
Large diameter aluminum pad: 79mm/3.11inch
Color:Silver
Material:Aluminium

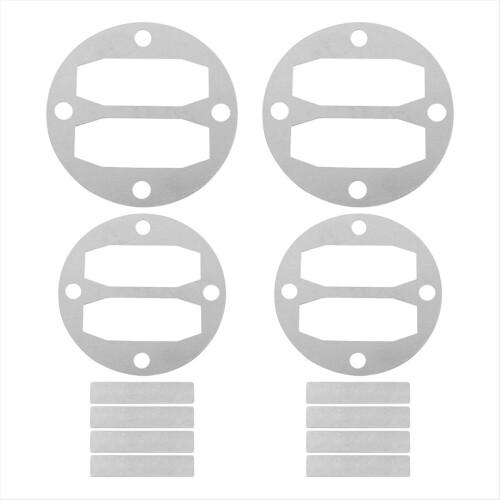

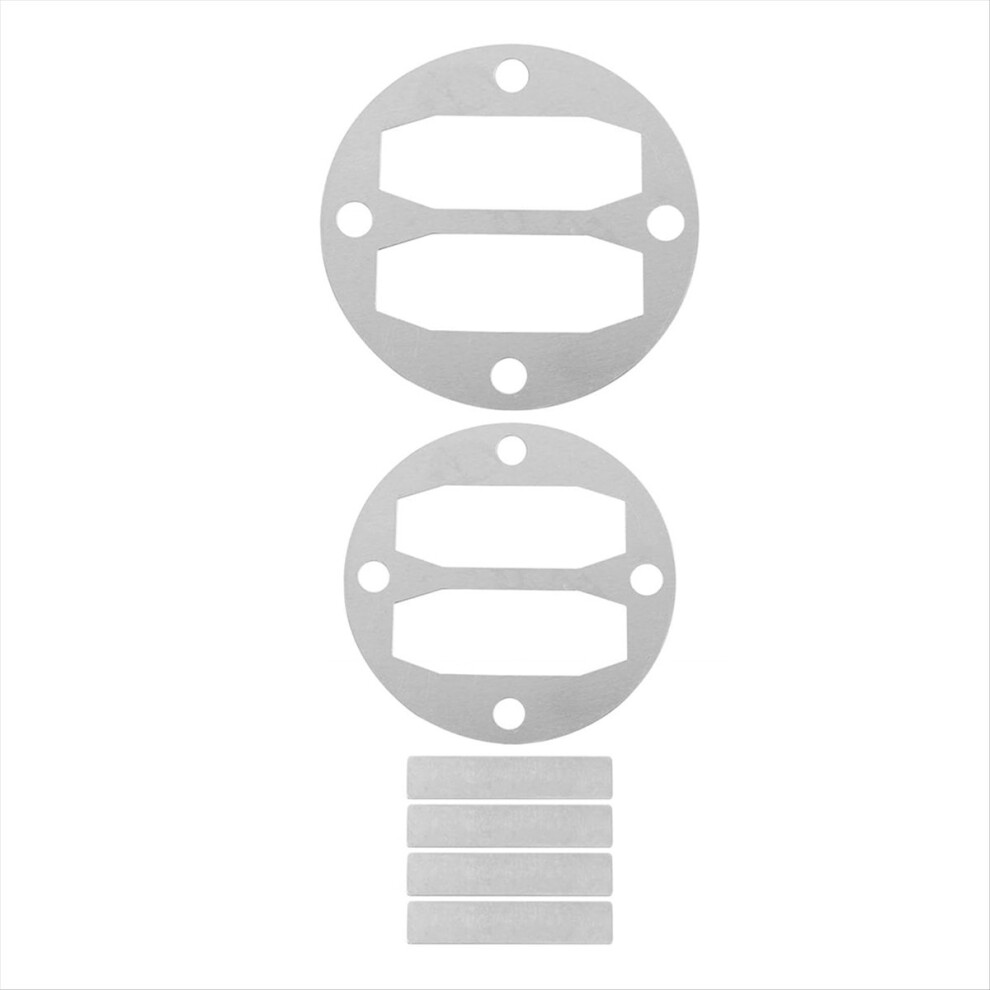

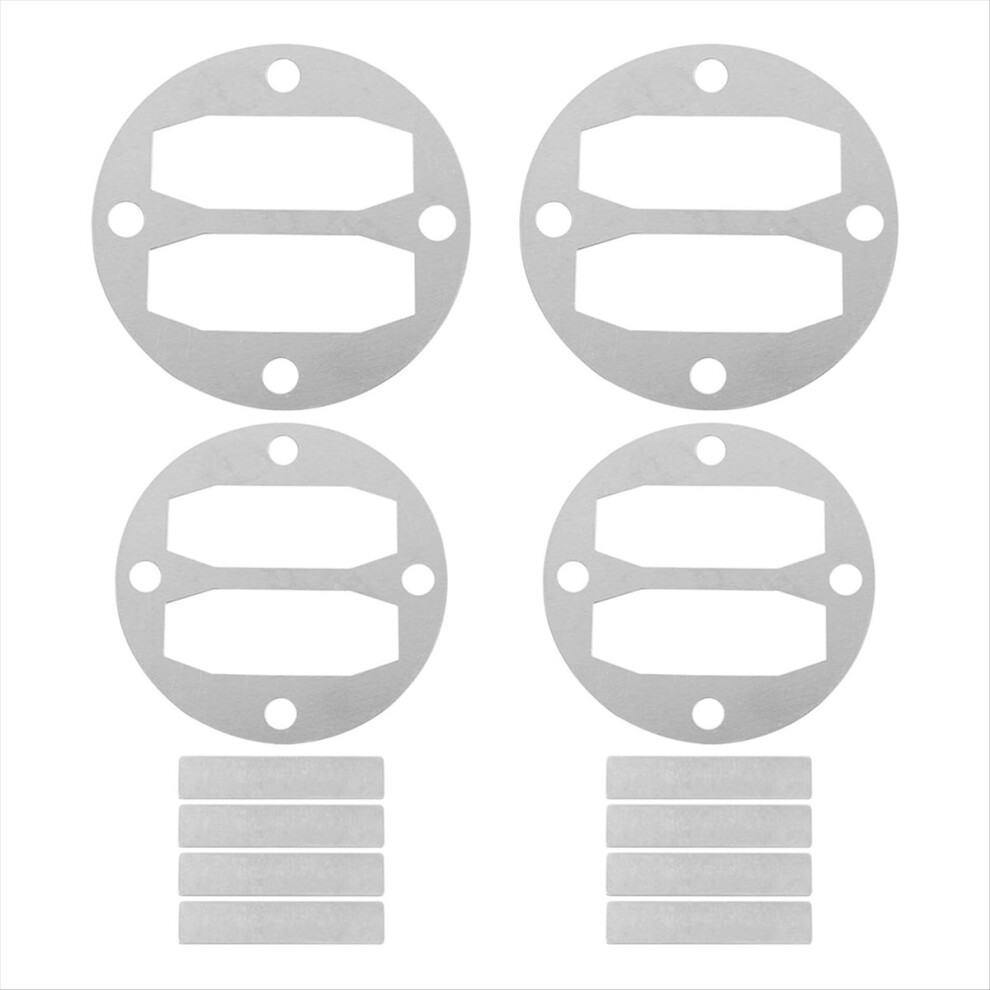

Package Contents:
2 * 73mm aluminum gaskets
2 * 79mm aluminum gaskets
8 * long valve plates

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
