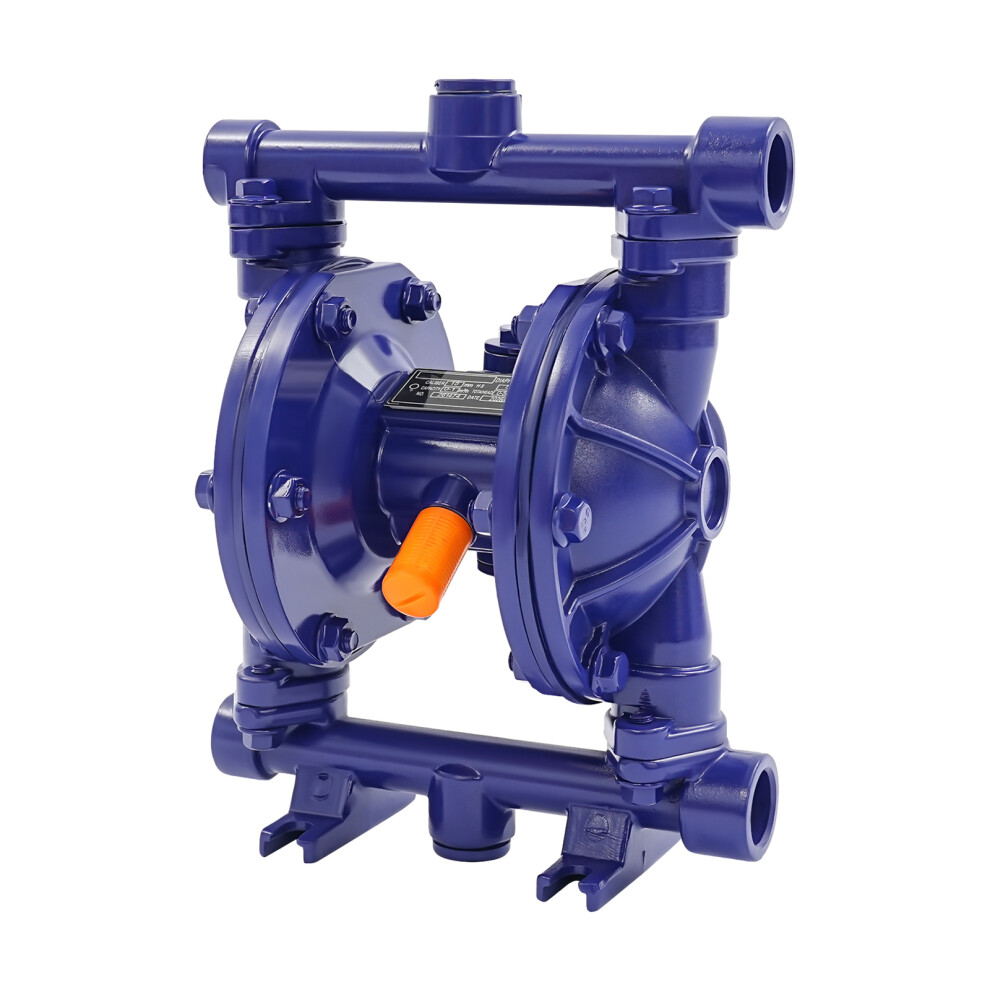

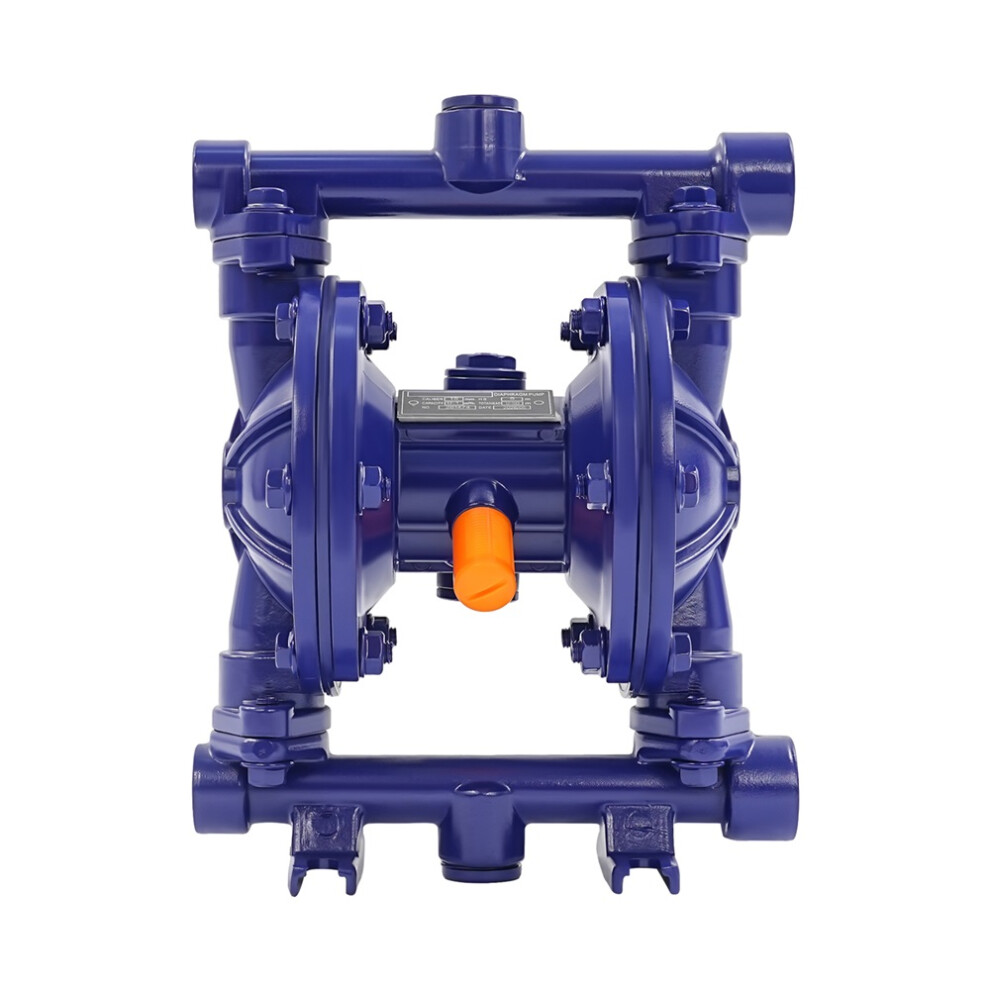

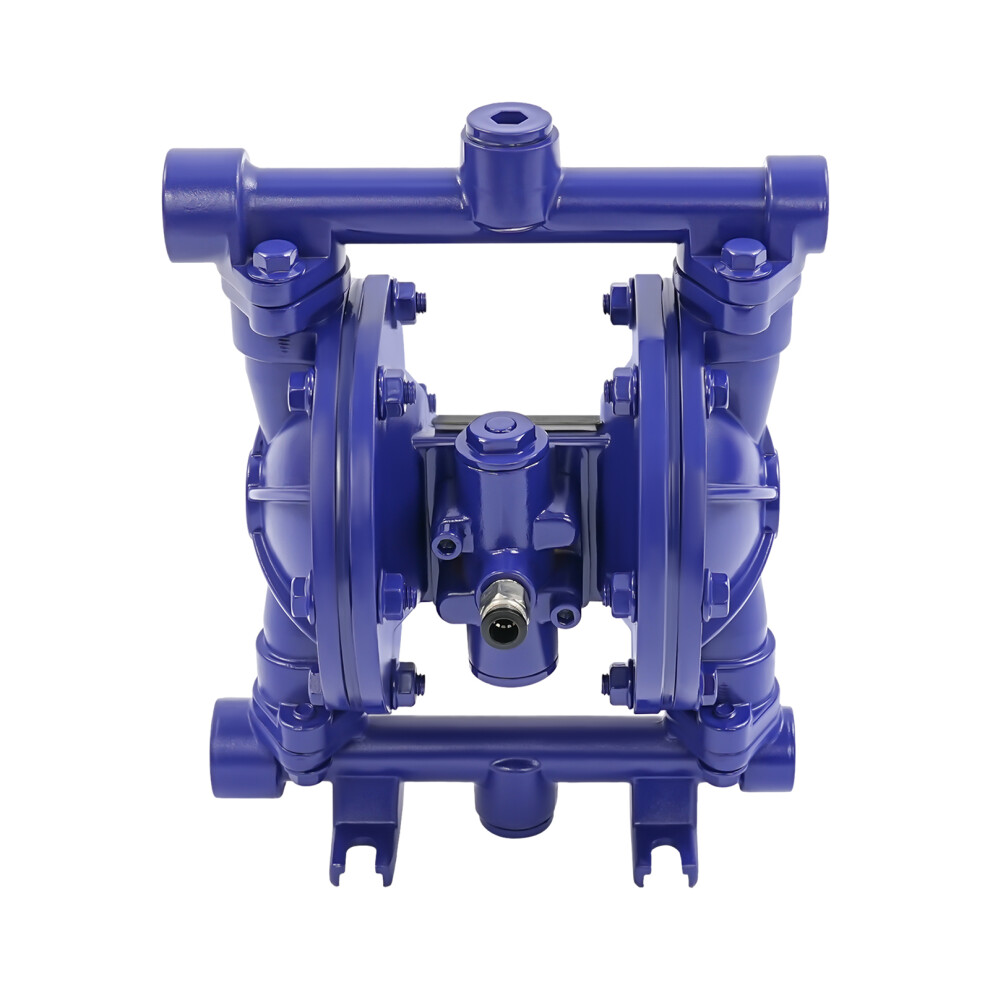

Air-Operated Pneumatic Double Diaphragm Pump 115 PSI
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 135,000 Trustpilot reviews and an 'Excellent' rating
£100.70
£106.00
5% off!
FREE Delivery
1%
Earn £1.01 instantly
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Mon 5th - Wed 7th Oct
Returns: 30 days
180-day payment protection
You might also like
Description & Details
Summary
- Stable & Efficient: Designed with a solid structure, it supports a high working pressure of 115 PSI to provide reliable performance. Its maximum head of 164.04 ft and maximum suction of 16.4 ft allow for quick and smooth completion of fluid transfer tasks.
- Versatile Tool: As a practical positive displacement pump, this diaphragm (membrane) pump uses the reciprocating action of a rubber, thermoplastic, or PTFE diaphragm along with various shut-off valves on both sides to deliver fluid, helping to boost overall working efficiency.
- User‑Friendly Design: The diaphragm pump features an external air distribution mechanism and fully bolted connections, which efficiently reduce the risk of leakage. The sealed ball valve layout provides easy access to the spherical check valve and fluid cap, simplifying maintenance and repair work.
- Reliable Safety: With an air-driven power source and dual pneumatic diaphragm structure, this pump runs without generating heat or sparks, providing safe use. Its built-in self-protection design stops the pump automatically during overload and resumes use when conditions are normal.
- Thoughtful Design: The equipped muffler can help reduce the noise of this product, which enhances the comfort of the working environment.
Air-Operated Pneumatic Double Diaphragm Pump 115 PSI Description
Application
The product is suitable for a variety of liquids such as water, glue, water-based coatings, organic solvents, and low-viscosity petroleum fluids (such as diesel, kerosene, motor oil, and some waste oil), and is widely used in petroleum, metallurgy, mining, coatings, printing, water treatment, chemical engineering, papermaking, and automotive industries.
Specifications
Color: Blue
Model: QBY-15Z
Material: Cast Iron
Process: Plastic Spraying
Type: Double Diaphragm
Operation Type: Air-operated
Inlet Port Diameter: 12.7 mm/ 1/2"
Outlet Port Diameter: 12.7 mm/ 1/2"
Air Inlet Port Diameter: 6.35 mm/ 1/4"
Average Air Consumption: 0.3 m³/10.59 ft³/min
Flow Rate: 0-1m³/h/ 0 - 4.4 GPM
Suction: 0-5m/0-16.4ft
Max. Head: 50m/164.04 ft
Max. Temperature: 66 /150
Max. Pressure: 115 PSI
Product Size: 31*20*27cm/12*7.9*10.6 in
Package Size: 35*27*25cm/13.78*10.63*9.84 in
Gross Weight: 4 kg/8.82 lbs
Net Weight: 3.8 kg/8.38 lbs

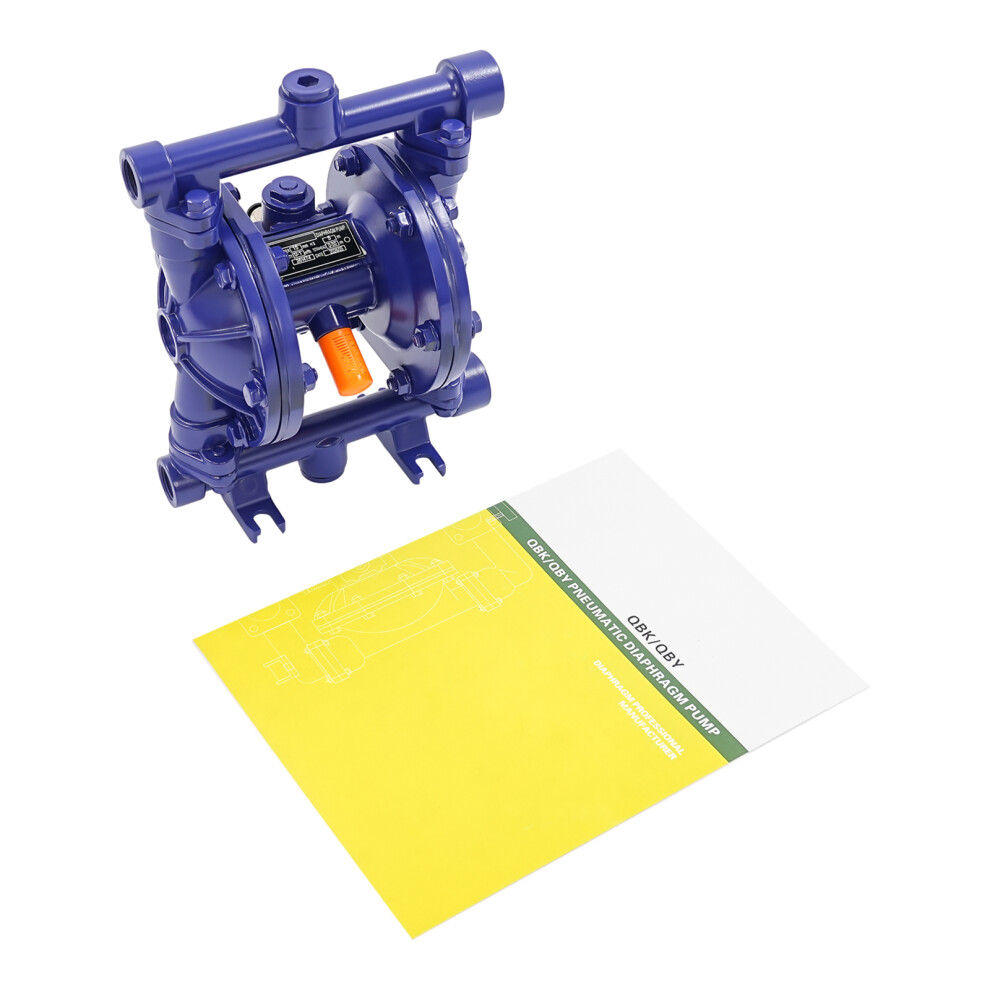

Package Included
1* Air Operated Diaphragm Pump
1* English Manual
Notes
1. Please check the size carefully before ordering.
2. This product is not suitable for acid, alkali, and other corrosive liquids.
3. Please read the English manual carefully before use, and pay attention to the safety precautions.
4. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
Details
| OPC | PX2VXQX |
|---|---|
| Codes | 743169279817 (UPC) |
Detailed Product Information
| Colour | Blue |
|---|---|
| Material | Cast Iron |
| Weight | 4kg |
| Height | 27cm |
| Length | 31cm |
| Width | 20cm |
| Colour | Blue |
| Material | Cast Iron |
| Weight | 4kg |
| Height | 27cm |
| Length | 31cm |
| Width | 20cm |
