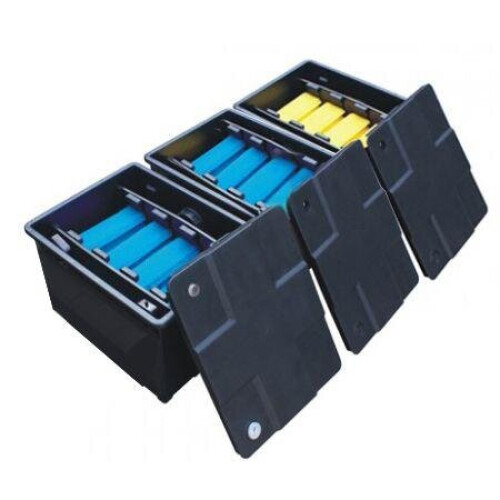

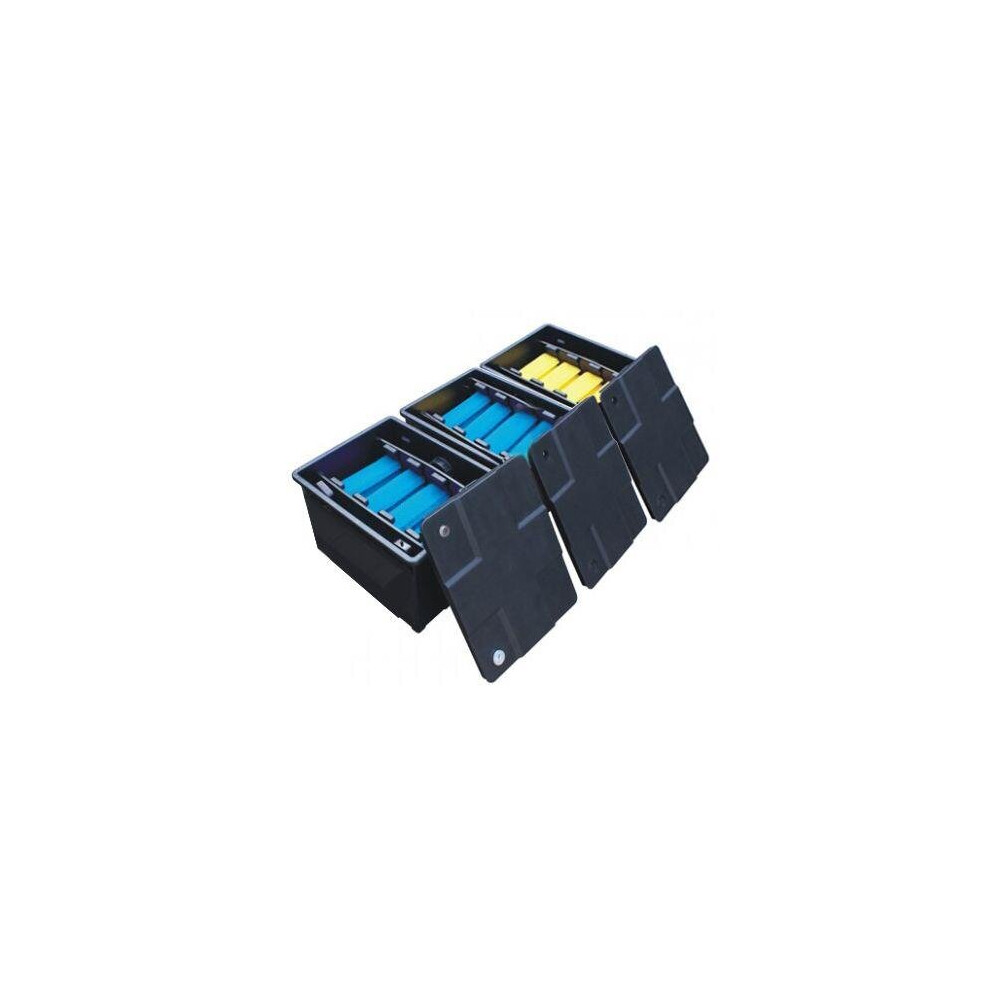

AllPondSolutions 18000L Koi Dual Box Pond Filter System

AllPondSolutions 18000L Koi Dual Box Pond Filter System Description

The All Pond Solutions 18000L Koi Pond Filter System is a complete box filtration system designed to run pond water through a variety of filter media and fine & coarse foam to keep your pond looking crystal clear.

Filter Operation

The filtration system uses a variety of filter media distributed amongst three separate bays allowing you to filter high volumes of water.

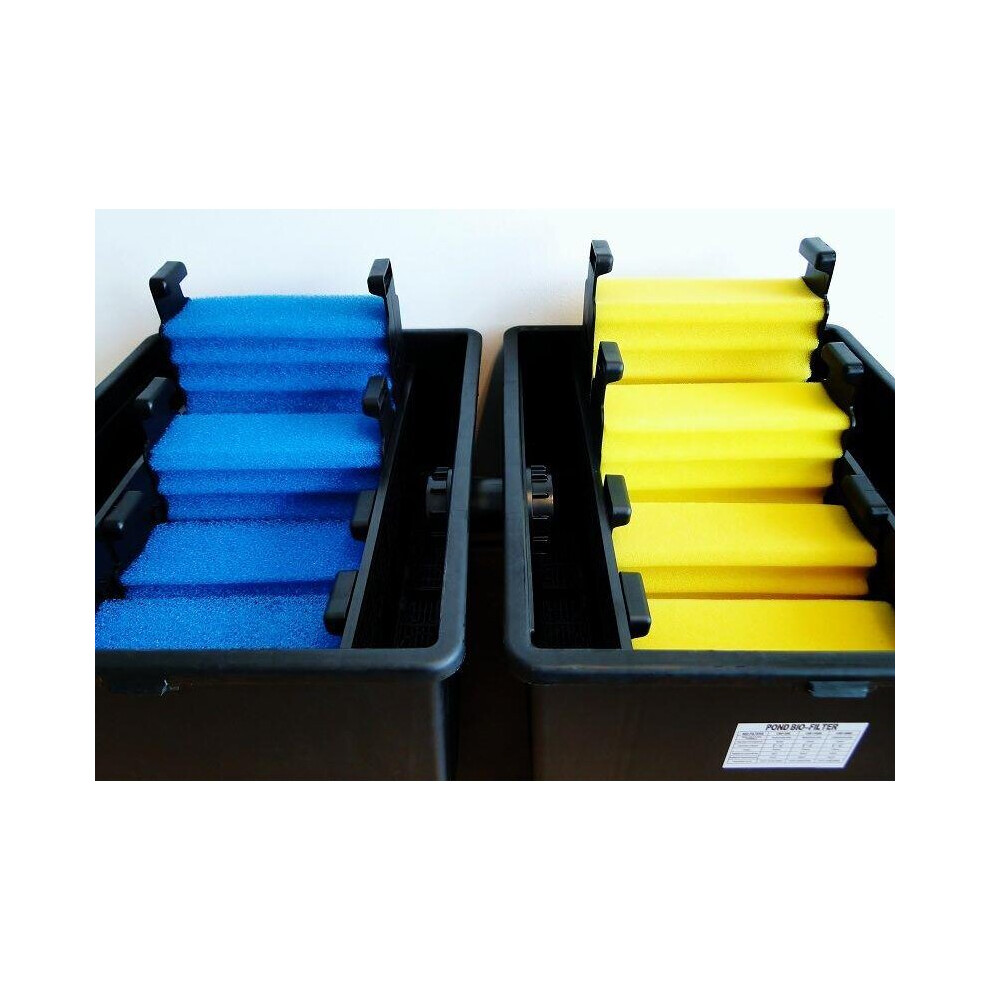

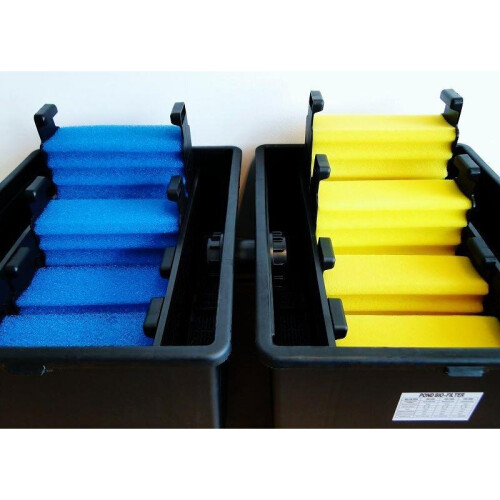

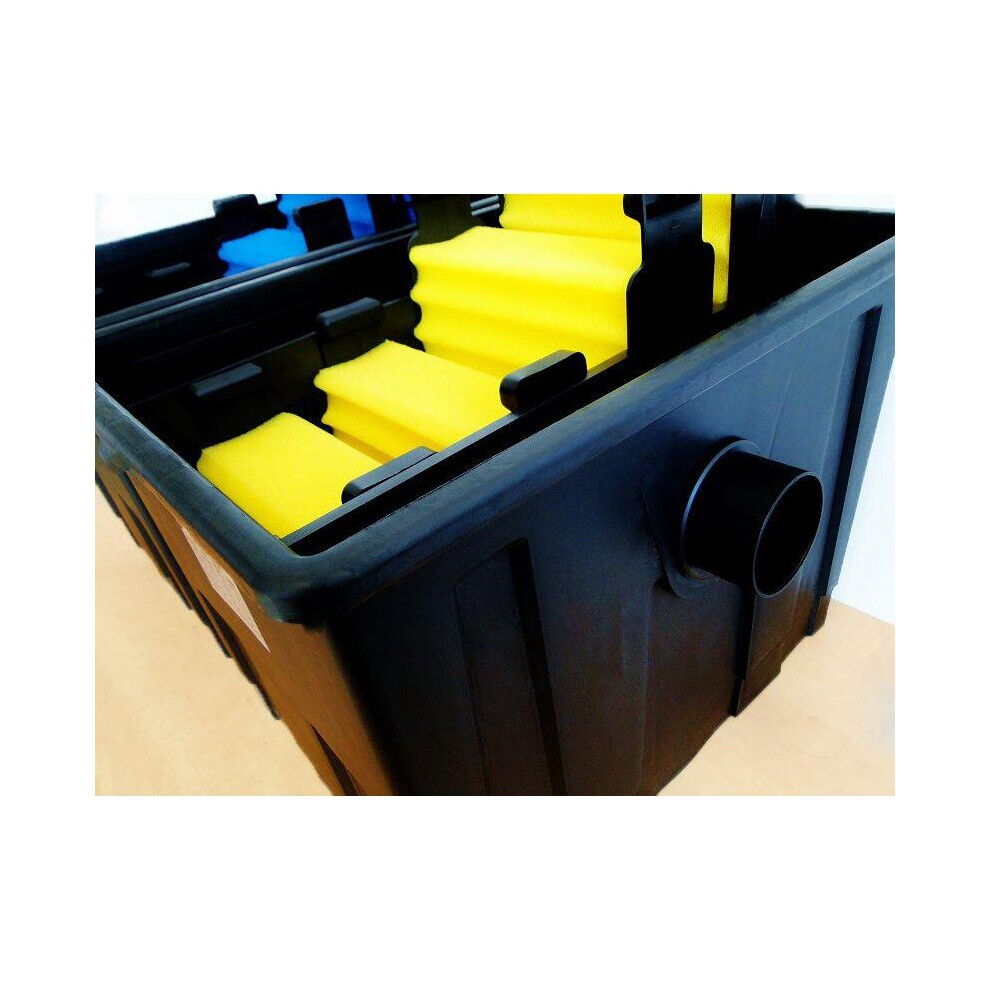

Each of the 3 bay's has 4 different stages of filtration (see below) The first two bays come complete with eight (8) Blue Coarse Filter Foam's, the remaining bay has four (4) Yellow Fine Filter Foam's included.

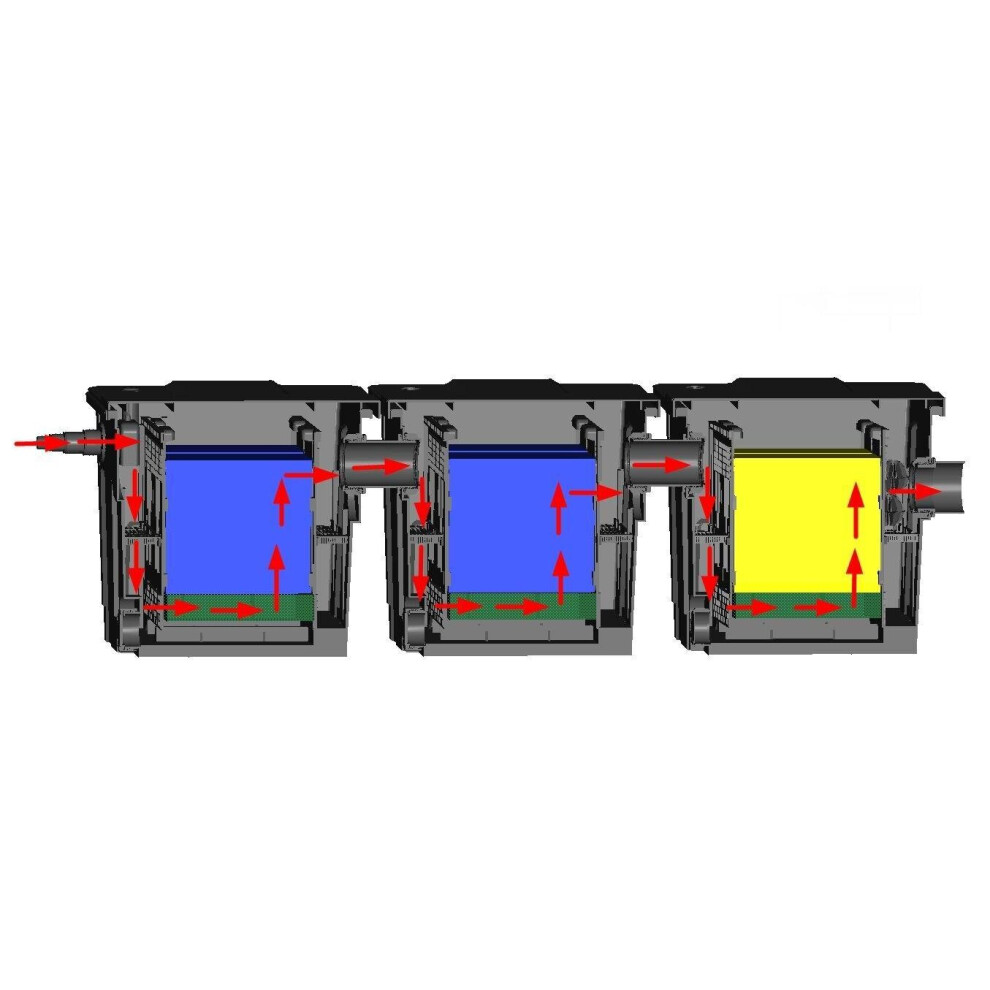

1) Firstly, the water passes through the filter media bay (stocked with media of your choice)
2) Then the water is guided through high-quality Japanese matting;

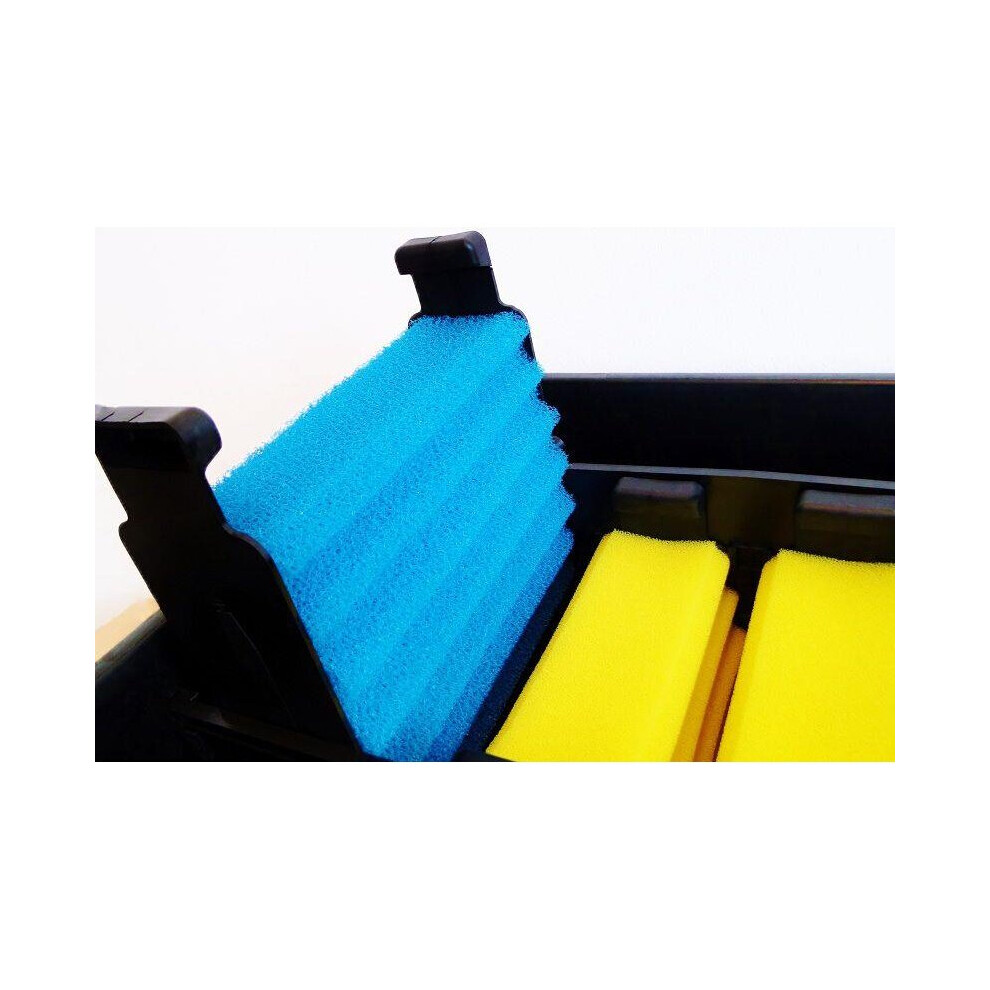

3) After matting, the water will flow through the filter foams provided;
4) The last section of each filter bay has additional room for filter media.

Please note the filter must be placed on the edge of the pond as the clean water flows straight back into the pond not an outlet pipe

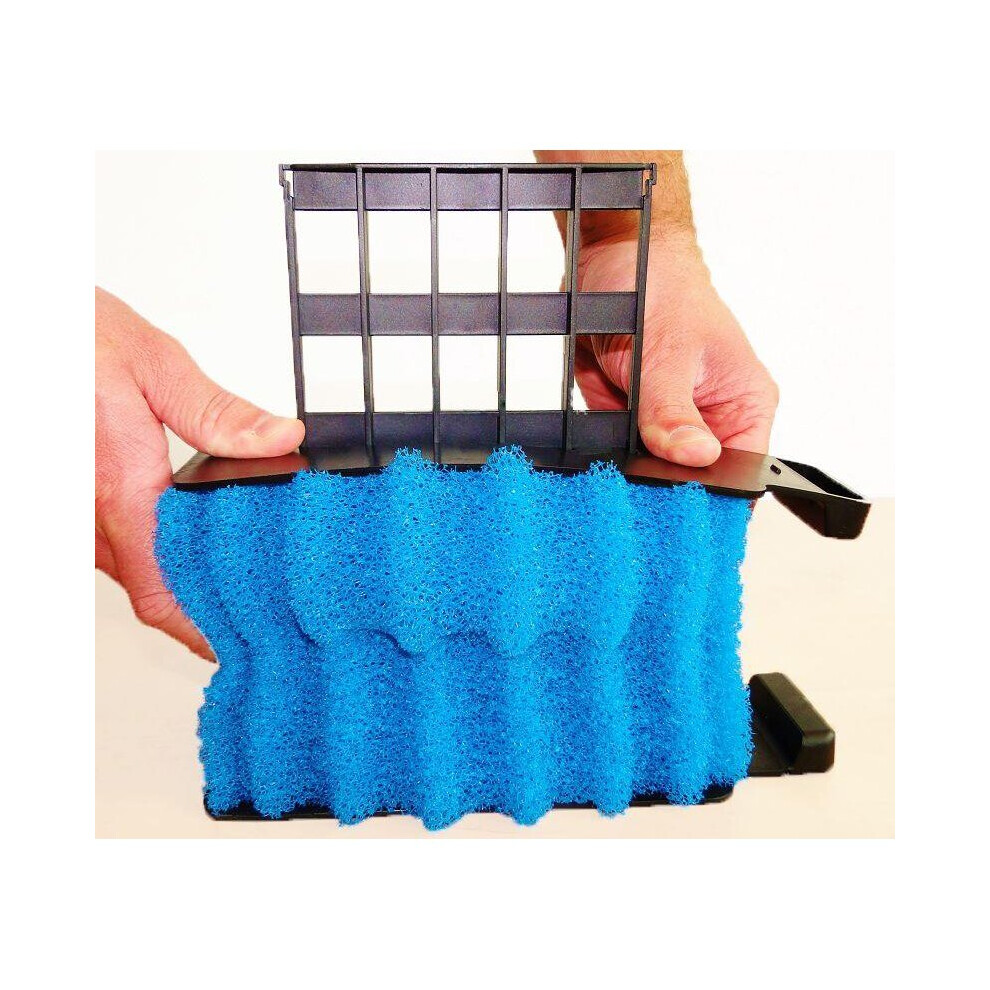

This model comes complete with an additional cleaning tool that allows you to rinse through your foams without even removing them from your filter box;

• Filter Bays x 3
• Clip-on Lids x 3 for Easy Access to each Filter Bay
• 2 x Inlet stepped hosetails fits hose size: 20, 25, 32 & 38mm
• 2 x Outlet Pipes one fitted 70mm and 1 stepped fits 38mm and 50mm Pipe
• 3 x Waste Outlet for each Bay (Simple Draining of Water Waste)
• 1 x Temperature Dial Built into Lid
• 1 x Water Level Indicator Built into Lid (Blockage / Cleaning)
• 8 x Blue Coarse Filter Foams
• 4 x Yellow Fine Filter Foams

Specification

Max Flow rate: 10000L/h
Decorative Ponds: up to 18000 Litres
Ponds with a small mix of fish: up to 14000 Litres
Ponds with a small mix of koi: up to 10000 Litres
Dimensions: 1260 x 520 x 390mm (L x W x H)
Bay Dimensions: 410 x 520 x 390mm / 16.1 x 20.5 x 15.4
Inlet hosetail fits: 20, 25, 32 & 38mm hose
2 x Outlet Pipes one fitted 70mm and 1 stepped fits 38mm and 50mm Pipe
Free 12 Month Warranty

*Please note, UV steriliser attachment not supplied - available separately in store.
