Aluminium alloy single hole electric drill holder

Aluminium alloy single hole electric drill holder Description

Holding the electric drill for a long time may cause hand soreness or unaccurate drilling. This floor drill press stand offers a great option. It can be put or fixed on the workbench, and hold the electric drill firmly to ease your fatigue and add a whole new level of accuracy.  It is a great accessory for your powerful electric drill.

Key Features

• Firm Clamping: The clamping hole made of aluminium alloy and two plastic supplied reducing bushes with different sizes allow for firm clamping to ensure accurate drilling and high safety.
• Saving Effort: You don't need to manually hold the electric drill anymore with this product, saving you lots of effort.
• Good Stability: The solid bar and larger base (8.8*5.9*0.9inch) that can be fixed on the workbench with screws ensure good stability without fear of shaking and tilting.
• Easy Assembly: The simple structure, complete accessories, and an English manual allow you to install it by a few simple steps.
• Strong and Durable: Made of high-quality aluminium alloy, it can resist wear, corrosion, and deformation.
• Easy to Clean: The smooth surface makes it easy to clean. You just need to wipe it with a wet cloth and dry it.
• Lightweight and Compact: It is lightweight, compact, and easy to carry to the workplace.

Details

1. Ergonomic Handle: The long handle (12.2 inch) is ergonomic and comfortable to hold, allowing for easy operation without hand soreness.
2. Grooves: The long groove on the base allows the installation of vice and die.

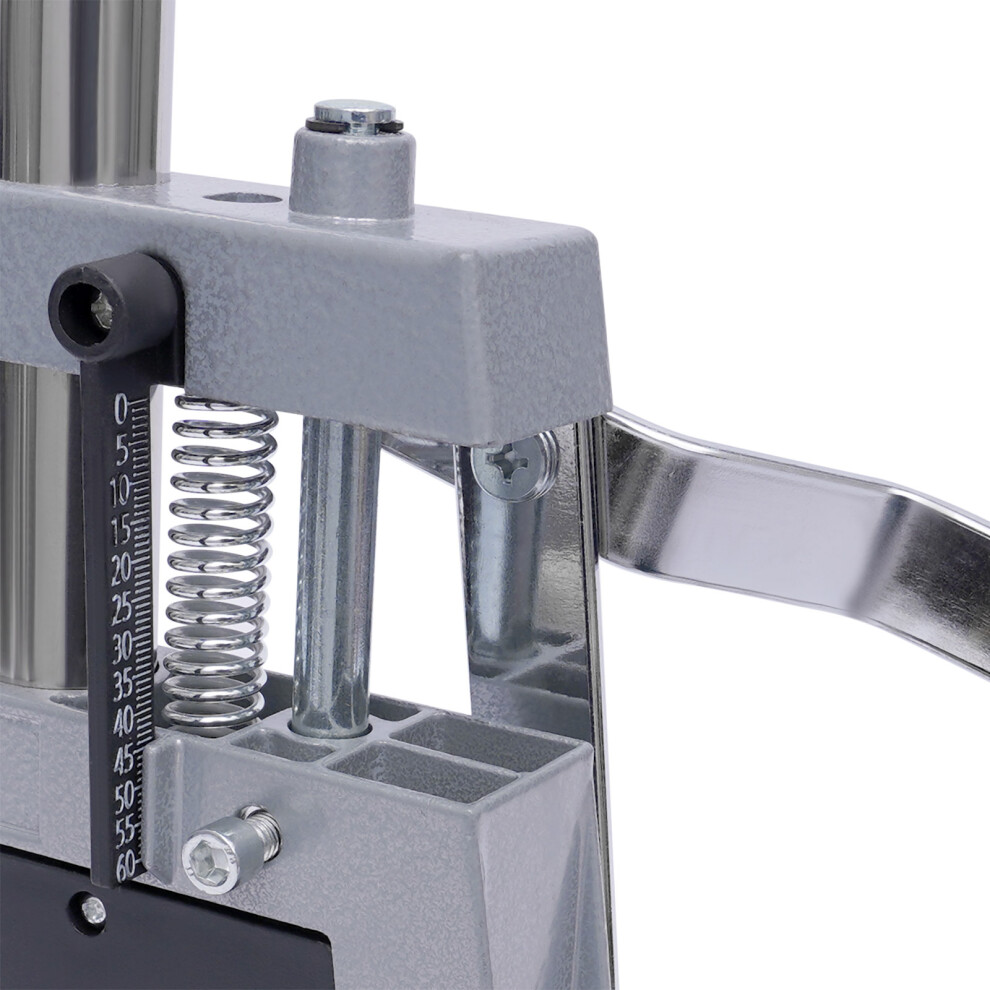

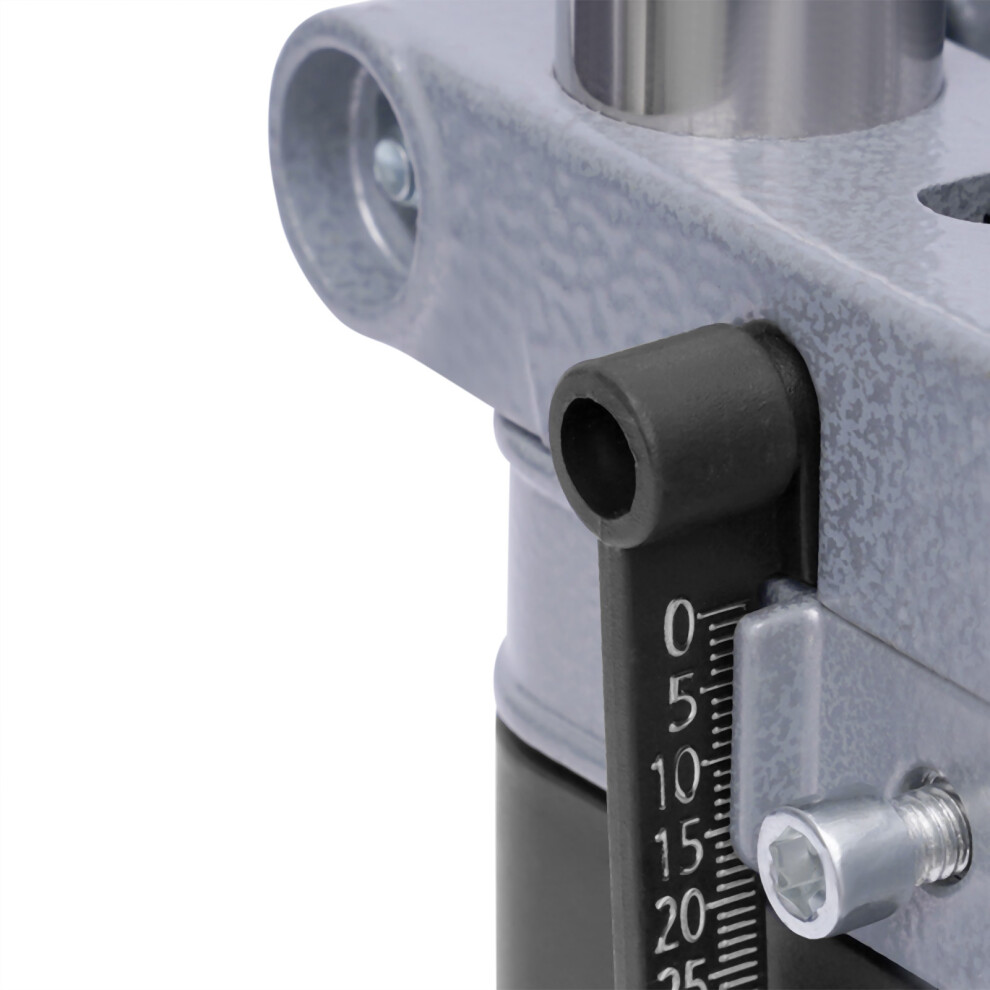

3. Stroke Scale: It can provide you with reference to make operation more convenient.

Application

This stand is designed for electric drilling machines whose collar diameter is from 1.4in to 1.6in.

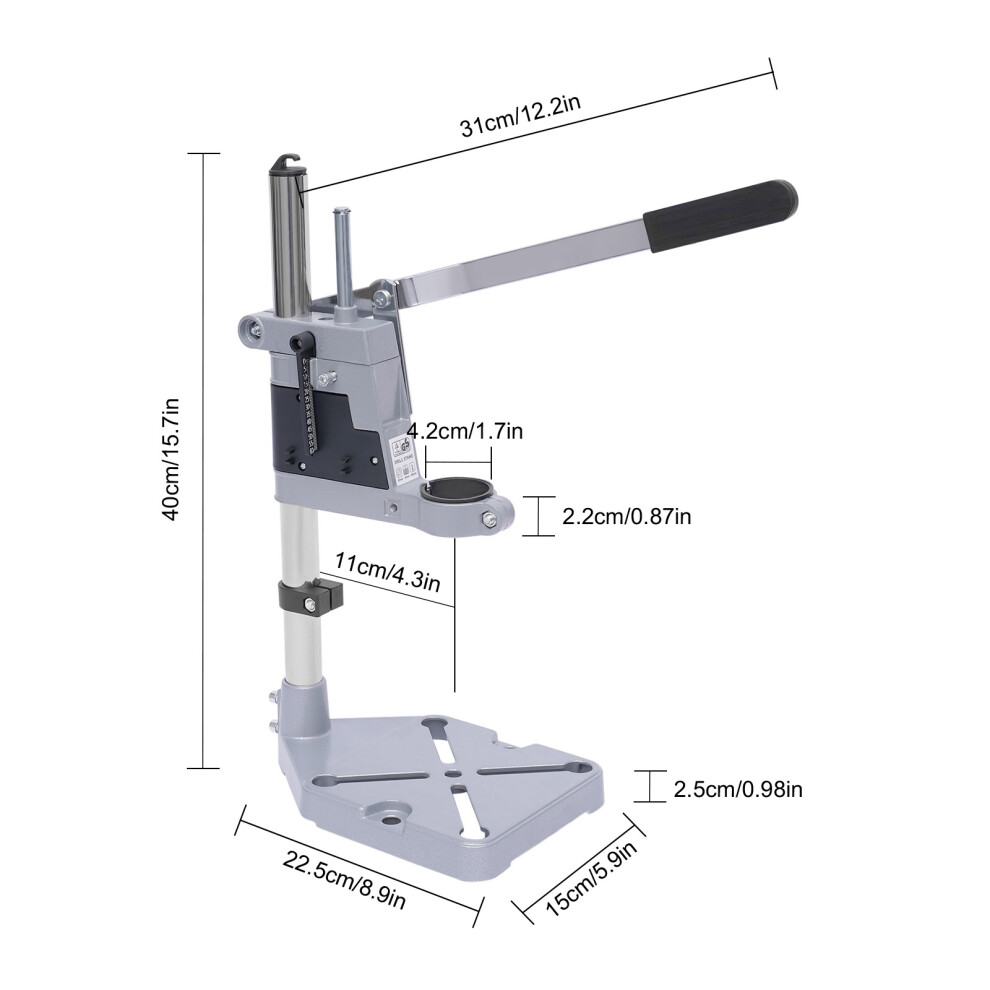

Specification

• Color: Black, Grey, Silver
• Material: Aluminium Alloy
• Style: Modern
• Maximum Stroke: 60mm/2.3inch
• Clamping Diameter: 38-42mm/1.4-1.6inch
• Assembly Required: Yes
• Mounting Type: Desktop Placement, Freestanding
• Gross Weight: 1.75kg/3.8lbs
• Package Size: 42.2*7.6*17.5cm/16.6*2.9*6.8cm
• Base Size: 22.5*15*2.5cm/8.8*5.9*0.9inch
• Product Height: 40cm/15.7inch
• Handle Length: 31cm/12.2inch
• Hole Diameter: 42mm/1.7inch
• Hole Height: 22mm/0.87inch

Installation

1. Rotate two screws to fix the spindle on the base.

2. Slide the travel auxiliary ring into the main shaft.

3. Insert the electric drill frame into the main shaft and rotate screws to fix it.

4. The installation is complete.

Package Included

1* Floor Drill Press Stand

1* Enlish Manual

All Accessories for Assembly

Notes

1. Please read the manual completely before installation and use.

2. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
