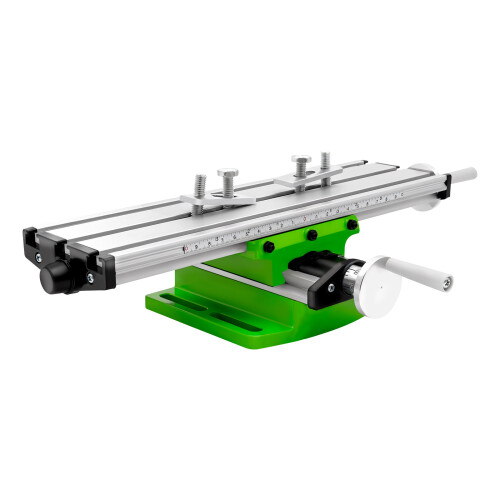

Aluminium multifunctional milling table

Aluminium multifunctional milling table Description

This multifunctional milling work table comes with precision scales and adjustments to meet your precision machining needs. It is made of high-strength materials to ensure stability and precision under long-time use, and can easily cope with your work, which is the ideal choice for you to improve work efficiency and ensure milling quality.

Key Features

• Build to Last: Made of aluminum alloy and treated with spraying paint, the product is highly resistant to corrosion, rust, and deformation, boasting high hardness and long service life.

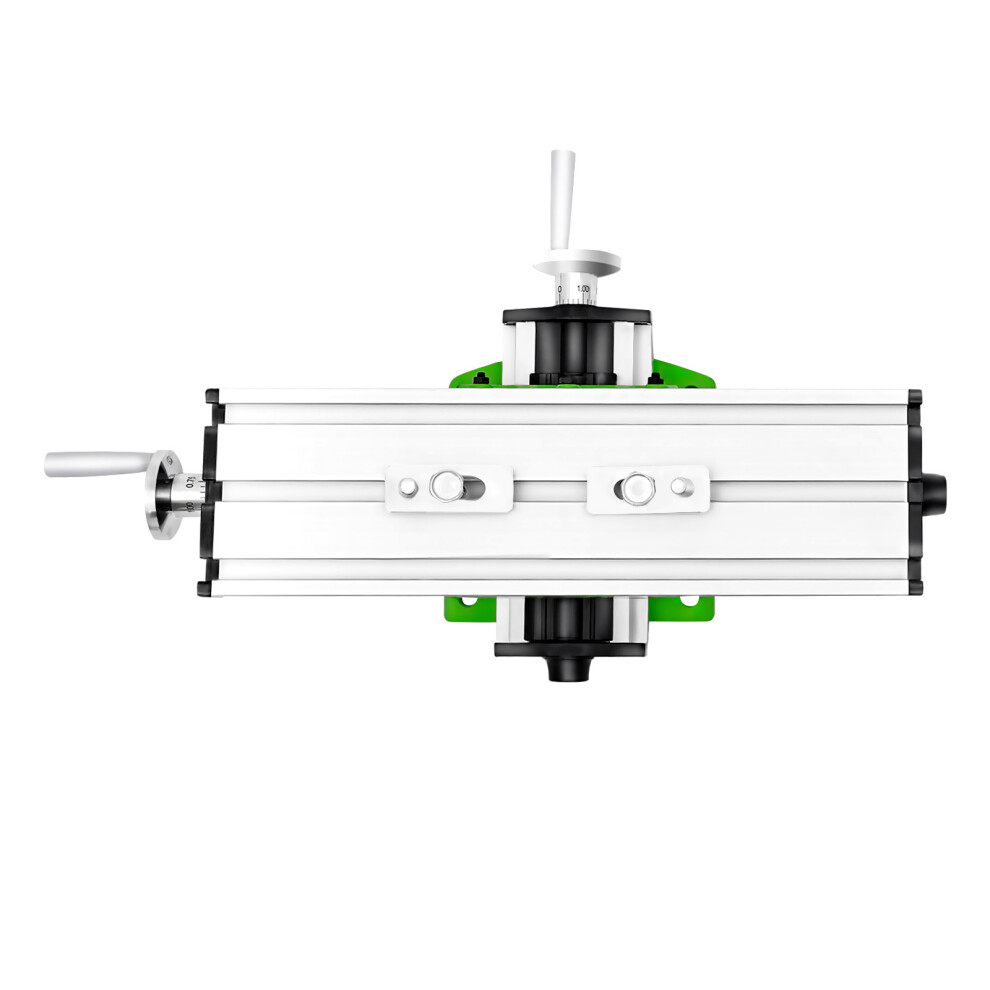

• Adjustable Design: Three slides and adjustable X-axis and Y-axis allow you to easily adjust the position of the workpiece, more flexible handling of the workpiece to meet your different work needs.
• High Precision: The sliding table and handwheels are equipped with scales, which allow you to adjust the position more finely to ensure the quality of machining. The scale on the slide table is movable for easy positioning to minimize errors.

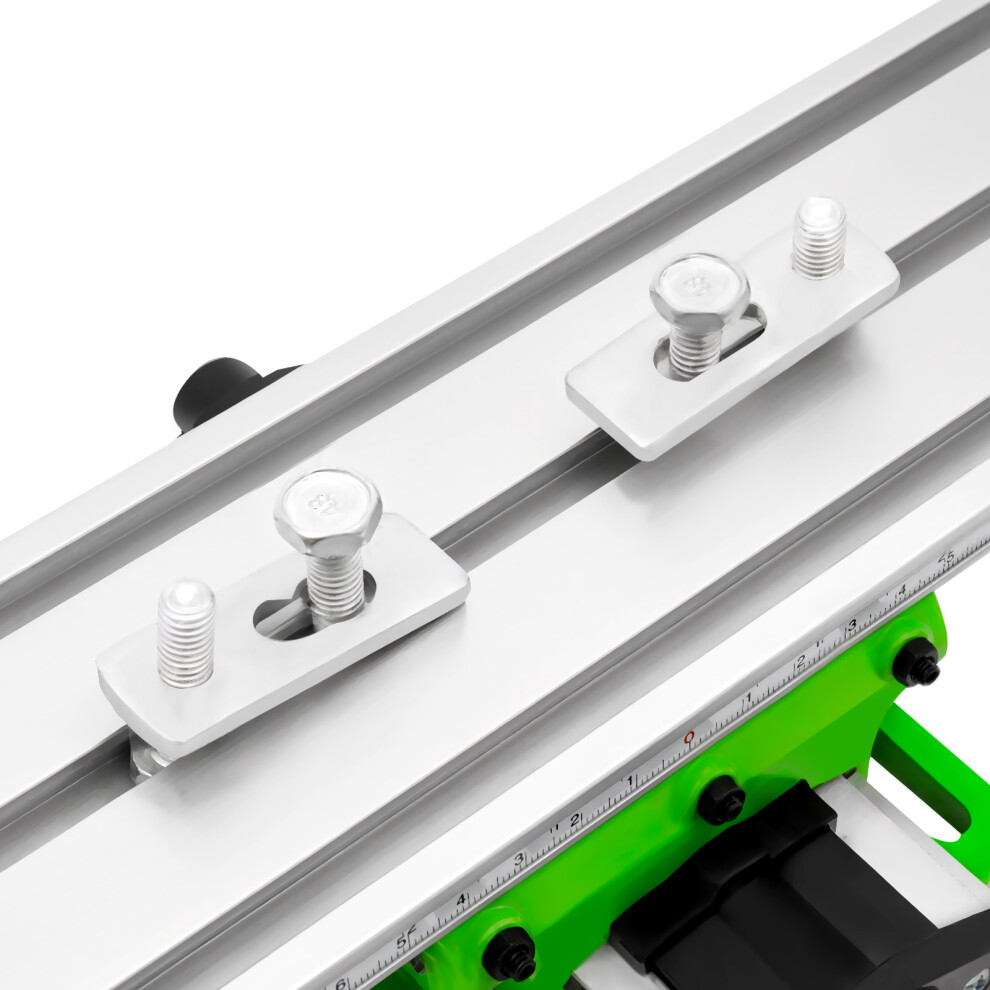

• Thoughtful Design: The fixed jaw allows you to adjust and clamp the workpiece according to the size of the workpiece, avoiding the workpiece slipping or shaking while working.
• Compact and Lightweight: The compact size and light weight allow you to carry it from one place to another with ease, and store it without taking up much space.
• Simple Assemble: With the English instruction and needed accessories, you can finish the installation with less time and effort.
• Easy to Clean: The smooth surface and simple structure allow you to easily wipe the dust off with a soft cloth.

Details

1. Sturdy Base: The thick base with sturdy screw connections improves stability, reduces vibration, and ensures stable and safe work.

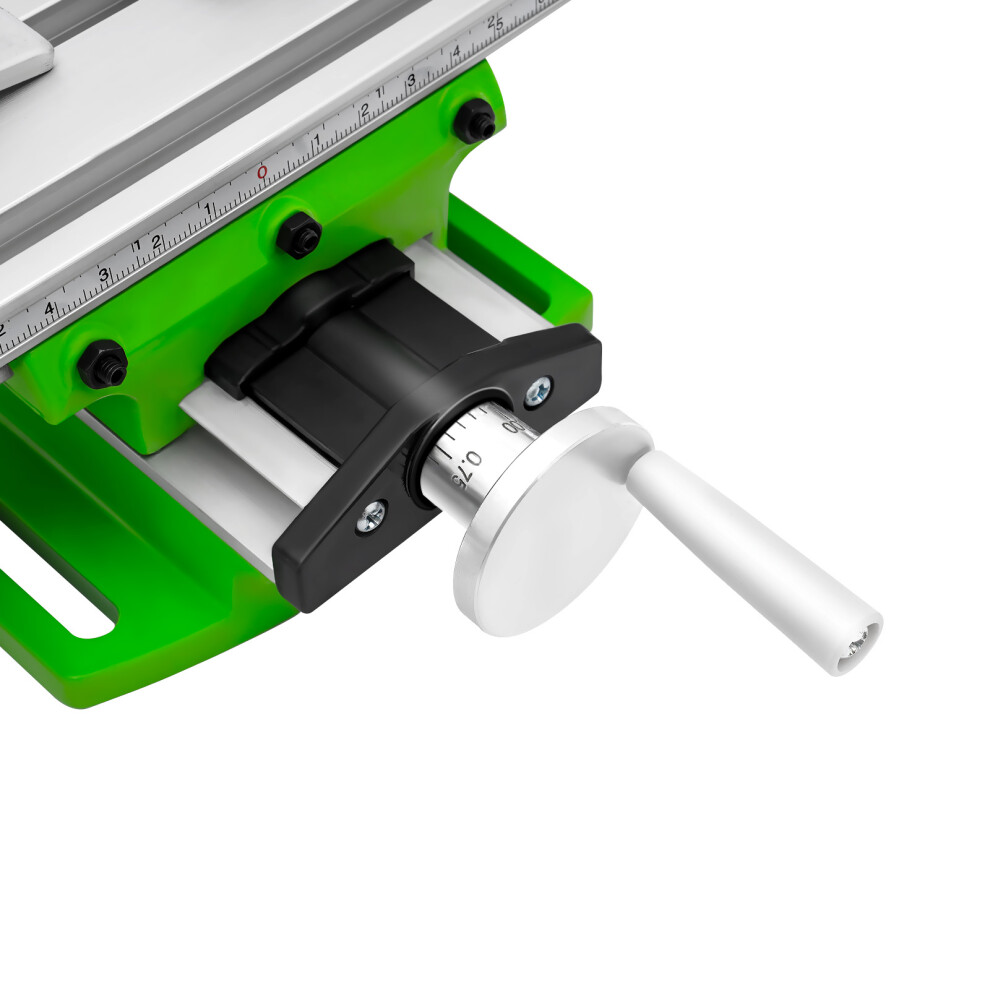

2. Practical Handwheels: The front and side handwheels allow you to easily adjust the distance between the X and Y axes. The dual crank handle design allows for less effort when sliding and adjusting.

Application

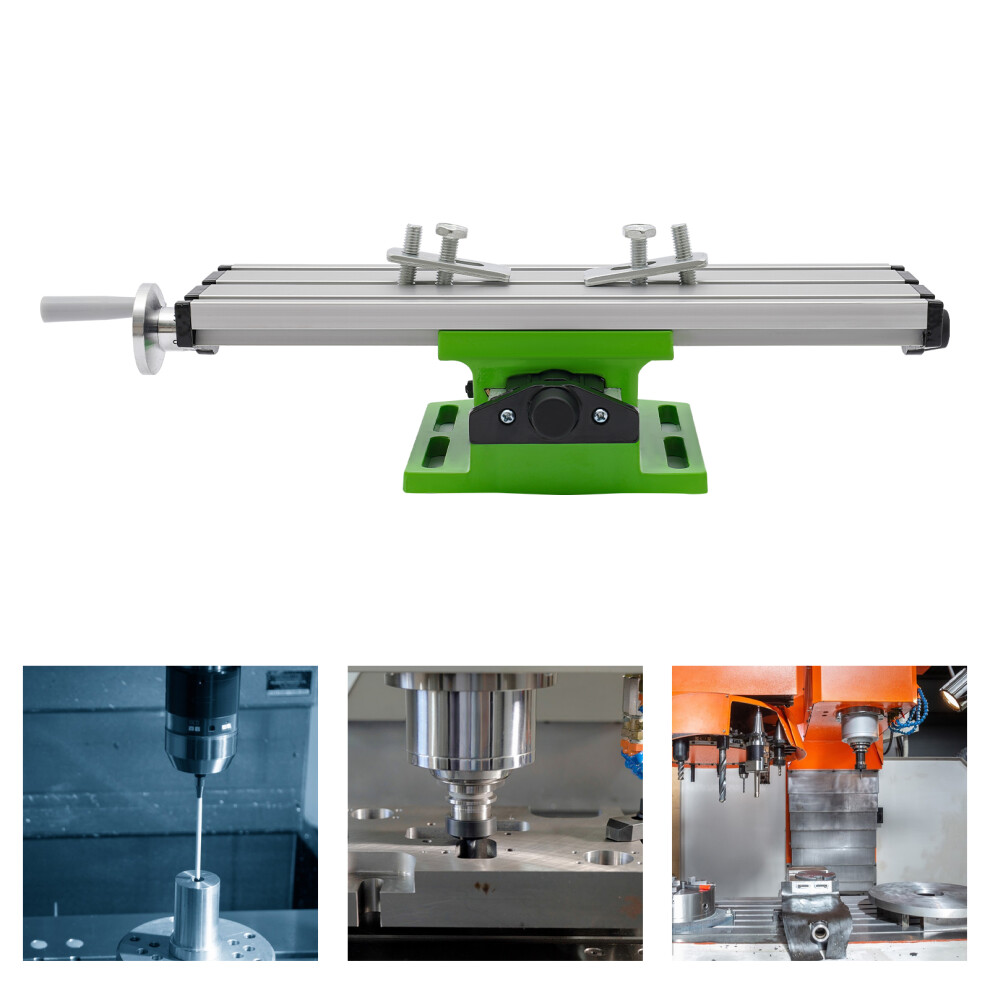

The product is suitable for mini table drills, electric drill holders, and other small equipment.

Specifications

• Color: White, Green
• Material: Aluminum Alloy
• Process: Spraying Paint
• Mount Type: Free Standing
• Distance Between Mounting Holes: 10cm/3.94in
• Minimum Hand Weel Scale Value: 0.05mm/0.002in
• Hand Wheel Scale of Each Circle: 1.25mm/0.049in
• Distance Between Grooves: 3.4cm/1.34in
• X Direction Stroke: 20cm/7.87in
• Y Direction Stroke: 5cm/1.97in
• Work Table Size: 31*9cm/12.2*3.54in
• Assembly Required: Yes
• Product Overall Size: 39.5*24.5*7.8cm/15.55*9.65*3.07in
• Base Length: 12.3cm/4.84in
• Package Size: 35*20*8cm/13.78*7.87*3.15in
• Gross Weight: 1.55kg/3.42lbs

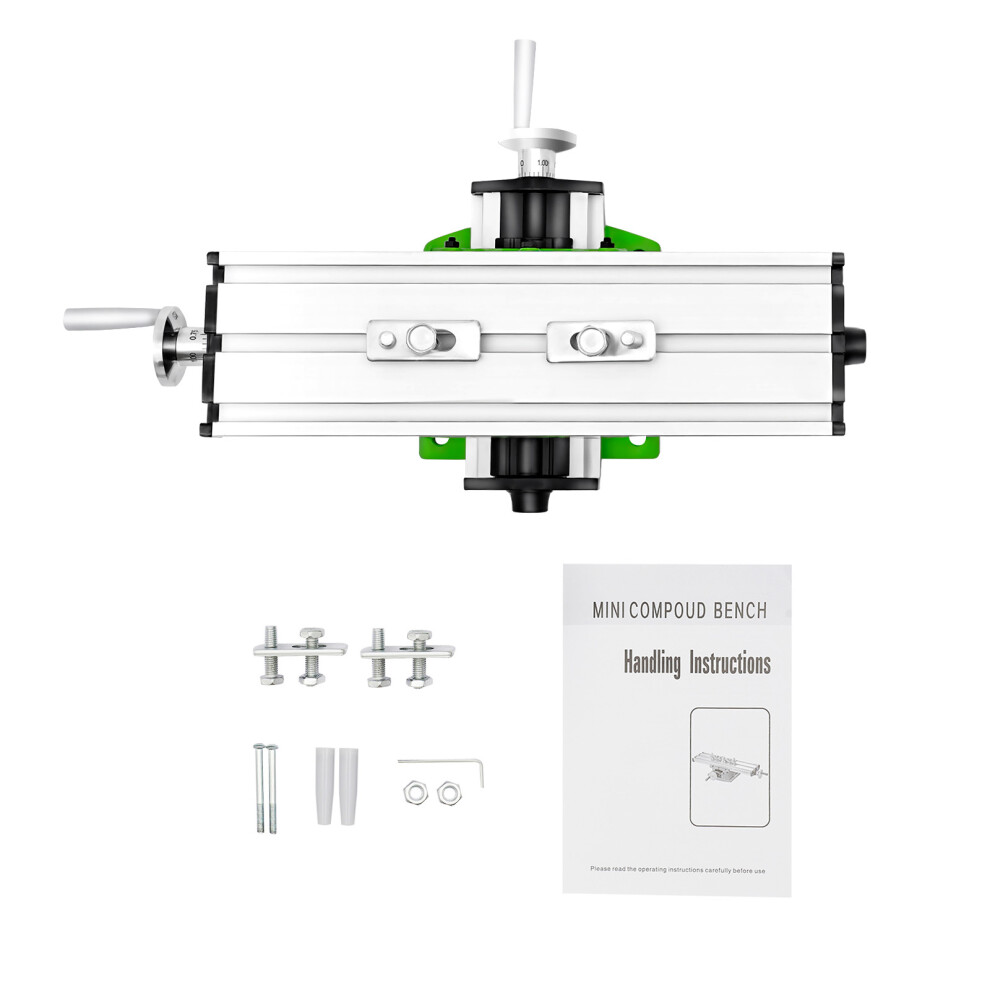

Package Included

1* Milling Working Table

1* English Instruction

Other Needed Accessories

Notes

1. Please check the size carefully before ordering.

2. Please tighten the screws if the slide is wobbly, or loosen the screws if it slides hard.

3. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
