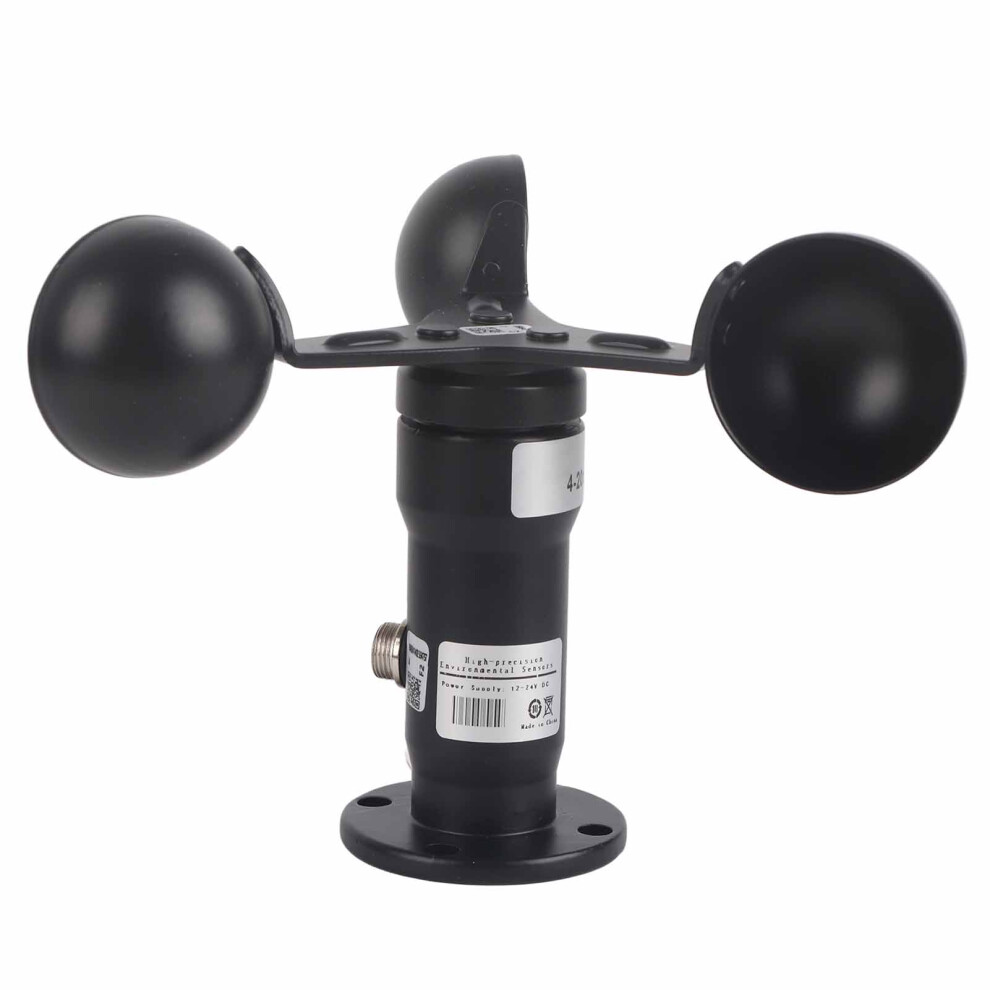

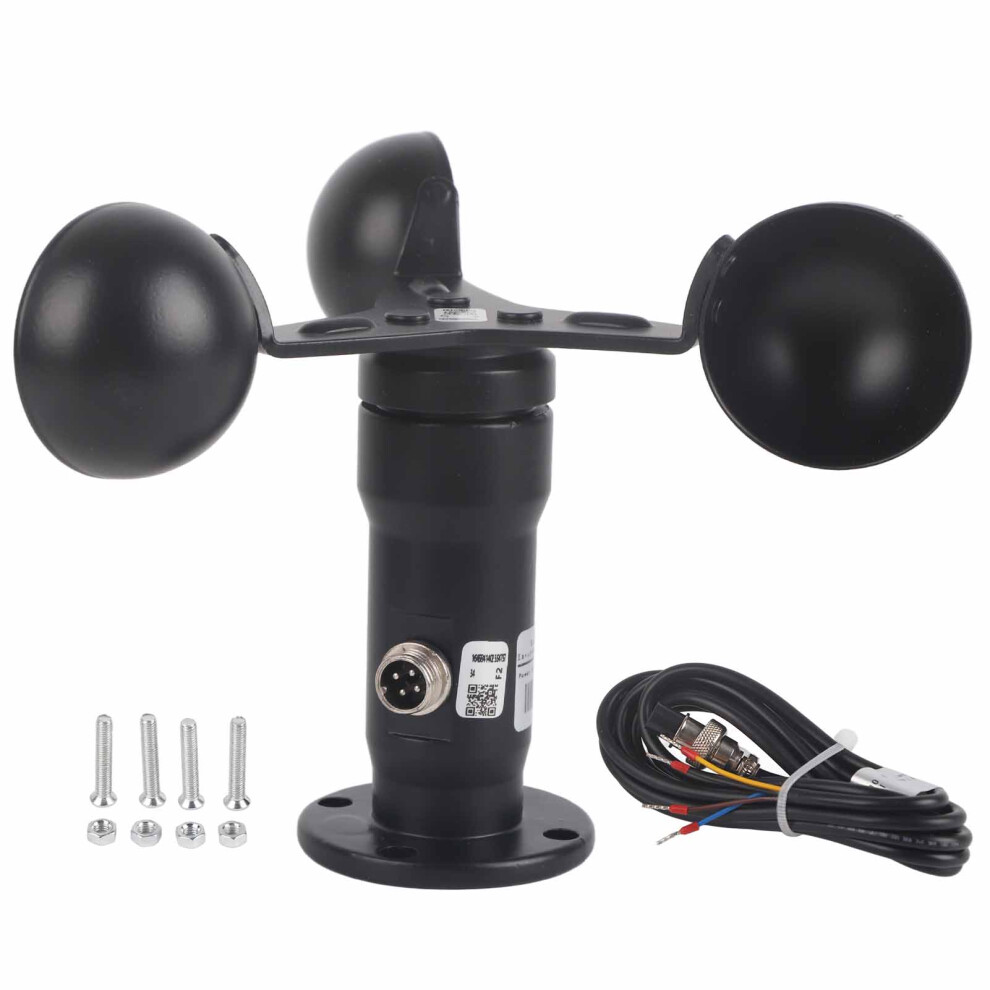

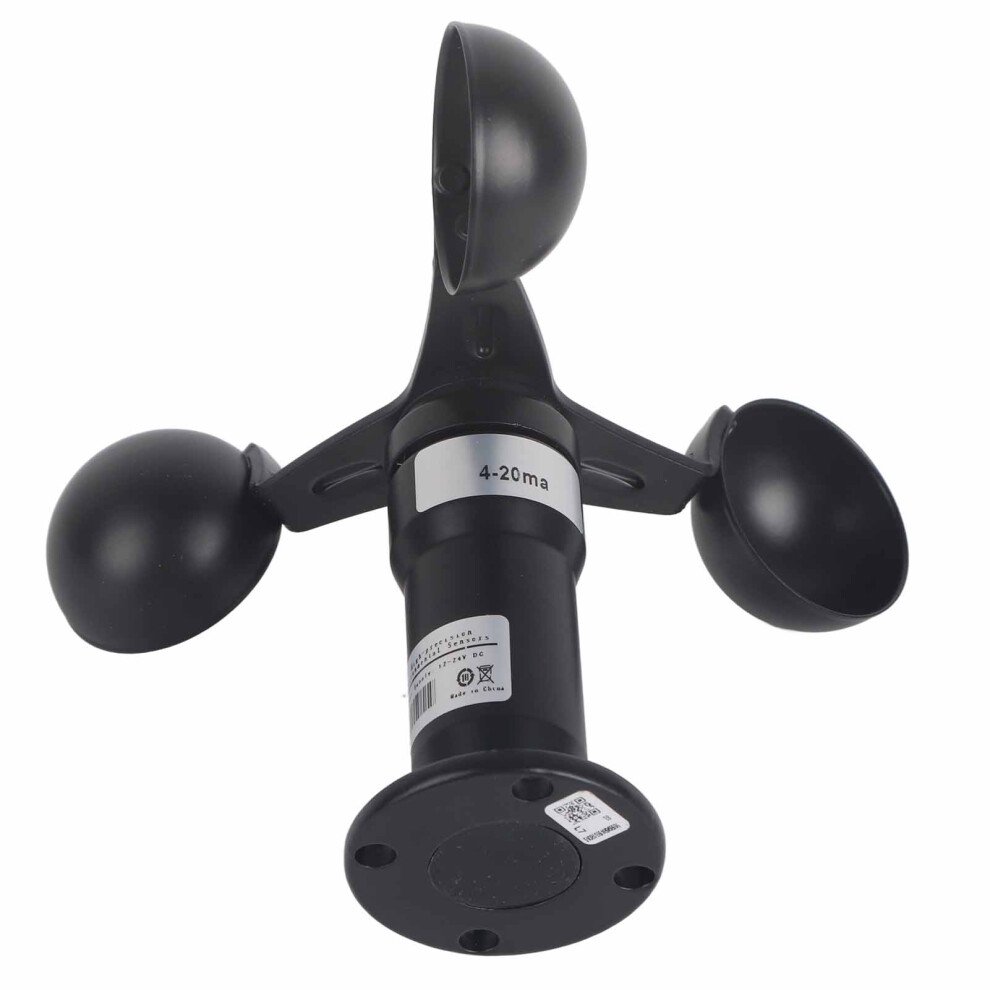

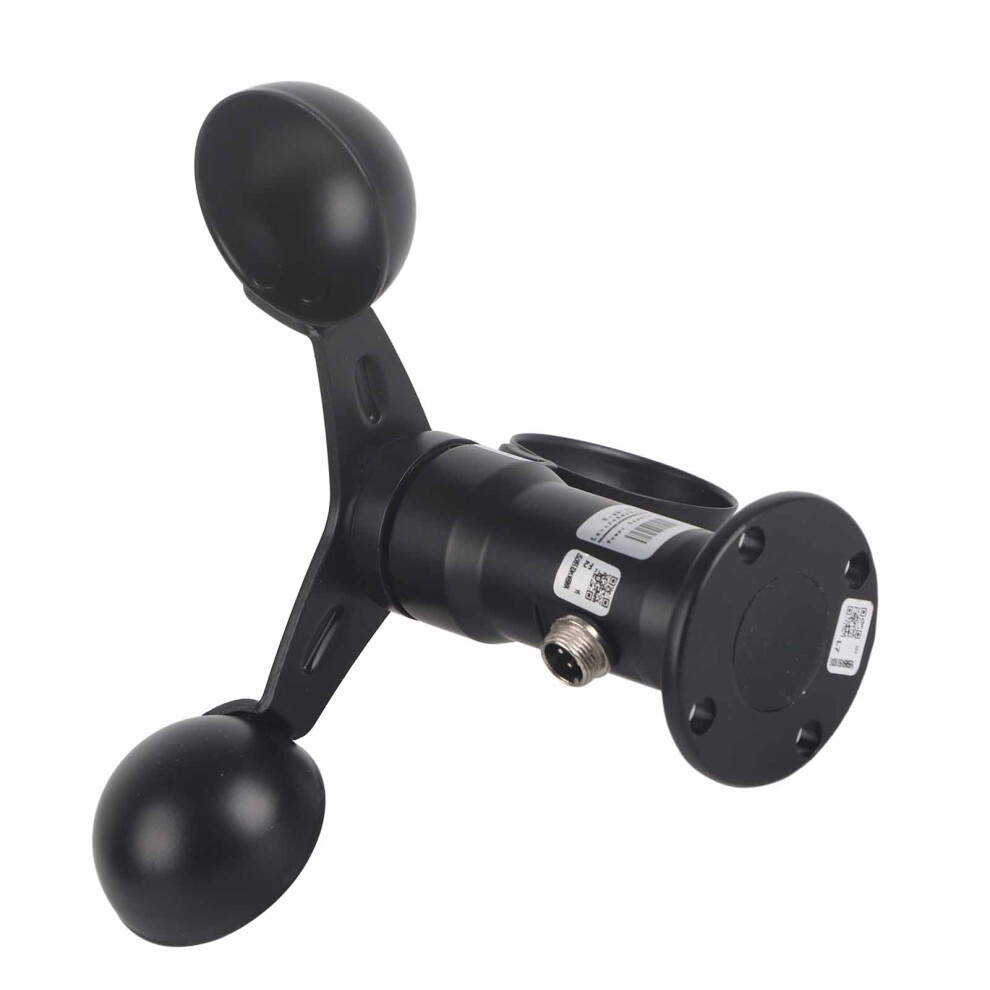

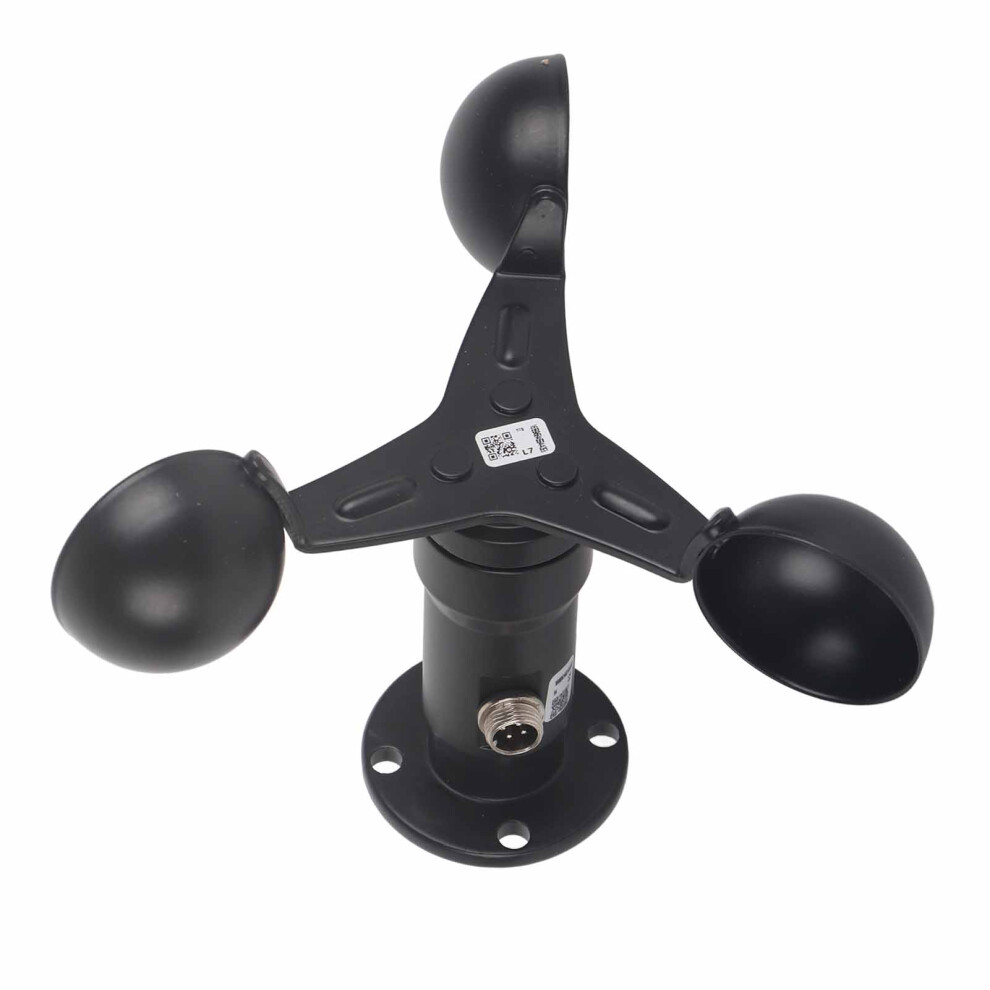

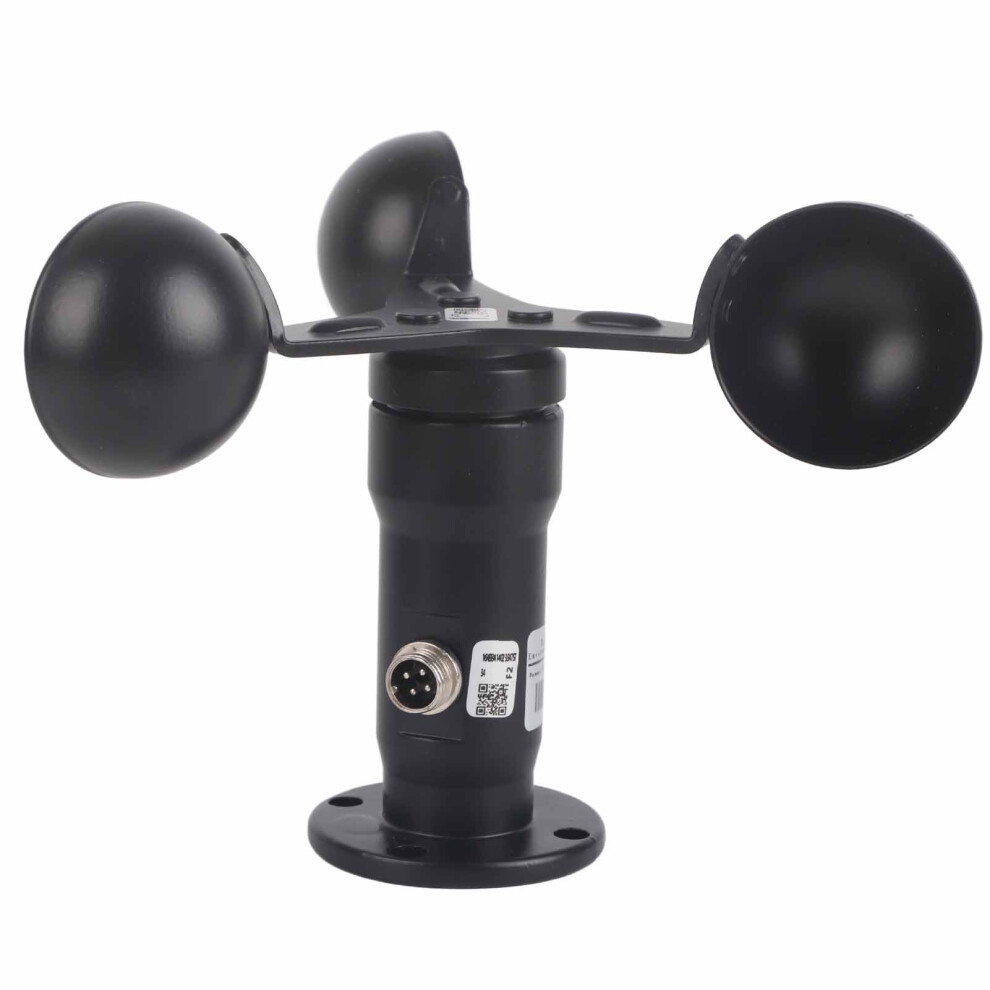

Aluminum Alloy Wind Speed Sensor 0-30m/S 4-20mA Output

Aluminum Alloy Wind Speed Sensor 0-30m/S 4-20mA Output Description

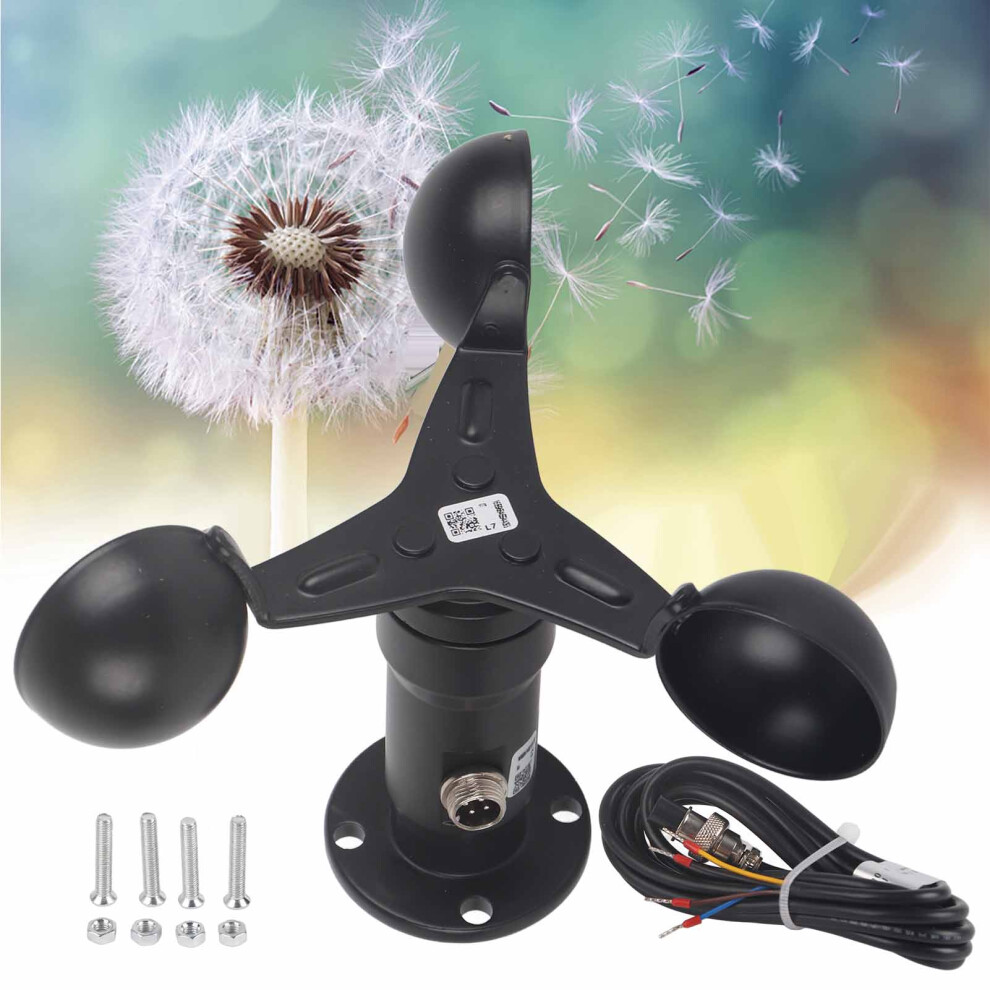

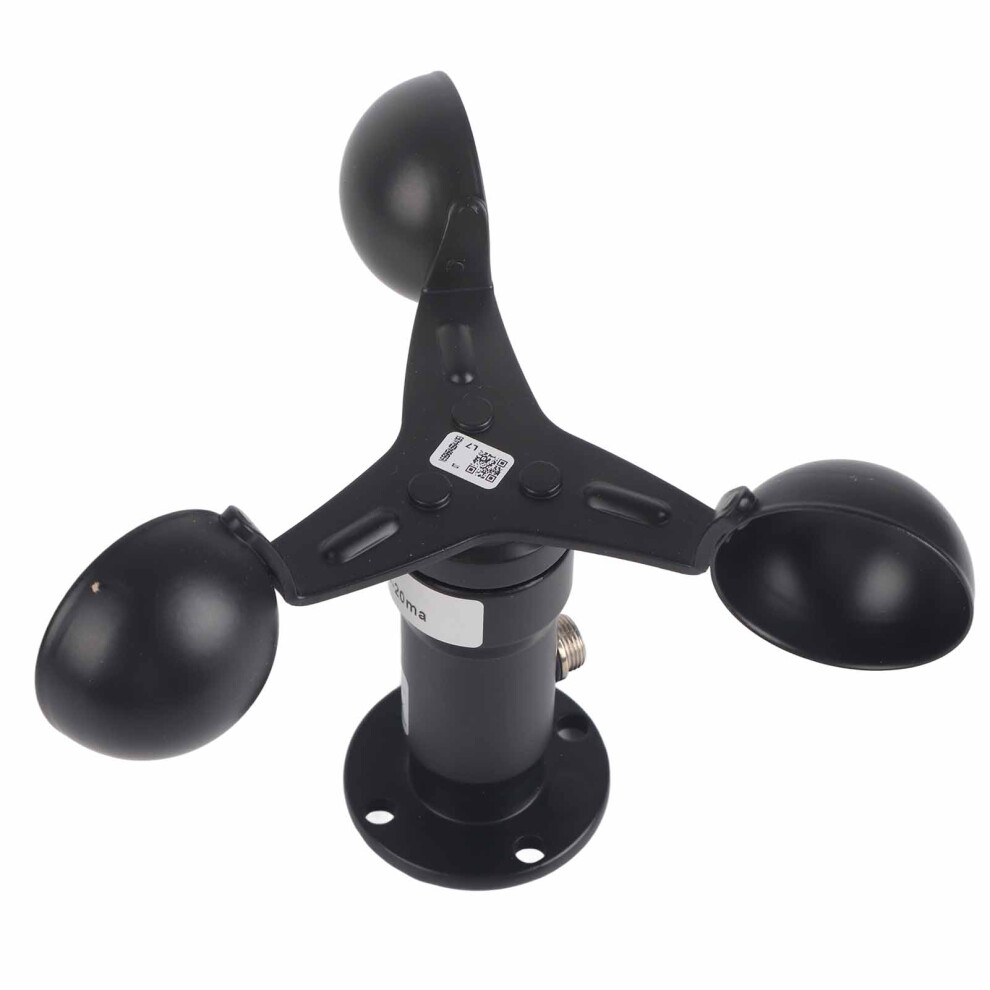

4-20mA Pulse Signal Output Aluminum Alloy Wind Speed Sensor Anemometer Wind Speed Detector
Condition:
Item Type: Wind Sensor
Material: Aluminum Alloy, Polycarbonate
Output Signal: 4-20mA
Wind Speed Measurement Range: 0-30m/S
Accuracy of Wind Speed Measurement: +1m/S
Response Time: <5s
Baud Rate: 2400/4800/9600
Power Consumption: <1W
Operating Temperature: -30 - 80
Working Temperature Environment: 0-100% RH (15-95% RH)
Weight: Approx. 356g / 12.6oz
Height: Approx. 12.4cm / 4.9in

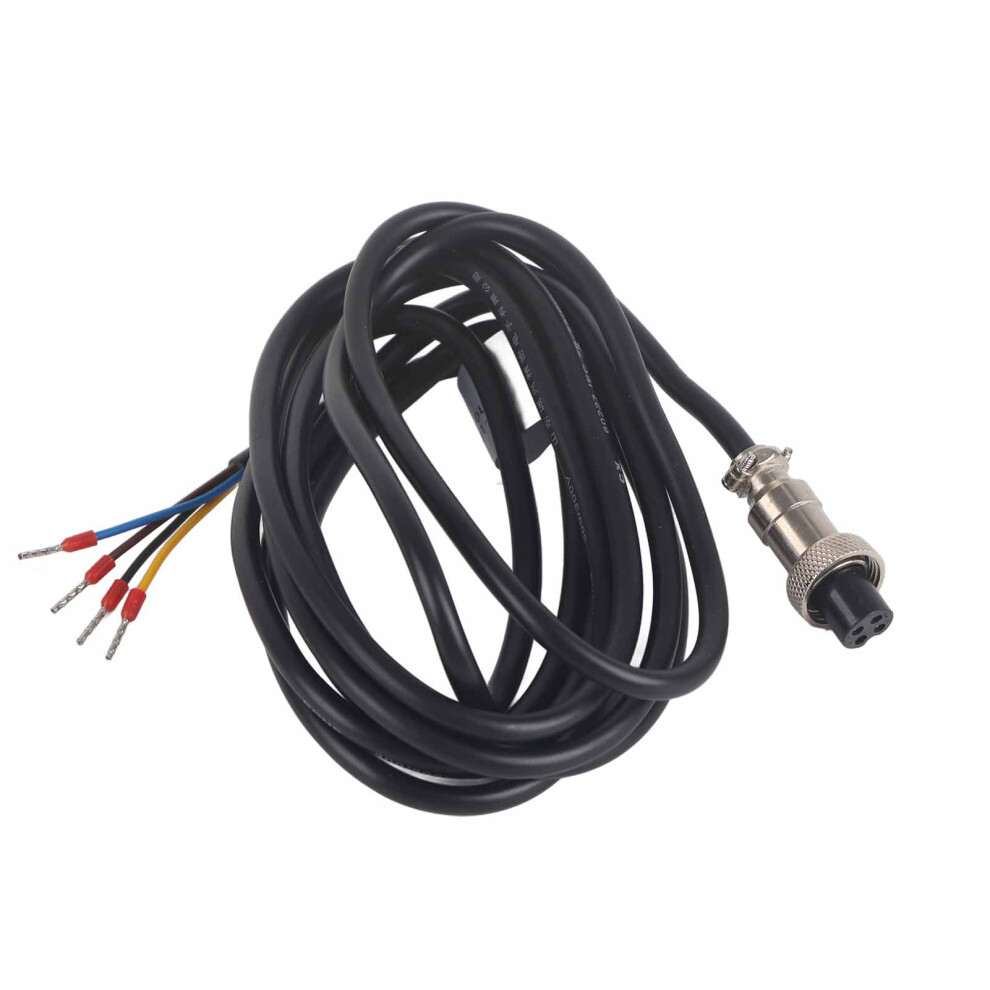

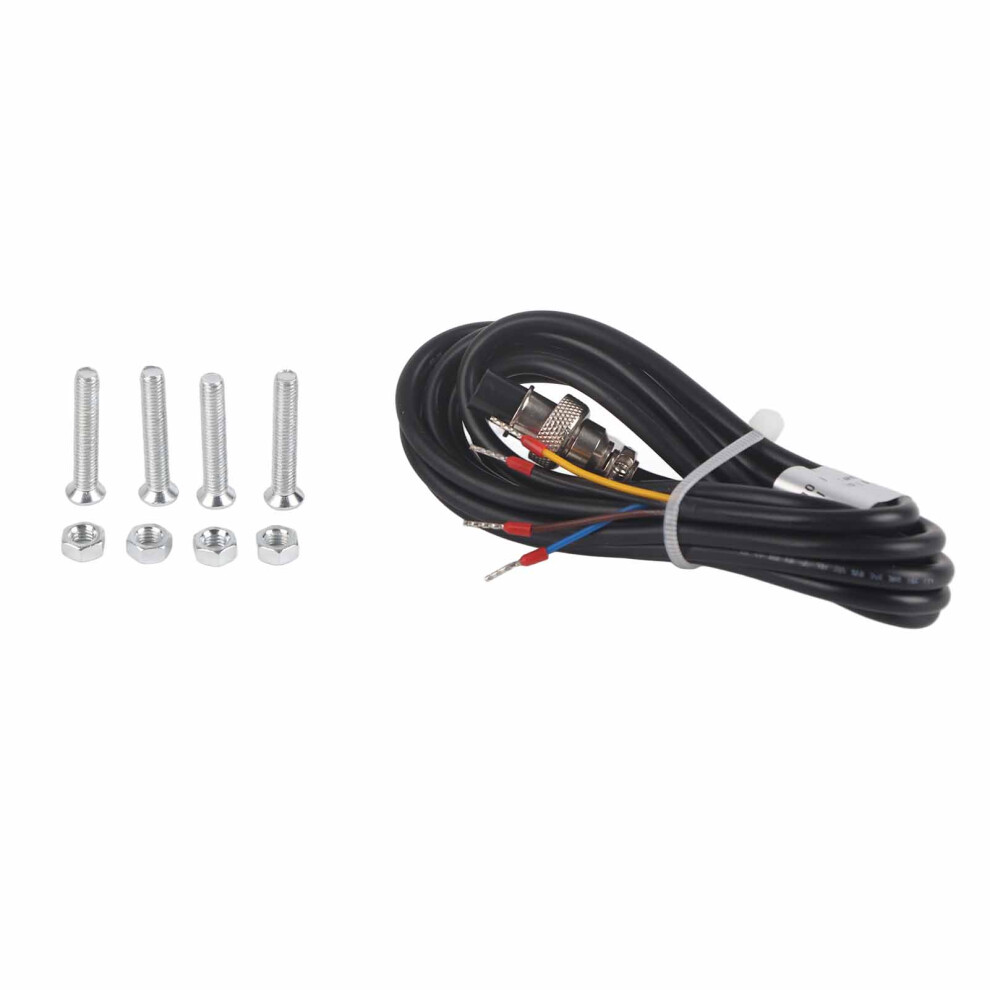

Wiring Instructions:

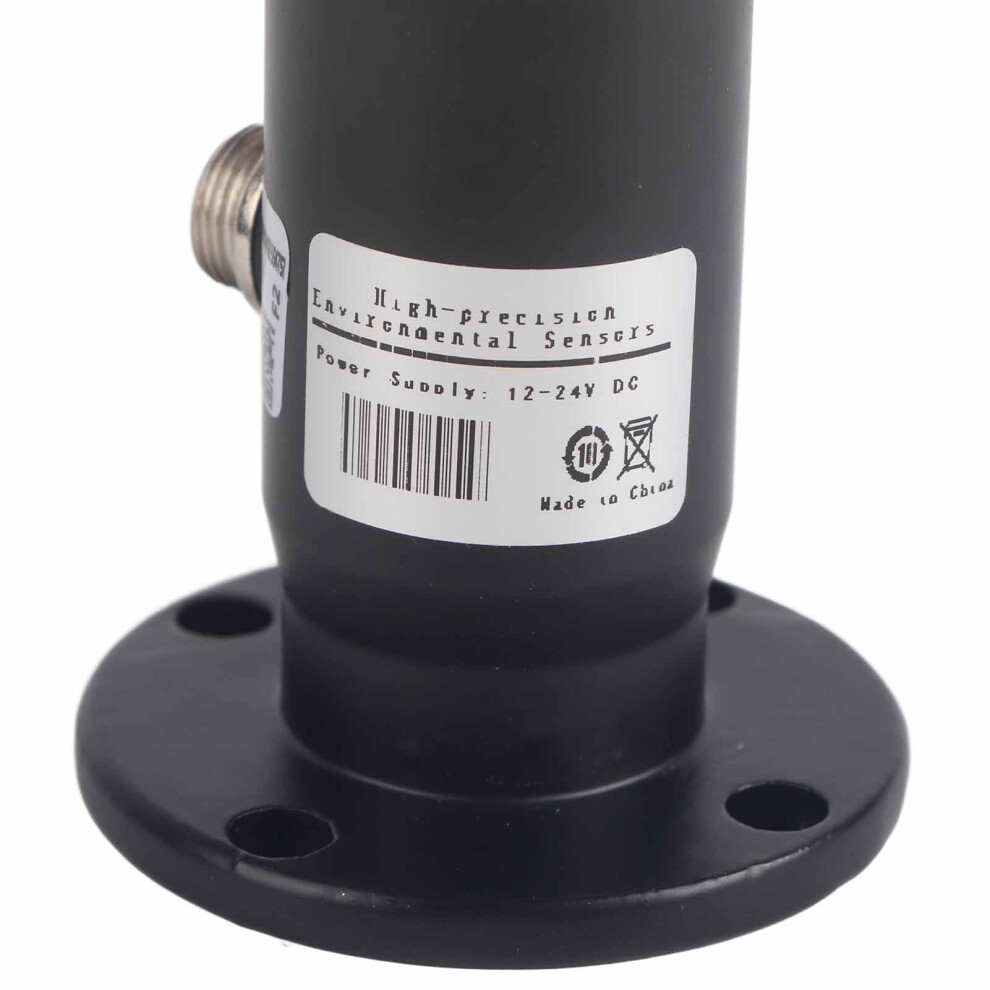

Brown: Power Supply Positive (12-24V)
Black: Power Supply Negative
Yellow: 485-A
Blue: 485-B
Application: Wind speed measurement of power plant, wind speed and direction measurement of meteorological monitoring, wind speed and direction measurement of navigation and aviation, wind speed and direction measurement of agricultural intelligent wind speed and direction measurement
Installation mode:
1. Ensure that the mounting bracket is parallel to the ground;
2. Installation with flange and fixing with bolt on bracket;

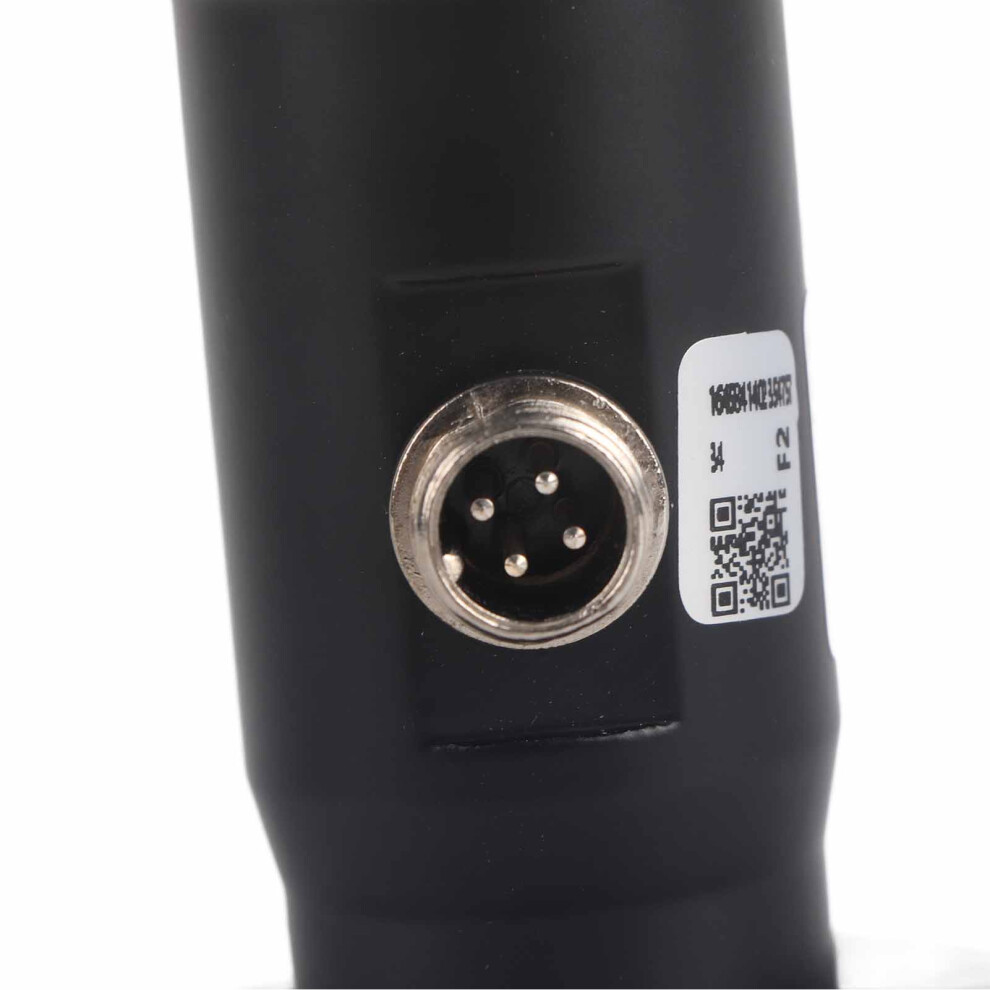

3. Connect the air socket connector with the air socket of the sensor through the reserved air route hole.
