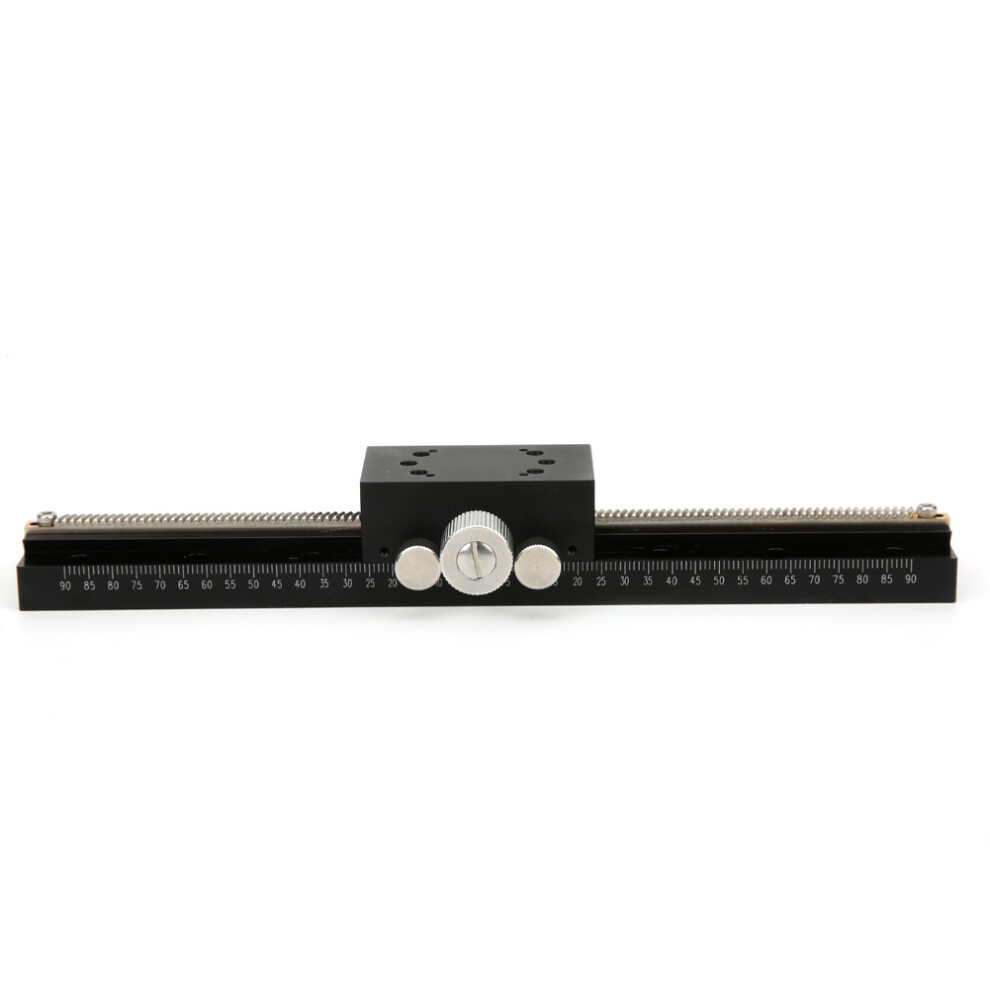

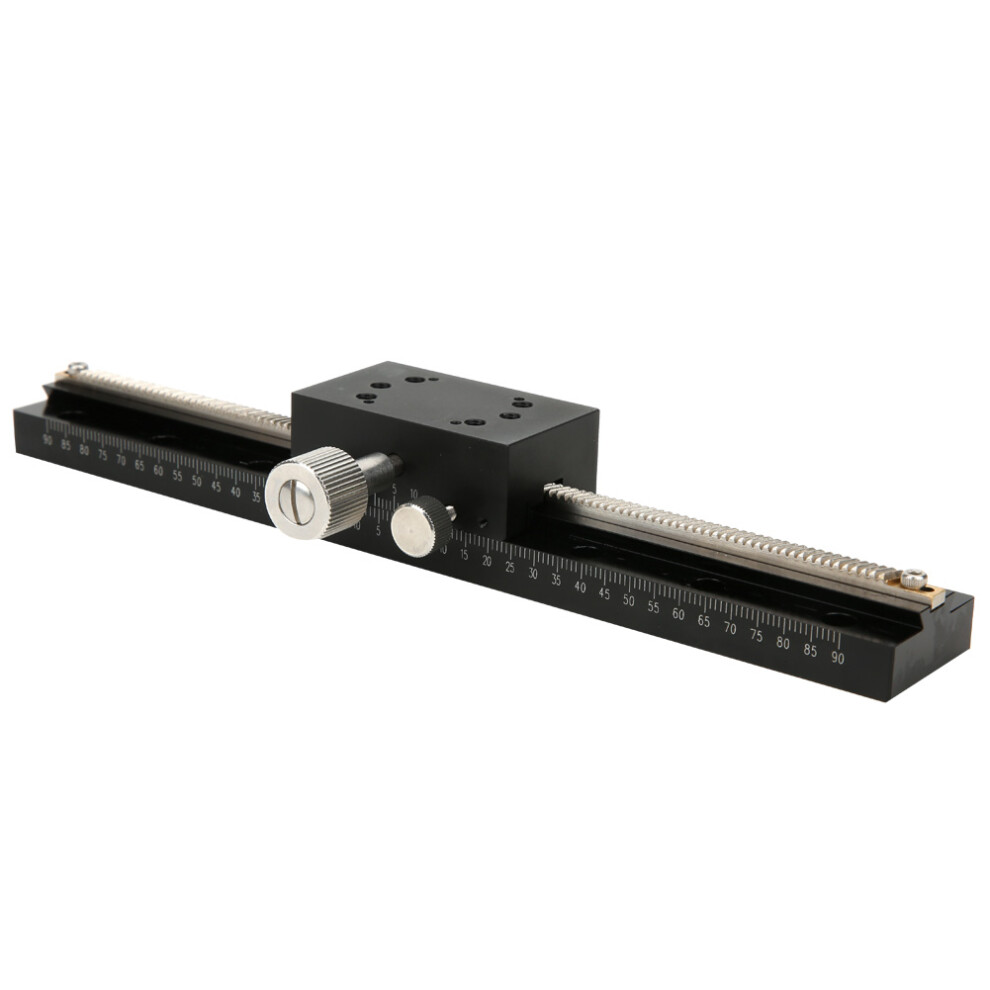

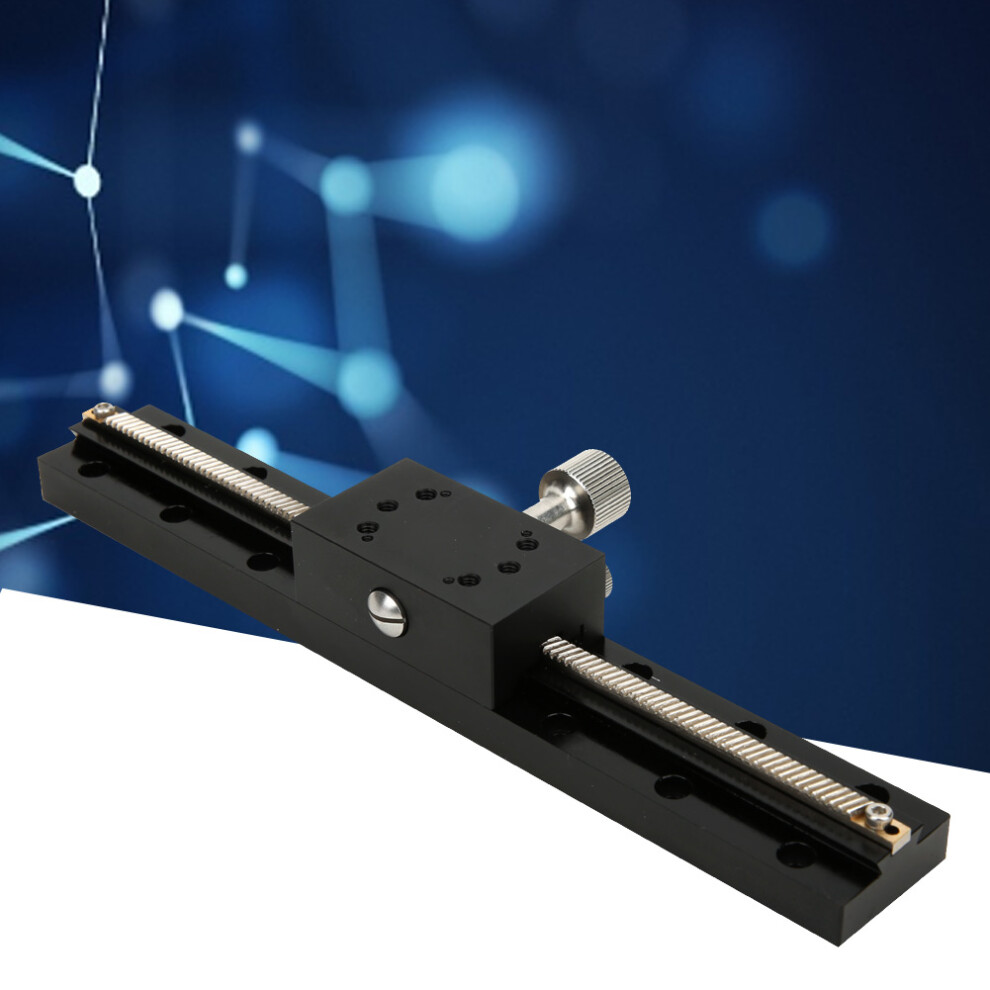

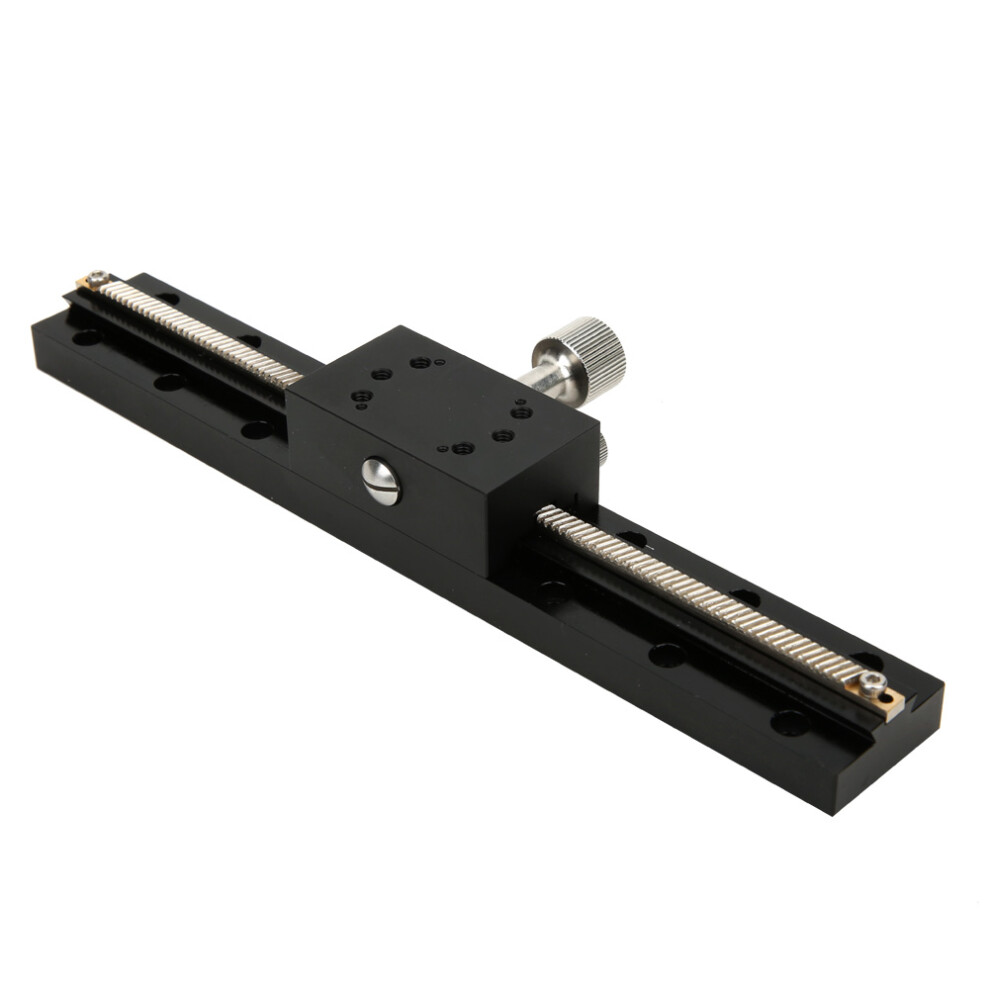

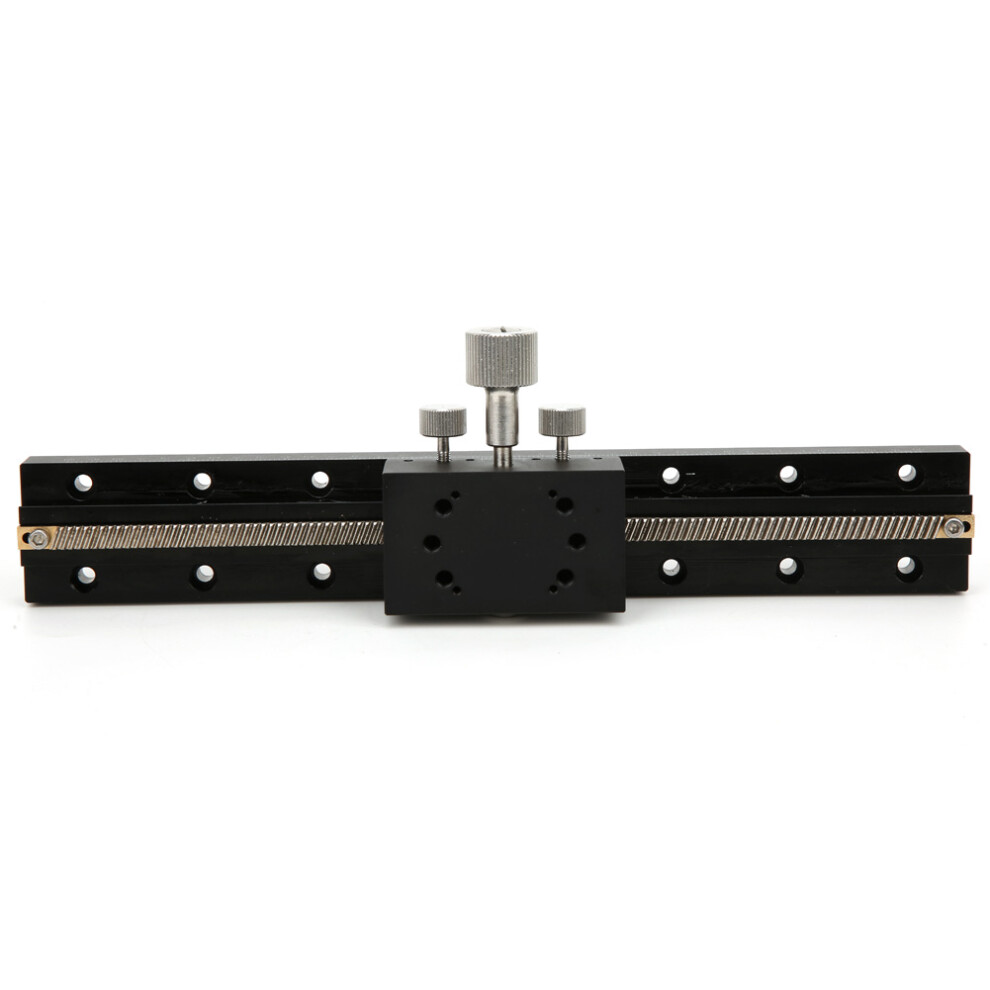

Aluminum X Sliding Stage Replace for Misumi XDTLS200

Aluminum X Sliding Stage Replace for Misumi XDTLS200 Description

1、The main body is made of aluminum alloy material, which is light weight, sturdy, resistant to friction 2、Gear rotation is controlled by the handle, smooth and stable to move 3、With dovetail groove guide, high accuracy and large load capacity 4、With R corner protection, safe to protect, which has wide range of application 5、Suitable for optical instruments, measuring devices, semiconductor manufacturing equipment, testing machines, etc
Item Type: Manual Trimming Platform
Model: SPXDTLS200
Table Size: Approx. 50 x 30mm / 2 x 1.2in
Overall Height: Approx. 28mm / 1.1in
Moving Direction: X, 1 direction
Body Material: Aluminum alloy (black anodized)
Drive Method: Manually turn the knob to advance the gear drive (gear + rack)
Sliding Track: Rack rail
Guide Rail Type: Dovetail groove
Number of Countertop Threaded Holes: 6
Threaded Hole Diameter: Approx. 4mm / 0.16in
Threaded Hole Depth: Approx. 5mm / 0.2in
Load Resistance: 29.4N
Move Stroke: 90mm
Minimum Scale: 0.01mm
Parallelism: 0.1mm
Parallelism of Movement: 0.1mm/60mm
Scope of Application: Optical instruments, measuring devices, semiconductor manufacturing equipment, testing machines, microscopes, photographic equipment, conveyors, processing machines, printing machines and other
1 x Manual Trimming Platform
