Anderson Battery Plug Set 120A/175A 2 Sets

Anderson Battery Plug Set 120A/175A 2 Sets Description

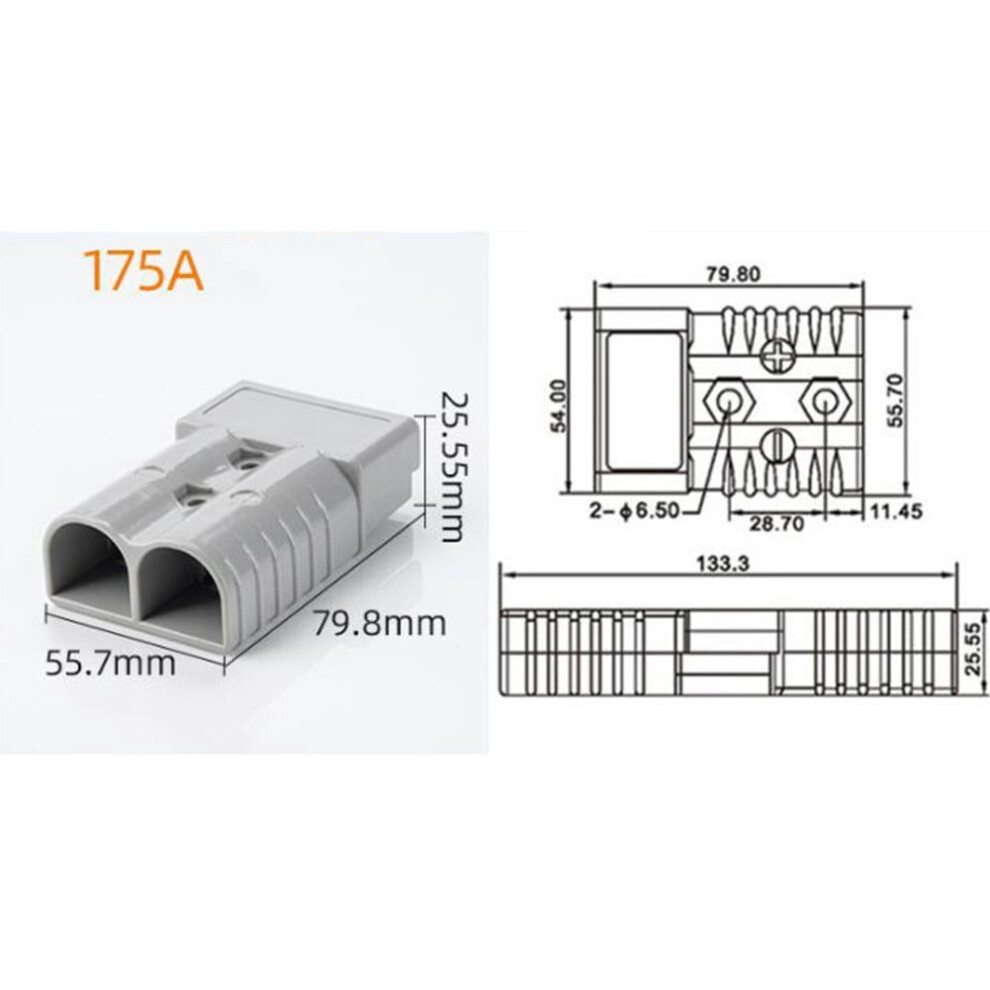

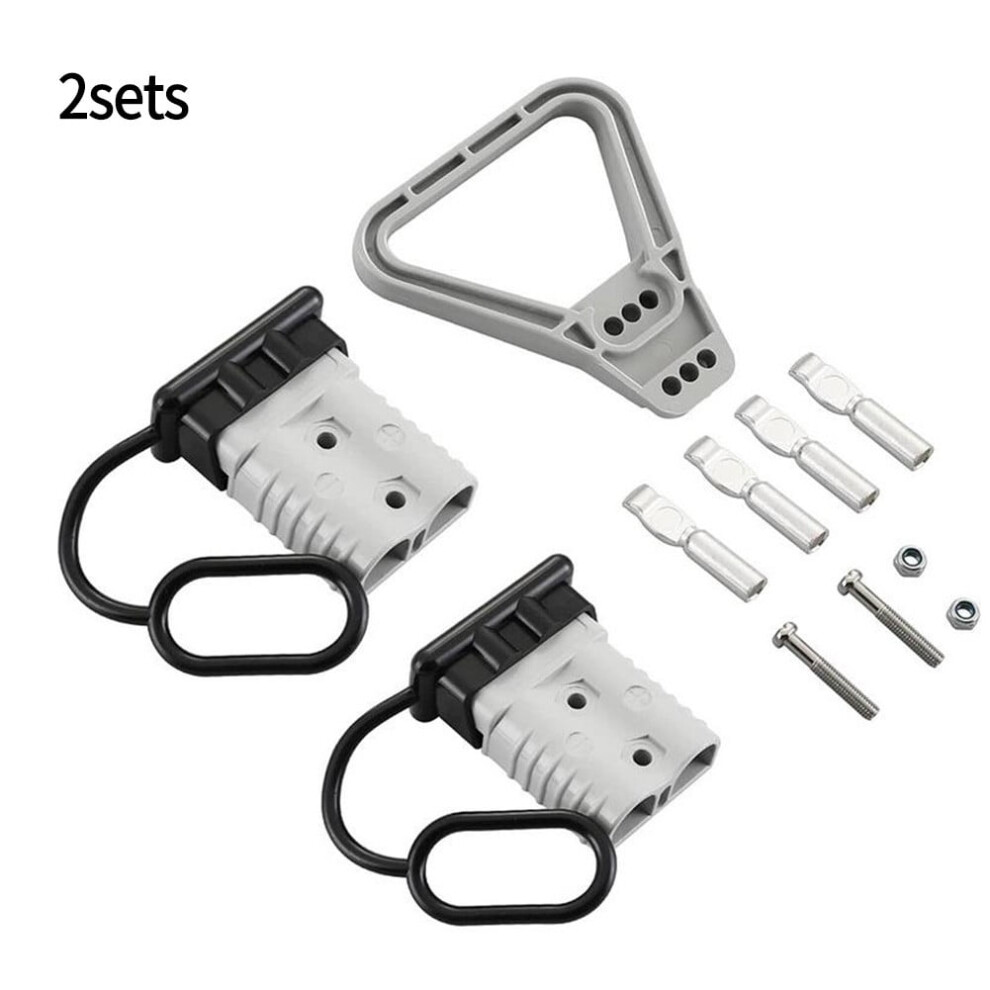

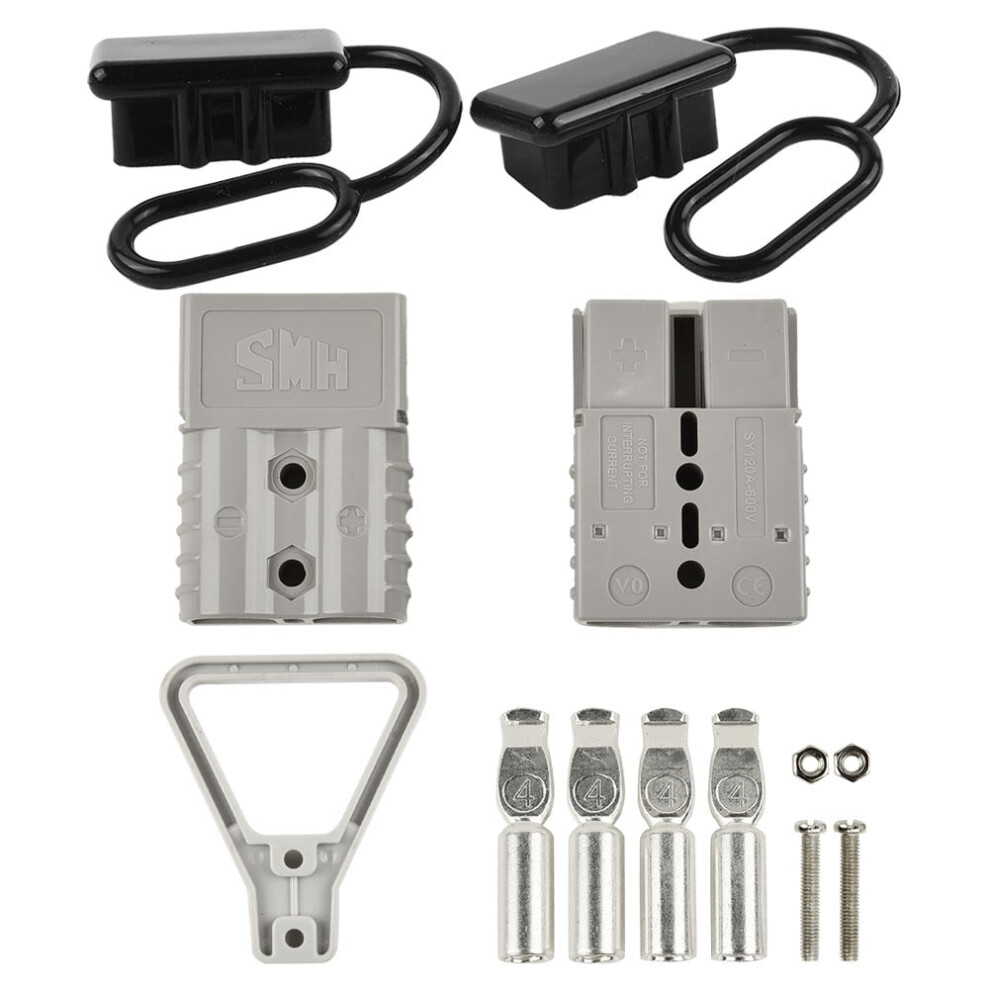

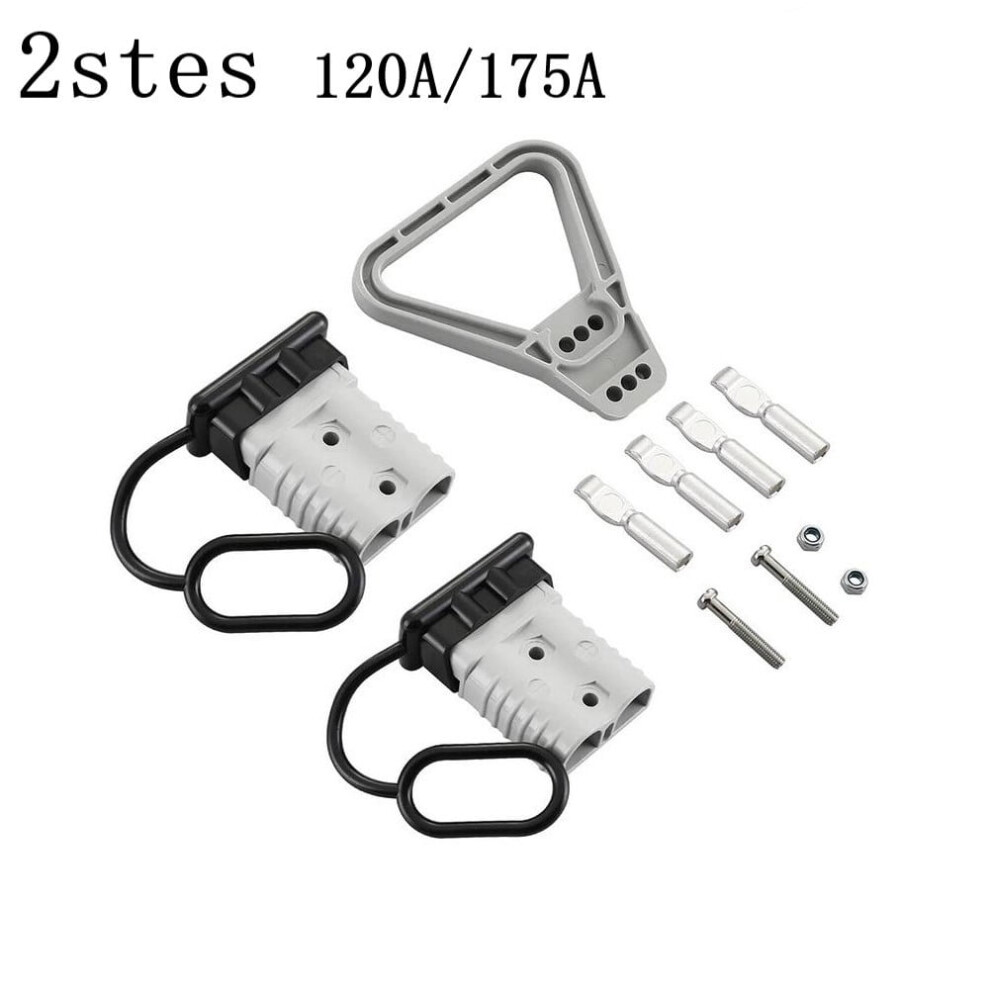

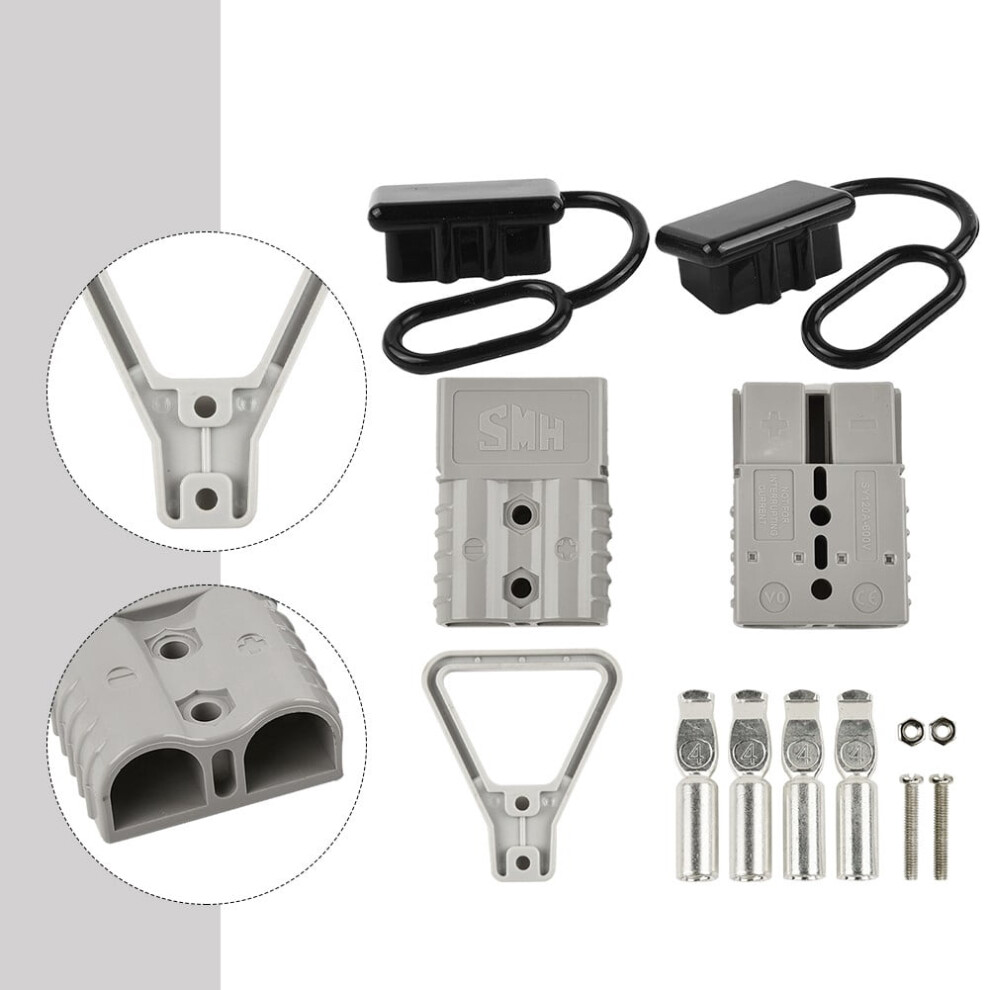

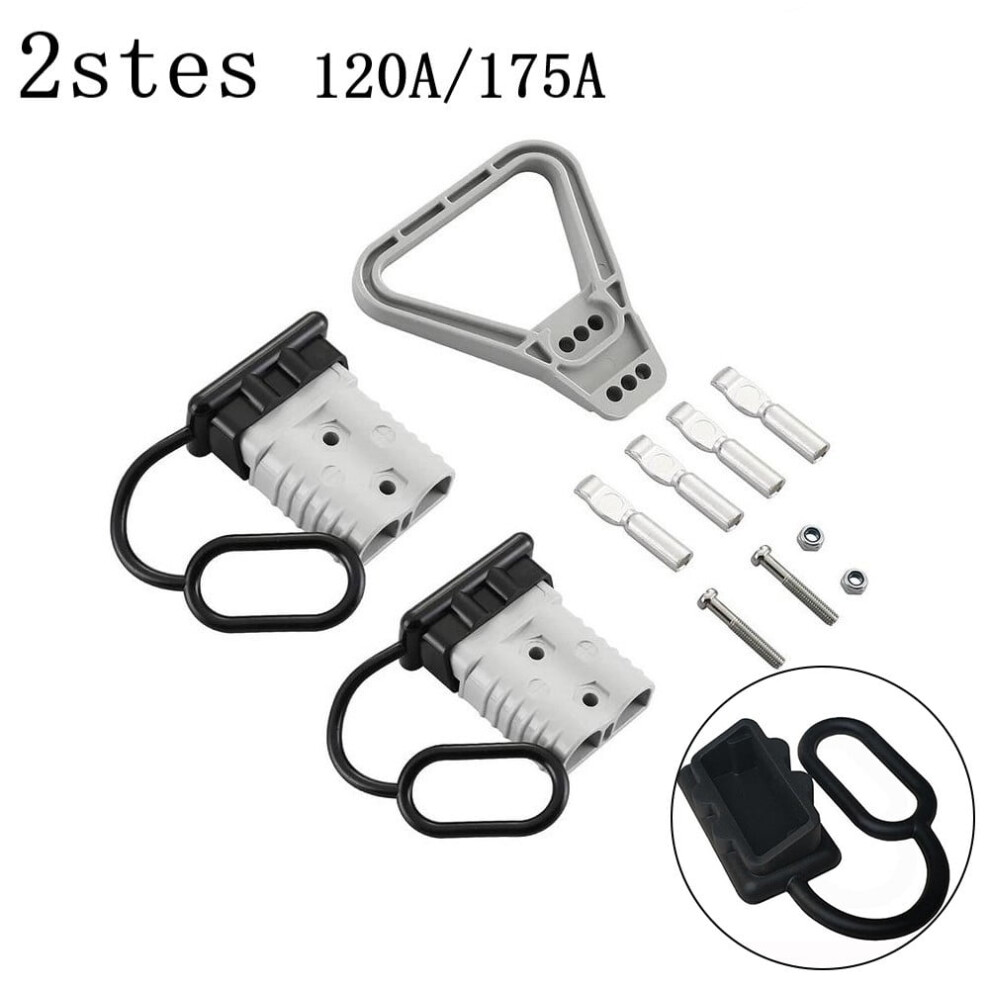

Feature: - Brand new and high quality - Made of high quality materials, durable - Easy to connect and disconnect, good electrical conductivity - Does not heat up during use. - The charging process is safe, simple and fast. - Silver Plated Contacts - Provides longer life when using high power, high temperature applications - Terminals can be crimped or soldered to the cable - Mechanically keyed housing - Prevents accidental component mating (each connector slot plugs into the other, no male and female versions) -piece housing - Provides industrial strength quality and durability - Easy to install - Fits 1/0 Awg cable; 175 amp capacity. Simply place the cables into the terminals (diameter: 0.433"), solder or crimp them, then slide them into the back of the plug and lock in place Product parameters: - Rated current: 120A, 175A (optional) - Rated voltage: 600V - Contact material: copper silver - Fire rating: UL94-V0 - Operating temperature -20C to 105C - Plug Color: Grey - Dust cover color: black - Quantity: 2pcs - Interface type: straight plug - Insulation material: PPO - Number of stitches: 2 Package Included: 2* for Anderson plug connector 2*dust cover 1*handle 4*Terminal Notes: 1. Due to various factors such as display brightness and light brightness, the actual color of the product may be slightly different from the website picture. 2. Please allow a slight deviation between the data and the manual measurement.
