Android 10.0 DAB+ Sat Nav WiFi CarPlay Bluetooth OBD2 CD Car Stereo AUDI A4 S4 RS4 RNS-E SEAT EXEO

Android 10.0 DAB+ Sat Nav WiFi CarPlay Bluetooth OBD2 CD Car Stereo AUDI A4 S4 RS4 RNS-E SEAT EXEO Description

Key Features:

- Android 10.0 OS, Quad Core, 2GB RAM and 16GB ROM, 2 Card/3 USB up to 5*128GB extended Storage.
- Built-in Can-bus Decoder (which costs at least USD 45 in the market).
- Built-in Bluetooth module, which supports hands-free function with A2DP Audio Streaming.
- Built-in GPS Module, which supports offline GPS Navigation, 16GB TF Card as gift included.
- Built-in WiFi Module for Internet, you can Link mobile hotspot to use Google online Navigation.

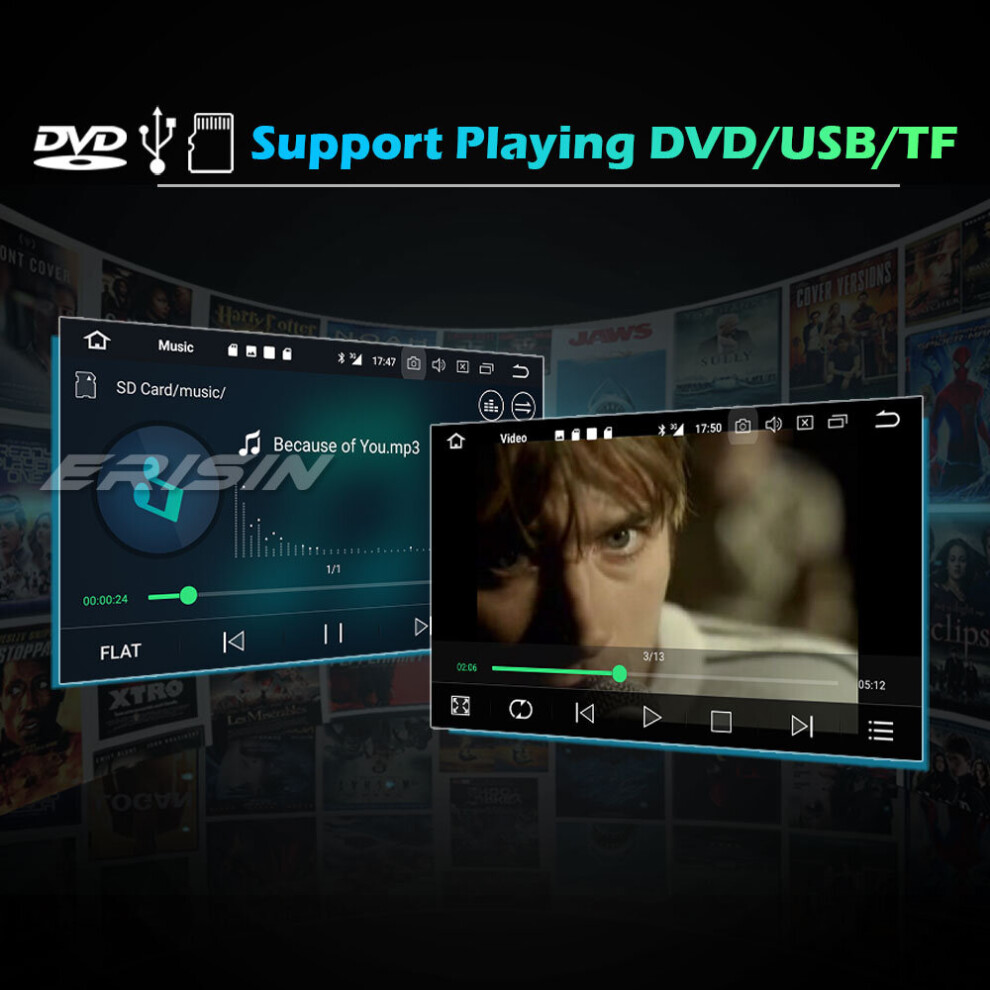

- Built-in Android Multimedia Player, can play Music/Video/Photo from local Disc or USB/TF.
- Built-in DVD, USB, TF, Radio, RDS, WiFi, Clock, Calculator, Calendar.
- Support CarPlay, DAB+, DVB-T/T2, TPMS, OBD2, DVR, Camera, AVIN, 3G, 4G etc. extended functions.
- Support Mirror Link with iPhone via WiFi and with Android Smartphone via USB or WiFi.
- Support steering wheel control, easier and safer to adjust volume, answer calls and switch the songs while driving.
- Support panel light colors adjustment, many RGB-colors can be chosen.

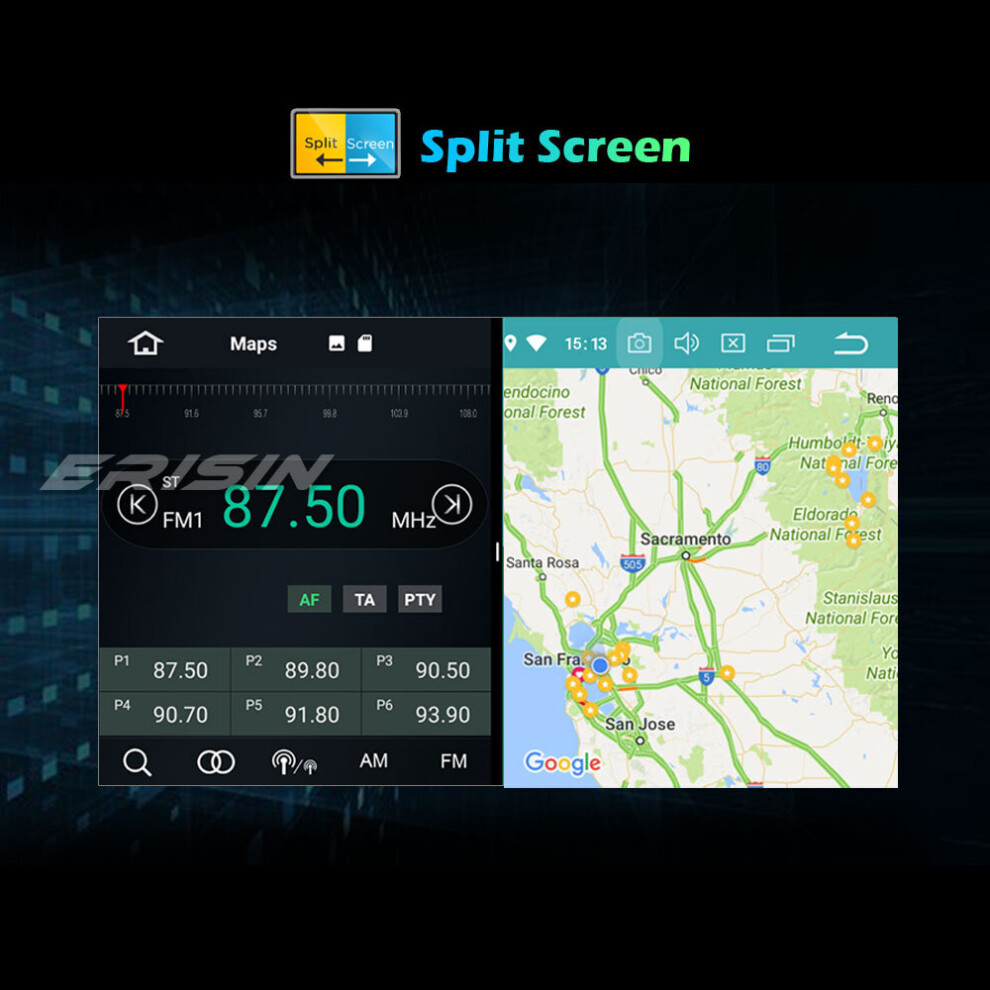

- Support Split Screen, you can run two apps side by side.

Compatible Models & Years:

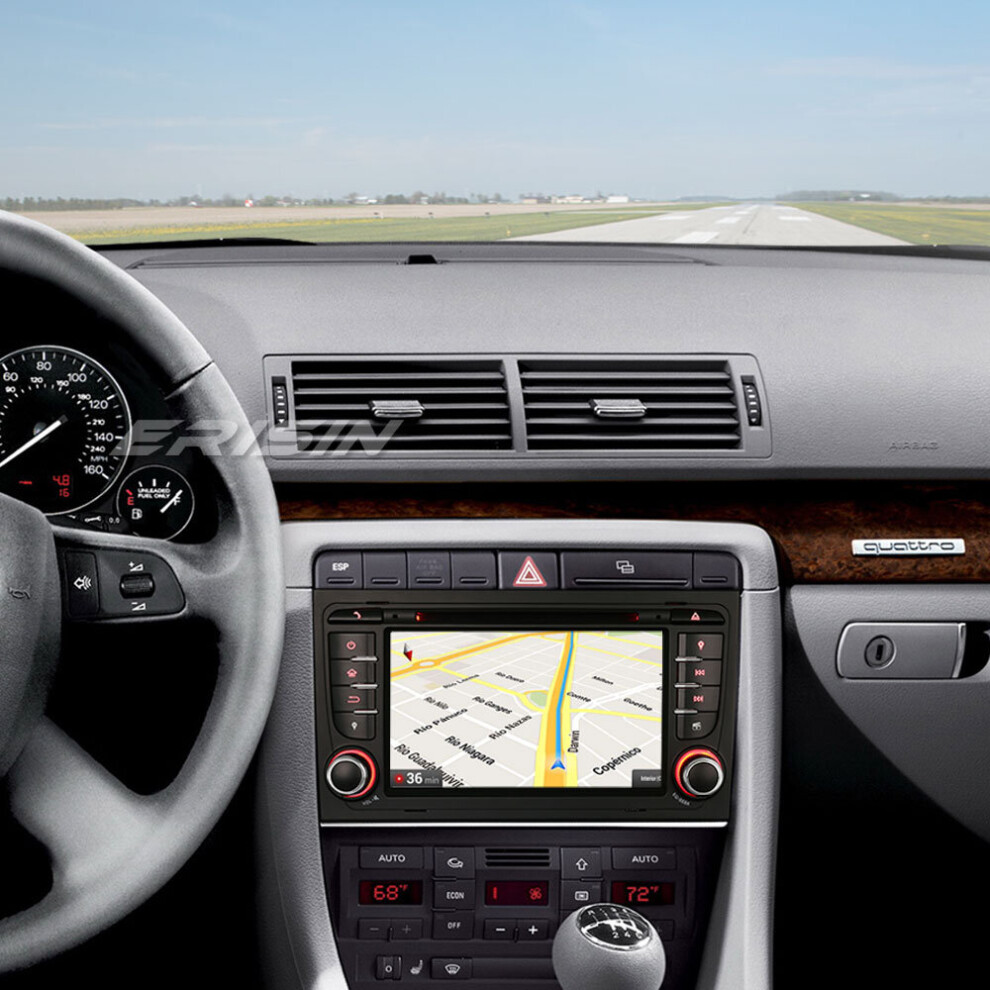

- AUDI A4 (2002-2007) S4 RS4 8E 8F B9 B7 RNS-E
- SEAT EXEO (2009-2012)

Important Note:
This unit has front panel size 236mm(Top width)*128mm(High)*230mm(Bottom width). To make sure the item fits your car, please check the shape and dimensions of your original car Media Player which is the same as the description in our listing before bidding.

ES5178A 7" Quad-Core Android 10.0 Car Multimedia with GPS Radio WiFi BT TPMS/DVR/DTV/DAB-IN...

  General
- Power Supply: DC 12V (allowance range: 10.8-14.5V)
- Max. Current: 10A
- Screen Size: 7 inch

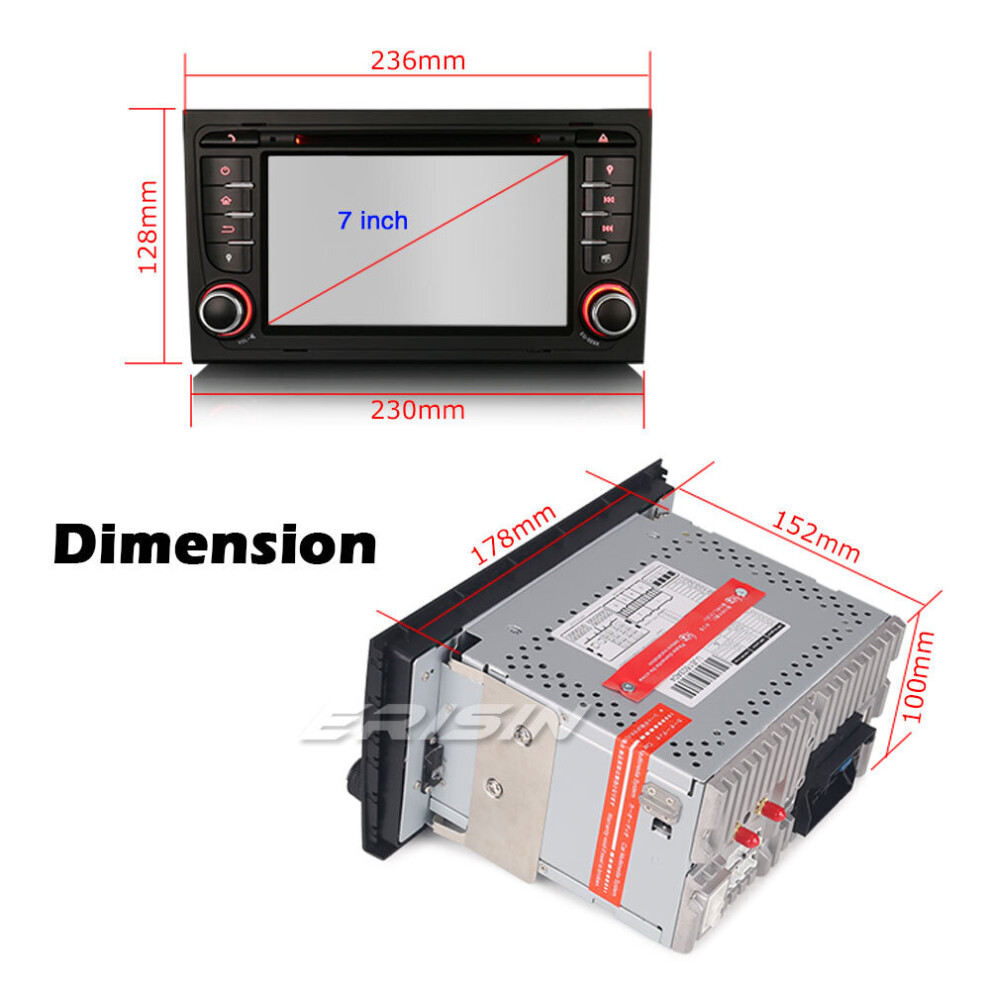

- Front panel Size: 236mm(Top width)*128mm(High)*230mm(Bottom width)
- Package Size: 340mm*275mm*205mm
- Shipping Weight: 4.5kg

  System
- Operation System: Google Android 10.0
- CPU: Rockchips PX30 1512MHz Cortex A35
- RAM: 2GB
- Internal Memory: 16GB
- Extended Card/USB: Support USB/SD up to 128GB

  Display
- Screen Type: Multi-touch screen
- Multi-windows view: Yes, support Split Screen, you can run two apps side by side
- Resolution: 1024*600
- Capacitive or Resistance Screen: Capacitive
- Built-in Clock and Calendar: Yes, show real time and can use network-provided time

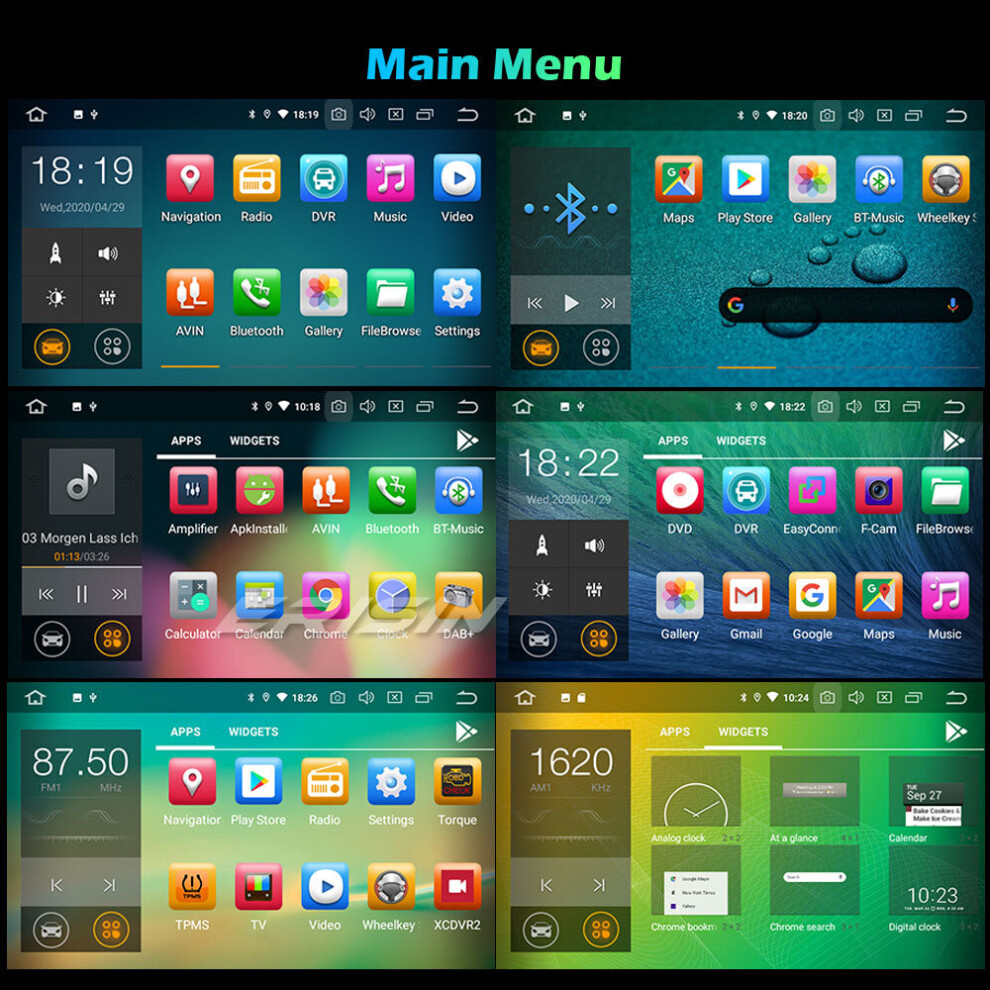

- Main Menu Status Bar display: Can be changed to Music/Radio/BT-Stereo Player and Clock/Date/Week
- Change Wallpapers: built-in 5 live wallpapers, 25 standard wallpapers, support User's wallpaper
- Change Apps-Icon Position: Yes

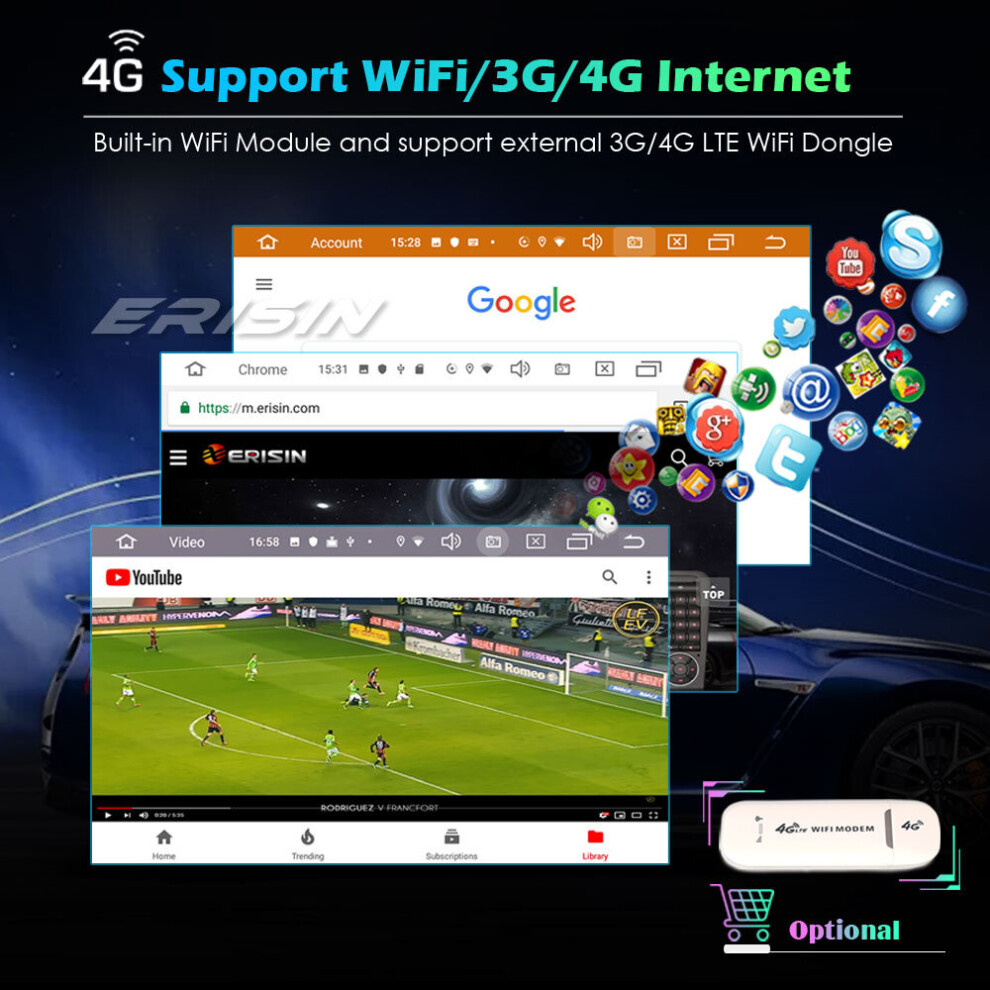

  Internet
- WiFi Internet: Built-in WiFi Module, support 802.11b/g/n, support WiFi Hotspot
- 3G/4G Internet: USB 3G/4G Dongle not included, just contact us to buy it together
- Explorer: Opera, UCWeb, SkyFile, Dolphin and more explorer for your selection
- Online Entertainment: Online Video, TV, Movie, Music, Radio, Video Chat
- Online Navigation: Online Google Maps Navigating
- Online Games: Yes, online play or you can download it from google play store
- Online Communication: keep connected through WhatsApp, WeChat, Twitter, Facebook, Gtalk, Gmail...
- Read and edit Office Software: Yes, support Word, Excel, Powerpoint, PDF, TXT

  Audio
- Format: MP3, WMA, MP2, OGG, AAC, MA4, FLAC, APE, WAV etc. Could play via song list
- Record: MP3, WMA
- Other: LRC synchronized display; ID3 search; Search by files; Album Picture; User-defined audio effect
- Audio IC: Top Global Cirrus IC, independent audio decoding
- SNR: Noise rations:=90dB

  Video
- Format: Support AVI (H.264, DIVX, XVID), rm, rmvb, MKV (H.264, DIVX, XVID). WMA, MOV, MP4 (H.264, MPEG,
  DIVX, XVID). DAT (VCD format). VOB (DVD format). PMP, MPEG, MPG. FLV (H.263, H.264). ASF, TS, TP, 3GP,
  MPG ect. =30 formats, Playing internet video directly (while downloading)
- Play: Up to 1920*1080 Pixels, 30Mb. Fluent play without light spot
- Video Output: Common Video Output (AV)

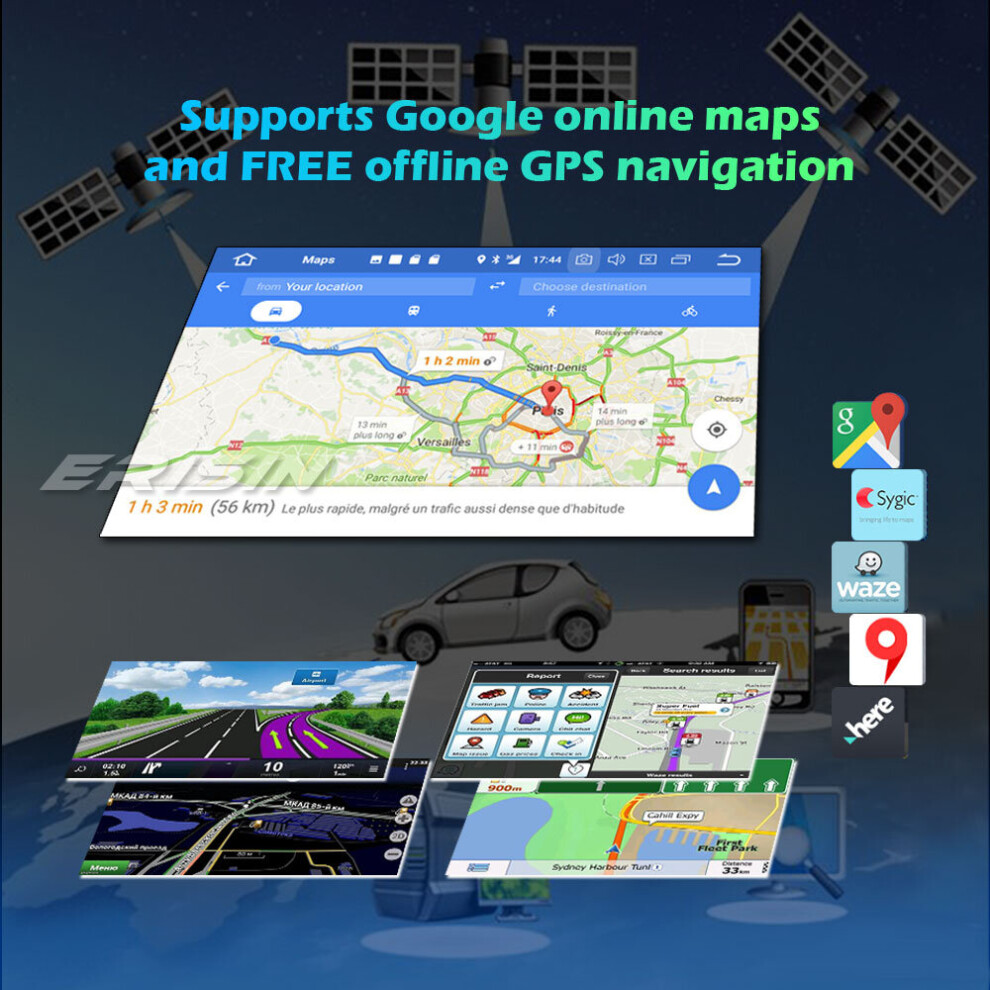

  GPS
- Operation System: Android 10.0
- Support Maps: IGO, Sygic, Waze maps for Android 10.0
- Support offline navigation: Yes, 16GB TF Card incl.
- Dual Zone: Yes, navigating while music playing
- Online Navi: Yes, support online navigating such as google maps

  DVD
- Decode IC: 8202TQ
- Compatible Format: MP4, AVI, DIVX, DVD, VCD, MP3, CD, WMA, JPEG
- OSD/Audio/Subtitle Language: English, Italian, French, Spanish, Portuguese, German, Russian...
- Auto-Save Function: Yes, expediently watch all kinds of disc continuously

  Bluetooth
- Hands Free: Yes
- A2DP (Bluetooth Stereo Music): Yes, can play stereo music through Bluetooth
- PB-Download: Yes, can download phonebook from mobile to this unit
- PB-Search: Yes, can use the first letter to search contact member in PB-Listings
- Calling Records: Yes, Dialed Call, Received Call, Missed Call
- Built-in Microphone: Yes, on the front panel
- External Microphone Jack: Yes, on the back, external Mic. incl.

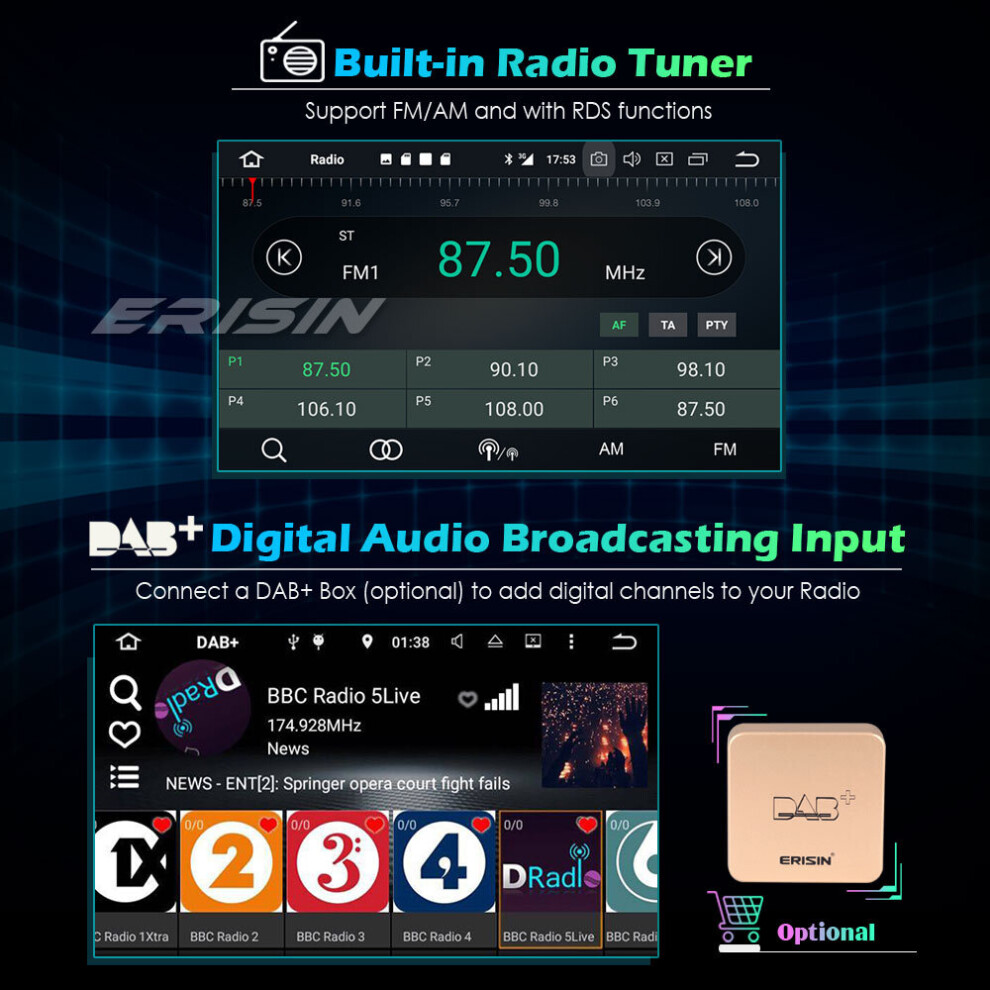

  Radio
- Main Chips: TEF6686
- AM Frequency Range: 522-1620KHz
- AM Increment: 9KHz(EU)/10KHz(US)
- FM Tuning Range: 87.5-108MHz
- FM Increment: 0.05MHz(EU)/0.1MHz(US)
- FM Area: Europe/USA1/USA2/Japan/Russia
- RDS: On/Off
- Preset Stations: 30(FM 3*6, AM 2*6)

  USB
- Position: 3 USB On the Back
- Function: Can be connected with U-Disc, 3G/4G Dongle, CarPlay Dongle, TPMS-Device, DVR-Camera, DAB+ Box, Smartphone etc.
- Capacity: 128GB
- Play MP5 Videos: Yes, can play RMVB Videos up to 1080P

  TF
- Position: On the front panel
- Function: Can be used as Multimedia card or GPS card slot.
- Capacity: 128GB
- Play MP5 Videos: Yes, can play RMVB Videos up to 1080P

  Mirror Link
- Ready to use: Yes
- Built-in Mirror Link App: Yes, the name is EasyConnection
- Support Device: iPhone iOS 7.1 and above, Android phone with Android 5.0 and above
- Connection: iPhone via WiFi and Android Phone via WiFi or USB
- Unit's Screen Control Phone: Just support the most of Android SmartPhones

  CarPlay & Auto
- Built-in: No, need to buy a USB CarPlay & Auto Dongle to use this function
- App: Special APP for CarPlay & Auto Dongle
- Support Device: iPhone iOS 7.1 and above, Android phone with Android 5.0 and above
- Connection: USB
- Unit's Screen Control Phone:
  For iPhone: No, but you can download CarPlay supported function APK to use and control
  For Android SmartPhones: Yes

  Car DVR
- Built-in Car Recorder App: Yes, just connect a USB Camera to use this function
- Support HD CCD Camera: Yes
- Play recorded Video directly: Yes
- Storing Position: Card/USB Storage can be changed

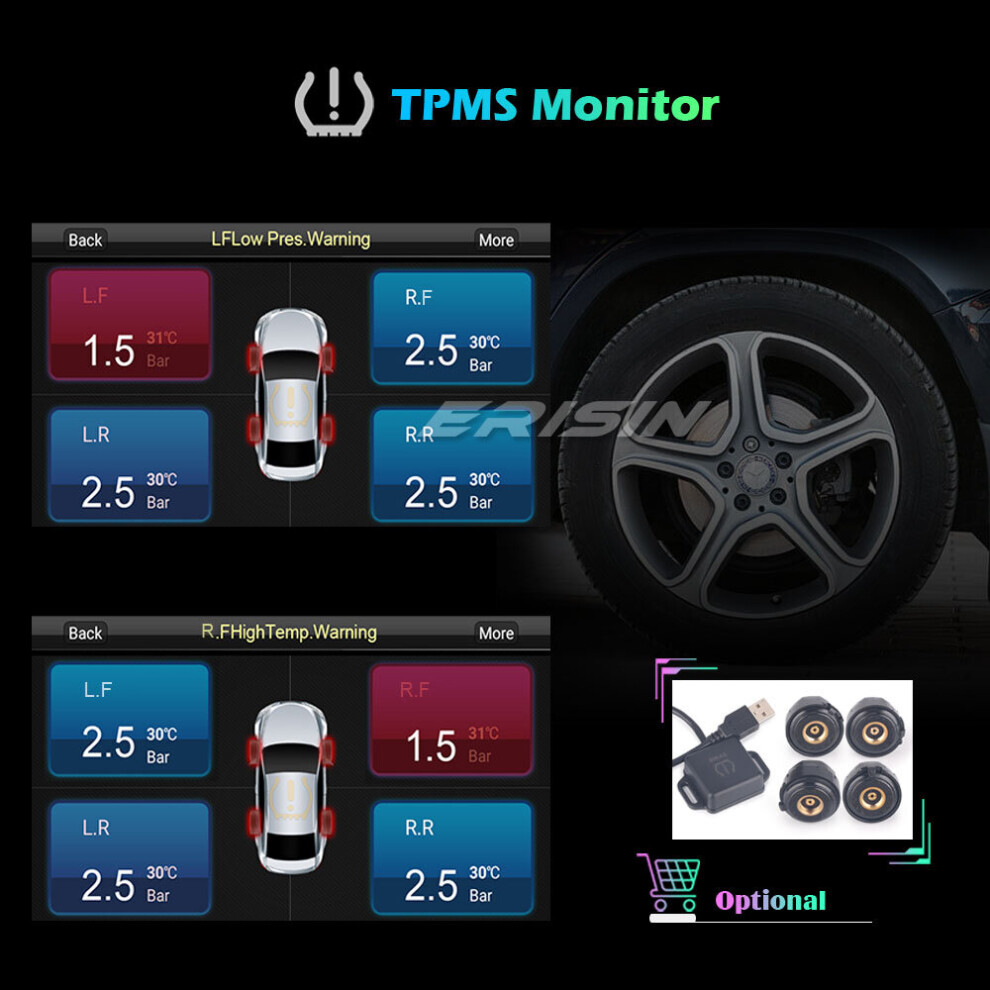

  TPMS-IN
- Built-in TPMS App: Yes, just connect a TPMS Module to use this function
- Connection Port: USB
- Power Supply to TPMS Module directly: Yes
- Touch Control: Yes

  DAB(+)-IN
- Built-in DAB Player App: Yes, just connect a DAB+ Box to use this function
- Connection Port: USB
- Power Supply to DAB+ Box directly: Yes
- Touch unit's screen to control the connected DAB+ Box: Yes

  DTV-IN
- Built-in DAB Player App: Yes
- Connection Port: Special
- Power Supply to connected DTV Box directly: Yes, you can connect our DTV Box to achieve this function
- Touch unit's screen to control the connected DTV Box: Yes, you can connect our DTV Box to achieve this function

  Additional
- Textbook: Could change font, font color, background color, bookmark, reading E-book while listening music
- Photo Viewer: Support JPS, BMP, PNG, GIF etc. format. play by revolve, Powerpoint Support 4096*4096 Pixels
- APK Installer: Support Android Package installer

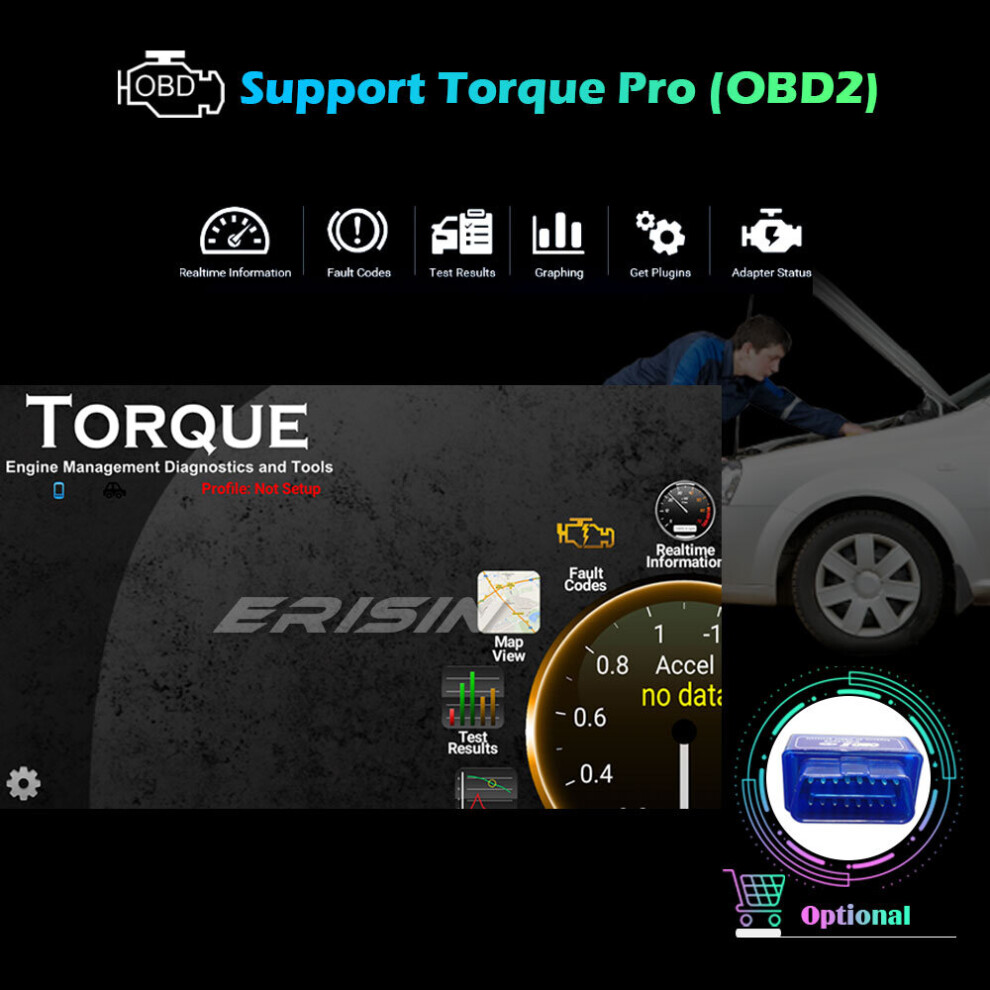

- Support Torque Pro(OBD2 &Car): Yes, you can connect a Bluetooth OBD2 Scanner Tool to use this function
- Support steering wheel control, easier and safer to adjust volume, answer calls and switch the songs while driving.
- Support panel light colors adjustment, many RGB-colors can be chosen
- Support Android Multimedia Player, can play Music/Video/Photo from local Disc or USB/TF

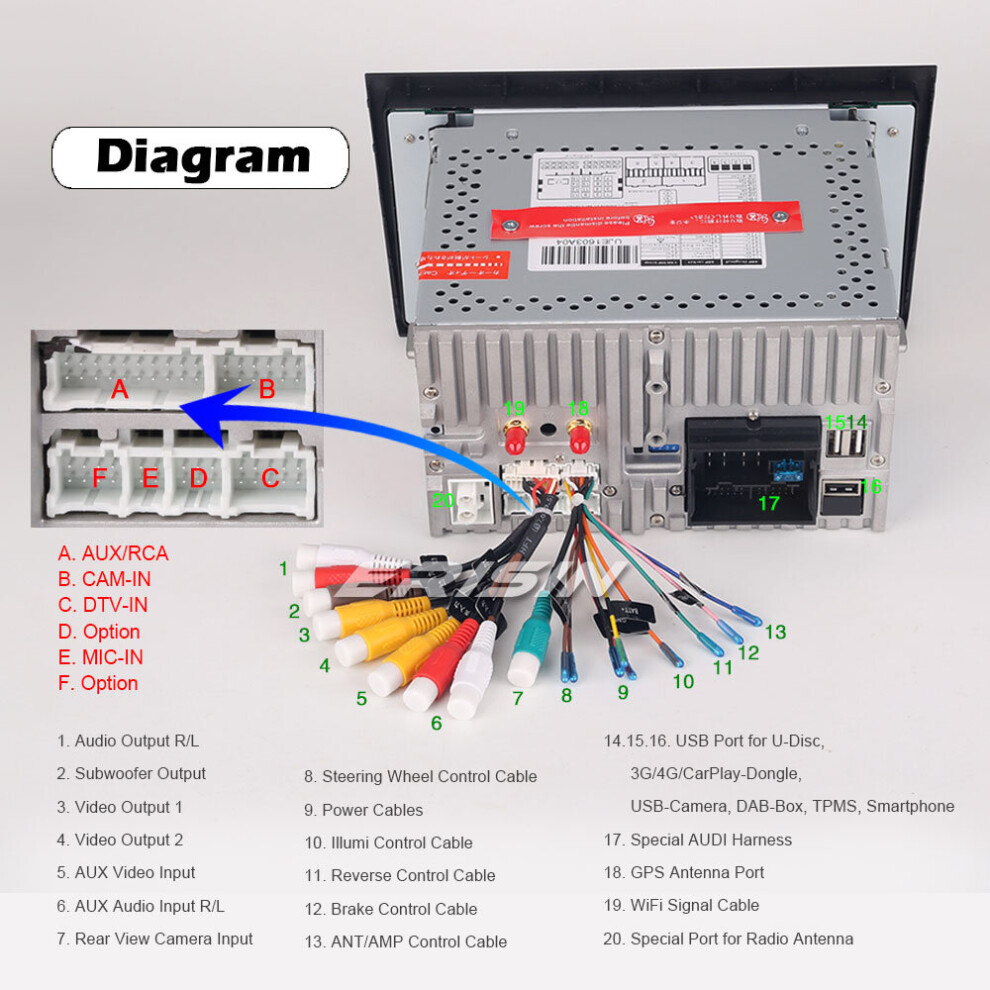

  Input
- AUX Video In: One
- Rear-View Camera Video In: One
- External Microphone In: One
- AUX Audio In: R/L
- TPMS Box In: One
- DTV Box In: One
- DAB+ Box In: One
- Car DVR In: One

  Output
- Video Out: Two
- Audio Out: FR/FL/RR/RL
- Surround Stereo Out: 4*45w
- Subwoofer Out: One

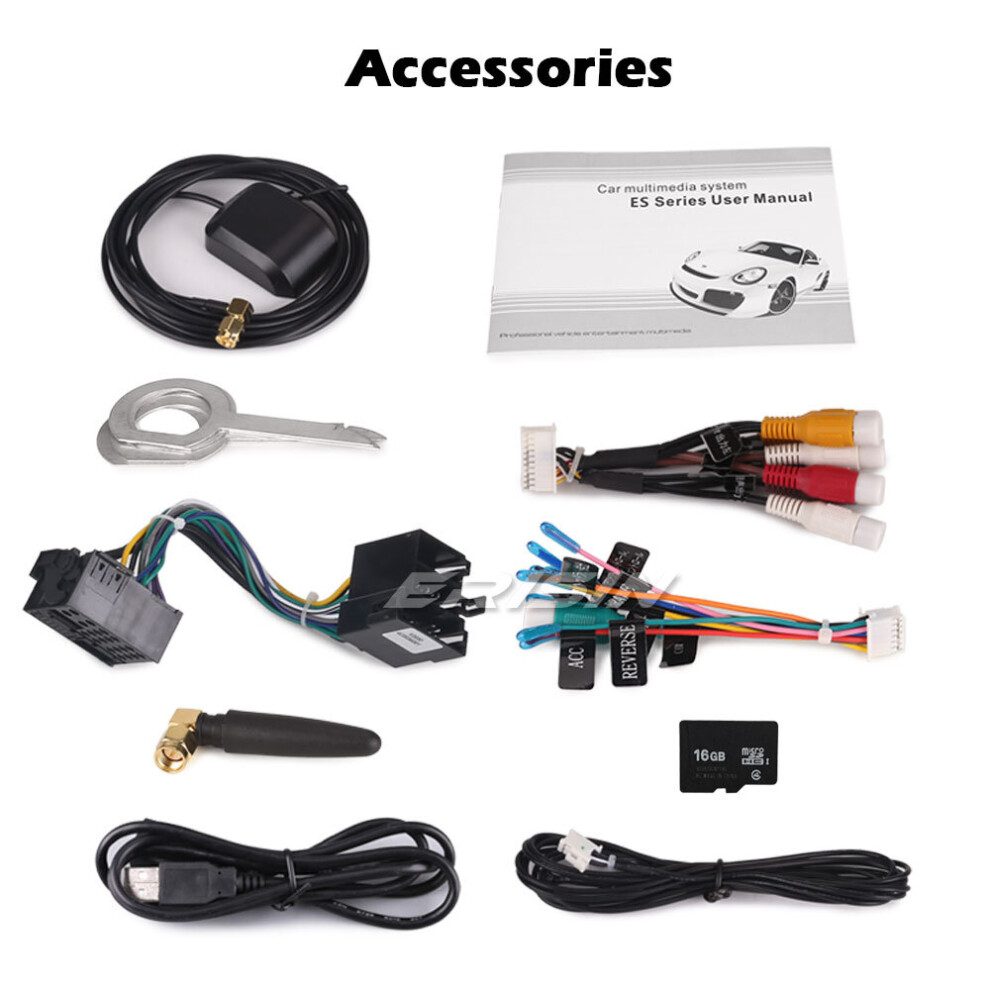

  Accessories
- 1*User's Manual in English
- 1*RCA AV Cable
- 1*AUDI to ISO Adapter Cable
- 1*SWC and other Control Cable
- 1*External microphone Cable
- 1*USB OTG Cable
- 1*GPS Antenna
- 1*WiFi Antenna
- 1*Install Fittings
- 1*16GB TF Card
