Android 10.0 Universal Double 2DIN Car Stereo OBD2 WiFi DSP DAB+ Navi BT TPMS

Android 10.0 Universal Double 2DIN Car Stereo OBD2 WiFi DSP DAB+ Navi BT TPMS Description

Key Features:

- Android 10.0 OS, Quad Core, 2GB RAM and 16GB ROM, 1 Card/3 USB up to 4*64GB extended Storage.

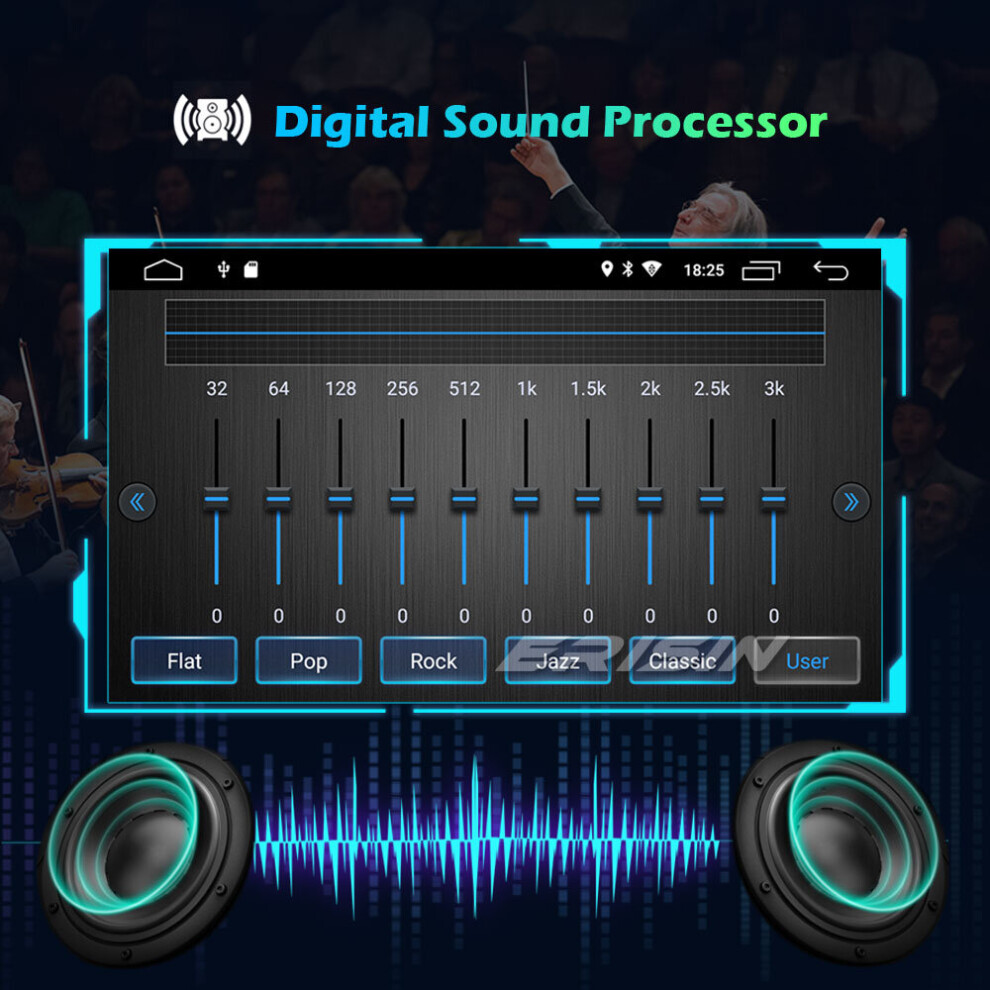

- Built-in DSP Amplifier System, which bring the perfect sound effect in your car.
- Built-in Bluetooth module, which supports hands-free function with A2DP Audio Streaming.
- Built-in GPS Module, which supports offline GPS Navigation, 16GB TF Card as gift included.
- Built-in WiFi Module for Internet, you can Link mobile hotspot to use Google online Navigation
- Built-in Android Multimedia Player, can play Music/Video/Photo from local USB/TF.
- Built-in, USB, TF, Radio, RDS, WiFi, Clock, Calendar.
- Support CarPlay, DAB+, DVB-T/T2, TPMS, OBD2, DVR, Camera, AVIN, 3G, 4G etc. extended functions.
- Support Mirror Link with iPhone via WiFi and with Android Smartphone via USB or WiFi.
- Support steering wheel control, easier and safer to adjust volume, answer calls and switch the songs while driving.
- Support panel light colors adjustment, many RGB-colors can be chosen.
- Support Split Screen, you can run two apps side by side.


Compatible Models & Years:

ISO 2 Din Universal Unit

ES2642U 7" Quad-Core Capacitive Android 10.0 Car Multimedia Player GPS WiFi 4G TPMS DVR DAB+...

  General
- Power Supply: DC 12V (allowance range: 10.8-14.5V)
- Max. Current: 10A
- Screen Size: 7 inch

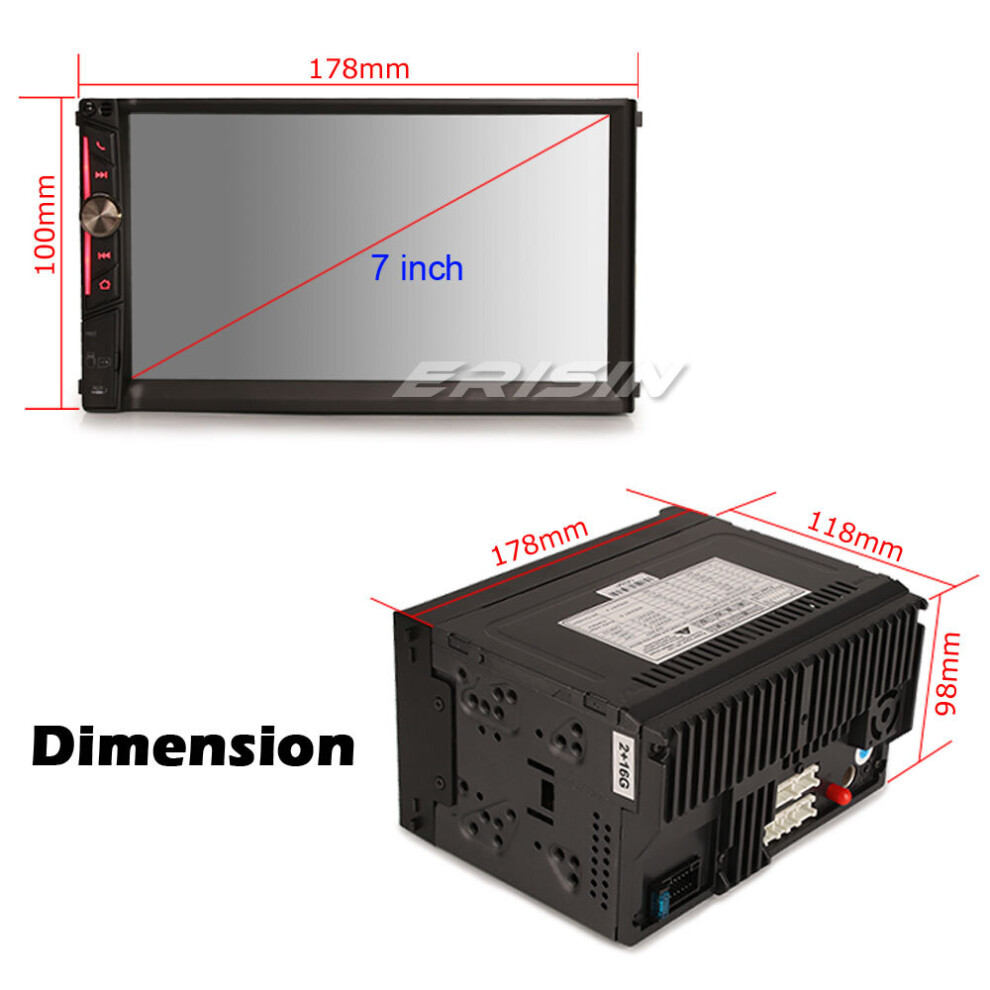

- Front panel Size: 2Din Size: 178mm*118mm*100mm
- Package Size: 225mm*200mm*170mm
- Shipping Weight: 2.5kg

  System
- Operation System: Google Android 10.0
- CPU: MT8227L 1118MHz Cortex A7
- RAM: 2GB
- Internal Memory: 16GB
- Extended Card/USB: Support USB/SD up to 64GB

  Display
- Screen Type: Multi-touch screen

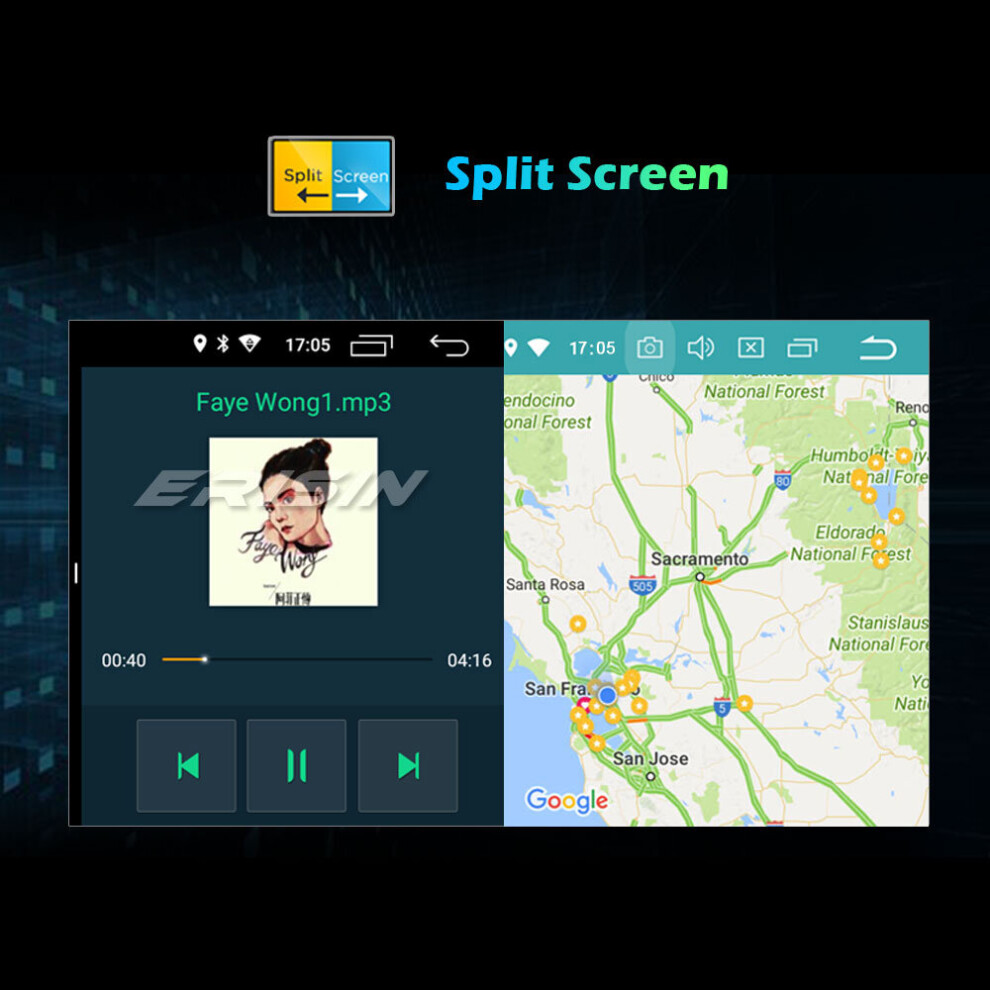

- Multi-windows view: Yes, support Split Screen, you can run two apps side by side
- Resolution: 1024*600
- Capacitive or Resistance Screen: Capacitive
- Built-in Clock and Calendar: Yes, show real time and can use network-provided time

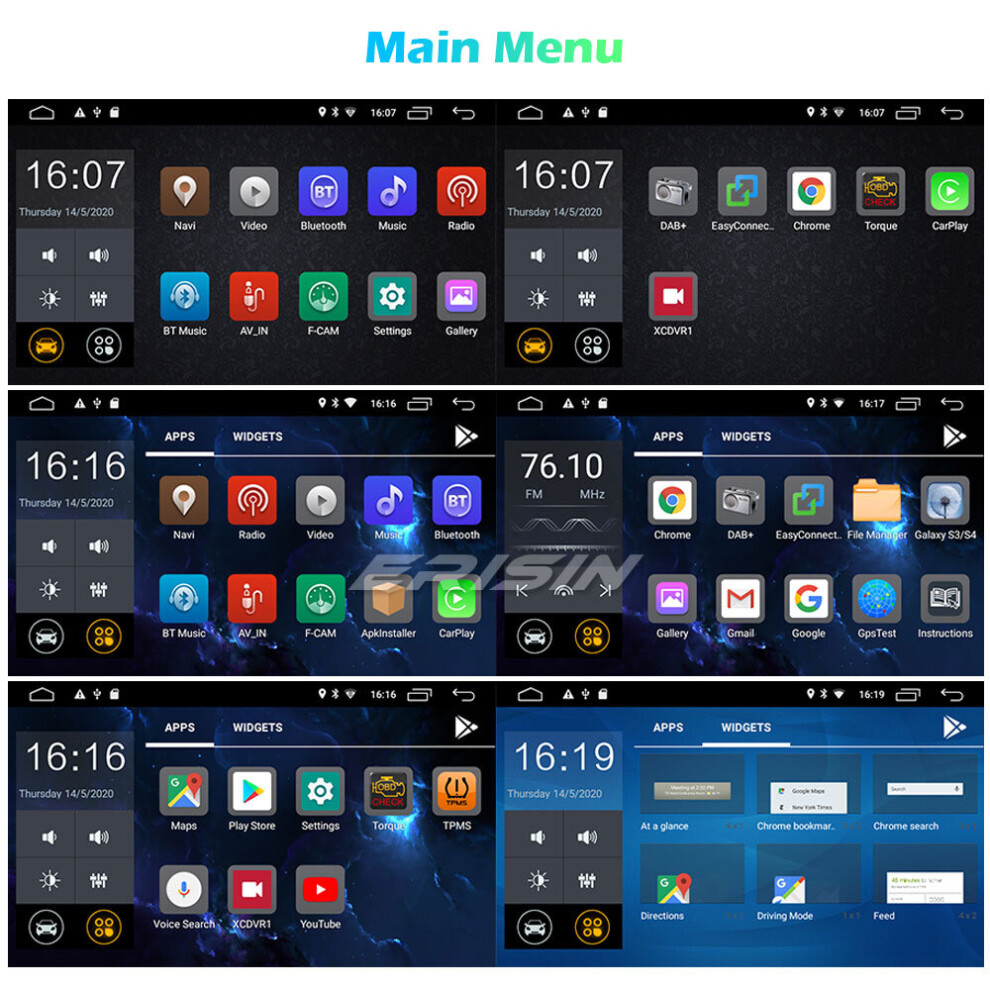

- Main Menu Status Icon display: Music/Radio/BT-Stereo Player and Clock/Date/Week
- Change Wallpapers: built-in 1 live wallpapers, 6 standard wallpapers, support User's wallpaper
- Change Apps-Icon Position: Yes

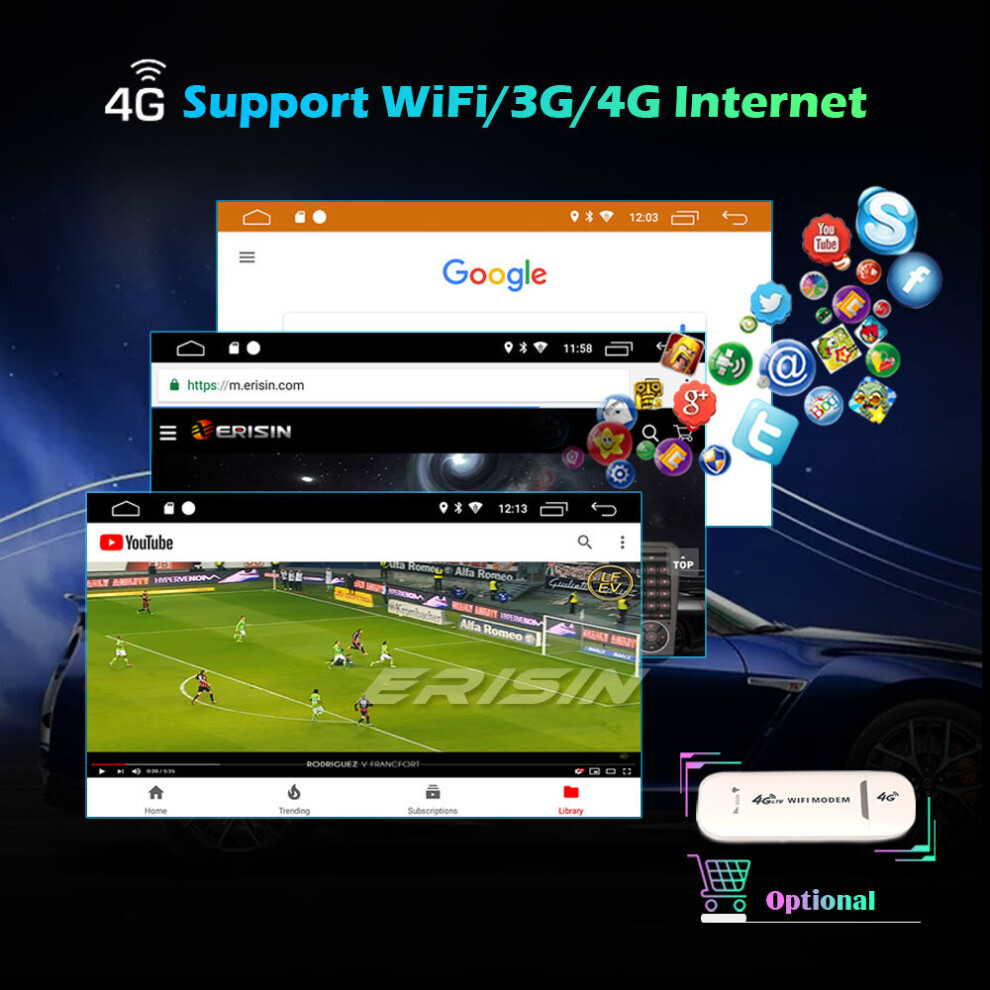

  Internet
- WiFi Internet: Built-in WiFi Module, support 802.11b/g/n, support WiFi Hotspot
- 3G/4G Internet: USB 3G/4G Dongle not included, just contact us to buy it together
- Explorer: Opera, UCWeb, SkyFile, Dolphin and more explorer for your selection
- Online Entertainment: Online Video, TV, Movie, Music, Radio, Video Chat
- Online Navigation: Online Google Maps Navigating
- Online Games: Yes, online play or you can download it from google play store
- Online Communication: keep connected through WeChat, Twitter, Facebook, Gtalk, Gmail...
- Read and edit Office Software: Yes, support Word, Excel, Powerpoint, PDF, TXT

  Audio
- Format: MP3, WMA, MP2, OGG, AAC, MA4, FLAC, APE, WAV etc. Could play via song list
- Record: MP3, WMA
- Other: LRC synchronized display; ID3 search; Search by files; Album Picture; User-defined audio effect
- Audio IC: Top Global Cirrus IC, independent audio decoding
- SNR: Noise rations:=90dB

  Video
- Format: Support AVI (H.264, DIVX, XVID), rm, rmvb, MKV (H.264, DIVX, XVID). WMA, MOV, MP4 (H.264, MPEG,
  DIVX, XVID). DAT (VCD format). VOB (DVD format). PMP, MPEG, MPG. FLV (H.263, H.264). ASF, TS, TP, 3GP,
  MPG ect. =30 formats, Playing internet video directly (while downloading)
- Play: Up to 1920*1080 Pixels, 30Mb. Fluent play without light spot
- Video Output: Common Video Output (AV)

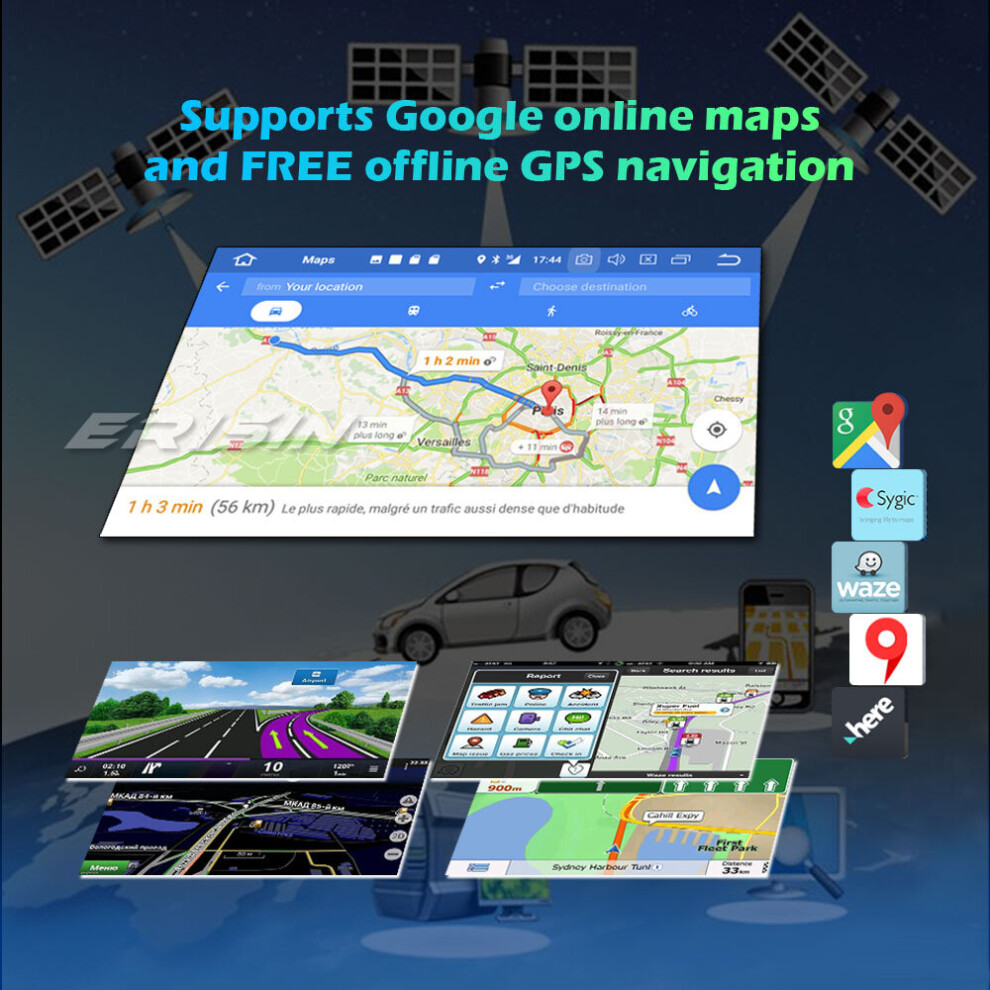

  GPS
- Operation System: Android 10.0
- Support Maps: IGO, Sygic, Waze maps for Android 10.0
- Support offline navigation: Yes, 16GB TF Card incl.
- Dual Zone: Yes, navigating while music playing
- Online Navi: Yes, support online navigating such as google maps

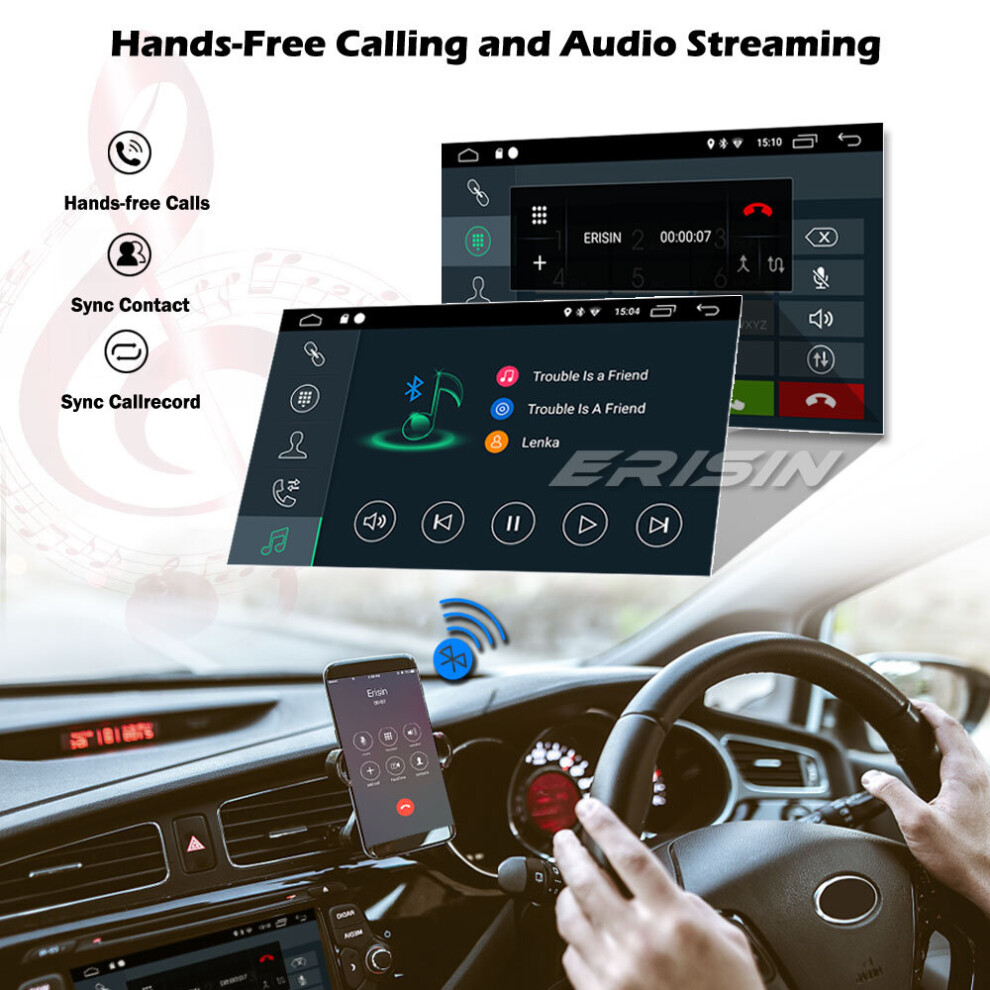

  Bluetooth
- Hands Free: Yes
- A2DP (Bluetooth Stereo Music): Yes, can play stereo music through Bluetooth
- PB-Download: Yes, can download phonebook from mobile to this unit
- PB-Search: Yes, can use the first letter to search contact member in PB-Listings
- Calling Records: Yes, Dialed Call, Received Call, Missed Call
- Built-in Microphone: Yes, on the front panel
- External Microphone Jack: Yes, on the back

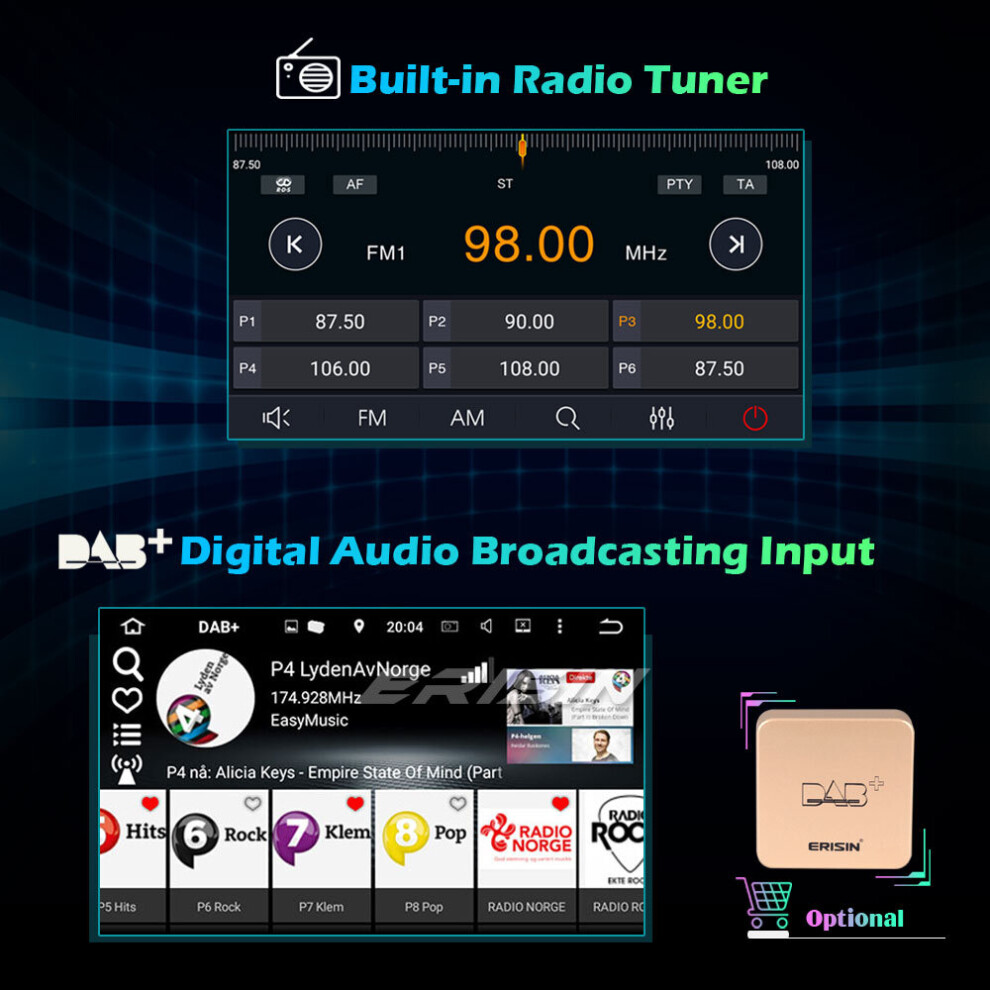

  Radio
- AM Frequency Range: 522-1620KHz
- AM Increment: 9KHz(EU)/10KHz(US)
- FM Tuning Range: 87.5-108MHz
- FM Increment: 0.05MHz(EU)/0.1MHz(US)
- FM Area: Europe/USA1/USA2/Japan/Russia
- RDS: On/Off
- Preset Stations: 30(FM 3*6, AM 2*6)

  USB
- Position: 1 USB On the front, 2 USB On the Back
- Function: Can be connected with U-Disc, 3G/4G Dongle, CarPlay Dongle, TPMS-Device, DVR-Camera, DAB+ Box, Smartphone etc.
- Capacity: 64GB
- Play MP5 Videos: Yes, can play RMVB Videos up to 1080P

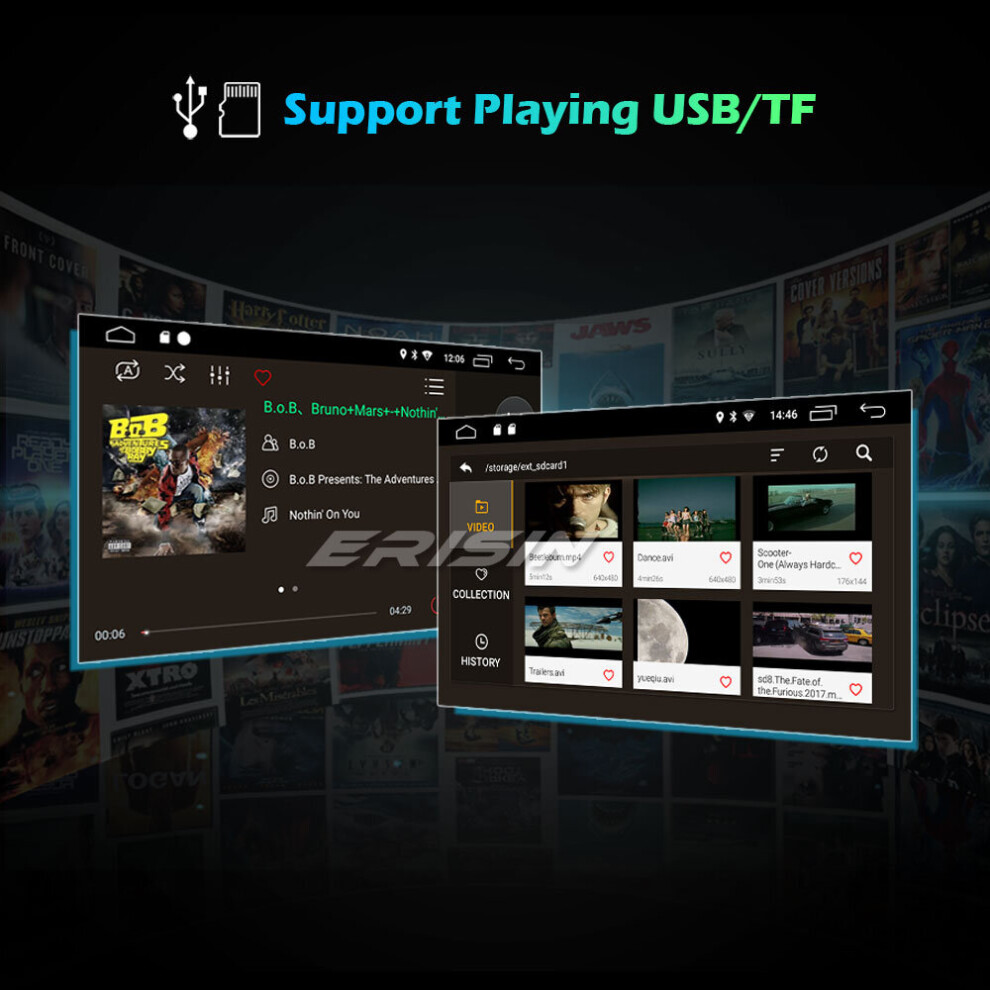

  SD/TF
- Position: On the front panel
- Function: Can be used as Multimedia card or GPS card slot.
- Capacity: 64GB
- Play MP5 Videos: Yes, can play RMVB Videos up to 1080P

  Mirror Link
- Ready to use: Yes
- Built-in Mirror Link App: Yes, the name is EasyConnection
- Support Device: iPhone iOS 7.1 and above, Android phone with Android 5.0 and above
- Connection: iPhone via WiFi and Android Phone via WiFi or USB
- Unit's Screen Control Phone: Just support the most of Android SmartPhones

  CarPlay & Auto
- Built-in: No, need to buy a USB CarPlay & Auto Dongle to use this function
- App: Special APP for CarPlay & Auto Dongle
- Support Device: iPhone iOS 7.1 and above, Android phone with Android 5.0 and above
- Connection: USB
- Unit's Screen Control Phone: Just support the most of Android SmartPhones

  Car DVR
- Built-in DVR App: Yes, just connect a USB DVR Camera to use this function
- Connection Port: USB
- Storing Position: TF Card in Camera
- Touch Control DVR-Camera on unit: Yes
- DVR-Camera incl.: No, you can contact us to buy it together

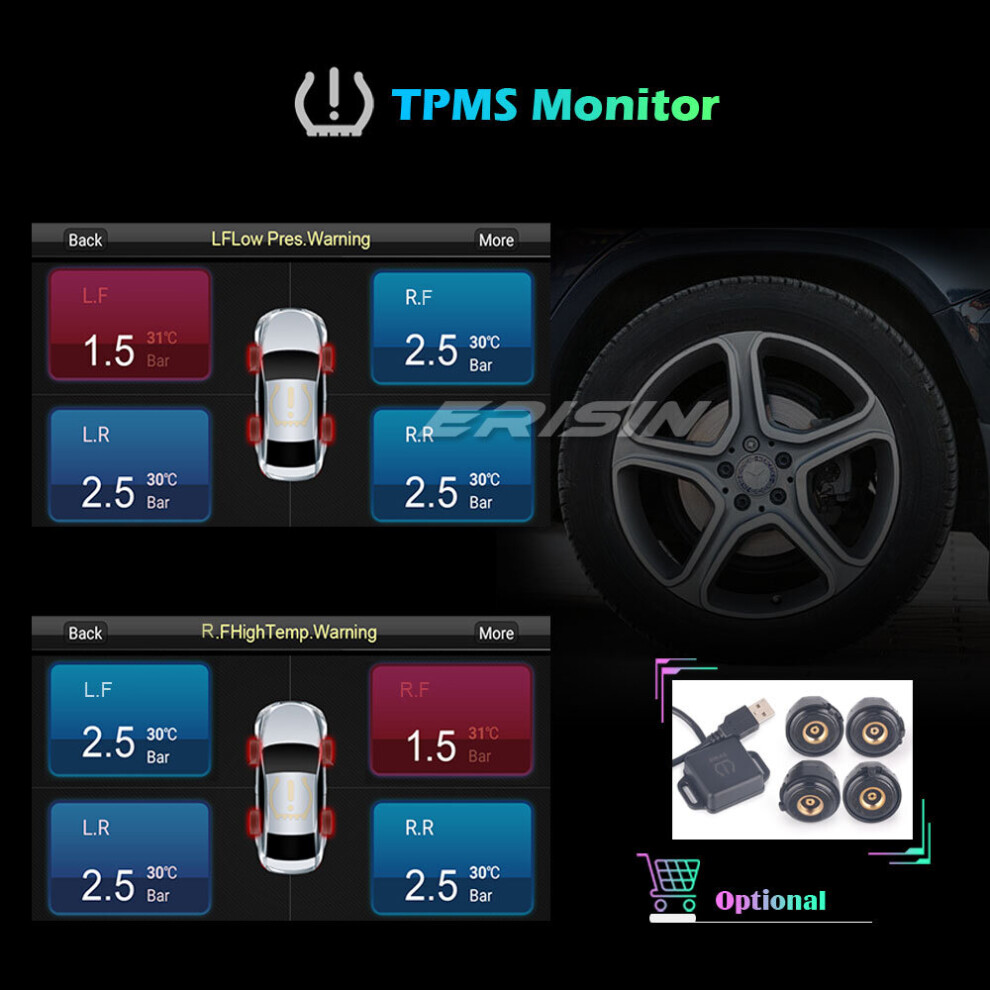

  TPMS-IN
- Built-in TPMS App: Yes, just connect a TPMS Module to use this function
- Connection Port: USB
- Power Supply to TPMS Module directly: Yes
- Touch Control TPMS Module on unit: Yes
- TPMS Module incl.: No, you can contact us to buy it together

  DAB(+)-IN
- Built-in DAB Player App: Yes, just connect a DAB+ Box to use this function
- Connection Port: USB
- Power Supply to DAB+ Box directly: Yes
- Touch Control DAB+ Box on unit: Yes
- DAB+ Box incl.: No, you can contact us to buy it together

  AV-IN
- Built-in AV-IN App: Yes, Support external Audio & Video Input
- Connection Port: RCA
- Support DTV-IN: Yes, you can connect with a Digital TV Box (DVB-T/T2, ATSC, ISDB) to use

  Additional
- Textbook: Could change font, font color, background color, bookmark, reading E-book while listening music
- Photo Viewer: Support JPS, BMP, PNG, GIF etc. format. play by revolve, Powerpoint Support 4096*4096 Pixels
- APK Installer: Support Android Package installer
- Support Torque Pro(OBD2 &Car): Yes, you can connect a Bluetooth OBD2 Scanner Tool to use this function

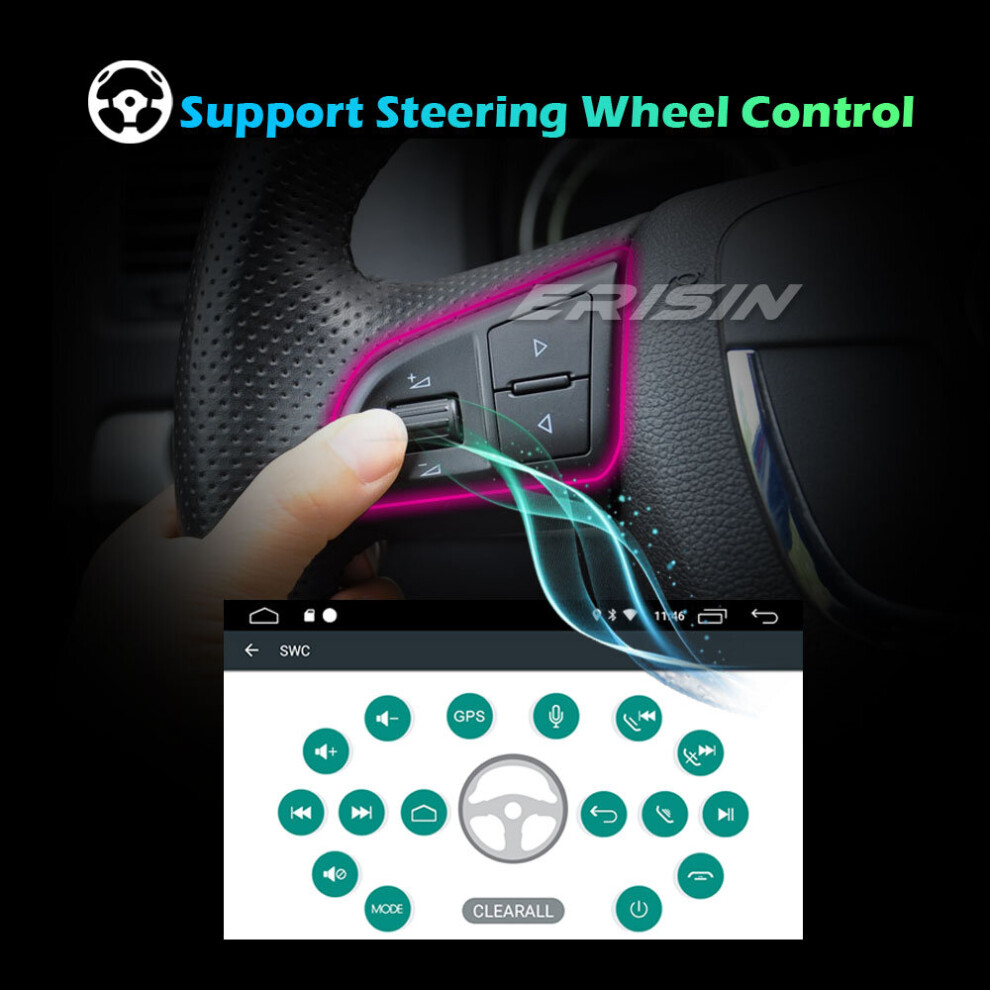

- Support steering wheel control
- Support Android Multimedia Player, can play Music/Video/Photo from local USB/TF

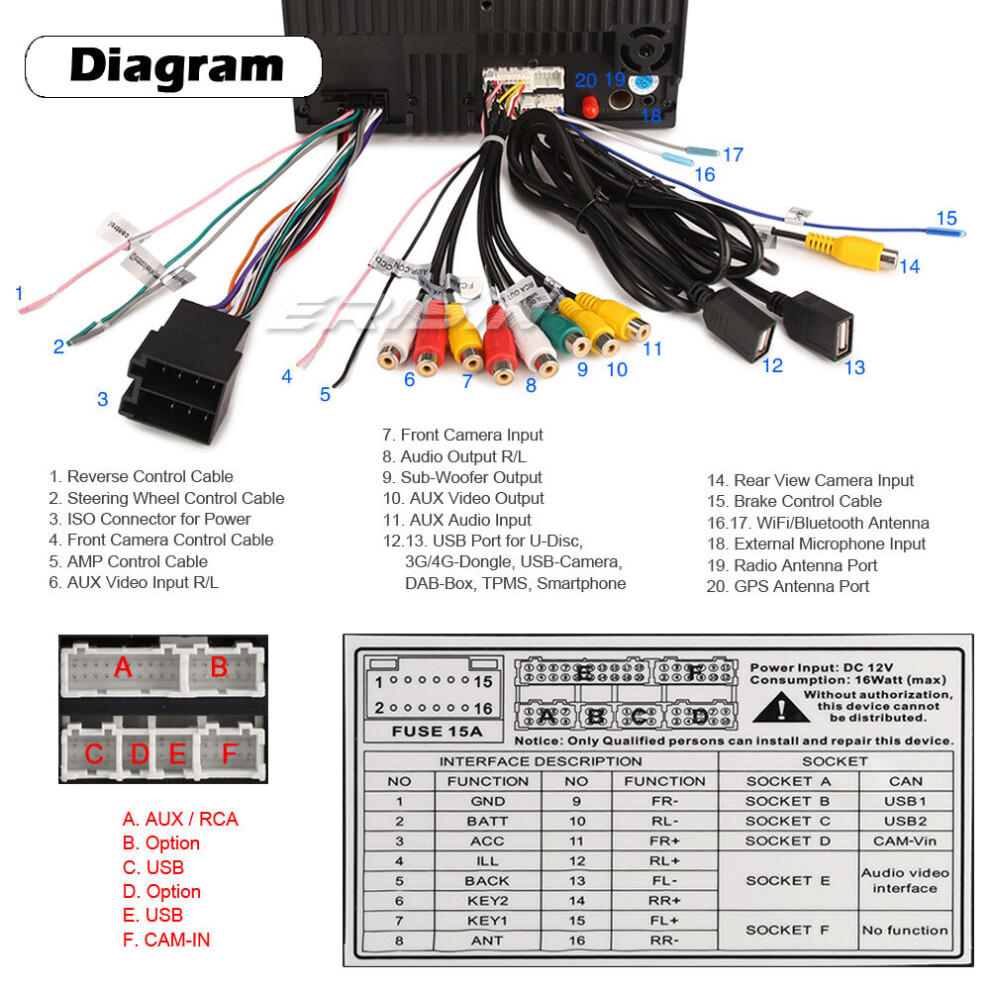

  Input
- AUX Video In: One
- Rear-View Camera Video In: One
- External Microphone In: One
- AUX Audio In: R/L
- CarPlay In: One
- TPMS Box In: One
- DAB+ Box In: One
- Car DVR In: One

  Output
- Video Out: One
- Audio Out: FR/FL/RR/RL
- Surround Stereo Out: 4*45w
- Subwoofer Out: One

  Accessories
- 1*User's Manual in English
- 1*RCA AV Input & Output Cable
- 1*ISO Power Cable
- 1*Install Fittings
- 1*Remote Controller(Battery excluded)
- 1*Cam-In Cable
- 2*Back USB Connecting Cable
- 1*GPS Antenna
- 1*16GB TF Card
