Annular Ringshank Nails Bright Zinc Plated Galvanised Ring Shank Nails Timber Framing Cladding

Annular Ringshank Nails Bright Zinc Plated Galvanised Ring Shank Nails Timber Framing Cladding Description

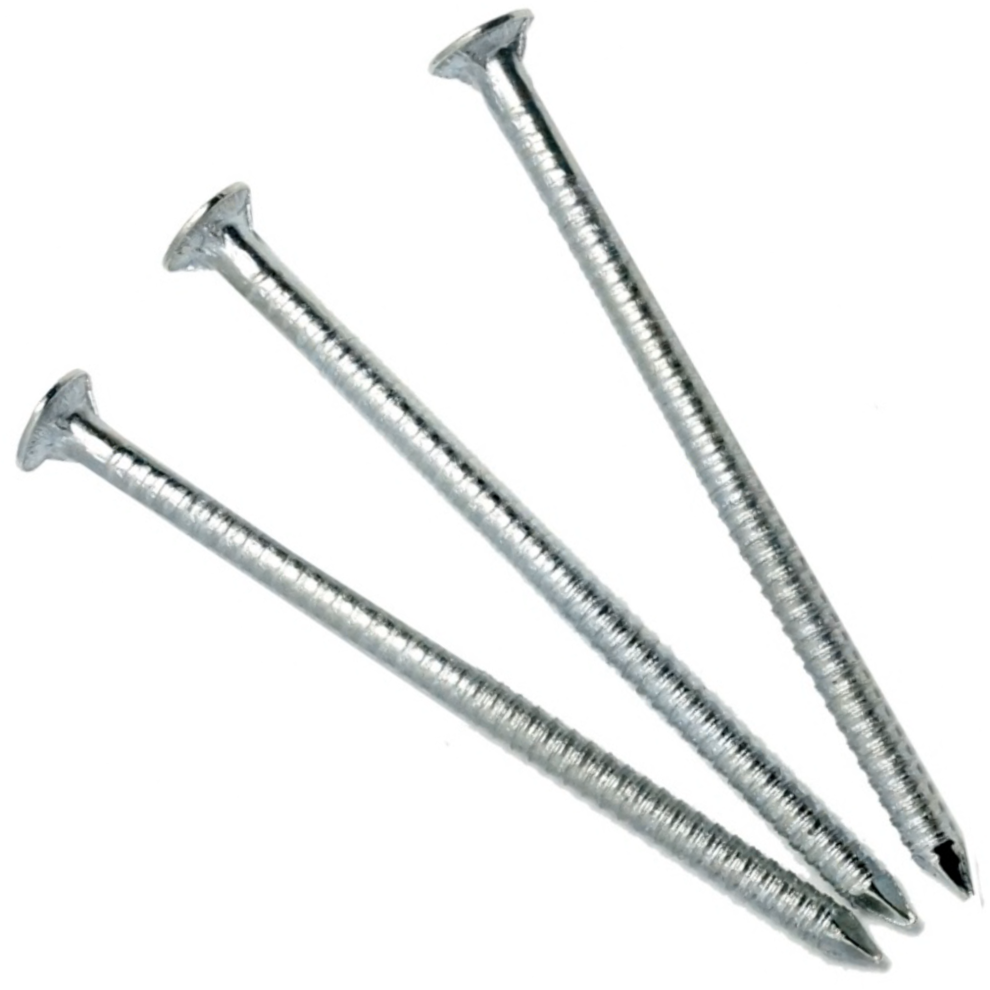

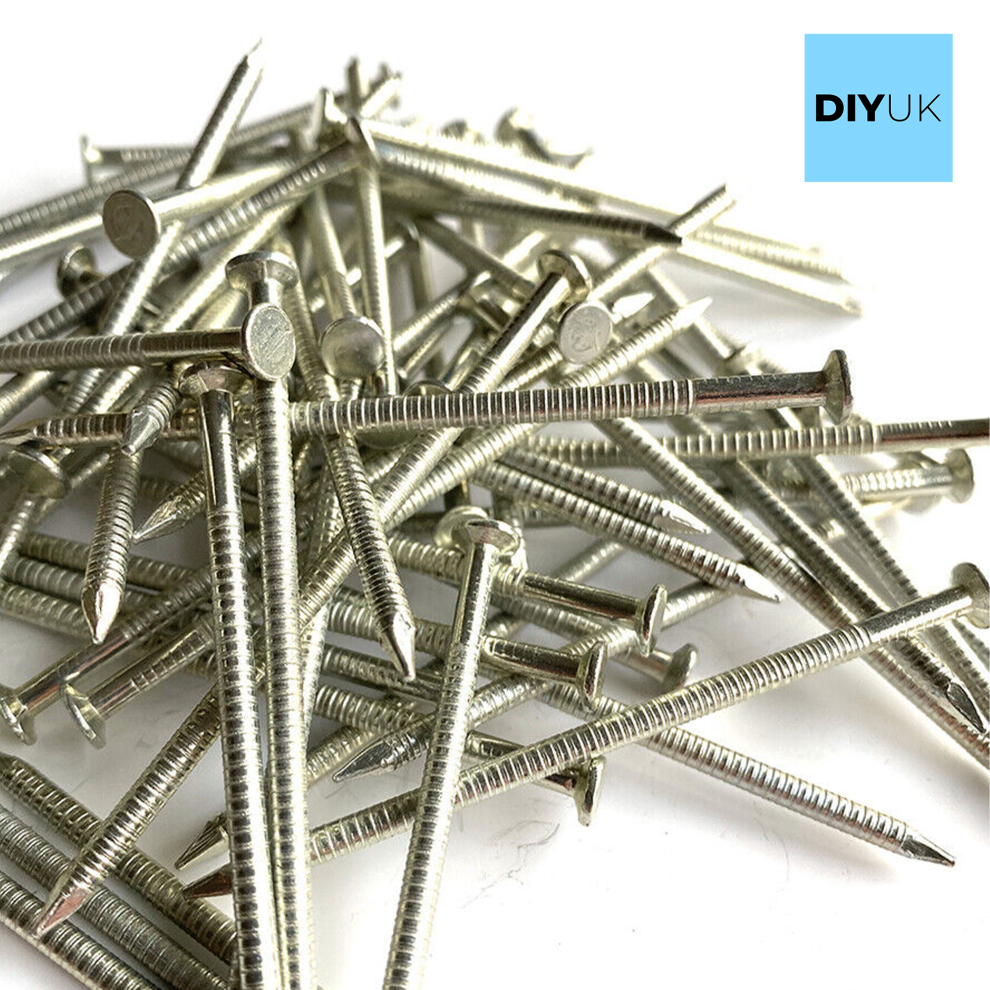

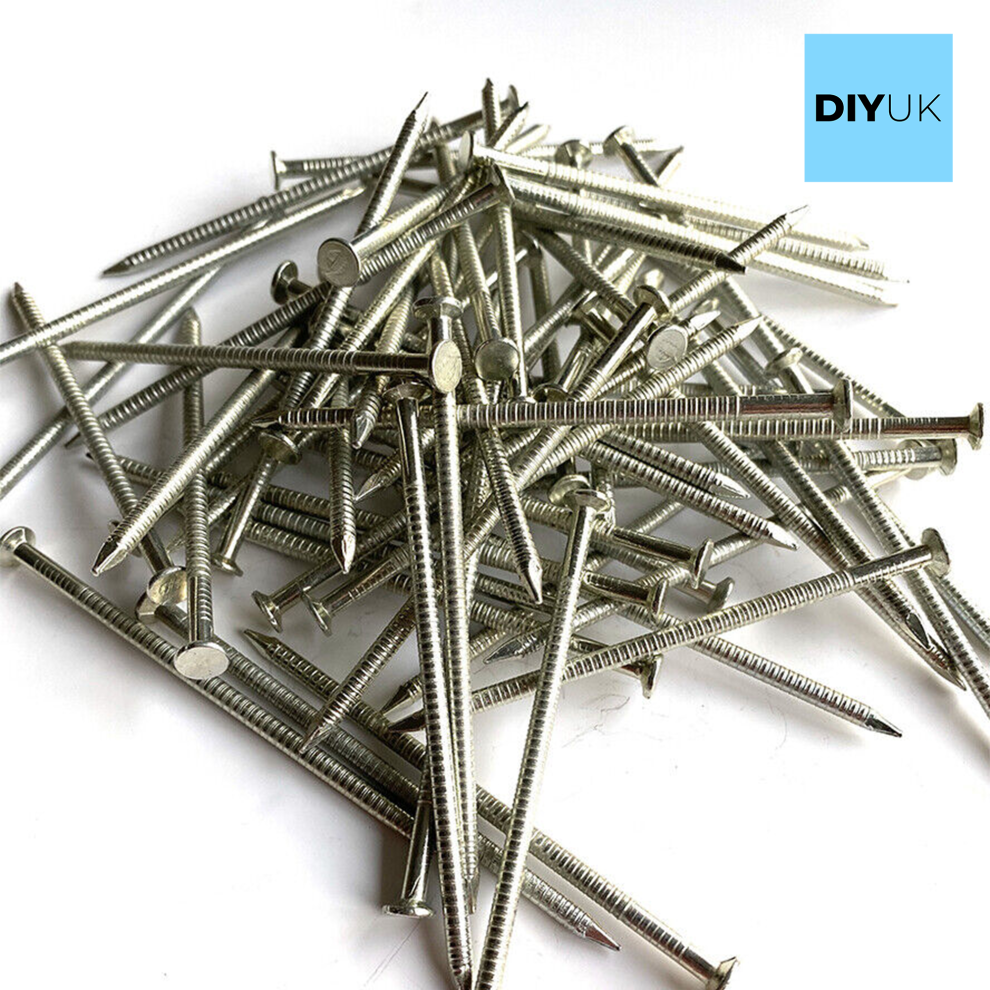

Annular ring shank nails in bright zinc plated steel wire, manufactured to EN 10230-1, for decking, fencing, roofing, framing and general timber construction where a smooth nail would gradually work loose.

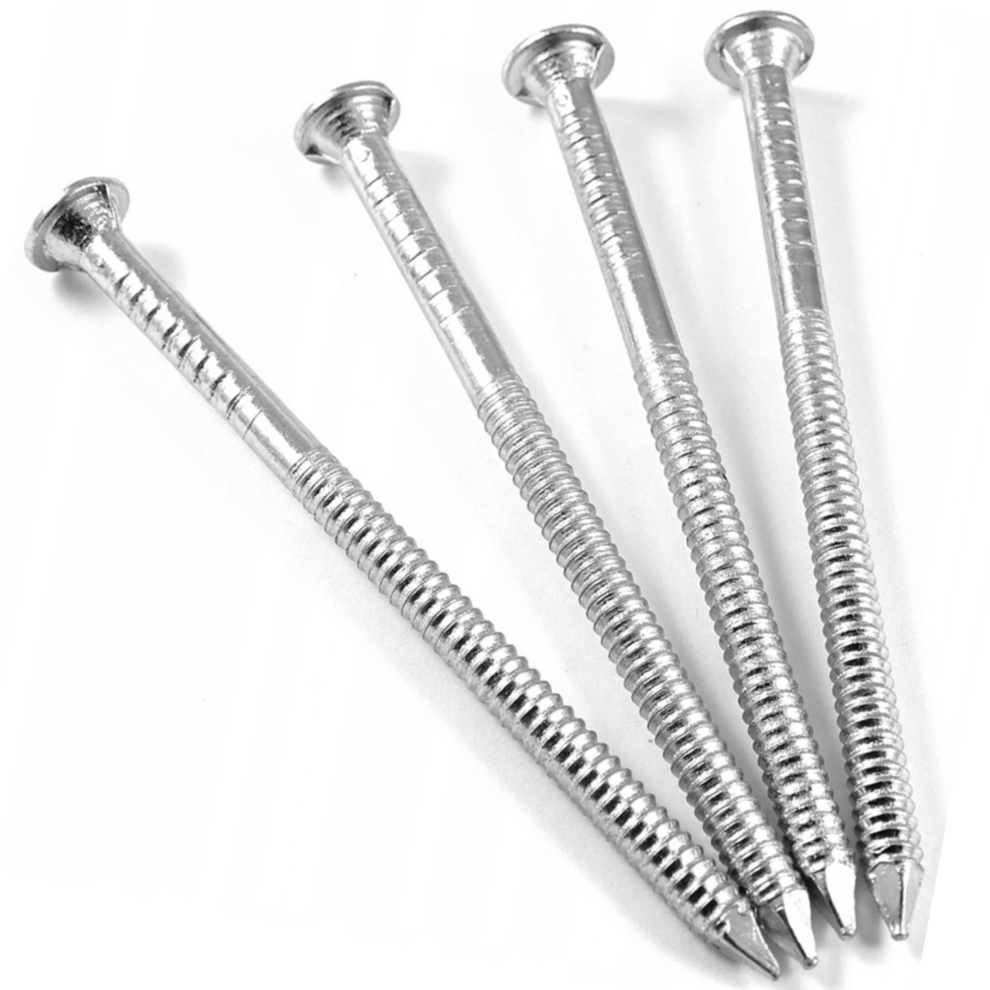

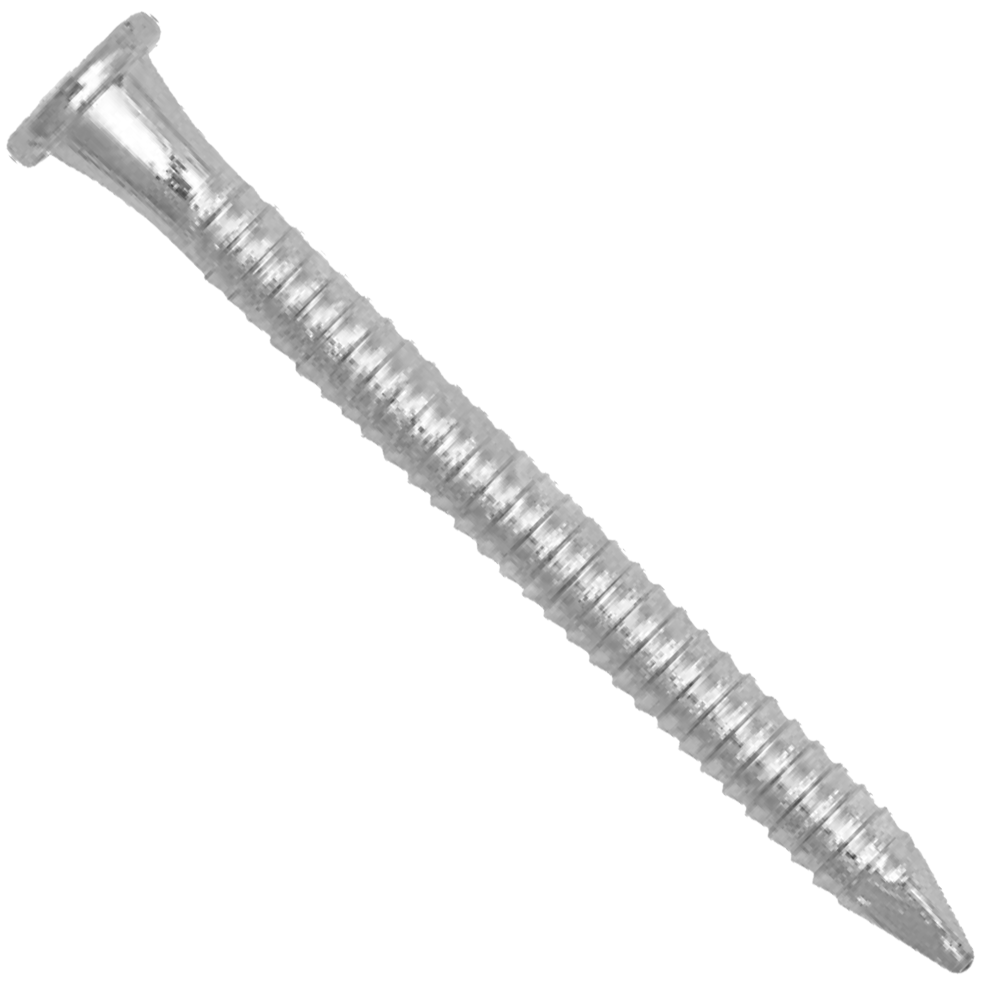

The shank is what sets these nails apart. A series of sharp, concentric rings is machined along its length, and as the nail is driven those rings bite into the surrounding wood fibres and lock in place, giving a genuine mechanical key rather than the friction fit of a plain, smooth shaft. That means a noticeably stronger and more durable hold than a smooth shank nail of the same size, and far greater resistance to "nail pop" as timber dries, swells or flexes under vibration, seasonal movement and repeated loading.

The bright zinc plating (BZP) is an electro-galvanised coating that gives good, reliable protection against surface rust and corrosion across typical outdoor and indoor timber applications in the UK climate; for permanently wet, marine or highly corrosive environments a stainless steel fastener would be the more appropriate choice, as BZP is not intended as a marine-grade finish. Six diameter and length combinations are available, from 2.5mm x 40mm (0.10" x 1.57") up to 3.8mm x 100mm (0.15" x 3.94"), covering everything from light cladding to heavy structural framing.

Key Features

• Annular ring shank: concentric rings lock into the surrounding wood fibres for a genuine mechanical key and a stronger hold than a smooth shank nail of the same size.
• Resists nail pop: the extra grip is particularly well suited to materials that expand, contract and flex, such as decking boards, fencing timber and sub-flooring.
• Manufactured to EN 10230-1: the European standard covering dimensions, technical specifications and mechanical properties for steel wire nails.
• BZP finish: bright zinc electro-galvanised coating for dependable rust and corrosion resistance in general outdoor and indoor UK conditions.
• Steel wire construction throughout for consistent strength and driving performance.
• Wide size range: six diameter/length combinations from 2.5mm x 40mm (0.10" x 1.57") up to 3.8mm x 100mm (0.15" x 3.94"), covering light cladding through to heavy structural framing.
• Genuinely versatile: suited to decking, fencing, roofing, framing, cladding, sheathing, sub-floors, general timber construction and pallet work.

Specification

• Shank type: Annular ring shank
• Material: Steel wire
• Finish: Bright Zinc Plated (BZP) - electro-galvanised
• Relevant standard: EN 10230-1 (steel wire nails - dimensions, technical specifications and mechanical properties)

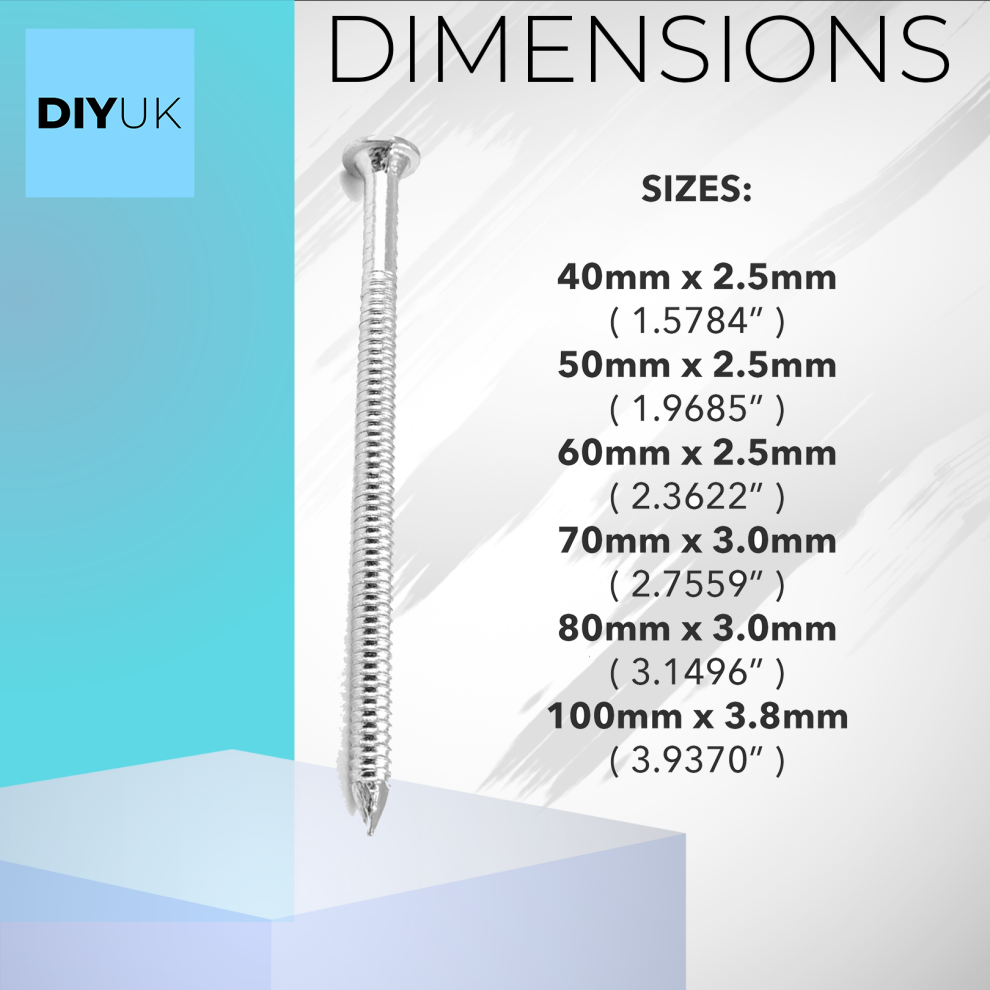

• Available sizes (diameter x length): 2.5mm x 40mm (0.10" x 1.57"); 2.5mm x 50mm (0.10" x 1.97"); 2.5mm x 60mm (0.10" x 2.36"); 3.0mm x 70mm (0.12" x 2.76"); 3.0mm x 80mm (0.12" x 3.15"); 3.8mm x 100mm (0.15" x 3.94")
• Recommended use: Decking, fencing, roofing, framing, cladding, sheathing, sub-floors, general timber construction
• Wood compatibility: Excellent in softwoods (pine, cedar, spruce); pilot hole recommended in hardwoods

Typical Applications

Because they resist working loose under vibration and seasonal movement, these ring shank nails are the natural choice anywhere a fixing needs to hold long-term rather than just on the day it's driven:

• Decking and fencing: outdoor structures that see constant weathering, seasonal timber movement and loading - exactly where a smooth nail is most likely to back out over time.
• Roofing and framing: structural and semi-structural timber-to-timber joints where a secure, long-term mechanical fix matters.
• Cladding, sheathing and sub-floors: flat timber panel and board fixing where repeated movement can gradually loosen a plain-shank nail.
• General timber construction and pallet work: anywhere a dependable, vibration-resistant fixing is needed between two pieces of wood.

As a guide to matching length to the job: the shorter 40-60mm (1.57"-2.36") sizes suit lighter work such as cladding, siding, underlayment and thinner timber sections; the mid-range 70-80mm (2.76"-3.15") sizes cover general framing, decking and fencing, and typical timber-to-timber joints; and the 100mm (3.94") size is for heavy-duty framing and thicker structural timbers where maximum penetration and hold are needed.

Installation Guidance

Wood compatibility matters with any ring shank nail, because the aggressive grip that gives such a strong hold also means the timber needs to accept the fastener cleanly:

• Best suited to softwoods such as pine, cedar and spruce, where the rings bite cleanly into the fibres without excessive resistance.
• Pre-drill a pilot hole in dense hardwoods before driving, to reduce the risk of splitting the timber.
• Match the finish to the environment: BZP gives reliable protection for general outdoor and indoor UK conditions, but for permanently wet, marine or highly corrosive settings a stainless steel fastener is the more appropriate choice.
