ANSI 40 / DIN(ISO)08A Roller Chain Pinion, 12mm Bore, 1/2' Pitch, 14T (BType)

ANSI 40 / DIN(ISO)08A Roller Chain Pinion, 12mm Bore, 1/2' Pitch, 14T (BType) Description

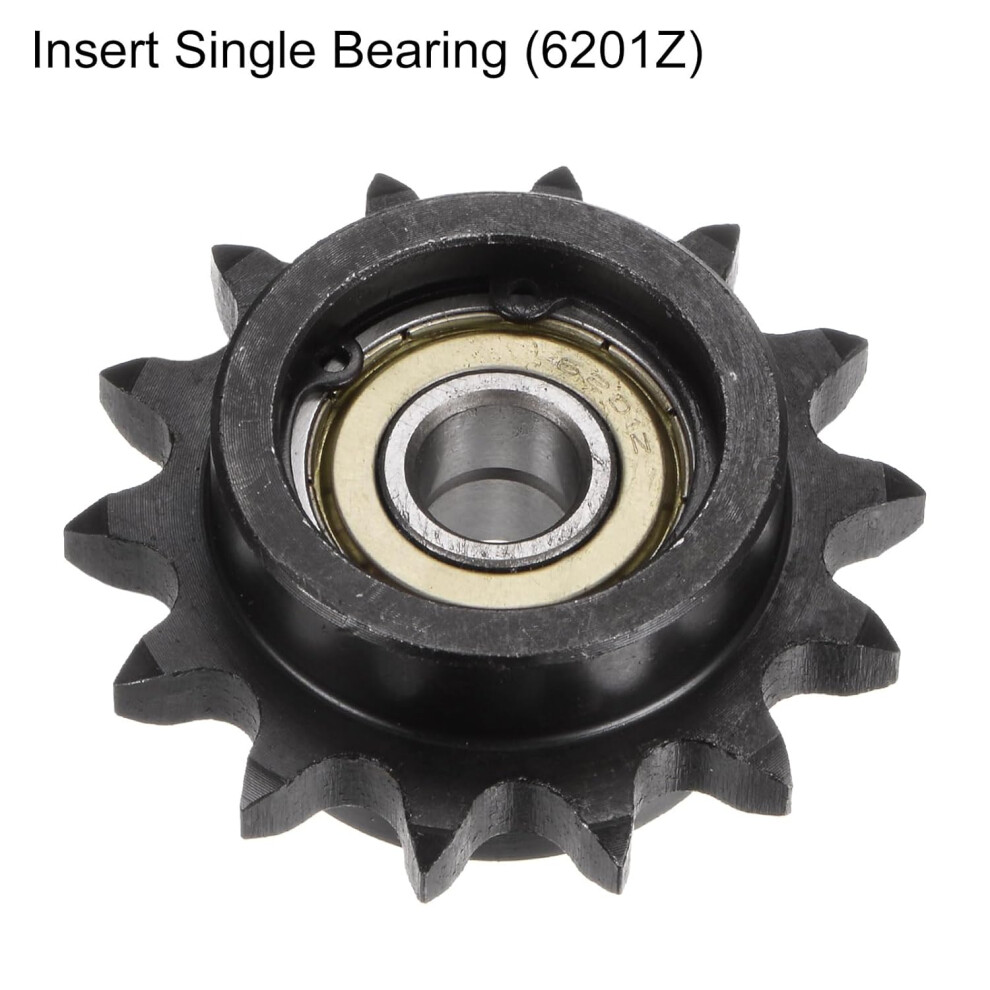

1. Model: For ANSI 40 / DIN(ISO)08A chain. Size: 12 mm bore clamping pinion with 14 teeth, 12.7 mm (1/2 inch) pitch, 63 mm outer diameter. 2. The tension pinion is a flat pinion with a precision bearing (6201Z) that allows the pinion to rotate. Tension pinions are usually mounted in a fixed position on a fixed shaft. 3. Made from quality 45 steel that undergoes a hardening process to harden the teeth. This increases durability and reduces friction, resulting in a sprocket with hardness, wear resistance, and a long service life. 4. The tensioning pinion should not rotate at a higher speed than is permitted for drive pinions of the same size. Each roller chain tension pinion has strong teeth that can hook into the chain. It is recommended that tension pinions have at least three teeth in engagement with the chain.
