Antenna Analyzer NFC Standing Wave PS100(N1201SA) 137.5M-2.7G Resistance Reactance

Antenna Analyzer NFC Standing Wave PS100(N1201SA) 137.5M-2.7G Resistance Reactance Description

Impedance Measurement Range: 1 ohm~1000 ohm @frequency less than 1300MHz; 1 ohm~300 ohm @frequency more than 1300MHz (Impedance Absolute Value).Click The Measurement Interface. Aluminum Alloy Shell Extends Service Life.
Note: For User Convenience, The Calibration Option Automatically Change To User Calibration Each Time It Is Calibrated. At The Same Time, In Order To The Integrity Of The Calibration, During The Calibration Process, The Automatic Shutdown Function Fails And Is Turned On Consistently.
The Attached Video Shows The Correct Method Of Opening The Device. The Keys On The Panel Are 1234 From Left To Right. You Need To 2 And 4 At The Same Time.
Power On And Off: Hold Down The Ctrl Key To Power Off, And The Power Switch Button. When The Instrument Is Powered On, And Hold (More Than 2s) The Switch Button. After Releasing, The Instrument Shut Down. When The Instrument Is Powered On, And Hold (More Than 2s) The Switch Button. After Releasing, The Instrument Shut Down.
Usage Recommendations: To The Accuracy Of Measurement And Calibration, The Instrument Must Be Warmed Up For At Least 15 Minutes. Try To Use Good Quality Cables And Connectors.

Description:
Model: PS100
Working Frequency: 137.5MHz~2.7GHz
Stepped Frequency: 1kHz
Display: 2.4inch TFT with resolution 320x240(QVGA)
Power Consumption less than 1.5W
Charging Current: 400mA
Charging Port: USB
Auto Power Off: Settable 5-60minutes
Measured Parameters: Impedance, reactance, SWR and S11
Resolution: 4-digit readings
Frequency Accuracy: less than +/- 10ppm
Connector: SMA-K
Standing Wave Measurement Range:
1~65 @frequency less than 1300MHz
1~10 @frequency more than 1300MHz
S11(dB)Measurement Range: 0dB to -50dB
Error (Single-point measurement):
For Impedance: less than Impedance absolute value x 5% +/- 0.1ohm (Z less than 200ohm, less than 1.5GHz)
For Standing Wave: less than Effective readings x 10% +/- 0.1
For S11: 0.1dB/5(0dB to -10dB)
For (dB/): 1dB/10(-10dB to -20dB); 5dB/20(-20dB to -40dB)
Directivity: less than 35dB (140MHz to 2GHz after calibration); less than 30dB (2GHz to 2.7GHz)
Scanning Points: 280
Output Level: -18dBm
Working Temperature: 0 to 40
Atmospheric Pressure: 860hPa~1060hPa
Note: Different Batches May Have Differences In Product Appearance, Color, And Printed Characters, Which Not Affect The Use

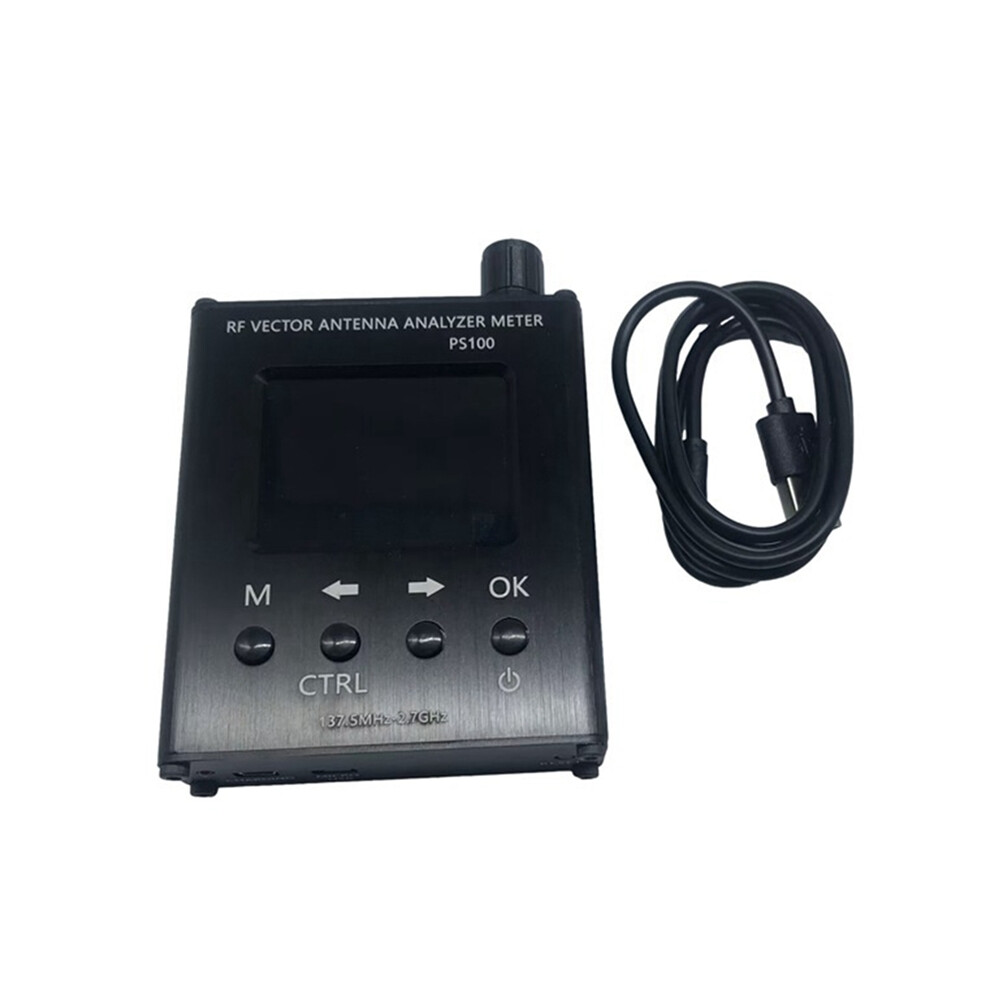

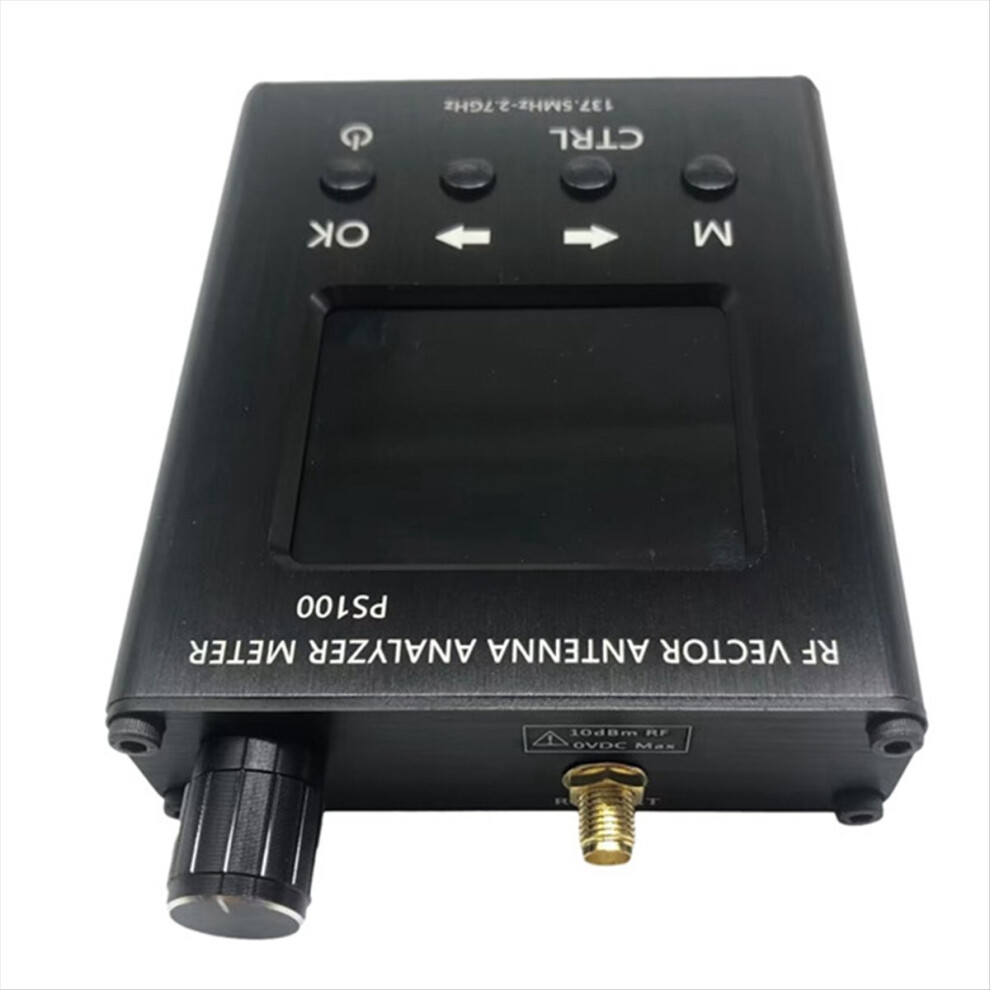

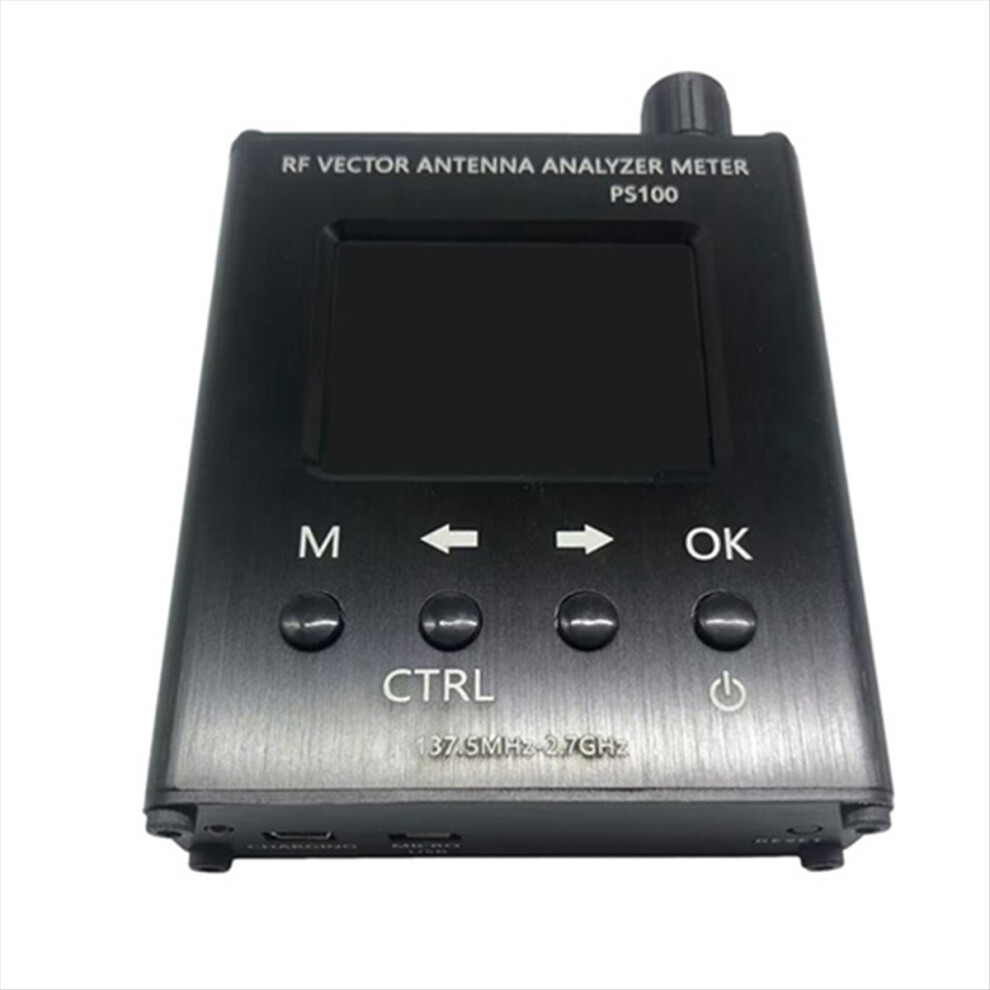

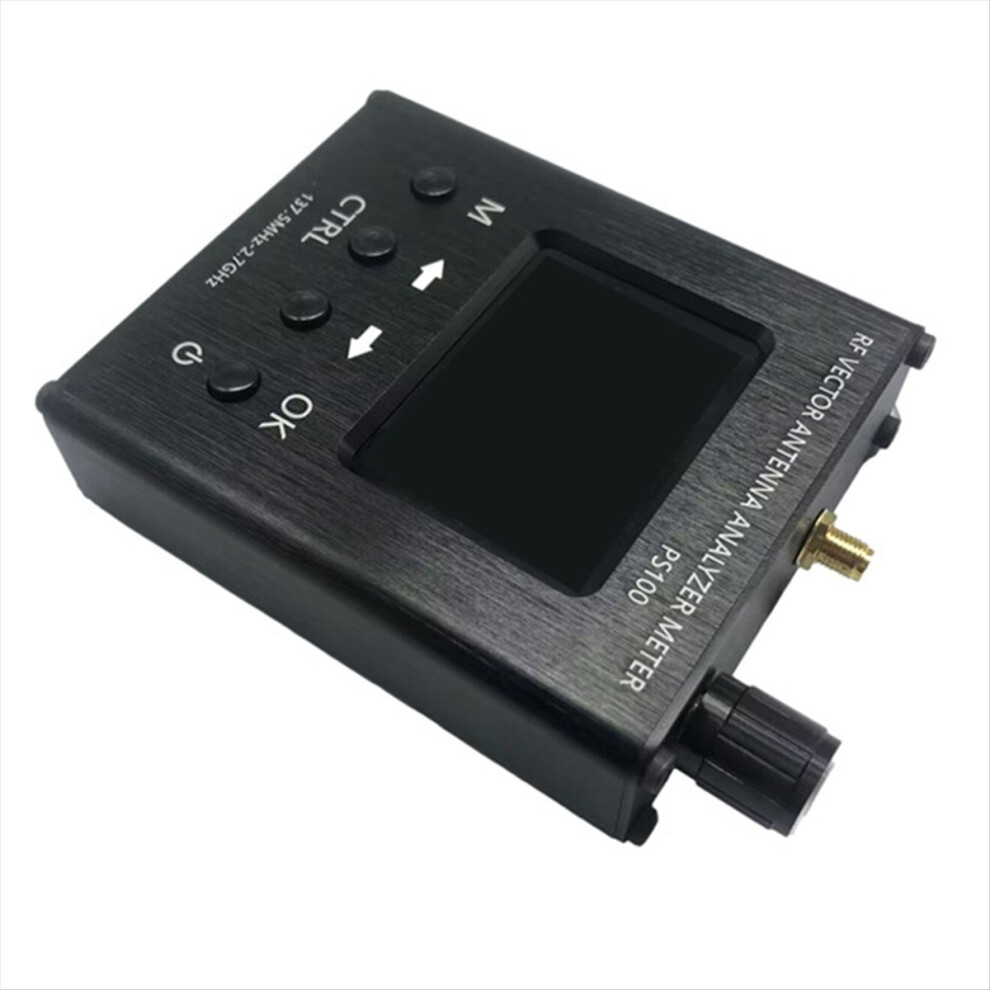

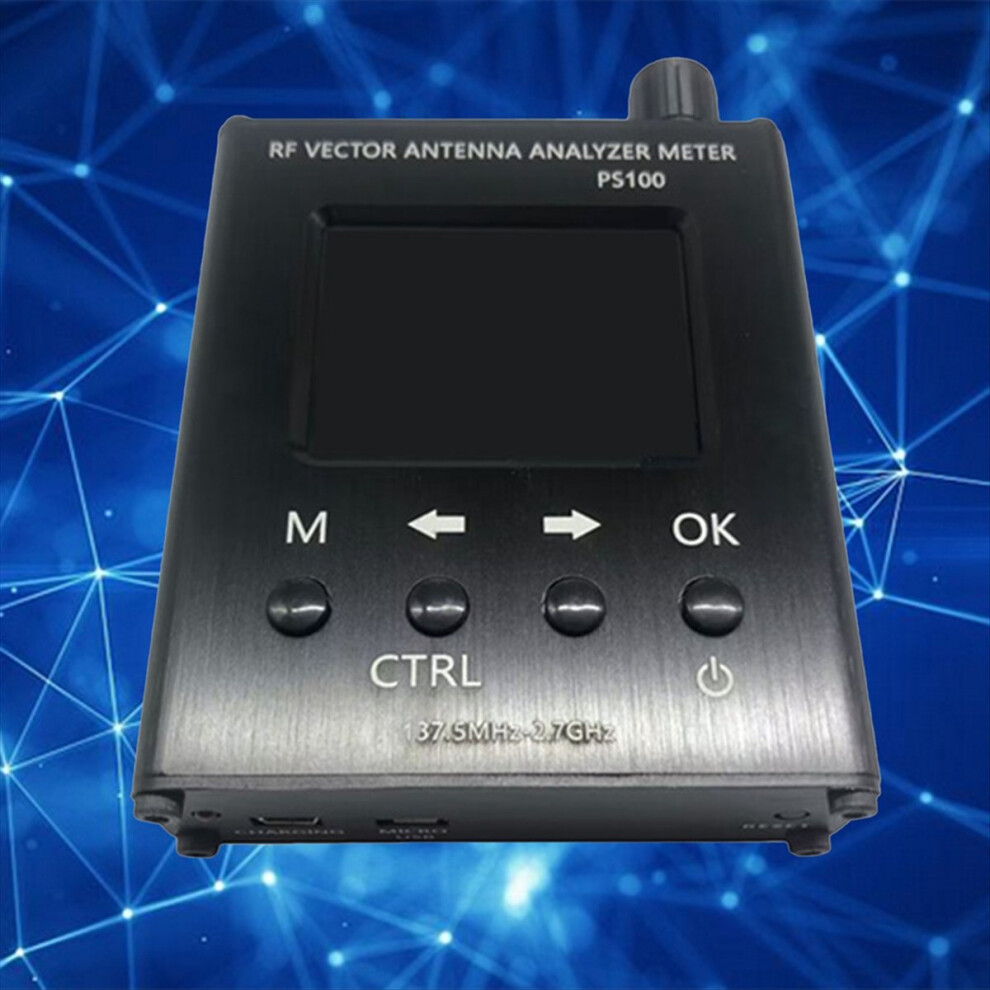

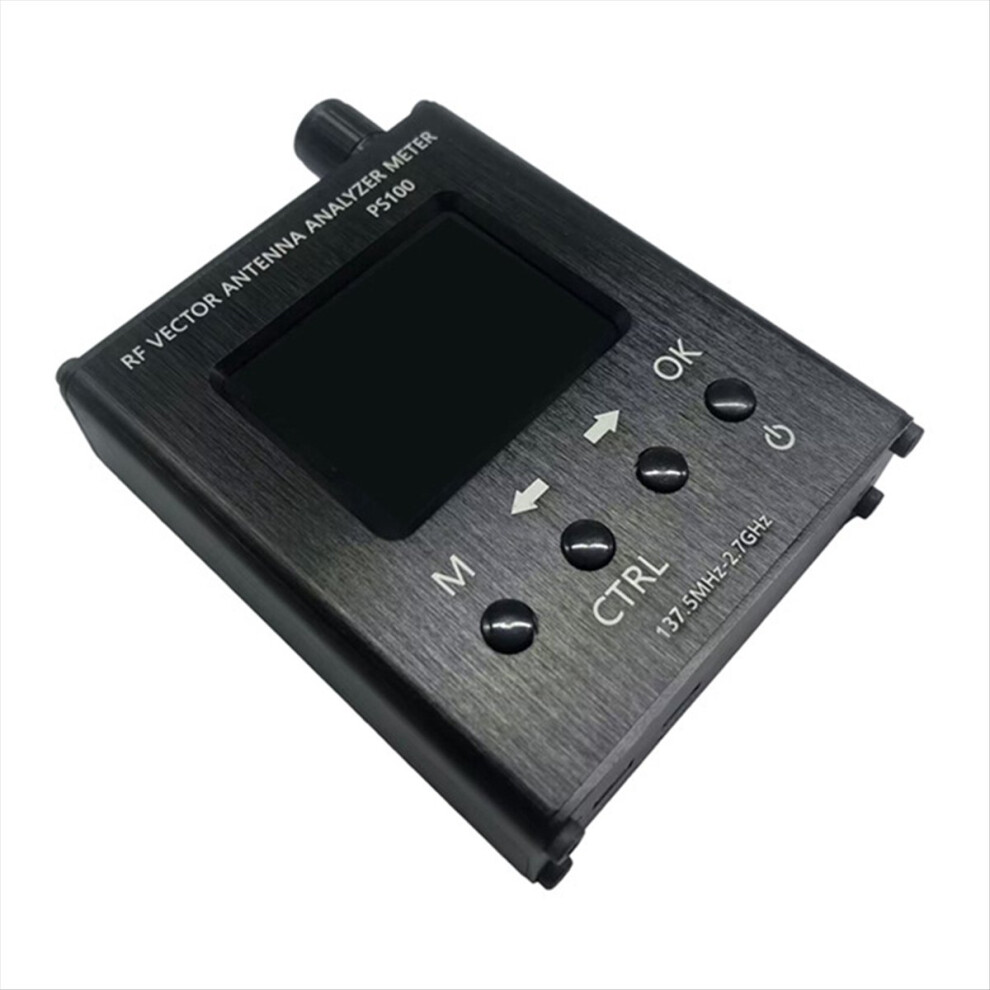

With " VECTOR ANTENNA ANALYZER METER PS100" words
Material: Aluminum alloy
colour: Black

Package Contents:
1 x Antenna Analyzer
1 x Data Cable
1 x English Manual

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
