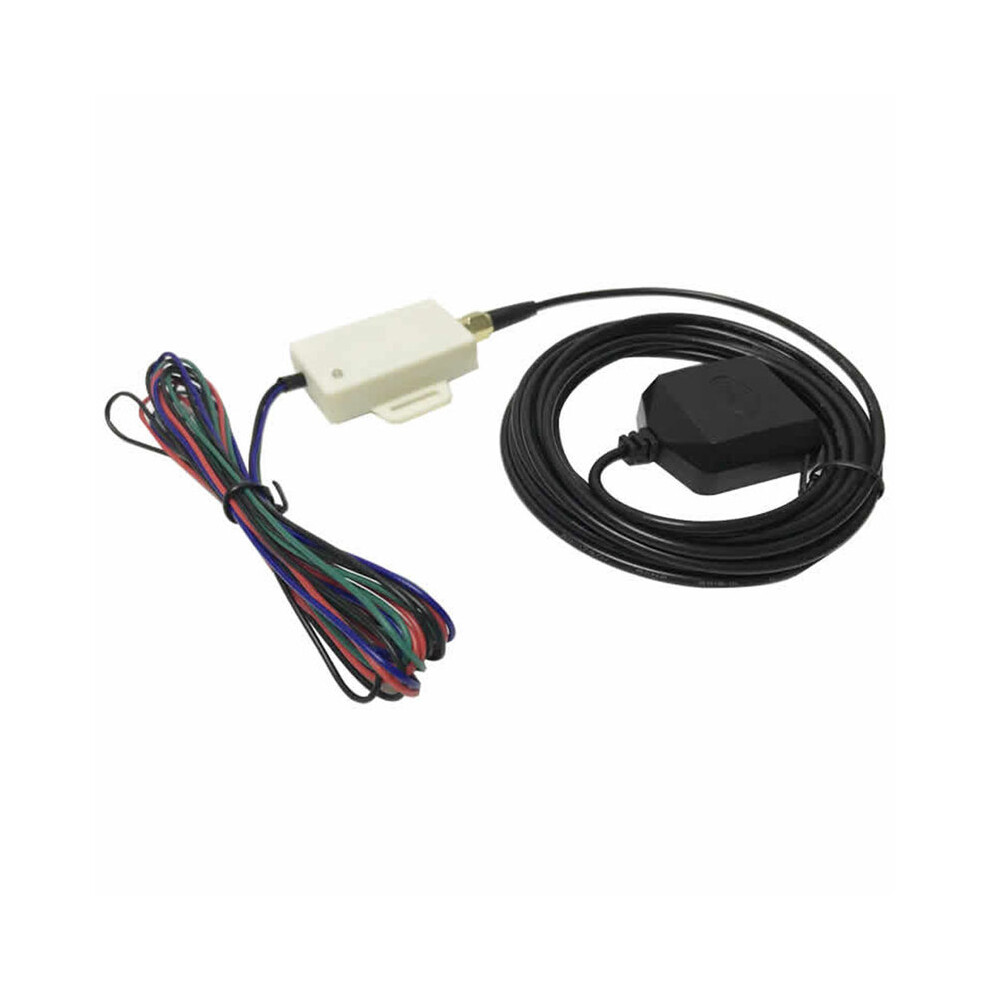

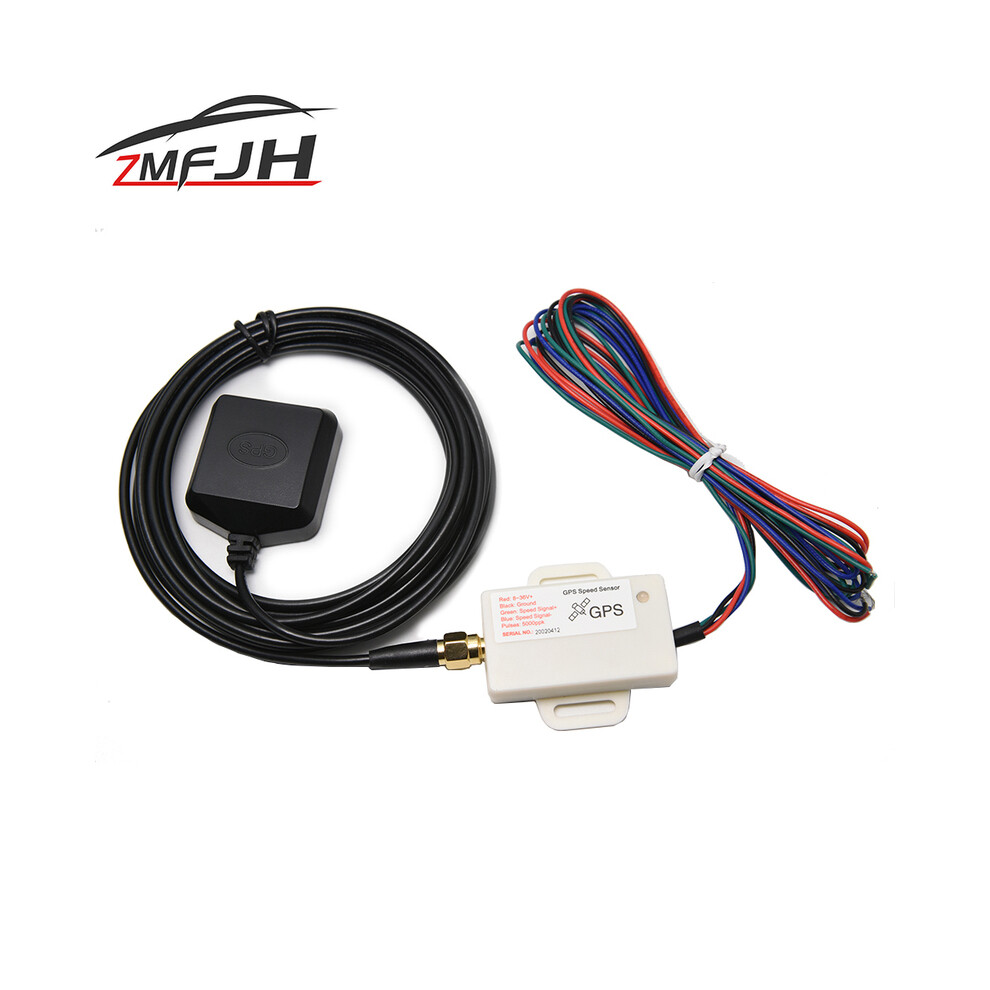

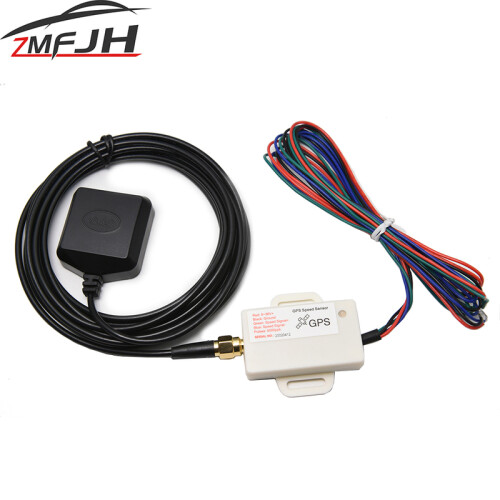

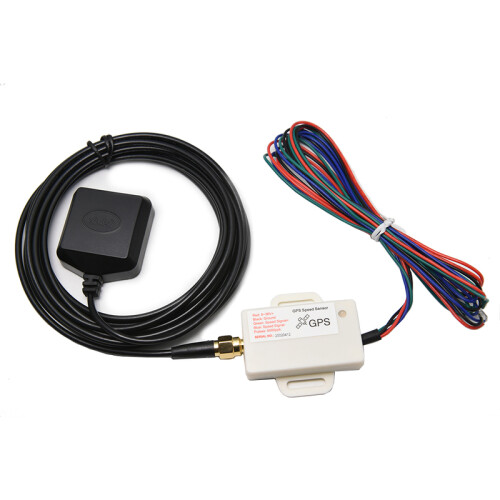

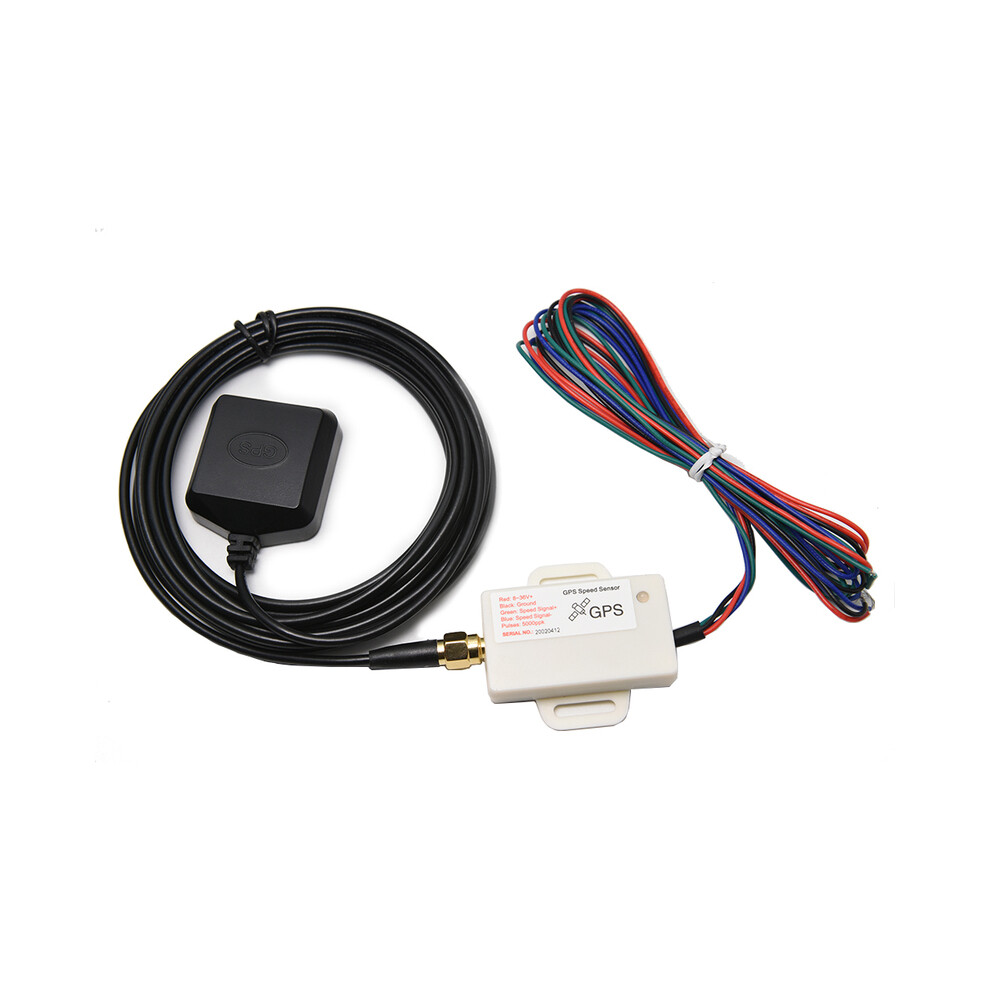

(Antenna X Adapter) Mini Universal Speedometer Sensor Adapter 3 Meter Kit GPS Speed Sender Odometer Compensation For Speedometer

(Antenna X Adapter) Mini Universal Speedometer Sensor Adapter 3 Meter Kit GPS Speed Sender Odometer Compensation For Speedometer Description

Specifications:
Mini Universal GPS Speed Sender
GPS Speed Sender Mini Size, Universal Type
1. Application: AlI kinds of Speedometer, Tachograph
High Accuracy only 0. 2% deviation mechanical speed sensor will be 3~5% deviation
Anti-GPS Stationary Drift technology.
Support both Negative & Positive Pulse output with Max 50,000pules/km
fit for different gauges with programmable speed ratio and lowest 0.5km/h speed to start.
Output two speed signals which are reverse
Shockproof and Circuit Protection design
Pulse/Odometer Compensation when in Tunnel or under Bridge Default Speed Ratio: 5000ppk 5000 pulses per km
High quality GPS Active Antenna which performs well in windy or heavy rainy weather.
Mini Size: 4. 5cmLx1.9cmW, 100cm extended cable
DC12V/24V Power Supply 6- 36V DC
How does it work?
GPS Odometer Speed Sender provides a reliable calibration-free replacement for mechanical speed senders.
Using data received from the Global Positioning Satellite network, the GPS Speed Sender calculates three-dimensional ground speed and provides a pulsed output fit for existing mechanical speed senders.
This high-technology solution eradicates the dependency on vehicle specific parameters thereby reducing installation time and eradicating the need for periodic calibration.

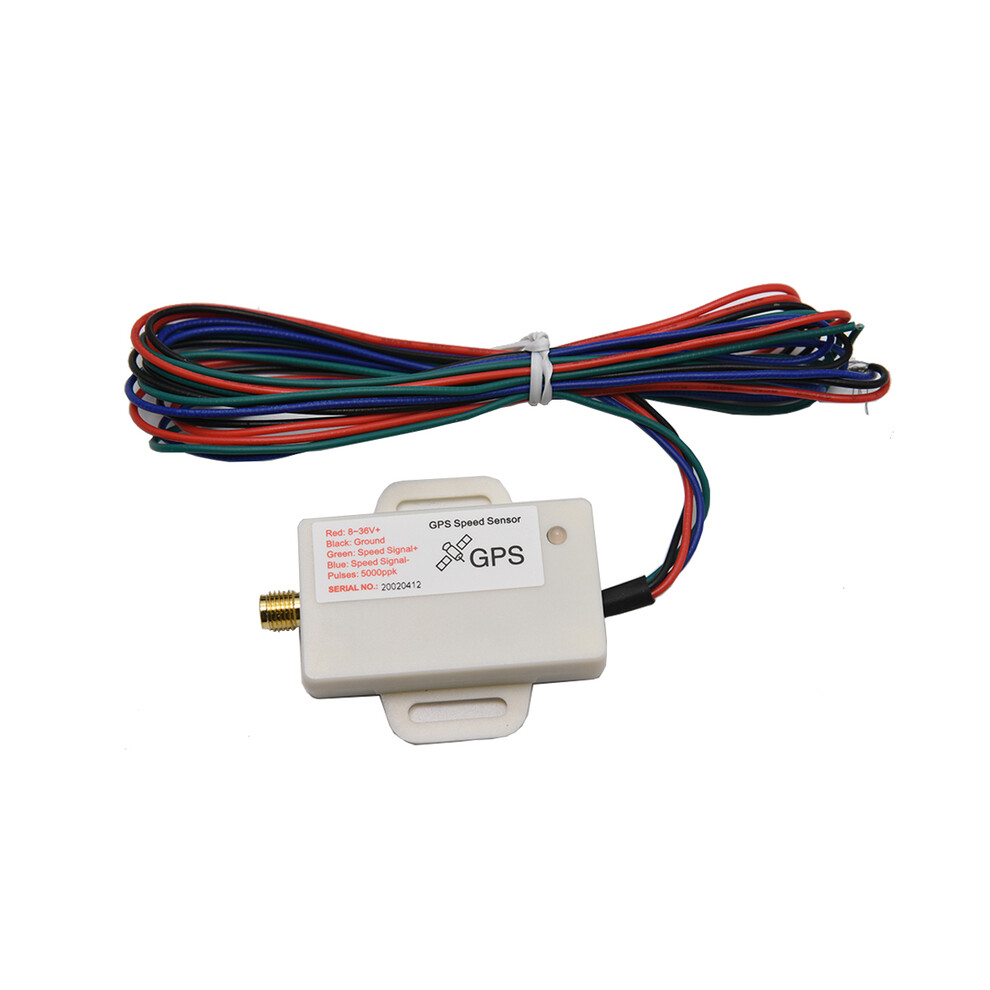

Cable Definition:
RED: Power +, DC8~32V
BLACK: GROUND
GREEN: Speed Pulse Signal Output +
BIUE: Speed Pulse Signal Output-
Please connect GREEN or BLUE cable one of the two to your current
Speedometer/odometer/tachograph.

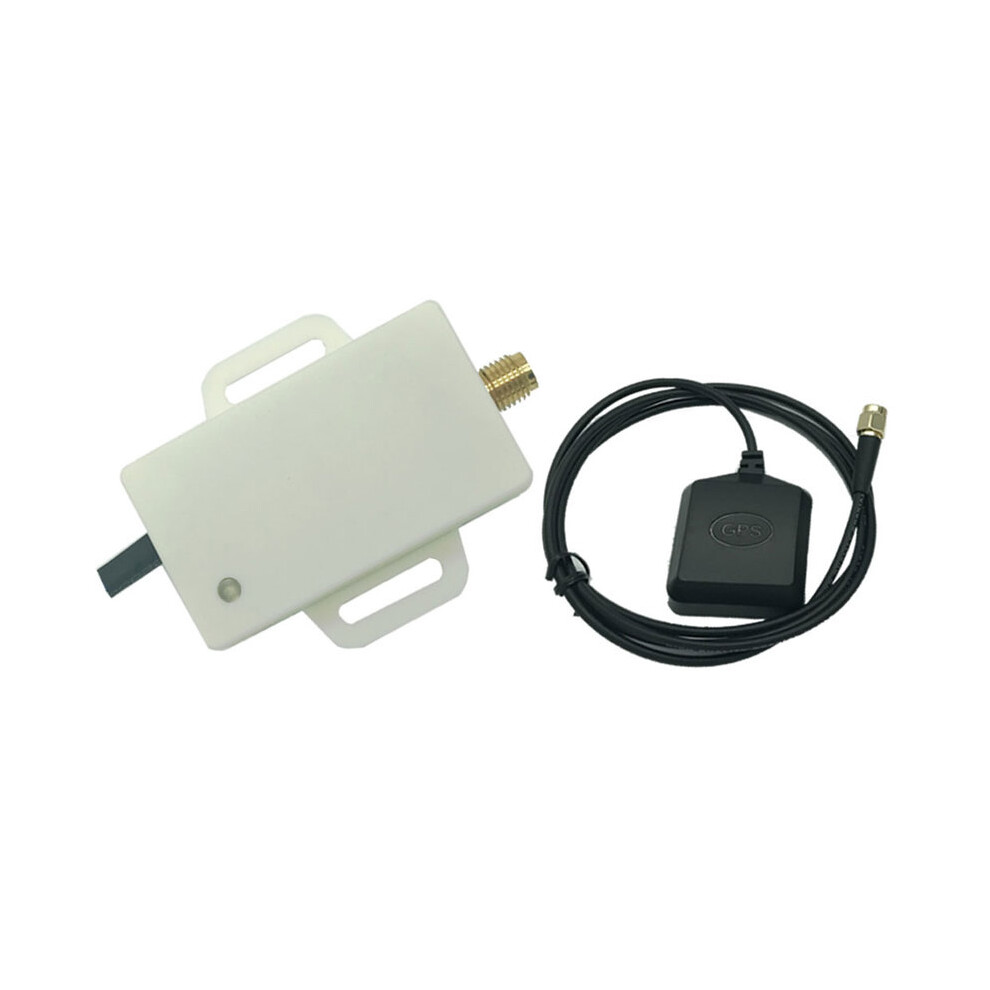

Package included:
1 x Speedometer Sensor Adapter
1 x GPS Antenna
