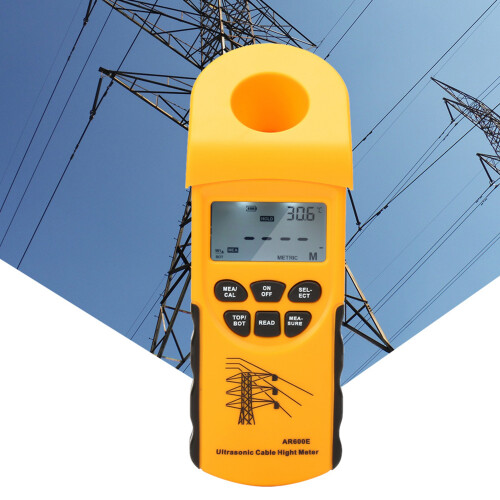

AR600E LCD Ultrasonic Cable Height Meter 6 Cables Measurement

AR600E LCD Ultrasonic Cable Height Meter 6 Cables Measurement Description

SMART SENSOR AR600E LCD Display 6 Cables Measurement Ultrasonic Cable Height Meter

Features:
1. For measuring the height up to 6 cables together
2. It is convenient to take measurement, easy to aim at the measuring position and to read measuring results
3. Uses large measuring sensor, it has high accuracy.

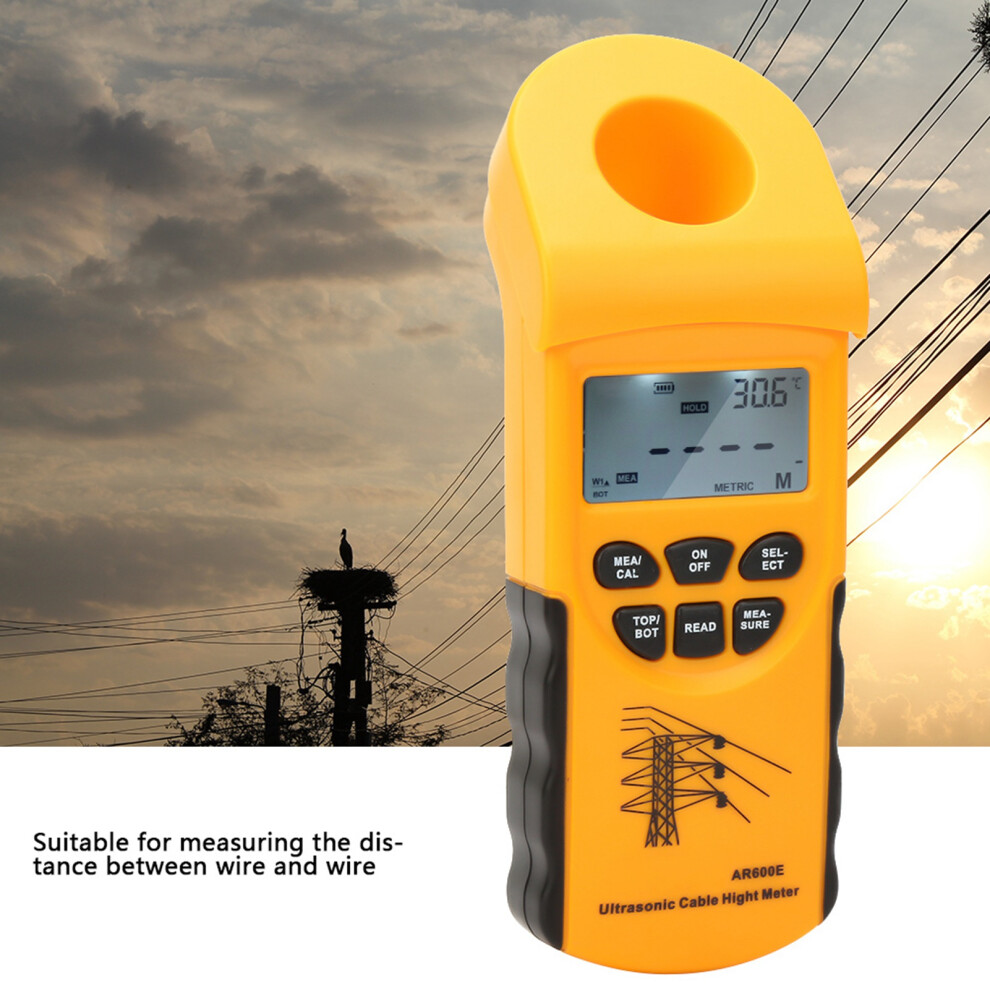

4. Suitable for measuring the distance between wire and wire
5. Compact appearance and it is convenient to carry

Specification:
Condition:
Brand: SMART SENSOR
Model: AR600E




Technical parameter




Technical specifications






Range (25mm cable min)




3-23m






Range (12mm cable min)




3-15m






Range (5.5mm cable min)




3-12m






Range (2.5mm cable min)




3-10m






Horizontal measuring range




3-18m






Operating temperature range




-10-40






Resolution (range<10m)




5mm






Resolution (range>10m)




10mm






Measuring accuracy




0.5%2d






Minimum space between wires




150mm






BOT mode: measuring the height of the the most lower 6 cables




Yes






TOP mode: measuring the height of the most higher 6 cables




Yes






Auto power off delay




120S






Low battery alarm




7.2V0.2V






Imperial & metric unit transition




Yes






Displays real time temperature.




Yes

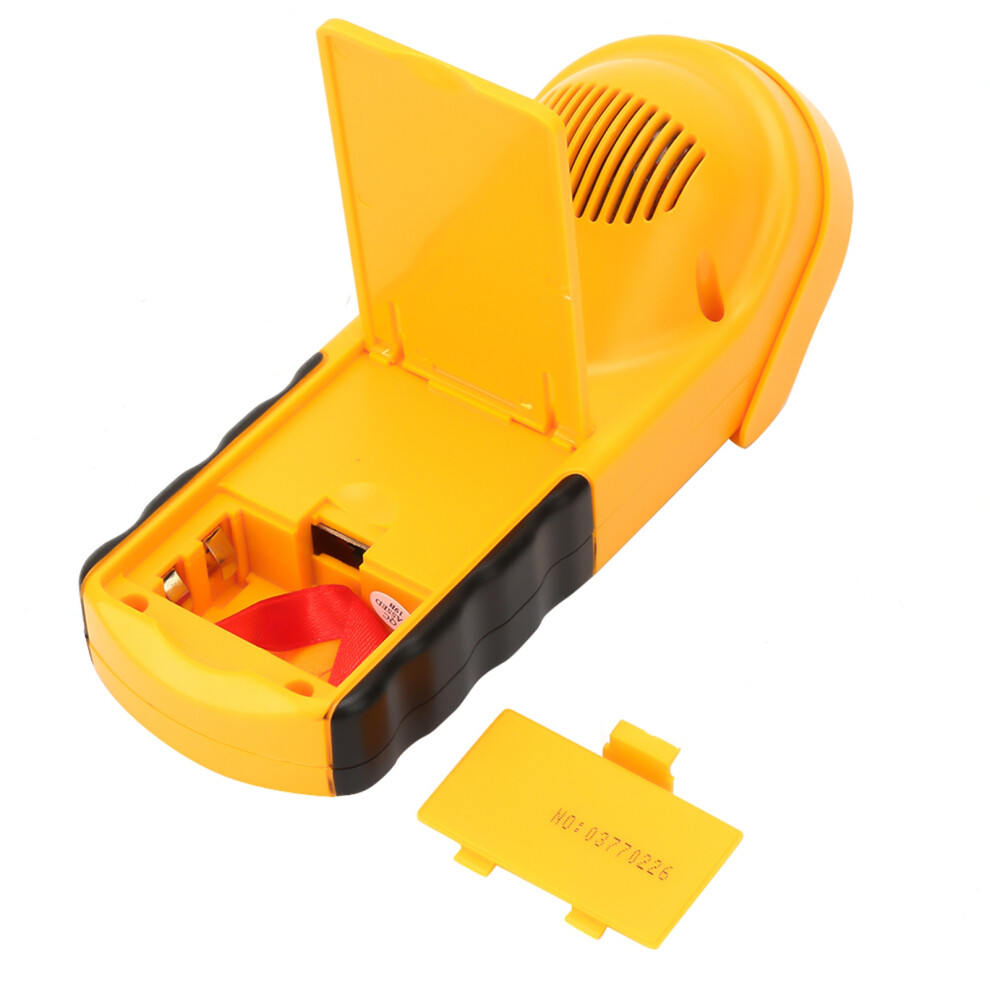

9V 6F22(not included)

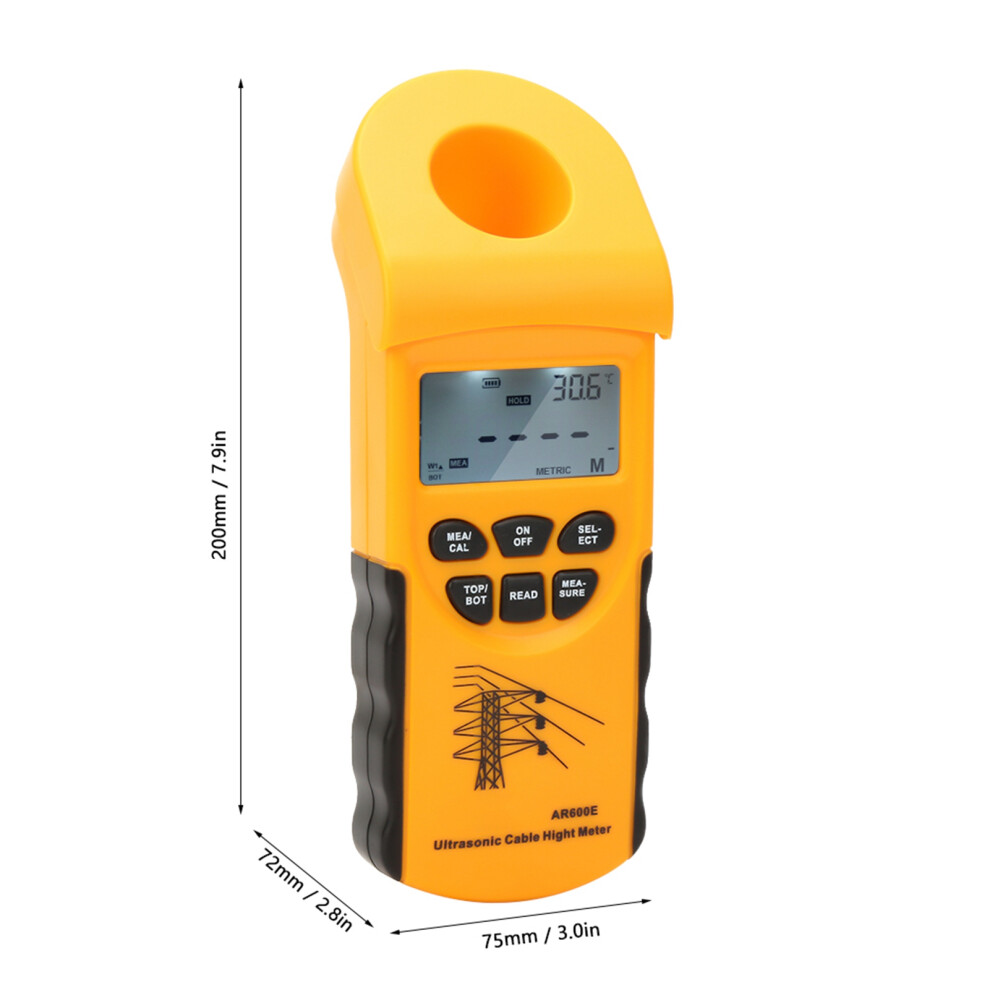

Size: Approx. 75 * 72 * 200mm / 3.0 * 2.8 * 7.9in
Weight: Approx. 896g / 31.6oz

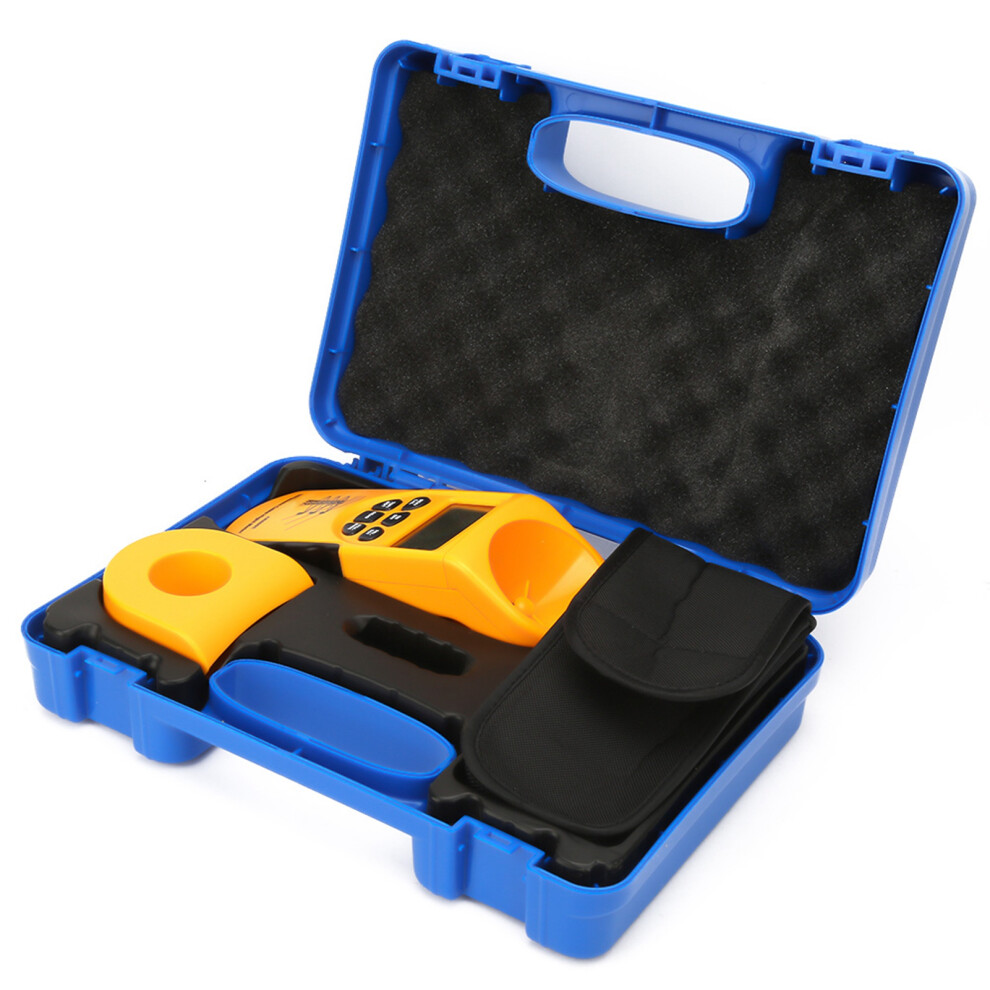

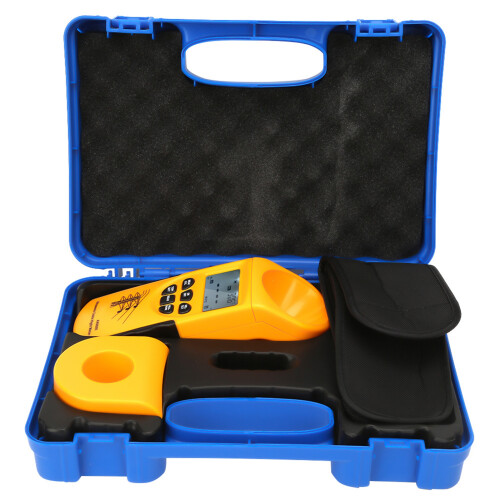

Package List:
1 * Cable Height Meter
1 * Bracket

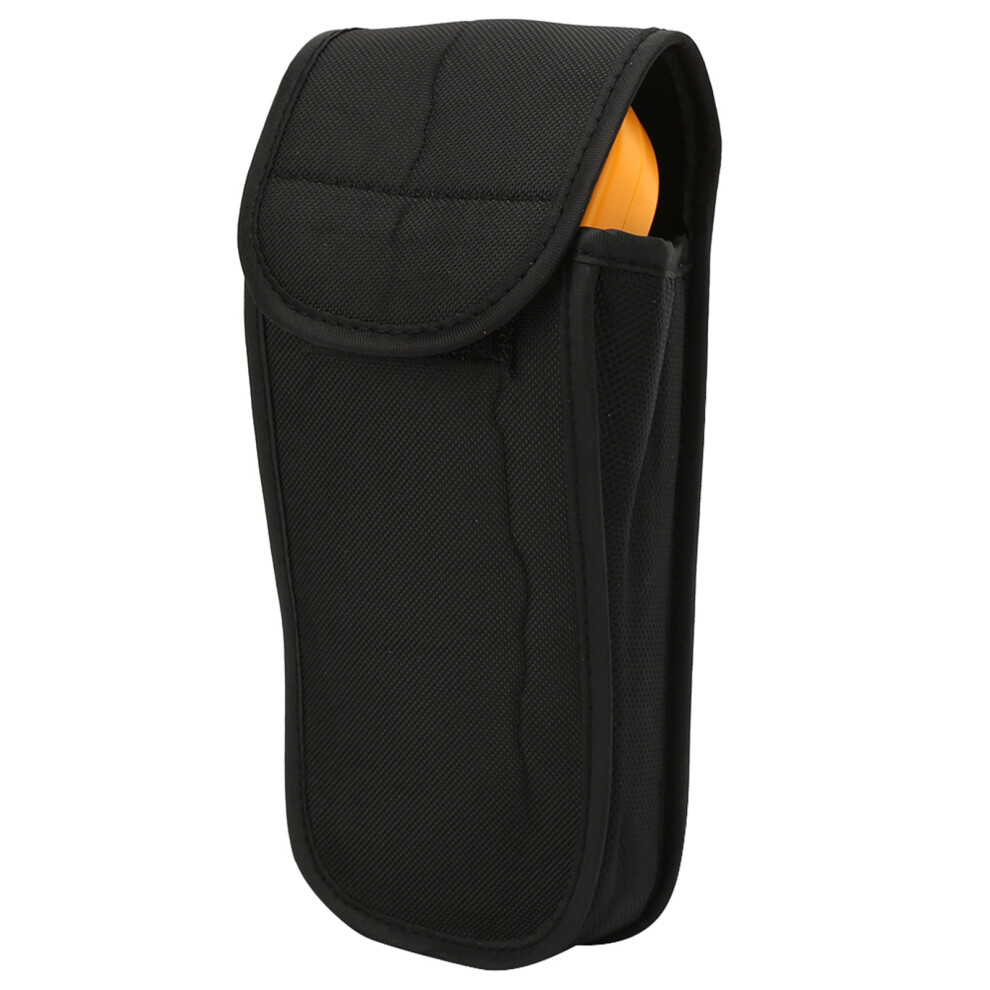

1 * Black Bag

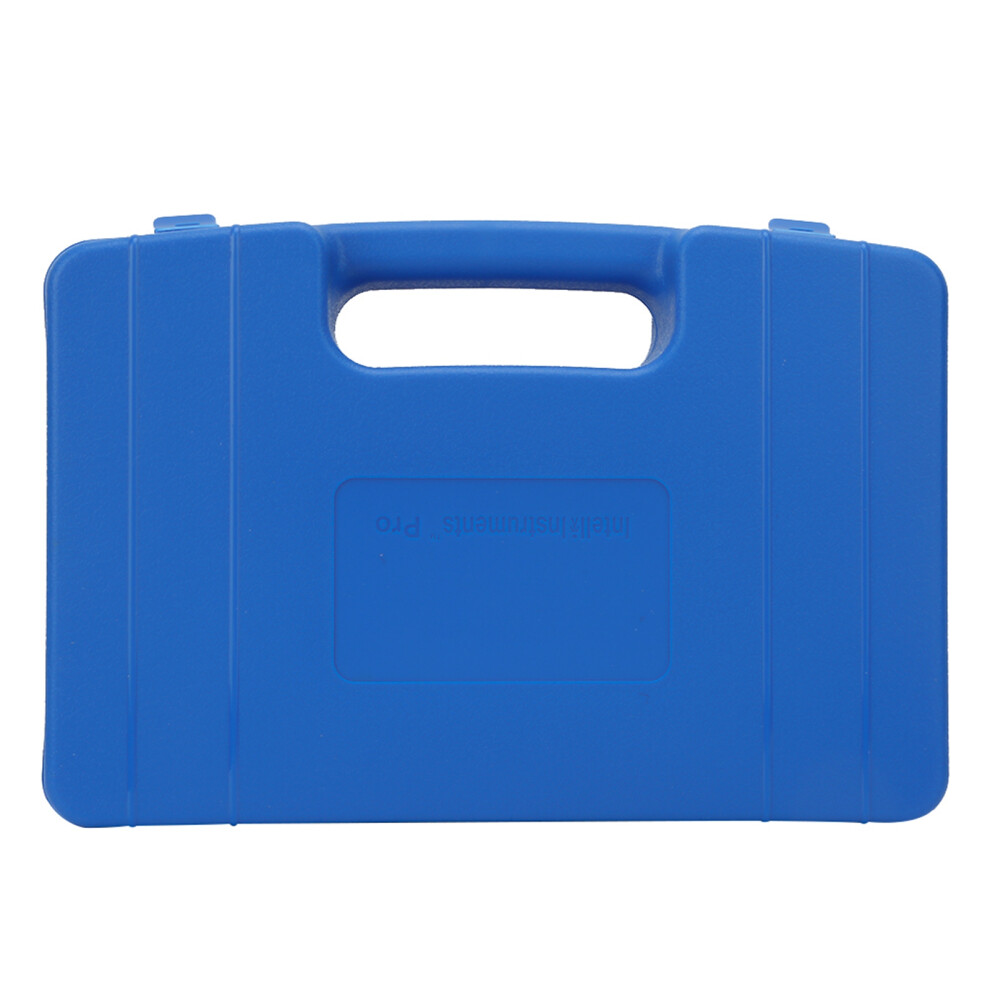

1 * Plastic Box
