Arbitrary Waveform Signal Generator Single Channel 60MHz 1CH 3.6inch Desktop 14 Bit Supports SCPI Labview Function EU Plug

Arbitrary Waveform Signal Generator Single Channel 60MHz 1CH 3.6inch Desktop 14 Bit Supports SCPI Labview Function EU Plug Description

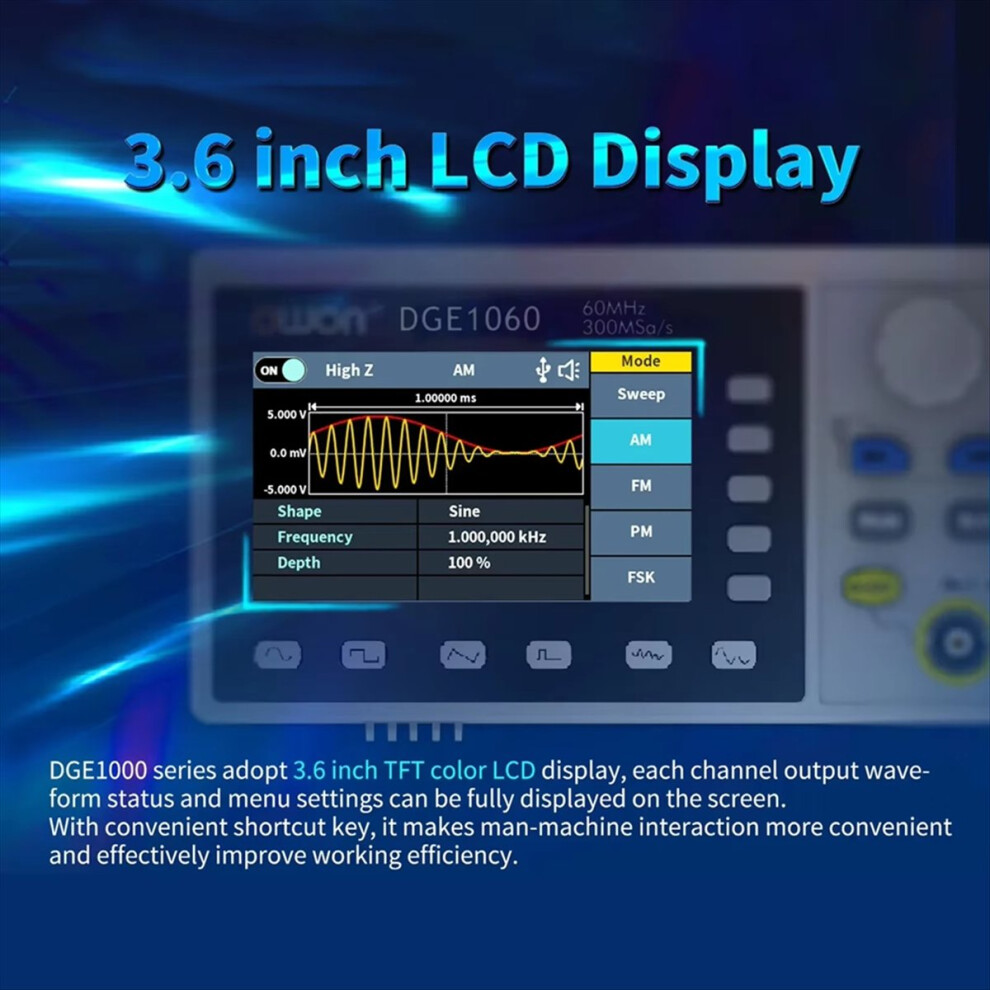

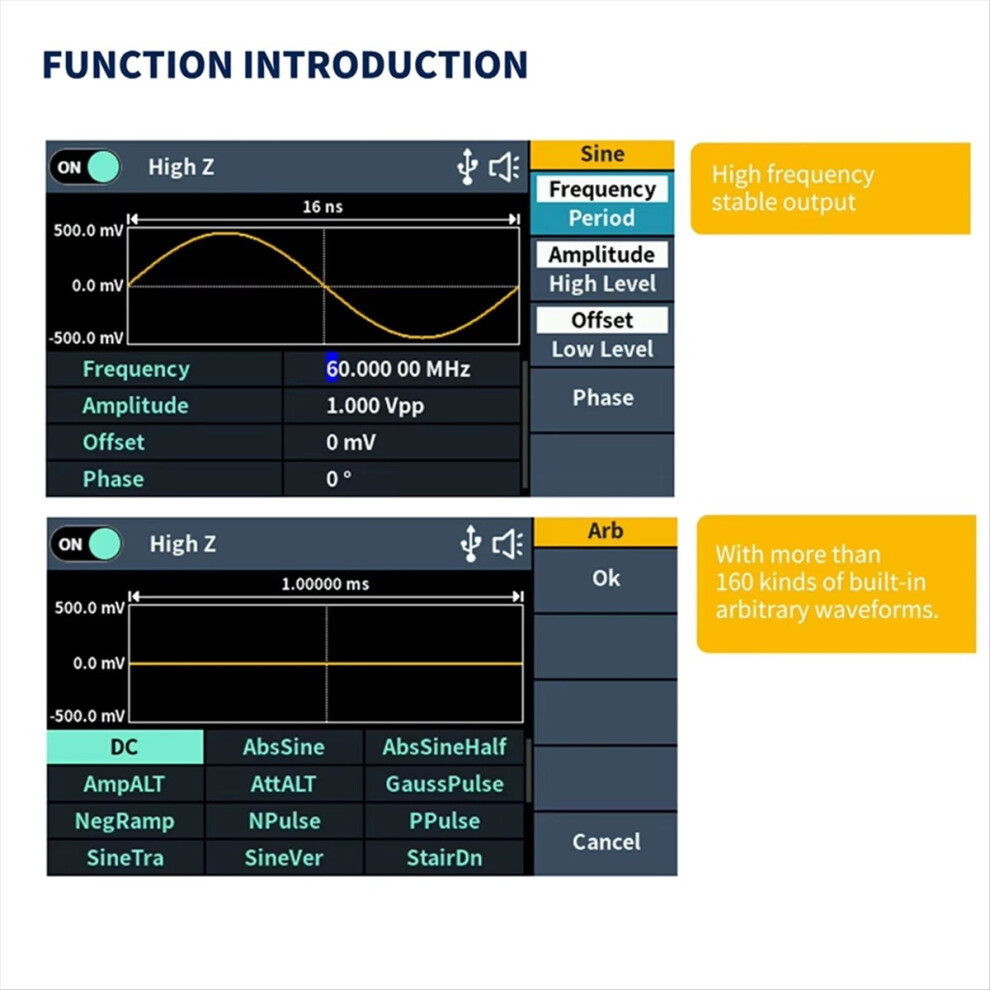

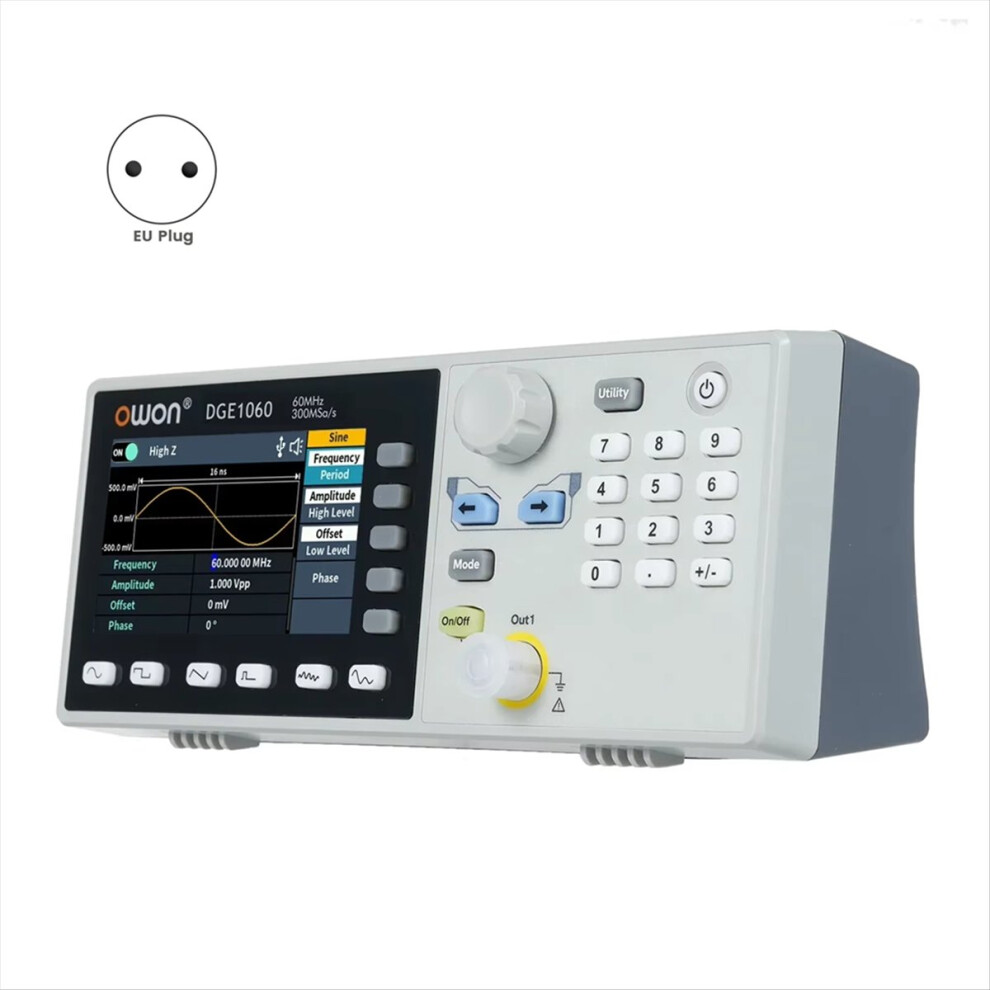

Description: Experience with our single-channel arbitrary waveform generator, the DGE1060, utilizing cutting-edge direct digital frequency synthesis technology for high accuracy, stability, and low distortion outputs. It features a 3.6-inch TFT LCD display, offering a clear and comprehensive interface with a resolution of 480 x 272. This device is designed for simplicity and efficiency, with a compact and user-friendly form factor. Features: High-frequency output up to 60MHz and a maximum sampling rate of 300MSa/s. Supports a wide range of waveforms including 5 basic and 160 built-in arbitrary types. Extensive modulation capabilities: AM, FM, PM, FSK, Sweep, and Burst. Compatible with SCPI and LabVIEW for enhanced functionality. Vertical resolution of 14 bits and waveform length up to 8K points for detailed signal generation. Comprehensive connectivity options with USB interface for easy integration. Specifications: Plug Options: EU Material: ABS Channel: 1 Frequency Output: 60MHz Sample Rate: 300MSa/s Vertical Resolution: 14 bits Standard Waveforms: Sine, Square, Ramp, Pulse, Noise Arbitrary Waveforms: Includes exponential rise/fall, sin(x)/x, step wave, among others Frequency Stability: 30ppm at 040 Amplitude Range: 1mVpp-10Vpp (10MHz), 1mVpp-4Vpp (70MHz) Display: 3.6-inch TFT LCD Dimensions: 198 x 85 x 65mm Plug Type:EU Plug,it applies to Indonesia, Germany, France, Spain, Italy and so on. Color: As shown Voltage: AC110-220V Package Contents: 1* Signal Generator 1* BNC to Alligator Clip 1* USB Cable 1* USB to DC Cord 1*EU Power Adapter Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed ror is +/- 1-3cm.
