Arduino R3 MIDI Breakout Adapter
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 133,000 Trustpilot reviews and an 'Excellent' rating
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Thu 1st - Tue 20th Oct
Returns: 30 days
180-day payment protection
Summary
- 1、With the MIDI Adapter Board, for Arduino board or other microcontroller can access powerful MIDI communication protocols.
- 2、The MIDI protocol and the asynchronous serial interface have many similarities, so the user can send MIDI event information using the microcontroller UART pin.
- 3、The MIDI riser board provides MIDI-IN and MIDI-OUT connections as well as MIDI THRU ports.
- 4、MIDI - port is light IN isolation to prevent ground loops.
- 5、The MIDI adapter board can be mounted directly like the shield on the top for Arduino board: connect MIDI-IN / THRU for Arduino hardware RX pin and MIDI-OUT to the TX.
Arduino R3 MIDI Breakout Adapter Description

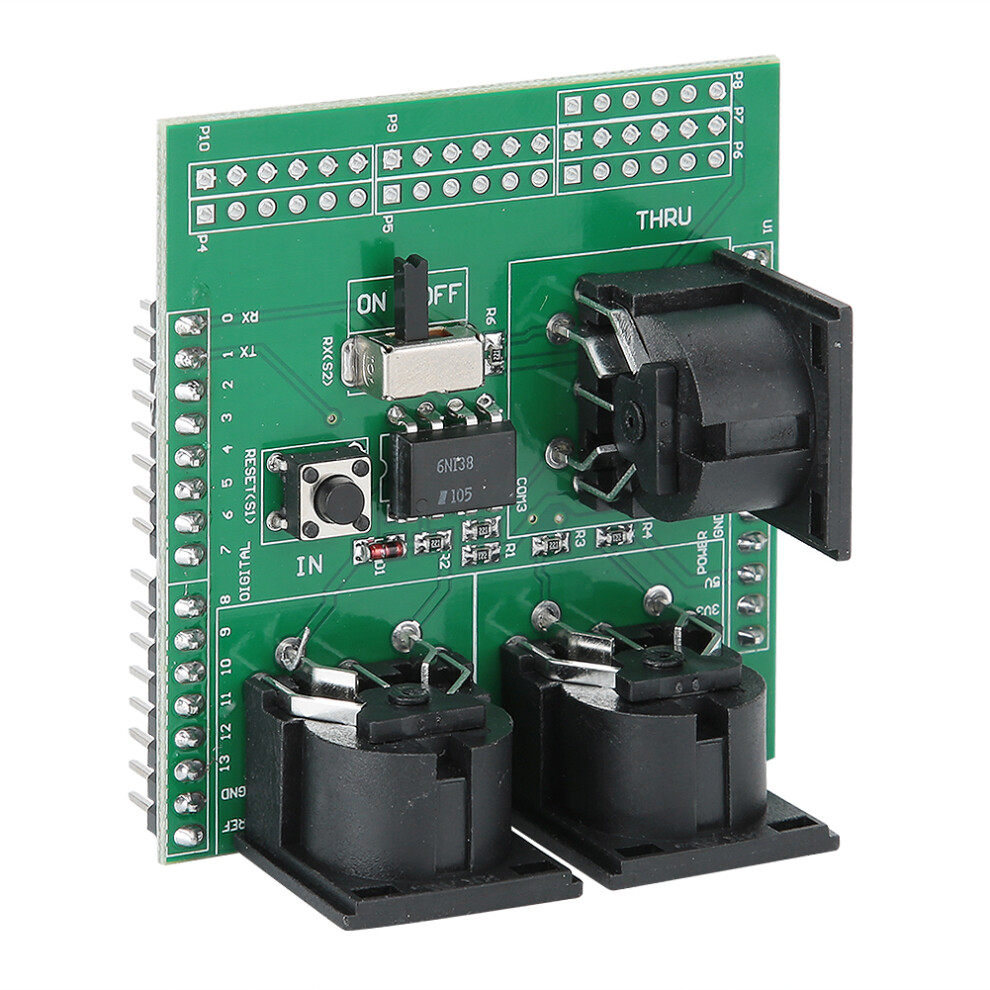

The MIDI adapter board for Arduino R3 allows any compatible microcontroller to utilise the powerful MIDI communication protocol. It includes MIDI-IN, MIDI-OUT, and MIDI THRU connections, with optical isolation on the input to avoid ground loops. Designed as a shield, it fits directly onto an Arduino, routing MIDI-IN/THRU to the hardware RX pin and MIDI-OUT to the TX pin. The board exposes all data, analog, power, and bus pins for easy access, and features a RUN/PGM switch for straightforward serial programming without removing the board. Size is roughly 57.4 x 53.1mm and the PCB is green.
Details
| OPC | PV7H9GZ |
|---|---|
| Codes | 7340572955470 (EAN) |
Product Data
Dimensions
| Height | 3cm |
|---|---|
| Width | 6.0cm |
