Summary
- 1、With the MIDI Adapter Board, for Arduino board or other microcontroller can access powerful MIDI communication protocols.
- 2、The MIDI protocol and the asynchronous serial interface have many similarities, so the user can send MIDI event information using the microcontroller UART pin.
- 3、The MIDI riser board provides MIDI-IN and MIDI-OUT connections as well as MIDI THRU ports.
- 4、MIDI - port is light IN isolation to prevent ground loops.
- 5、The MIDI adapter board can be mounted directly like the shield on the top for Arduino board: connect MIDI-IN / THRU for Arduino hardware RX pin and MIDI-OUT to the TX.
Arduino R3 MIDI Breakout Adapter Description

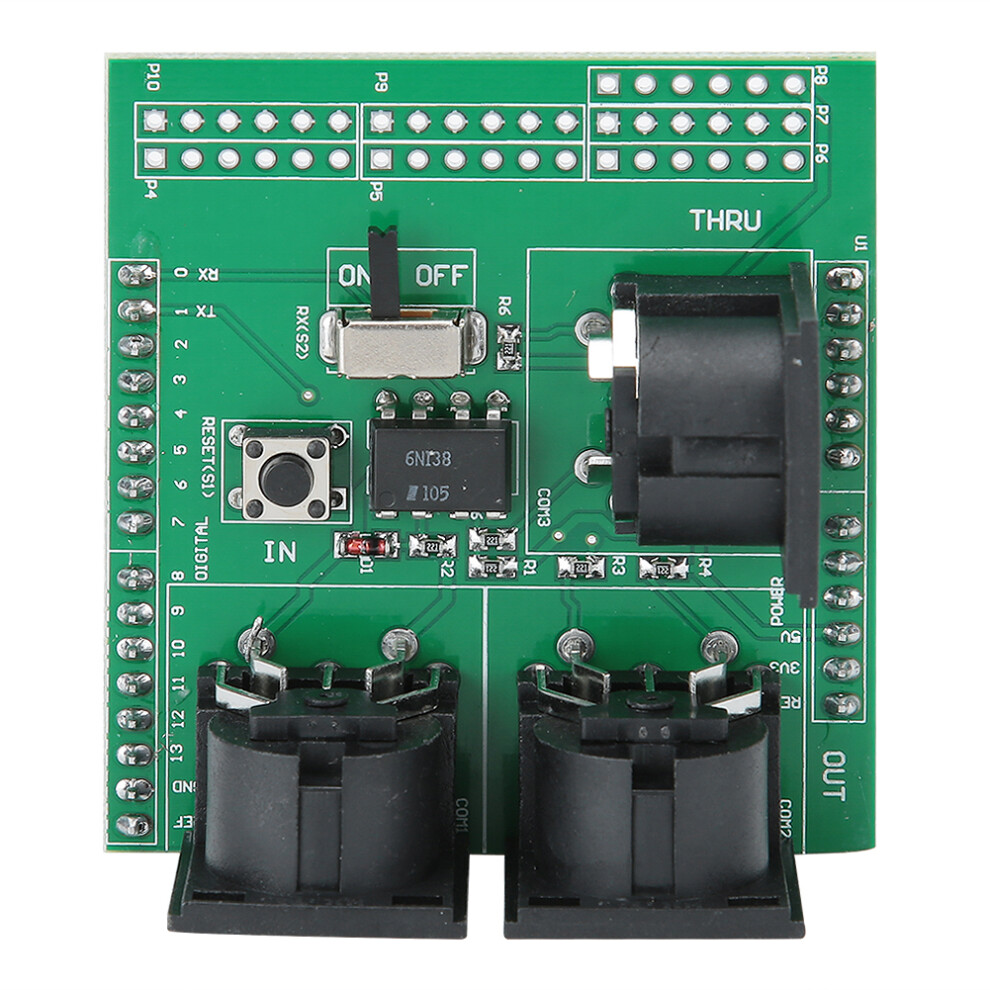

The MIDI breakout adapter for Arduino R3 enables MIDI communication with your microcontroller. It features MIDI-IN, MIDI-OUT, and MIDI THRU ports, with optical isolation on the MIDI-IN to prevent ground loops. The board is mounted as a shield on the Arduino, routing MIDI-IN/THRU to the RX pin and MIDI-OUT to the TX pin. All Arduino data, analog, power, and bus pins are broken out for easy use. A RUN/PGM switch facilitates serial programming without removal. Size is about 57.4 x 53.1mm, with a green PCB.
Details
| OPC | PV7J7SF |
|---|---|
| Codes | 7340572998187 (EAN) |
Product Data
Dimensions
| Height | 3cm |
|---|---|
| Width | 6.0cm |
