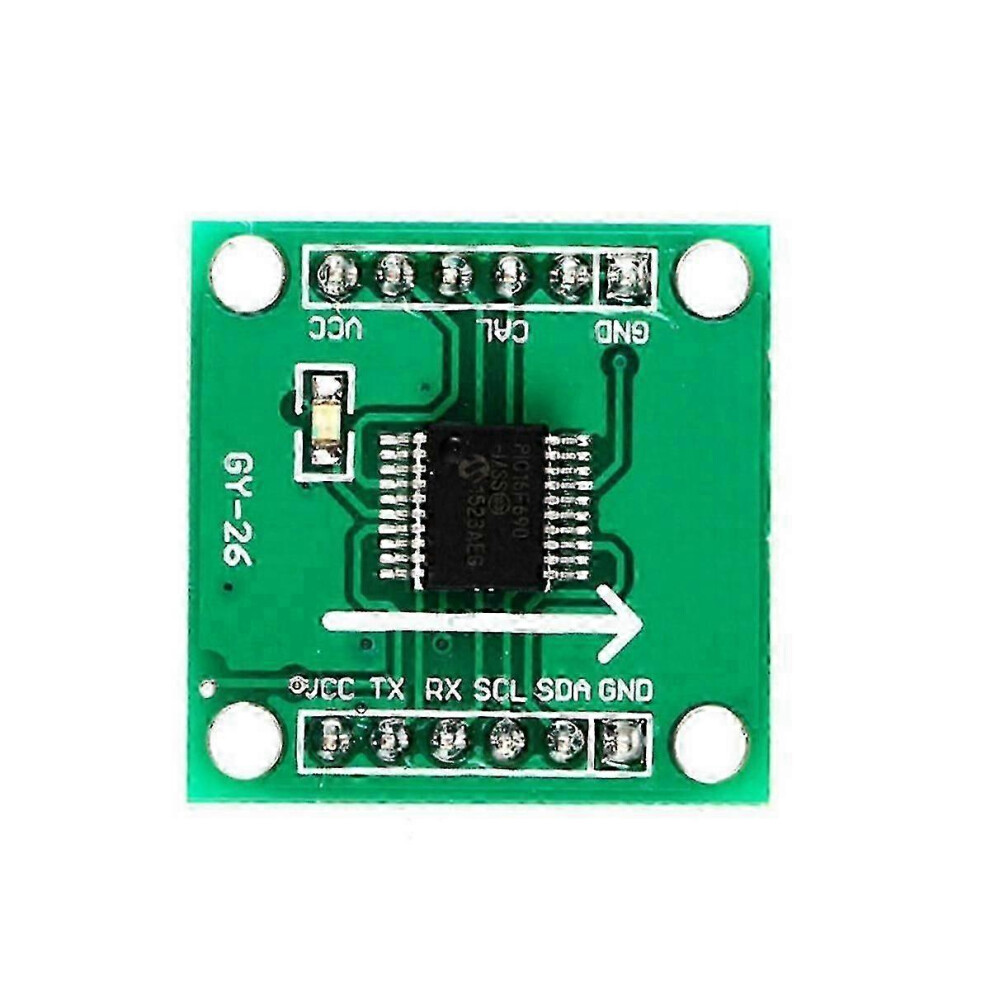

(As show, One size) -26 High-Precision High-Sensitivity Digital Electronic Compass Sensor Module 26 GY26 DC 3V- 5V for GPS Navigation

(As show, One size) -26 High-Precision High-Sensitivity Digital Electronic Compass Sensor Module 26 GY26 DC 3V- 5V for GPS Navigation Description

This is a low cost plane of digital compassThe working principle is utilizing resistive sensor sensing the Earth's magnetic field component, so as to get an azimuth angleLight weight and high cost-effectiveWith operation and high accuracyVery low operating voltage (3 - 5V DC)DC single supply operationAdvanced hard iron calibration Electrical Parameters:Measuring Range: Between 0 degrees to 360 degreesWorking Temperature: Between -20~85 Degrees CelsiusStore Temperature: Between -40 ~125 Degrees CelsiusCurrent Consumption: 5V 15mA, 3V 8mA Response Frequency: 25Hz Resolution: 0.1 degree Measuring Precision: 1 degreeRepeatability Precision:1 degree Applications:Handheld electronic instrumentRobot orientation and position Navigation system Telescope position Auto helm rudder Antenna positionAutomobile GPS navigationAero model positionColour:greenMaterial:PCBPackage Contents:1 x Electronic Compass Sensor ModuleOnly the above package content, other products are not included.Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
