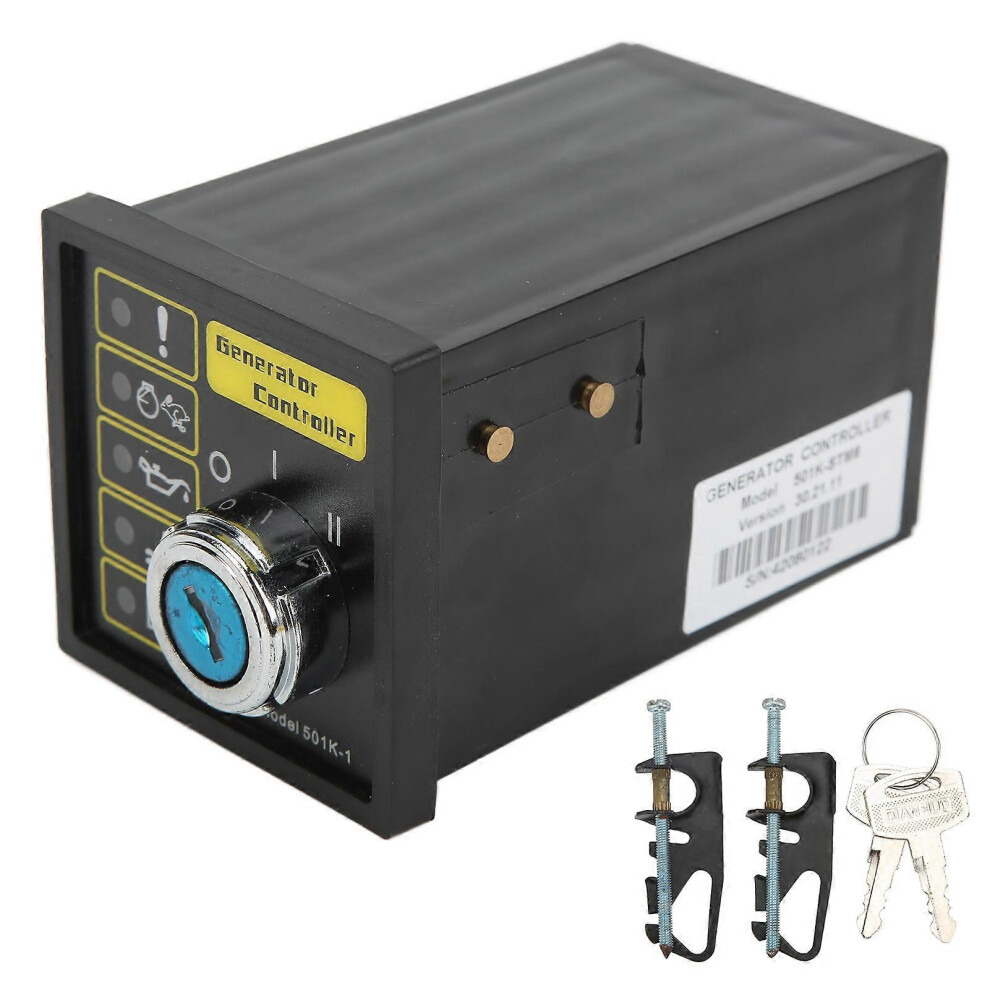

(As show, One size) 501KSTM8 Generator Set Controller Manual Key Start Generator Controller with Protection Function

(As show, One size) 501KSTM8 Generator Set Controller Manual Key Start Generator Controller with Protection Function Description

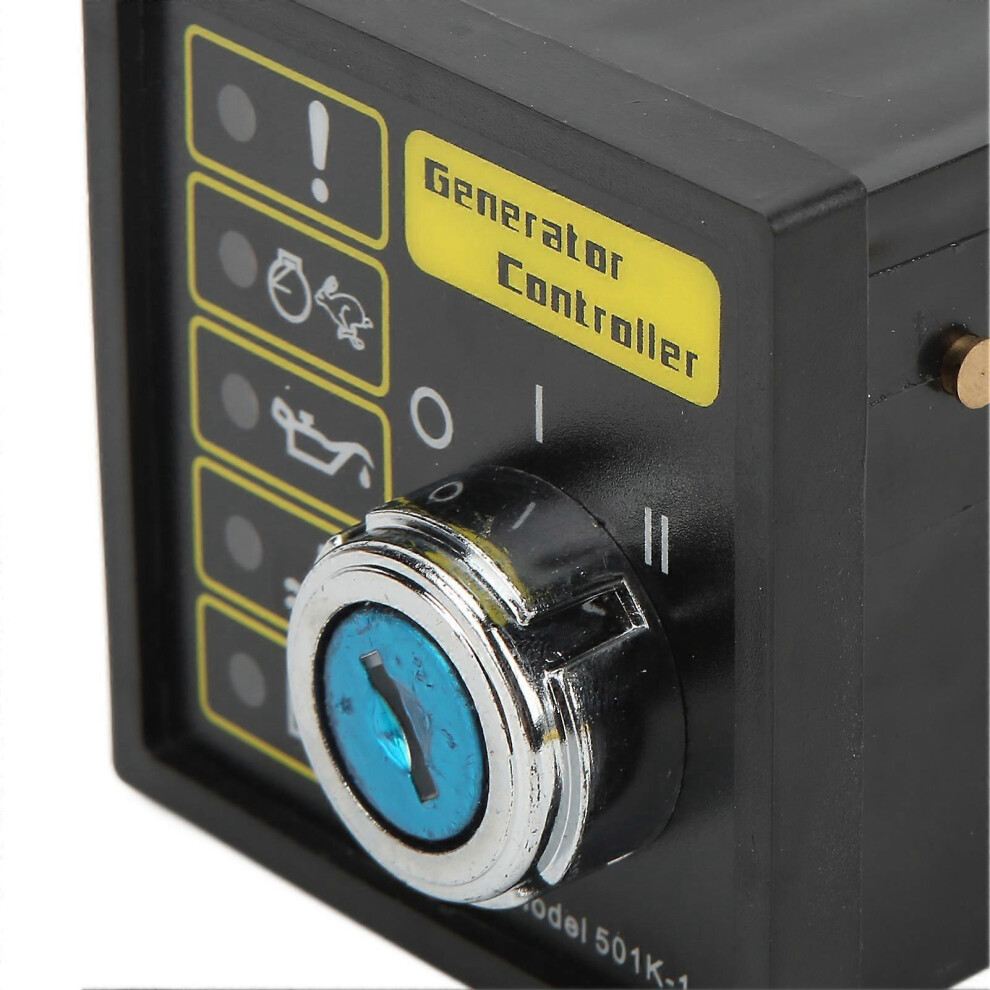

Feature:1. Manual Key Start: BC501K is a manual generator control module, which controls the engine through the key on the panel.2. Control the Start and Stop: This controller is used to control the start and stop of the engine, and display the engine fault status.3. LED Screeen: When the engine has a fault, the cause of the fault will be displayed through the LED and the engine will be automatically stopped.4. Voltage Drop at Startup: The voltage can be automatically maintained at startup, which can make the built in battery unnecessary.5. Protection Function: High water temperature, low oil pressure, auxiliary parking, and overspeed protection, charging failure alarm.Specification:Item Type: Generator Set ControllerMaterial: ABSModel: 501K-STM8Purpose: Generator set controllerBasic Parameters:Working Voltage: 9-33 VContinuous DC Power Supply. Voltage drop at startup: The voltage can be automatically maintained at startup, which can eliminate the need for built-in batteriesGenerator AC Voltage Input Range: 15-305 V AC RMSGenerator Input Frequency: 50-60 Hz at rated engine speedMagnetic Speed Sensor Signal Amplitude Input Range: 0.5 V ~+/-80 VMagnetic Speed Sensor Signal Frequency Input Range: 2300Hz~ 6000 Hz (at rated engine speed)Start Relay Output: 16 A DC Power Supply VoltageOperation Relay Output: Power Supply Voltage 16 A DCAlarm Output: Power Supply Voltage 1 A DC.Package List:1 x Generator Set Controller2 x Bracket2 x Key1 x Manual
