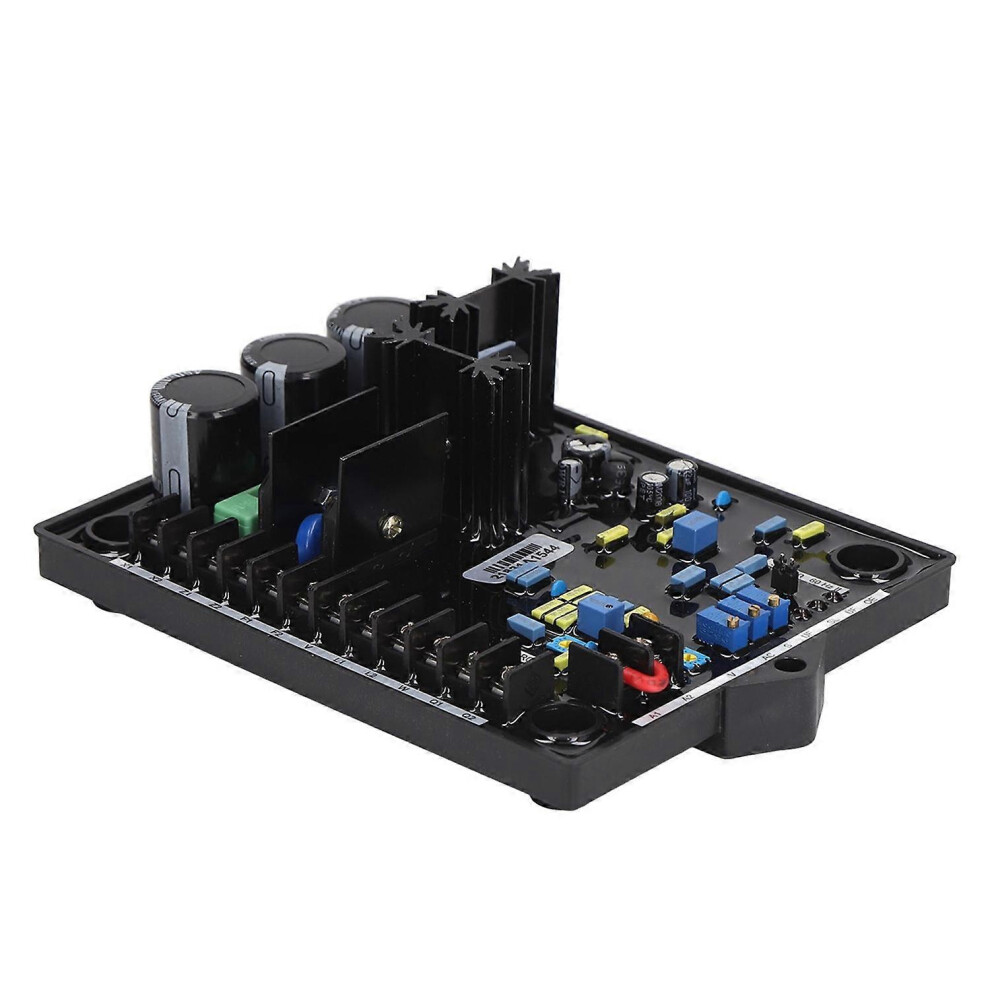

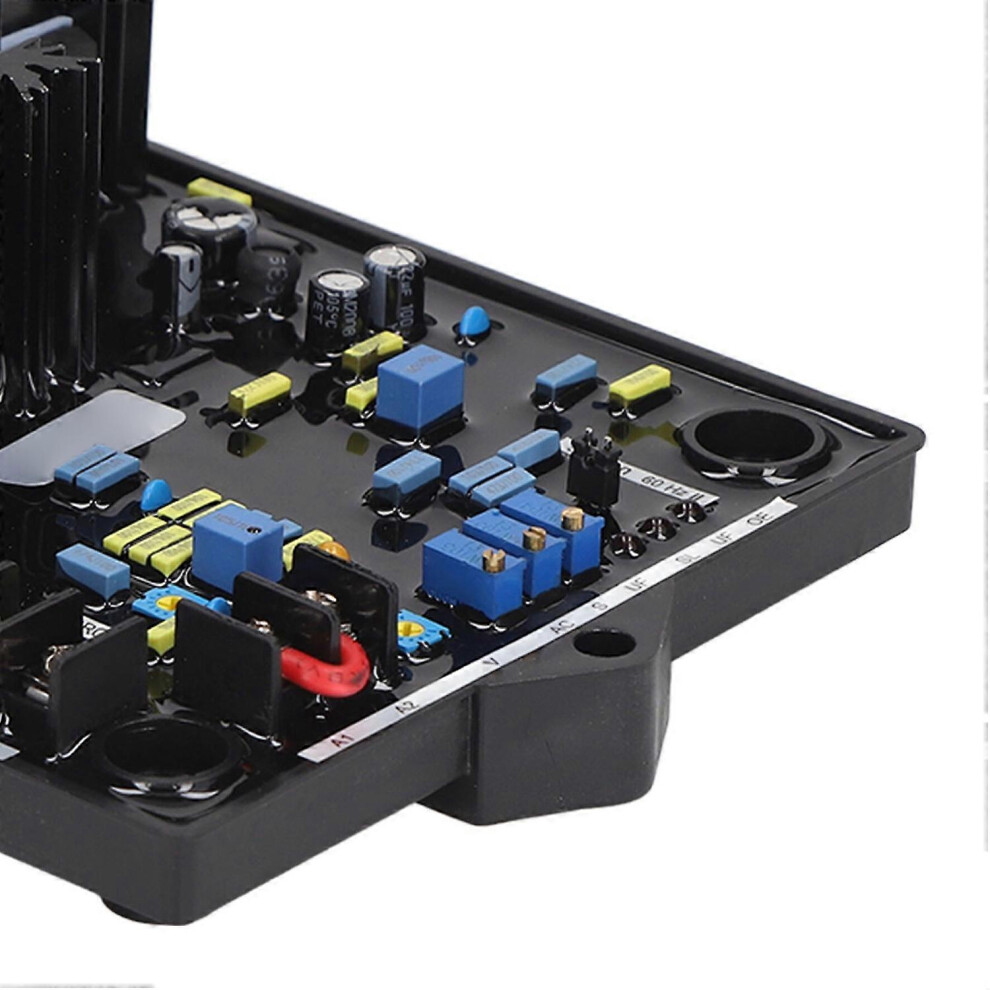

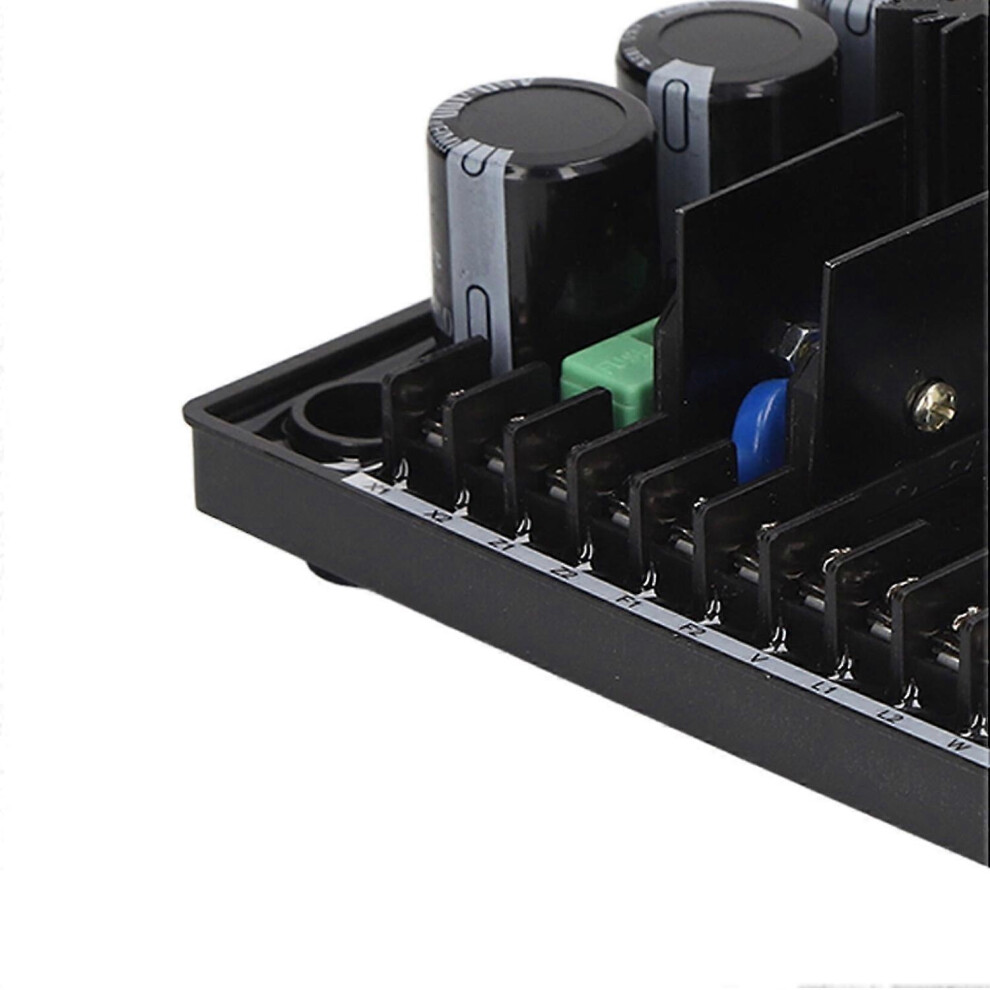

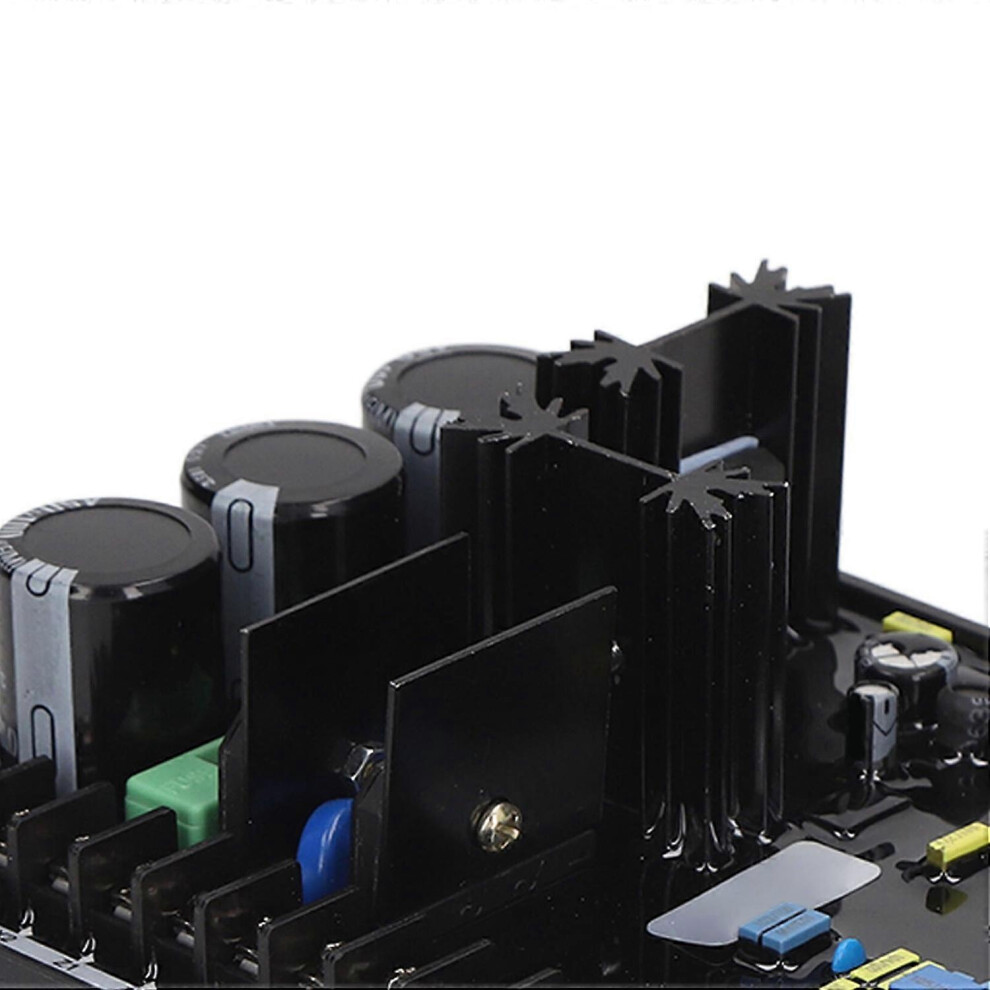

(As show, One size) Automatic Voltage Regulator Module Generator Set Alternator AVR Voltage Stabilizer 250V Fuse

(As show, One size) Automatic Voltage Regulator Module Generator Set Alternator AVR Voltage Stabilizer 250V Fuse Description

Feature: 1. MULTI FUNCTIONS: Generator automatic voltage regulator, with EMI suppression circuit, low frequency protection and voltage retarding function. 2. POTENTIOMETER: 1kOhm remote potentiometer for 10% adjustment, set the alternator output voltage stability, turn clockwise to increase speed. 3. VOLTAGE RANGE: The high voltage range is 300V to 530V, and the low voltage range is 180V to 310V, which can meet the needs of more scenarios. 4. SAFE OPERATION: The voltage regulator shell is made of flame retardant materials to ensure safe and reliable operation, prolong the service life. 5. EASY CONNECTION: With fine workmanship, the generator auto voltage regulator has reasonable structure, which is convenient for connection and use. Specification: Item Type: Automatic Voltage Regulator Induction Input: 3PH/2PH 220V 230V 240V 380V 400V 415V for 50Hz 3PH/2PH 208V 240V 277V 380V 416V 480V for 60Hz High Voltage Range: 300V to 530V Low Voltage Range: 180V to 310V U Phase Droop 1 and 5A AC Drop Range: 0.8PF 6 PMG input power drops by 8% PMG Input Power: Continuous: 240V RMS+10%, Instantaneous 5 Seconds: 240V RMS+30 up to 240Hz AREP Input Power: Continuous: 250V Peak+10%, Instantaneous 10 Seconds: 350V peak+5%, up to 75Hz Excitation Current: 6A DC, continuous 9A for 5s (short circuit operation) AVR sensing terminal adjustment 1% Maximum Excitation Limit: 6A DC (factory setting) Maximum Excitation Limit: 30 seconds (factory setting) delay Underfrequency Protection: 48.5Hz/58.5Hz for 50Hz/60Hz operation Slope: 1.2X (120%) VHz Remote Potentiometer: 1kOhm for 10% adjustment Accessory Input: 4.5 VDC for 15% Sense loss Sense is turned on for 5 seconds and then turned off Temperature Range: -25-70 Storage Temperature Range: -40-80 Thermal Drift: 0.5% for 20 change Fuse: 9A AC 250V slow action. Package List: 1 x Voltage Regulator 1 x User Manual Note: Be sure to read the user manual before use.
