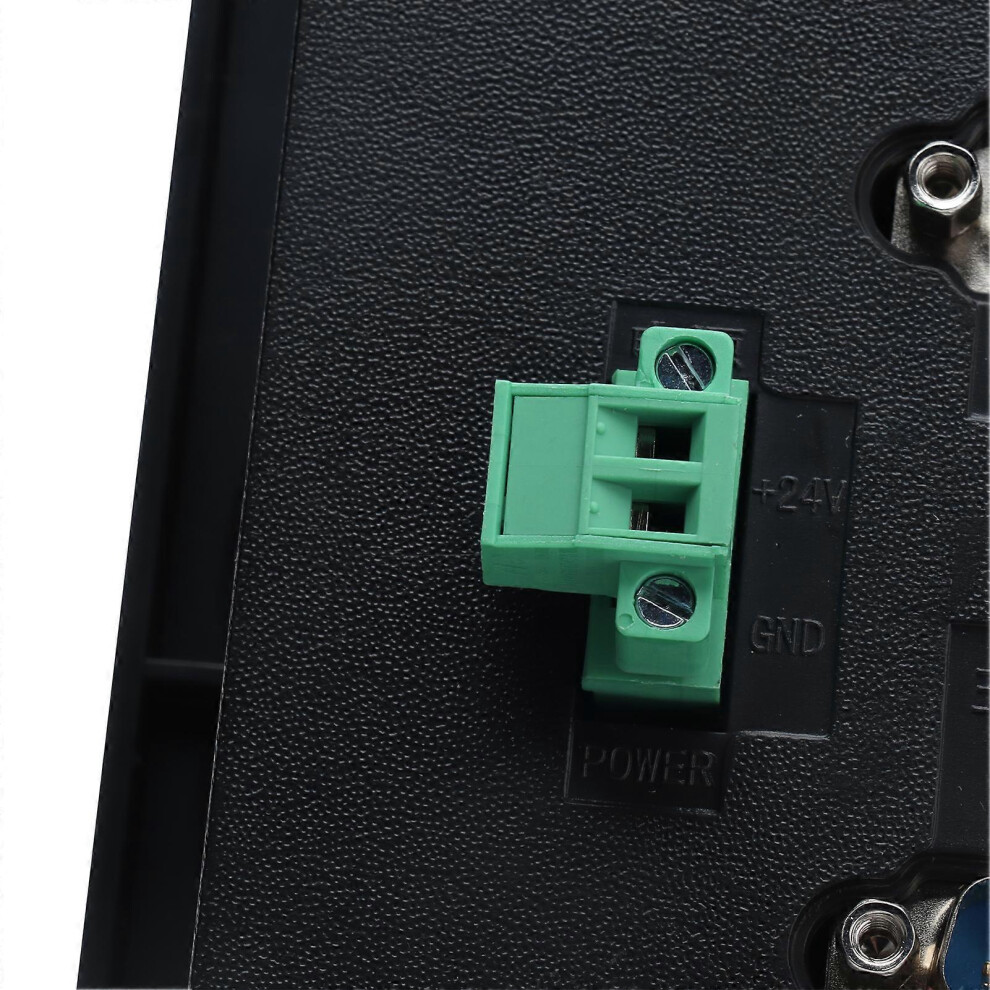

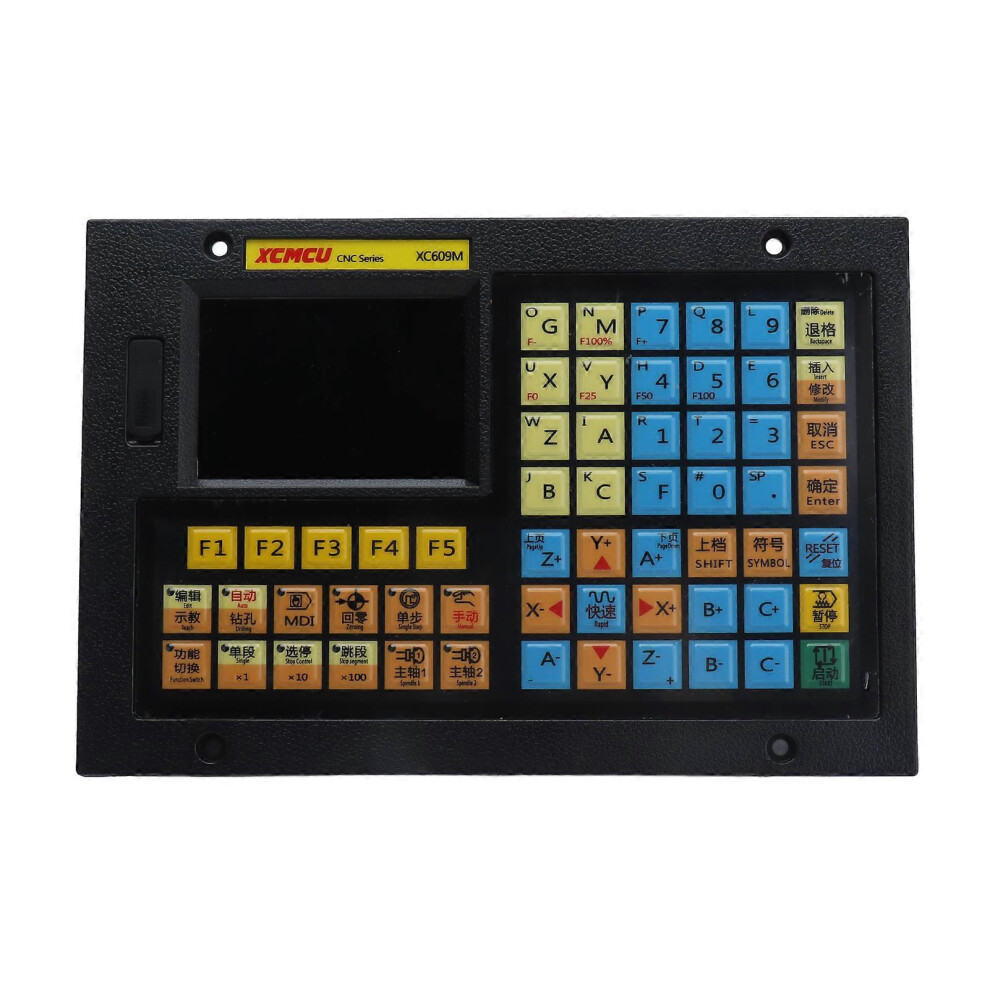

(As show, One size) CNC Motion Controller 3.5in LCD Display Linkage Milling Drilling Machine Control System DC 24V5 Axes

(As show, One size) CNC Motion Controller 3.5in LCD Display Linkage Milling Drilling Machine Control System DC 24V5 Axes Description

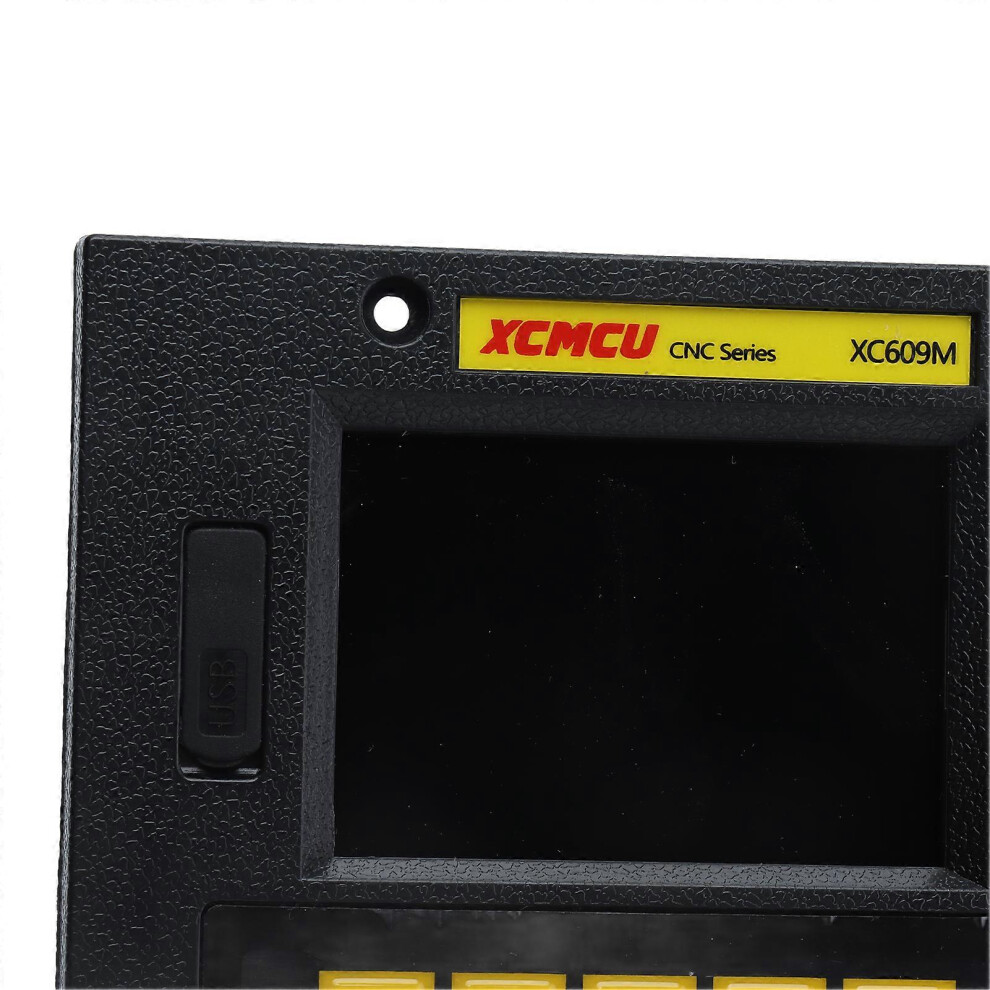

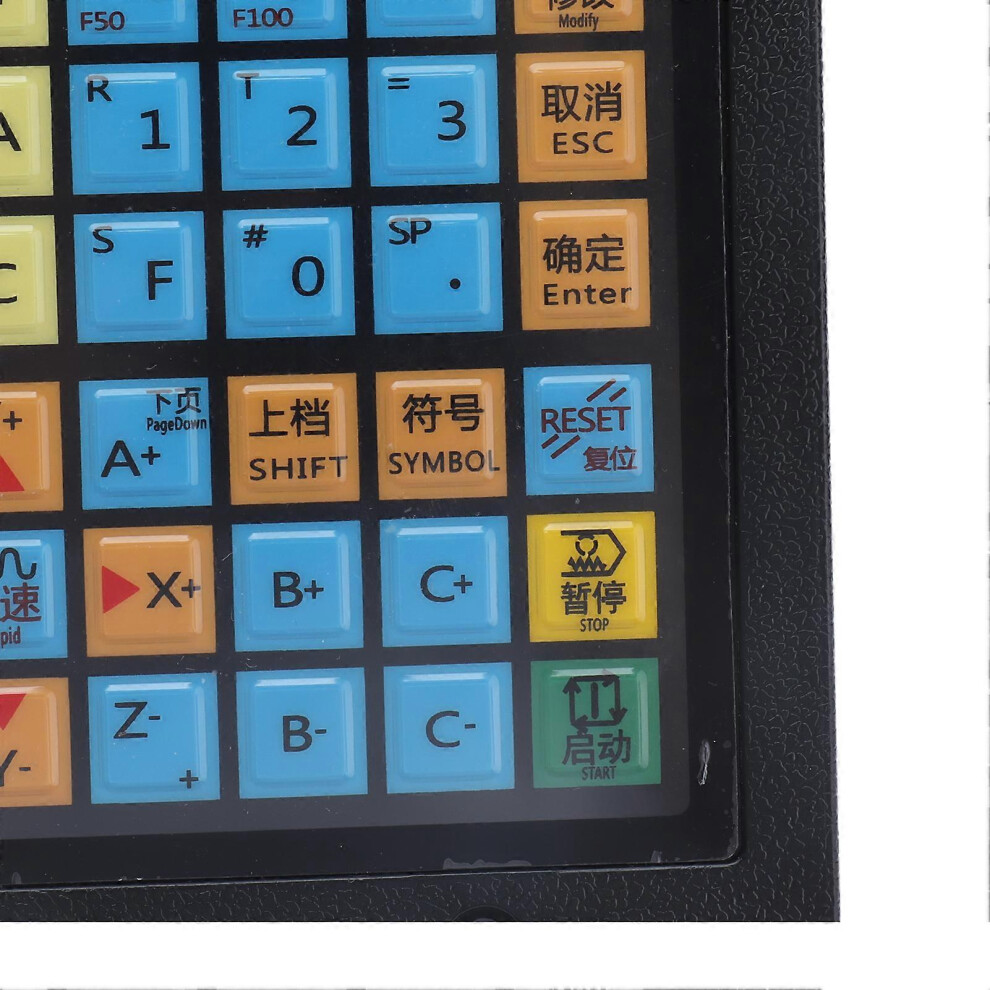

Feature:1. Display Interface: The CNC controller provides display interface for parameter classification, alarm log, system diagnosis, etc., which is convenient for debugging and maintenance.2. Multiple Commands: Up to 40 kinds of G commands, dual spindle analog output, support drilling cycle, tapping cycle, with strong practicability.3. Other Functions: Support multiple level operation authority, convenient equipment management, and have a time limited system lock function.4. Functional Parts: 3.5in TFT LCD display with resolution of 480 x 320, 5pcs MDI software keys and U disk interface, easy to operate.5. Wide Applications: Commonly used in CNC drilling machines, milling machines, automation equipment, automatic welding robots, coordinate robots, etc.Specification:Item Type: CNC Motion ControllerProduct Material: ABSLinkage Axes Number: Full linkageAnalog Spindle: 2Spindle Monitoring: YesSmall Command Unit: 0.001 mmLarge Command Value: 99999999 x small command unitRapid Feed Rate: 12000mm/minRapid Feedrate Override: F0, 25%, 50%, 100Cutting Feed Rate: 12000mm/minFeed Rate Override: 0-150%Electronic Gear Ratio: 1-65535:1-65535Automatic Acceleration and Deceleration: YesPositioning: G00 (Possible linear interpolation positioning)Interpolation: Linear (G01), arc (G02/G03/G12), spiral interpolationReturn to Reference Point: Return to reference point automatically (G28)LCD: 3.5in TFT LCD screen, resolution 480x320MDI Software Keys: 5Single Step Feed: x1, x10, x100Communication Interface: U disk interfaceExternal Handwheel Interface: YesI/O Interface: 24/24 (expandable to 96/96)Pause (Seconds): YesExact Stop Status: YesExact Stop: YesStore Itinerary Check: YesMDI Operation: Yes, support multiple stage operationReset: YesJump Switch: YesSingle Stage Operation: YesProgram Protection Switch: YesSelf Diagnosis Function: YesEmergency Stop: YesPower Supply: DC 24VCoordinate System: Machine coordinate system (G53), workpiece coordinate system (G92, G54-G59), local coordinate system (G52), coordinate system plane designationAutomatic Coordinate System Setting: YesDecimal Point Input: YesAuxiliary Functions: M2 digits, M code customization, manual, MDI, automatic control of the spindle forward, reverse, and stop; control the start and stop of the coolant; control the start and stop of the lubrication, etc.Spindle Function: Double spindleTapping: SupportSpindle Analog Output: Yes, dual spindleTool Function: Support centering tool setting, 3 point centering tool settingTool Compensation Memory: -9999.999-9999.999, 99Tool Compensation: Length compensation of each axesEditing Functions: Parameter, diagnosis, bit by bit input, program editing, MDI multiple segment executionStorage Capacity: 128MNumber Of Stored Programs: NProgram Name Display: Chinese, English, number, combinationProgram Line Search: YesSkip Optional Program Segment: YesProgram Switch: YesDisplay: Chinese, EnglishProcessing Time, Number of Parts Display: YesSpindle Speed, M/S Command: YesUsage Scenarios: Good choice of CNC drilling machines, CNC milling machines, special machine tools, automation equipment, automatic welding robots, feeding robots, coordinate robots, etc..Package List:1 x CNC Motion ControllerNote:Multiple channel operation can realize 3 programs at the same time or completely independent operation at any time period. It is generally used for 2 axes control feeding, 2 axes machining, and 2 axes unloading. Any channel can call any axes for use at any time, as long as the other channel does not use this axes at this time.
