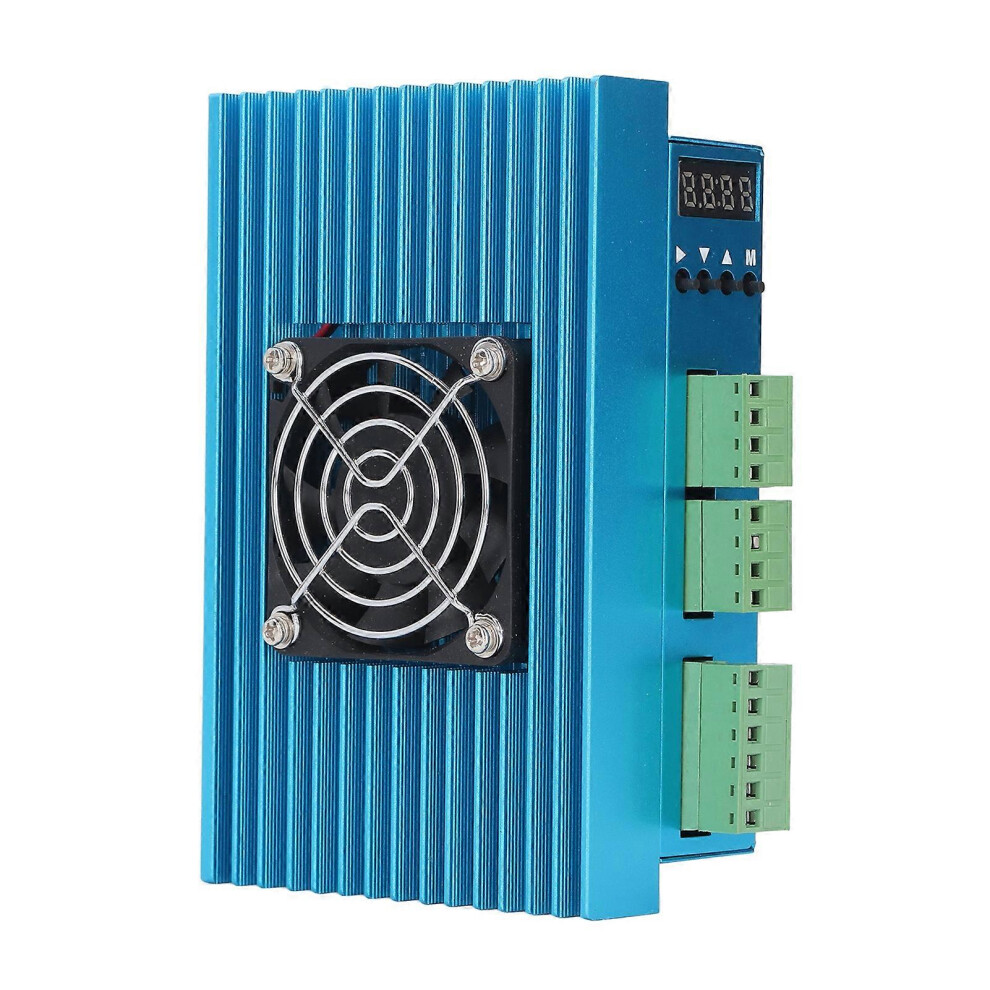

(As show, One size) Stepper Motor Driver Digital Controller 1880VAC 24110VDC 4 Dials 300 KHz Pulse Response

(As show, One size) Stepper Motor Driver Digital Controller 1880VAC 24110VDC 4 Dials 300 KHz Pulse Response Description

Feature:1. VOLTAGE AND MOTOR: Drive power supply voltage up to 80VAC or 110VDC, AC or DC universal. Suitable for driving all of these 4, 6, 8 wire 2 phase and 4 phase stepper motors2. LOW NOISE AND HIGH EFFICIENCY: The stepper motor driver features self tuning and new 32 bit servo micro step DSP technology to operate with ultra low vibration noise3. ACCURATE CONTROL: Stepper motor driver adopts average current mode control and two phase sinusoidal output current control technology. Automatic reduction of idle current, idle current automatically stop, accurate current control makes the motor heat less4. TECHNICAL PARAMETERS: Stepper motor driver supports TTL compatibility and optical isolation inputs with pulse response frequencies up to 300KHz5. RESOLUTION AND PROTECTION: The motor driver has 4 dip switches, a total of 16 subdivided decimal and binary, 16 optional resolutions, up to 51,200 steps per revolution. Support short circuit, overvoltage, and overcurrent protectionSpecification:Item Type: Stepper Motor DriverModel: DMA860HParameterMinimumTypical valueMaximumUnitOutput current2.6-7.2A(5.2A RMS)ASupply voltage2480~100110VDC1860~7580VACLogic signal current71016mAPulse input frequency0-300KHzIsolating resistance500--M.Package List:1 x Stepper Motor Driver
