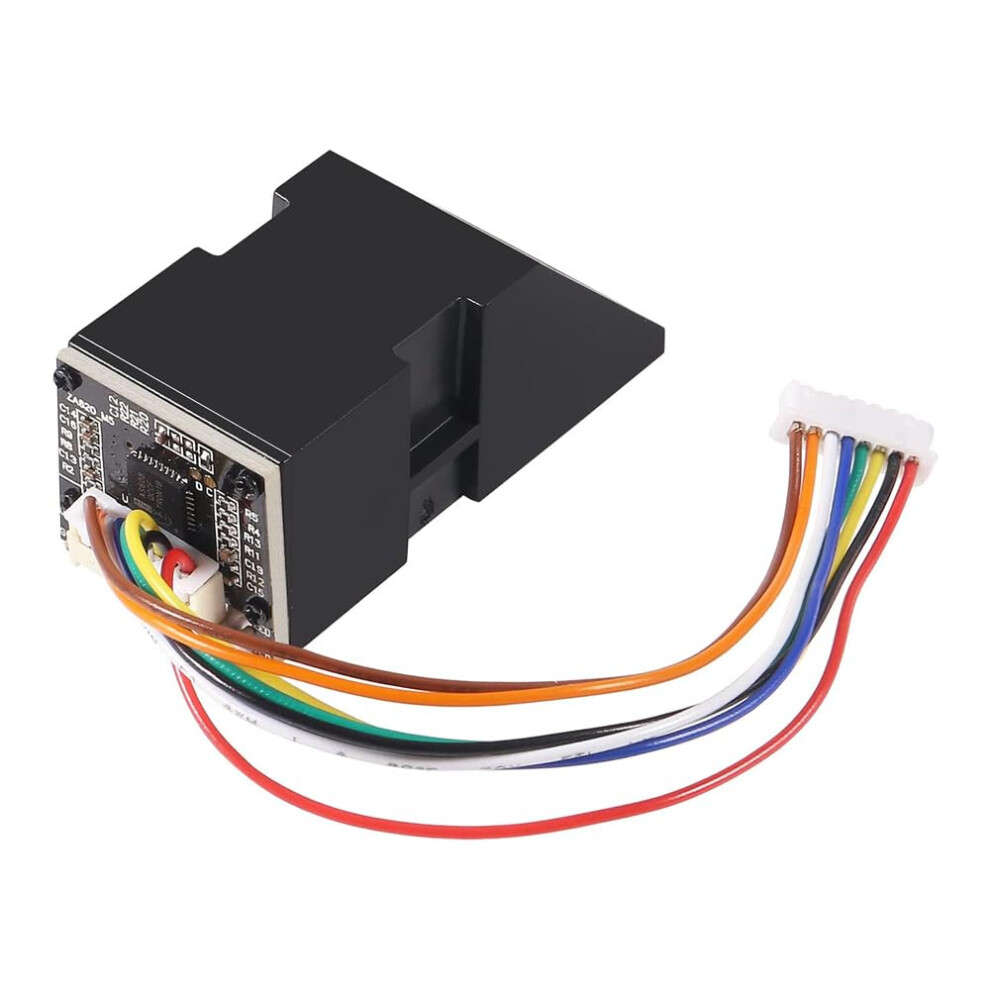

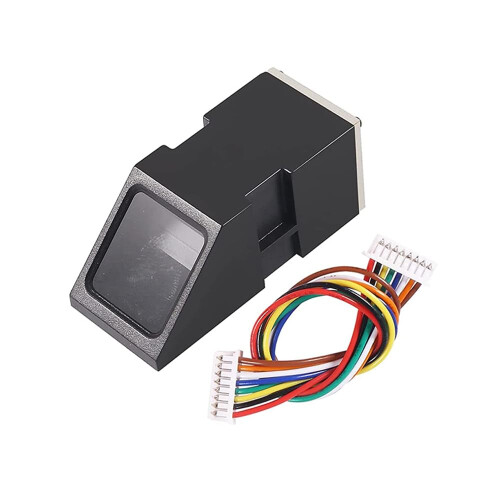

AS608 Optical Fingerprint Sensor Module for Arduino and Door Lock, Fast Recognition, Secure Access Control

AS608 Optical Fingerprint Sensor Module for Arduino and Door Lock, Fast Recognition, Secure Access Control Description

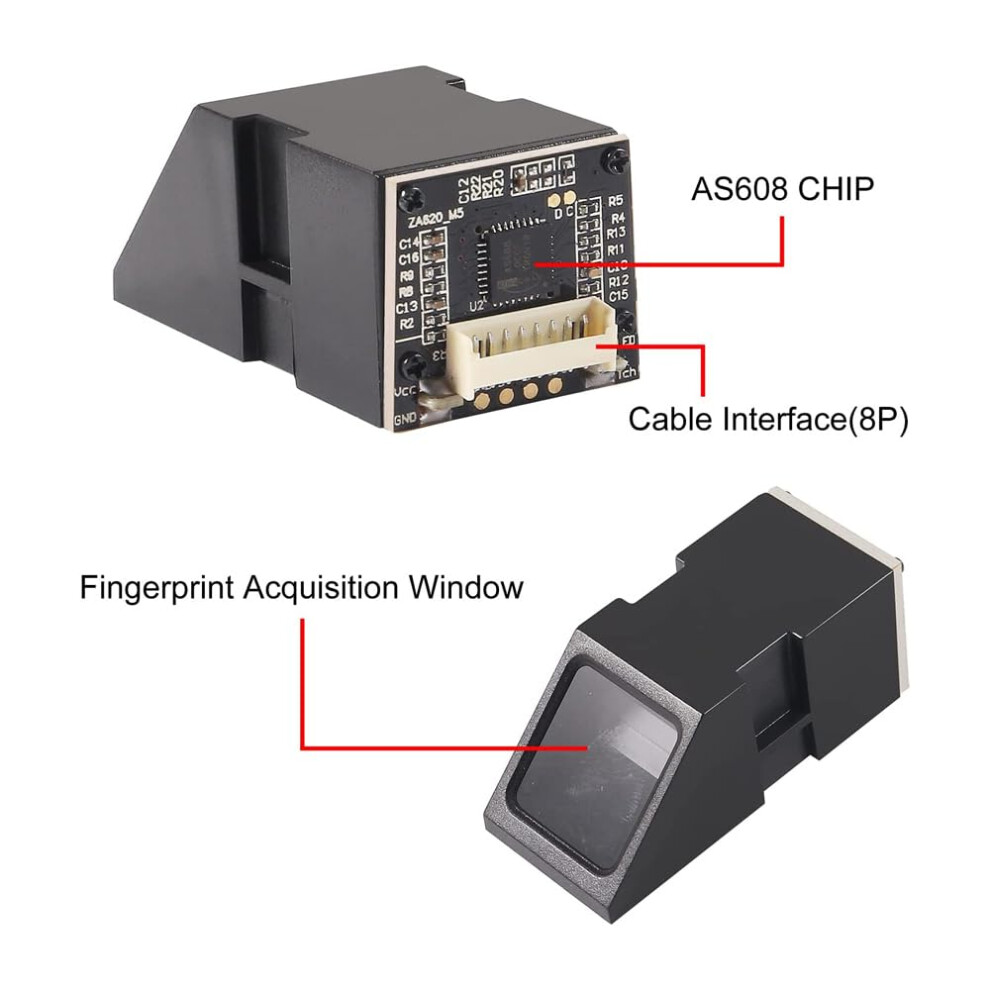

Model Number: AS608 Optical Fingerprint Reader Sensor The AS608 sensor is a compact, ‑performance optical fingerprint module designed for straightforward integration into existing devices. It captures clear fingerprint images and delivers reliable authentication for a range of applications. **Key Benefits** **Accurate recognition** - Optical imaging provides consistent capture of fingerprint details, reducing false rejects. **Fast processing** - Built‑in algorithm returns verification results within a fraction of a second. **Small footprint** - Dimensions of 25 mm 20 mm 5 mm allow installation in tight spaces. **Low power consumption** - Operates efficiently, suitable for battery‑powered systems. **Easy compatibility check** - Verify the sensor's connector type and pinout against the original unit before. **Core Specifications** Technology: Optical imaging Resolution: 500 dpi Image size: 96 96 pixels Operating voltage: 3.3 V to 5 V Current draw: 10 mA typical during capture Output interface: UART (9600 bps default) Material: Plastic housing with glass imaging window Temperature range: 20 C to 70 C **Typical Use Scenarios** 1. **Access control panels** - a failing fingerprint module in a door lock or attendance terminal to restore secure user verification. 2. **Embedded security devices** - Integrate the sensor into portable equipment such as handheld scanners or point‑of‑ terminals that require user authentication. 3. **IoT gateway authentication** - Add an extra layer of protection to smart home hubs or industrial gateways by linking the sensor to the device's firmware for biometric login. **Installation Tips** Confirm the connector type matches the original sensor; the AS608 uses a standard 4‑pin JST connector. Align the sensor's glass window flush with the device's housing to avoid image distortion. Update the host firmware to support the sensor's UART communication settings. **Why Choose This Sensor** The AS608 offers a proven optical solution that balances size, speed, and power use. Its straightforward UART interface simplifies driver development, making it a reliable replacement or upgrade for existing systems that rely on fingerprint authentication.
