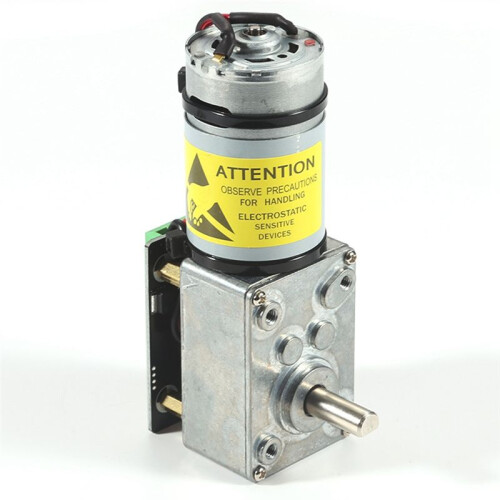

ASME- Servo Magnetic Coding RS485-BUS Worm Self-Locking Servo 360 Degree High Torque Servo for Large Robot Manipulator

ASME- Servo Magnetic Coding RS485-BUS Worm Self-Locking Servo 360 Degree High Torque Servo for Large Robot Manipulator Description

Suitable for servo controller, wireless remote control of model aircraft and analog voltage control
Alloy gear high power motor high torque output
Aluminum alloy reduction box ultra-light weight
Easy to install, strong and durable
Application range: robots, robotic arms, manipulators, pan/tilt control, valve control, production robots, camera pan/tilt control, etc.

Rated voltage: 7V-24V/ (7V/MIN-30V/MAX, limit voltage)
No-load current: Less than 500mA (current limit: 1A, it is recommended to use a switching power supply or battery greater than 5A)
Limit angle: 180 or 0-360 (MAX) The servo has electronic limit adjustment
Control mode: RC mode: 5VTTL customizable protocol RS485 bus mode
1ms pulse mode: 1ms-2ms (pulse width)/50Hz-333Hz (frequency) customizable
Analog voltage mode: 0V-5V input voltage (0V corresponds to 0, 5V corresponds to 360)
Control resolution: 360 corresponds to 12Bit resolution (4096), ARM32-bit MCU, real digital port reads magnetic encoding data
Mechanical life: Greater than 1,000,000 times/full load (conservative value)
Colour:As Shown
Material:alloy steel+Aluminum alloy

Package Contents:
1x Servo
1x Cable
