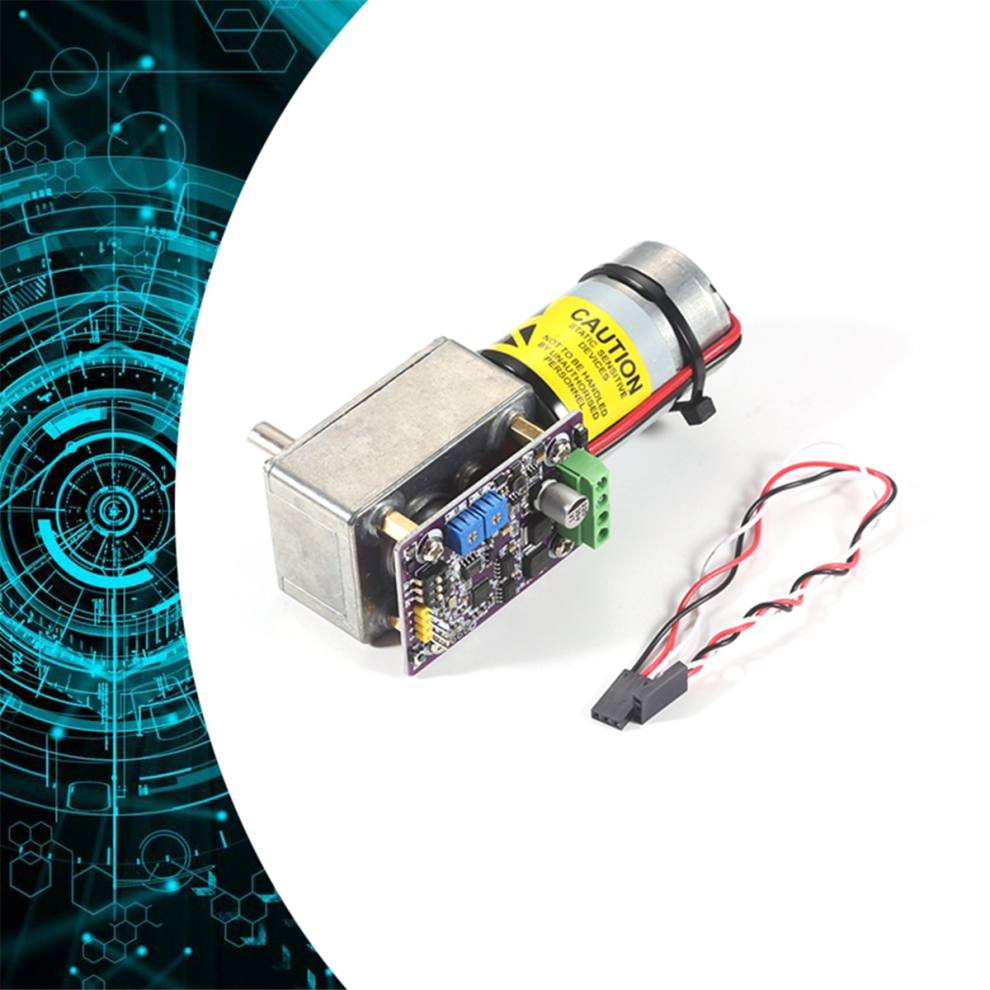

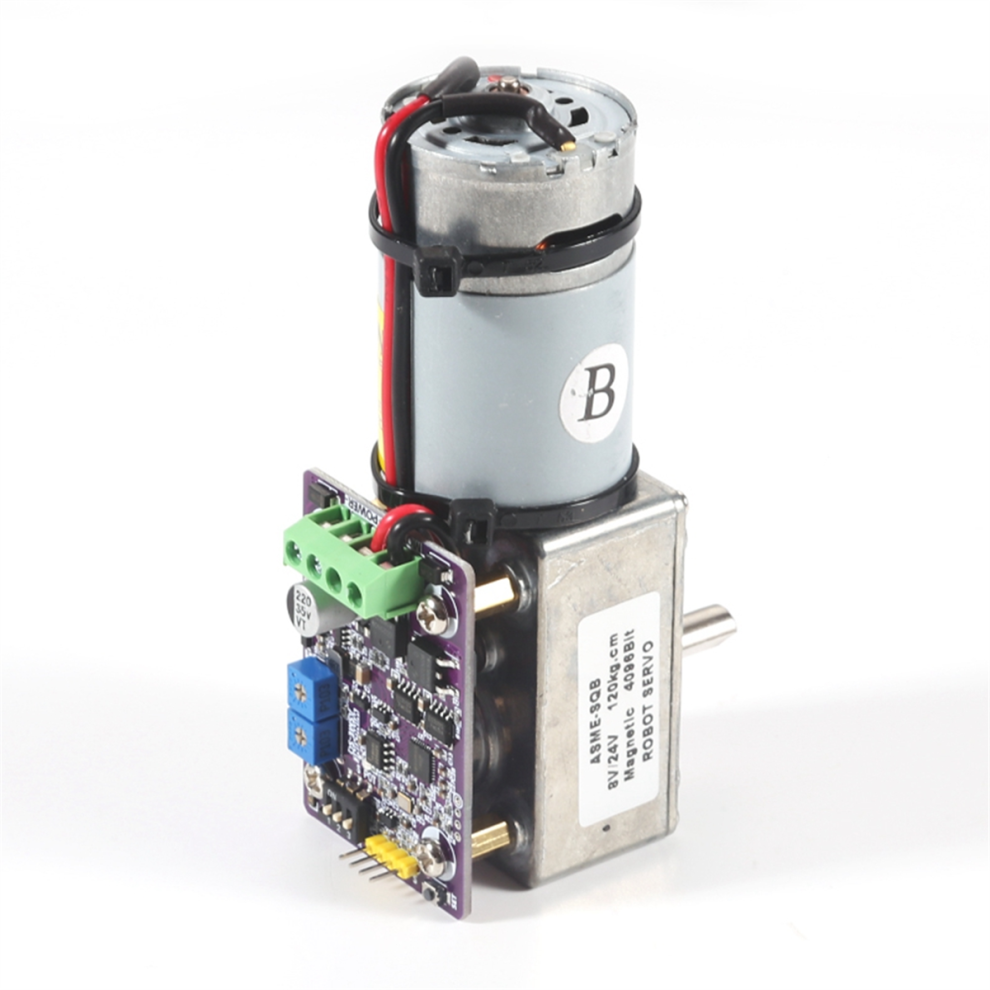

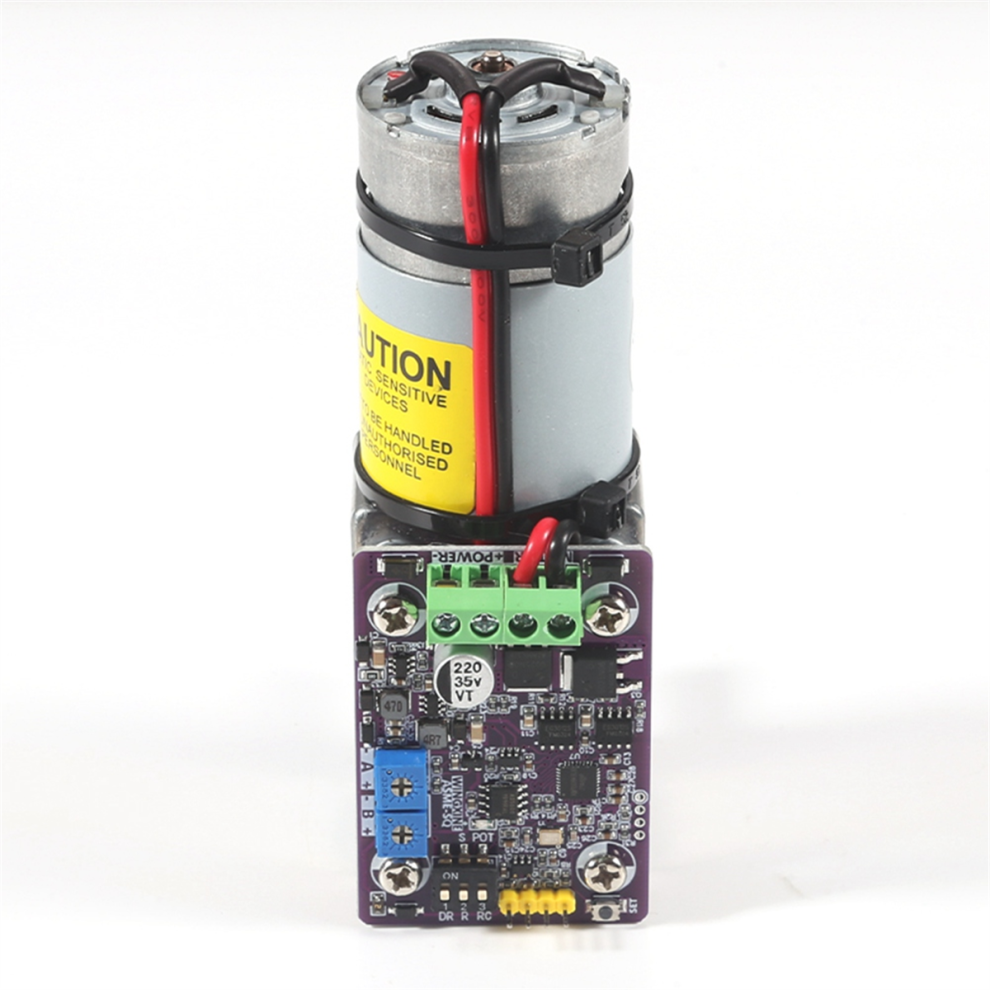

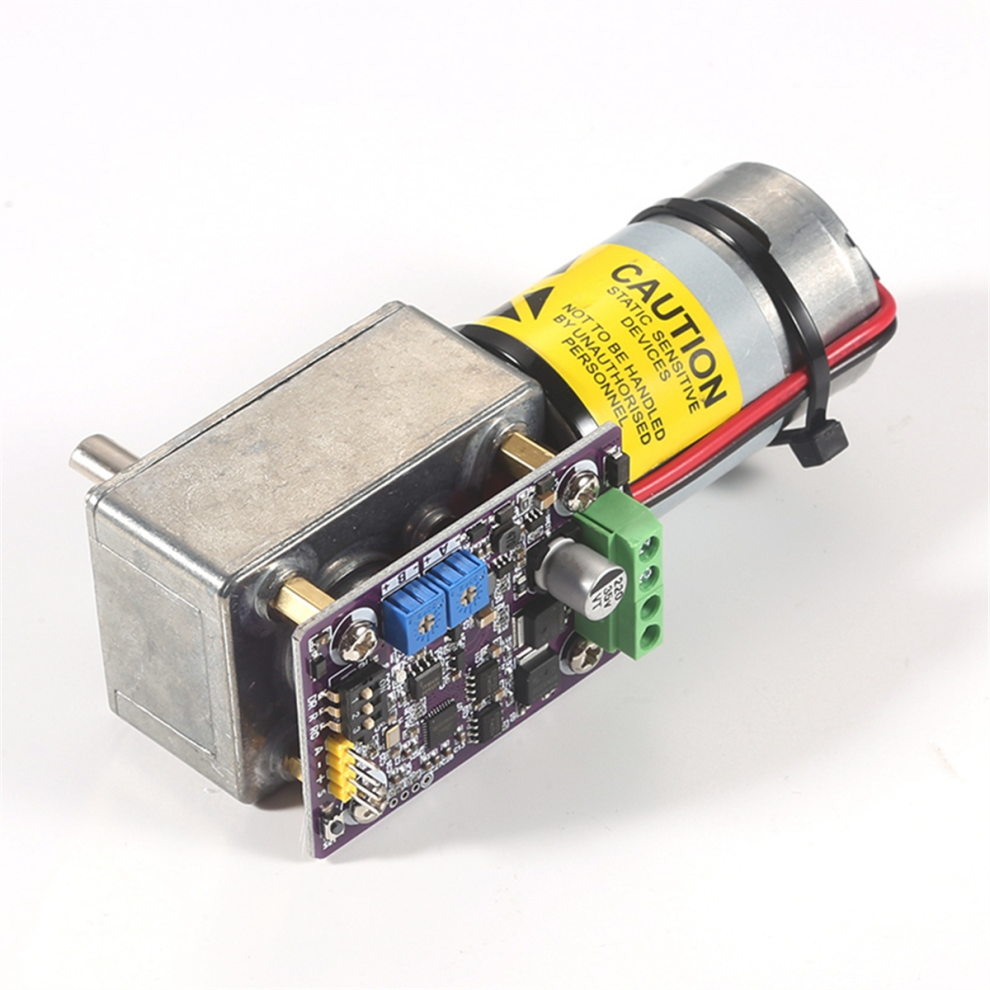

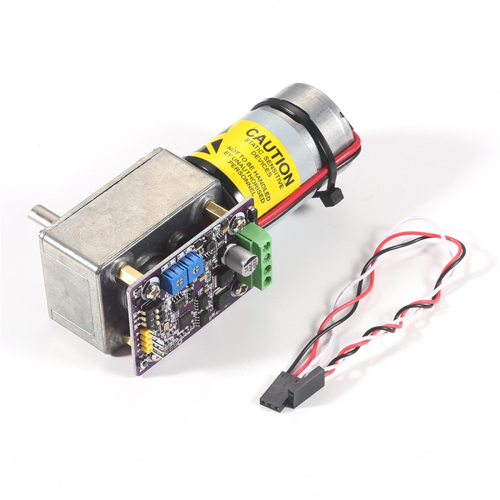

ASME-SQ Servo Magnetic Encoder 70KG Worm Gear Reducer Motor Integrated Machine for Large Robots Manipulator

ASME-SQ Servo Magnetic Encoder 70KG Worm Gear Reducer Motor Integrated Machine for Large Robots Manipulator Description

Suitable for servo controller, wireless remote control of model aircraft and analog voltage control
Alloy gear high power motor high torque output
Aluminum alloy reduction box ultra-light weight
Easy to install, strong and durable
Application range: robots, robotic arms, manipulators, pan/tilt control, valve control, production line robots, camera pan/tilt control, etc.

Rated voltage: 7V-24V/DC (7V/MIN-30V/MAX, limit voltage)
No-load current: Less than 500mA (current limit: 1A, it is recommended to use a switching power supply or battery greater than 5A)
Limit angle: 180 or 0-360 (MAX) The servo has electronic limit adjustment
Control resolution: 360 corresponds to 12Bit resolution (4096), ARM32-bit MCU, real digital port reads magnetic encoding data
Mechanical life: Greater than 1,000,000 times/full load (conservative value)
Colour:As Shown
Material:alloy steel+Aluminum alloy
Weight:70KG

Package Contents:
1x Servo
1x Cable

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
