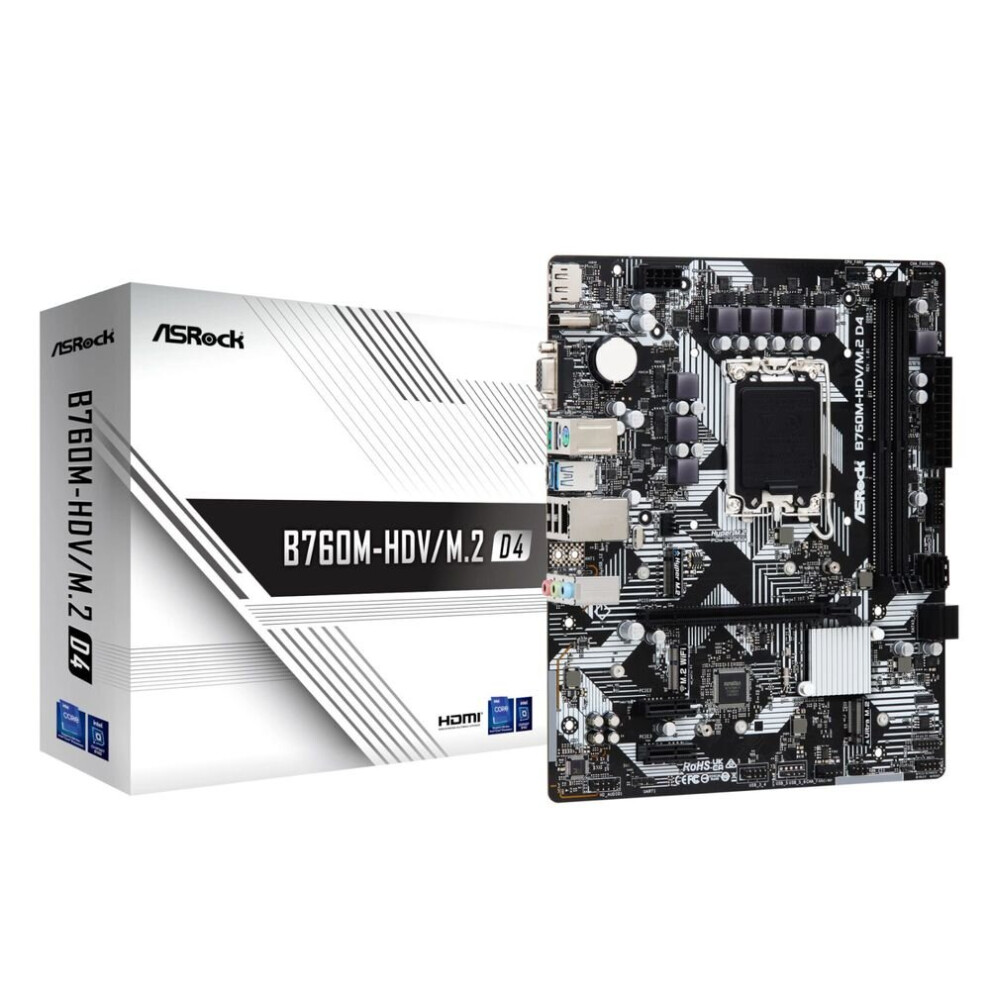

ASRock Mainboard B760M-HDV/M.2 D4 - Micro ATX - Socket Intel 1700 - Intel B760
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 126,000 Trustpilot reviews and an 'Excellent' rating
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Tue 23rd - Mon 29th Jun
Returns: 30 days
180-day payment protection
Most Popular in Motherboards
ASRock Mainboard B760M-HDV/M.2 D4 - Micro ATX - Socket Intel 1700 - Intel B760 Description
ASRock Mainboard B760M-HDV/M.2 D4 - Micro ATX - Socket Intel 1700 - Intel B760
Details
| OPC | PBBFBD8 |
|---|---|
| Brand | |
| Codes | 4710483942020 (EAN) |
| Links | ASRock Motherboards |
Disclaimer: The information below is provided by various external sources and should be used as a guide only.
5+1+1 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.
High Speed M.2 Solution(PCIe Gen4 x4)
Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.
3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.
Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
Alternative names:
- Asrock B760M-HDV/M.2 D4 Intel B760 LGA 1700 micro ATX
Detailed Product Information
Features
| Certification | - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) |
|---|---|
| Motherboard chipset | Intel B760 |
| Motherboard form factor | micro ATX |
| Audio output channels | 7.1 channels |
| Windows operating systems supported | Windows 10 Education x64, Windows 11 x64 |
| Motherboard chipset family | Intel |
| Component for | PC |
| Audio chip | Realtek ALC897 |
Processor
| Processor manufacturer | Intel |
|---|---|
| Maximum number of SMP processors | 1 |
| Compatible processor series | Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
| Processor socket | LGA 1700 |
BIOS
| BIOS memory size | 128 Mbit |
|---|---|
| BIOS type | UEFI AMI |
Rear panel I/O ports
| PS/2 ports quantity | 1 |
|---|---|
| Line-in | Yes |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
Network
| Ethernet LAN | Yes |
|---|---|
| LAN controller | Realtek RTL8111H |
| Wi-Fi | No |
| Ethernet interface type | Gigabit Ethernet |
Memory
| Maximum internal memory | 64 GB |
|---|---|
| Non-ECC | Yes |
| Supported memory clock speeds | 3200,4400,5333 MHz |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Unbuffered memory | Yes |
| Memory slots type | DIMM |
| Number of memory slots | 2 |
| ECC сompatibility | Non-ECC |
Storage controllers
| RAID levels | 0, 1, 5, 10 |
|---|---|
| RAID support | Yes |
| Supported storage drive interfaces | M.2, SATA III |
Weight & dimensions
| Width | 244 mm |
|---|---|
| Depth | 201 mm |
Packaging content
| Cables included | SATA |
|---|
Internal I/O
| USB 2.0 connectors | 3 |
|---|---|
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Chassis intrusion connector | Yes |
| TPM connector | Yes |
| EPS power connector (8-pin) | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| Front panel connector | Yes |
Graphics
| Parallel processing technology support | Not supported |
|---|---|
| HDCP | Yes |
Expansion slots
| PCI Express x1 (Gen 3.x) slots | 2 |
|---|---|
| Number of M.2 (M) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
