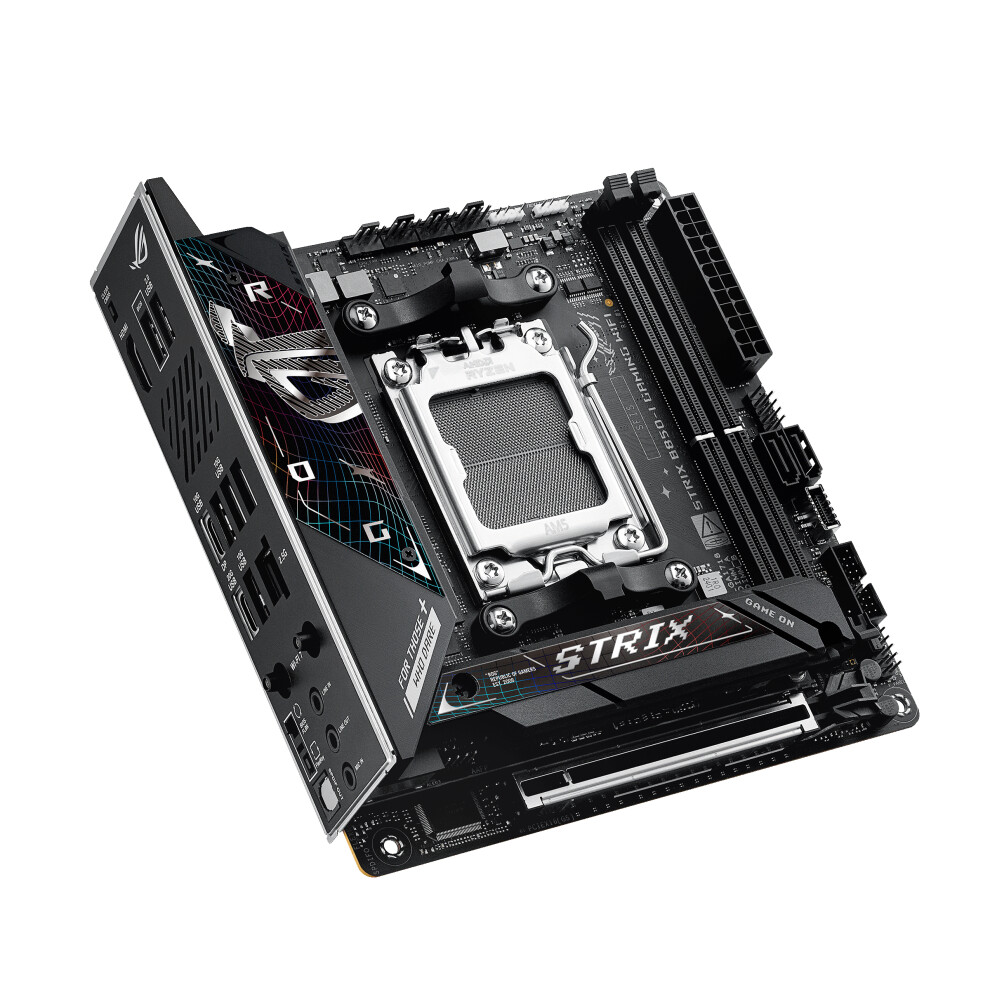

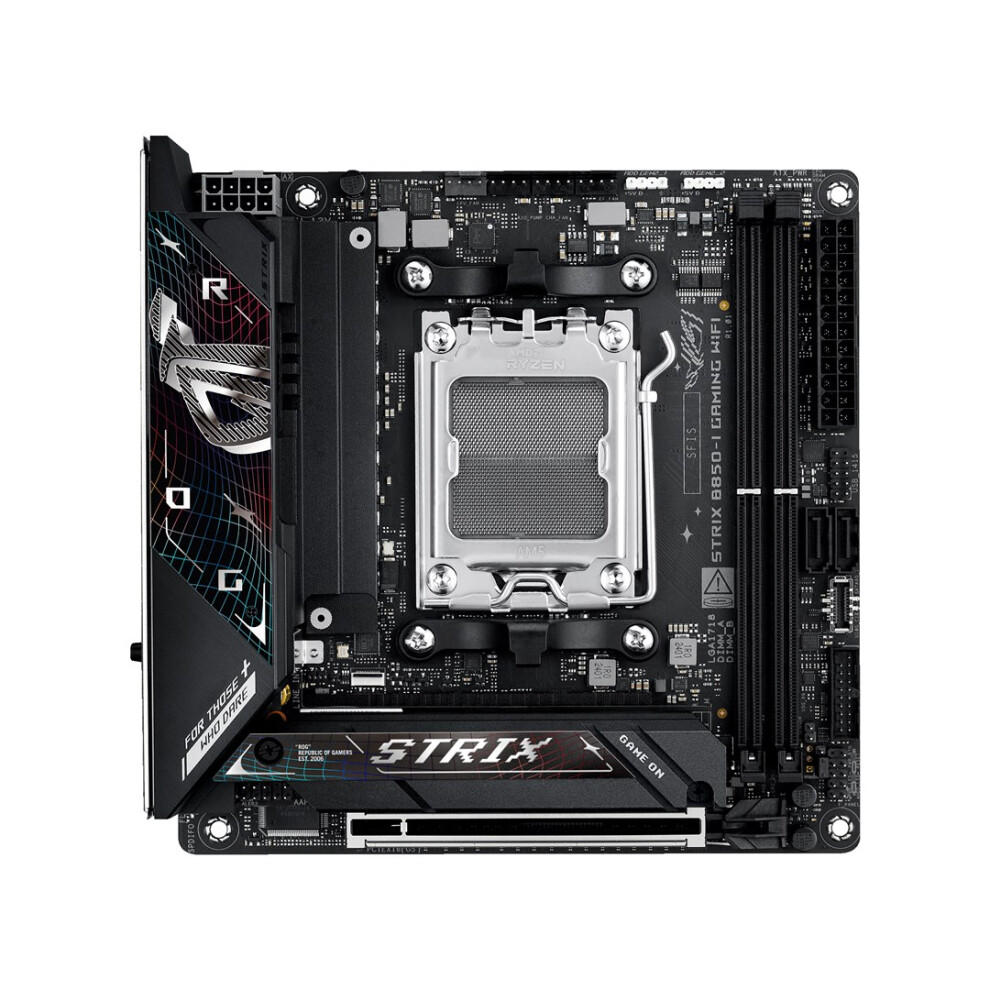

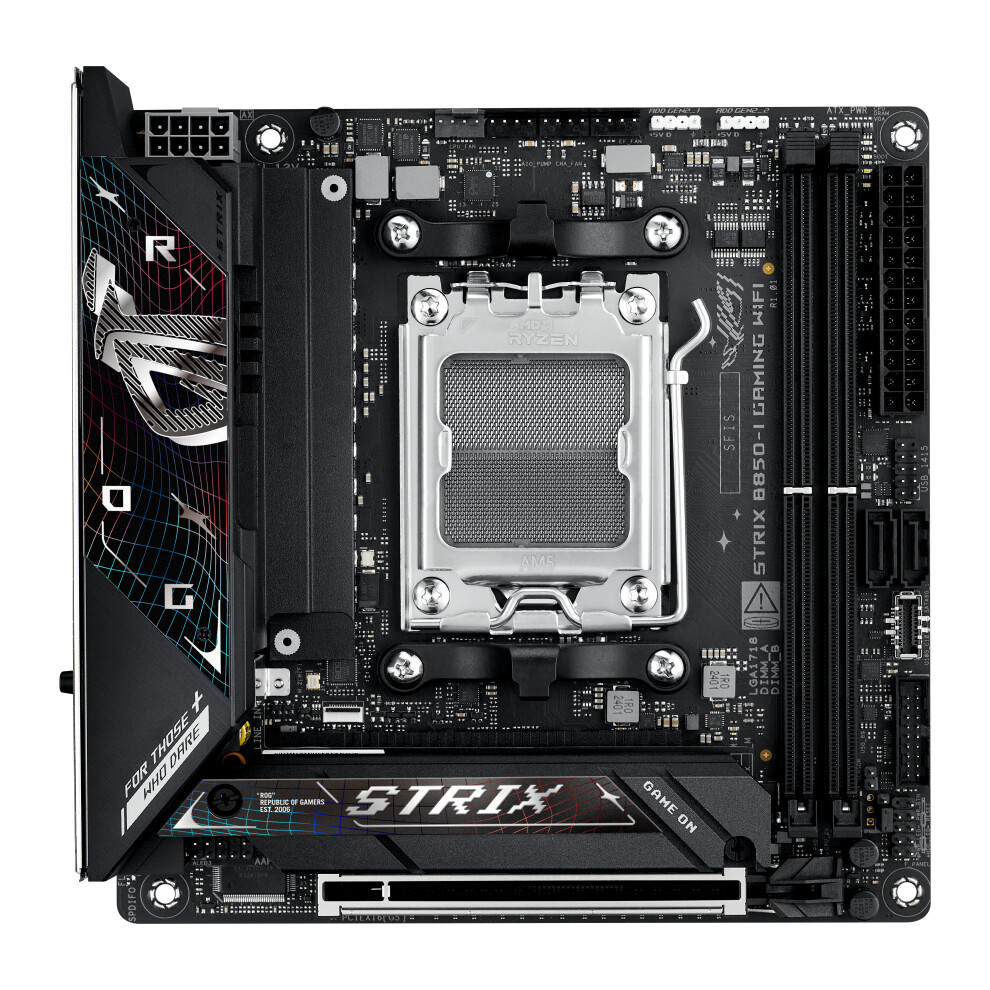

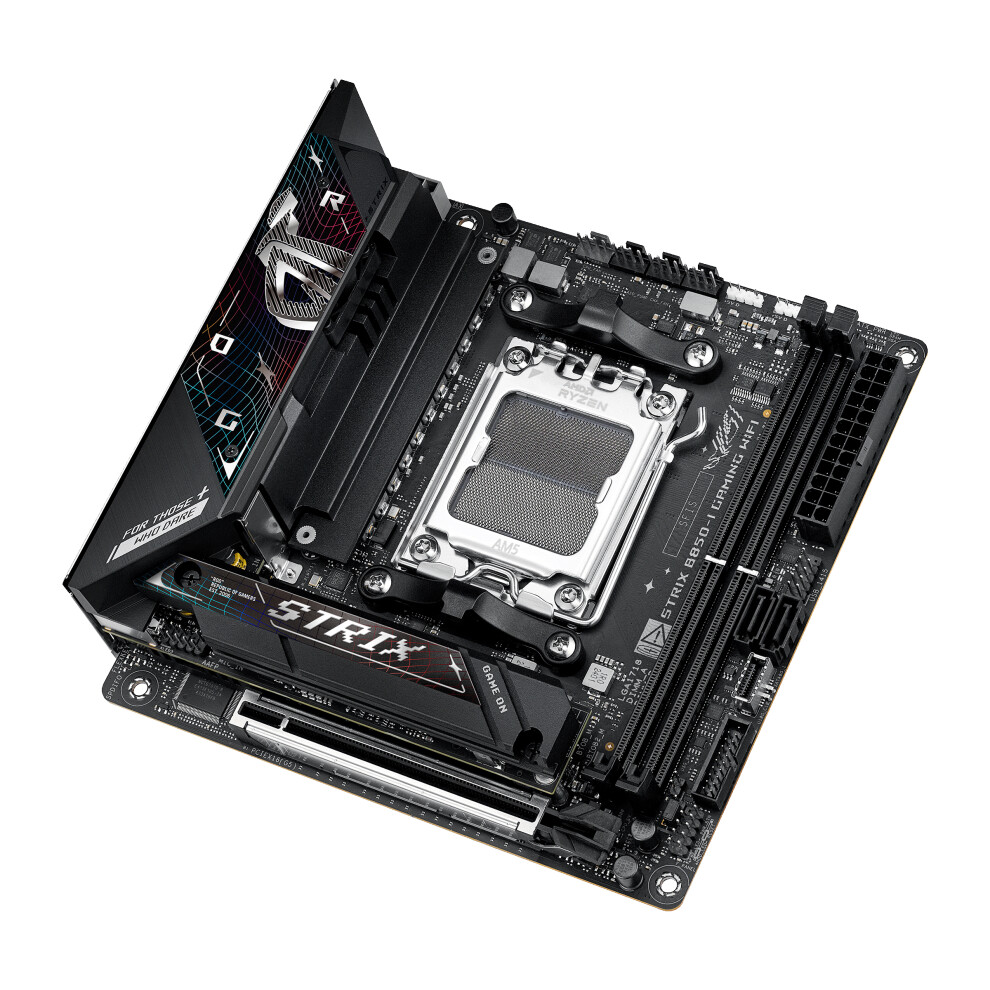

ASUS ROG STRIX B850-I GAMING WIFI AMD B850 Socket AM5 mini ITX
Hurry only 1 left
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 135,000 Trustpilot reviews and an 'Excellent' rating
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Fri 9th - Mon 12th Oct
Returns: 30 days
180-day payment protection
You might also like
Summary
- AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
- PC mini ITX AMD B850 Realtek ALC4080 7.1 channels
- DDR5-SDRAM 2 DIMM Maximum internal memory: 96 GB
- HDD & SSD M.2, SATA III Number of storage drives supported: 4
- BIOS type: UEFI AMI 256 Mbit Clear CMOS button
ASUS ROG STRIX B850-I GAMING WIFI AMD B850 Socket AM5 mini ITX Description
ASUS ROG STRIX B850-I GAMING WIFI AMD B850 Socket AM5 mini ITX
Details
| OPC | PFWYJKJ |
|---|---|
| Brand | |
| Codes | 4711387823620 (EAN) |
| Links | ASUS Motherboards |
Product Images
Detailed Product Information
| RAM Type | DDR5-SDRAM |
|---|---|
| Processor Socket | Socket AM5 |
| RAM Type | DDR5-SDRAM |
| Processor Socket | Socket AM5 |
| RAM Type | DDR5-SDRAM |
| Processor Socket | Socket AM5 |
Disclaimer: The information below is provided by various external sources and should be used as a guide only.
Detailed Product Information
Other features
| Weight | 1.06 kg |
|---|---|
| Quick installation guide | Yes |
Network
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
|---|---|
| Bluetooth version | 5.4 |
| Ethernet LAN | Yes |
| Bluetooth | Yes |
| Wi-Fi | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
Features
| Motherboard chipset | AMD B850 |
|---|---|
| Motherboard form factor | mini ITX |
| Product colour | Black |
| Audio output channels | 7.1 channels |
| Windows operating systems supported | Windows 11 |
| Power source type | ATX |
| Motherboard chipset family | AMD |
| Component for | PC |
| Audio chip | Realtek ALC4080 |
Packaging data
| Package weight | 1.06 kg |
|---|---|
| Package depth | 185 mm |
| Package height | 94 mm |
| Package width | 226 mm |
Processor
| Processor manufacturer | AMD |
|---|---|
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Processor socket | Socket AM5 |
| Supported processor sockets | Socket AM5 |
BIOS
| BIOS memory size | 256 Mbit |
|---|---|
| BIOS type | UEFI AMI |
| Clear CMOS button | Yes |
Rear panel I/O ports
| Line-in | Yes |
|---|---|
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| S/PDIF out port | Yes |
| Digital audio optical out | 1 |
| WiFi-AP antenna jack | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
Memory
| Maximum internal memory | 96 GB |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Unbuffered memory | Yes |
| Memory slots type | DIMM |
| Number of memory slots | 2 |
| Supported memory clock speed (max) | 8400 MHz |
| ECC сompatibility | ECC & Non-ECC |
Weight & dimensions
| Width | 170 mm |
|---|---|
| Depth | 170 mm |
Graphics
| Maximum resolution | 4096 x 2160 pixels |
|---|---|
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
Packaging content
| Cables included | SATA |
|---|---|
| Antenna included | Yes |
Internal I/O
| USB 2.0 connectors | 1 |
|---|---|
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of chassis fan connectors | 4 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 2 |
| Thunderbolt headers | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Front panel connector | Yes |
| RGB LED pin header | Yes |
| Number of RGB LED pin headers | 2 |
| Number of CPU fan connectors | 1 |
| Number of water pump connectors | 1 |
| Number of EPS power connectors (8-pin) | 1 |
| Number of temperature sensor headers | 1 |
Storage controllers
| Number of HDDs supported | 2 |
|---|---|
| Number of storage drives supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
Expansion slots
| Number of M.2 (M) slots | 2 |
|---|---|
| PCI Express x16 (Gen 5.x) slots | 1 |
| 1st M.2 largest key size | 2280 |
| 2nd M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 highest PCI Express generation | 5.0 |
