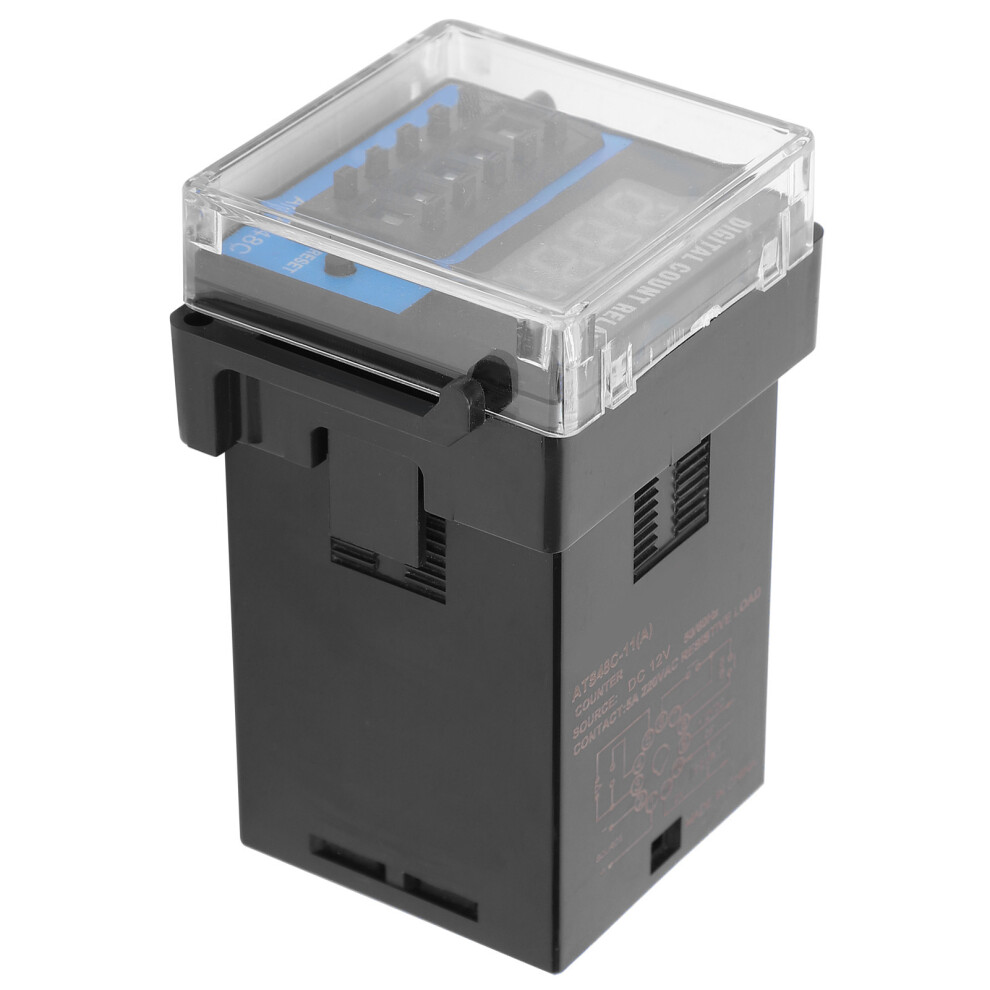

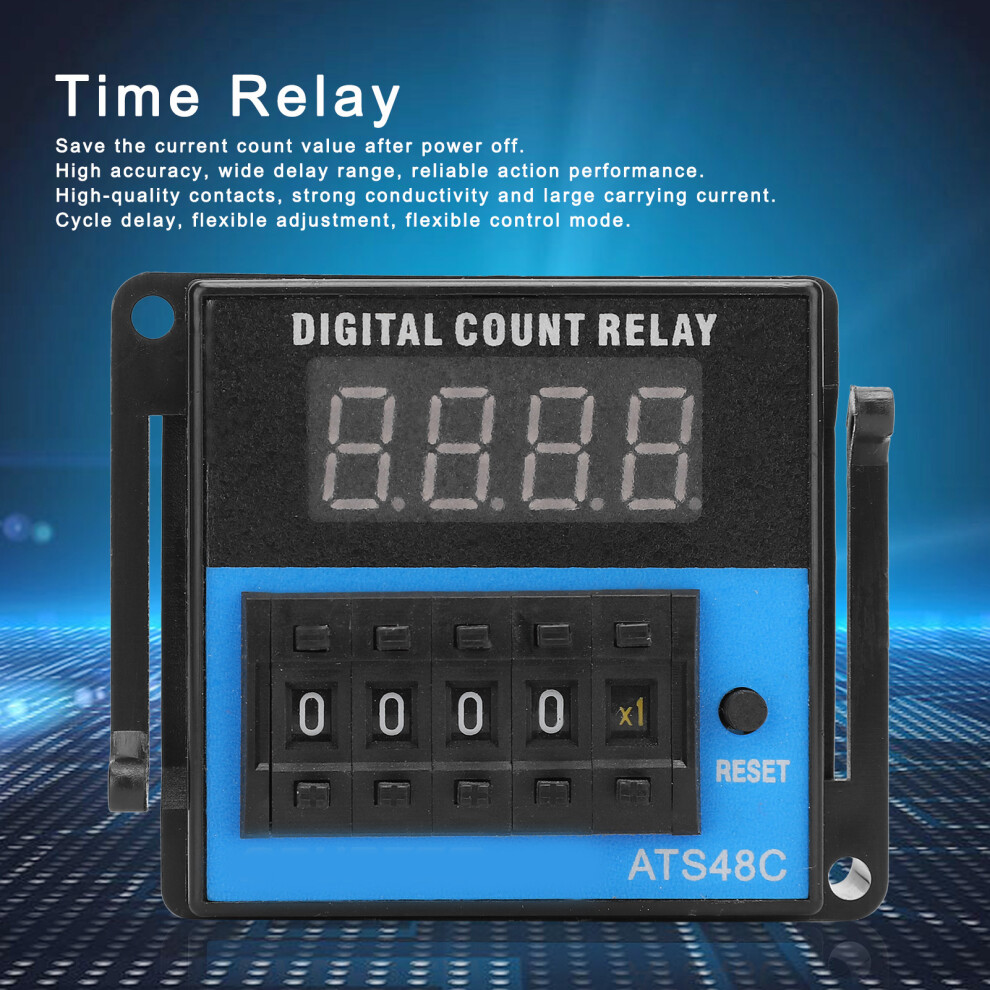

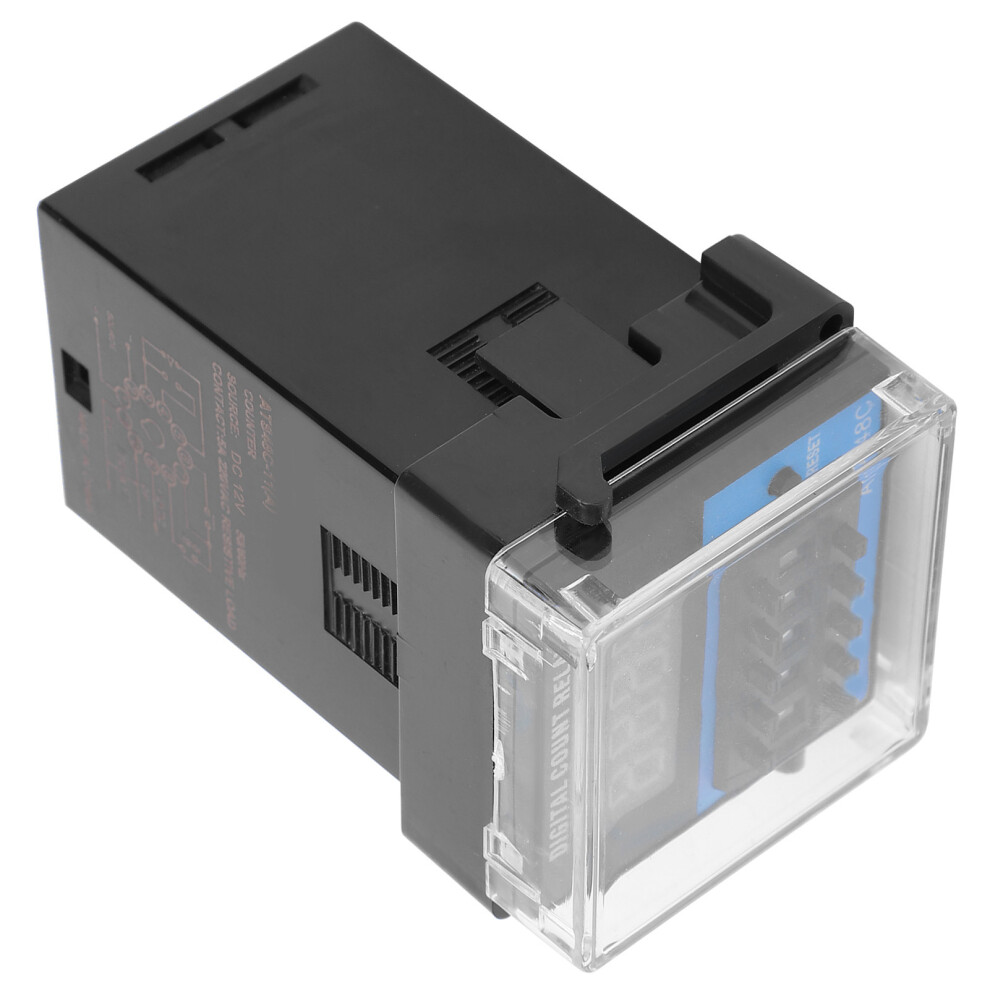

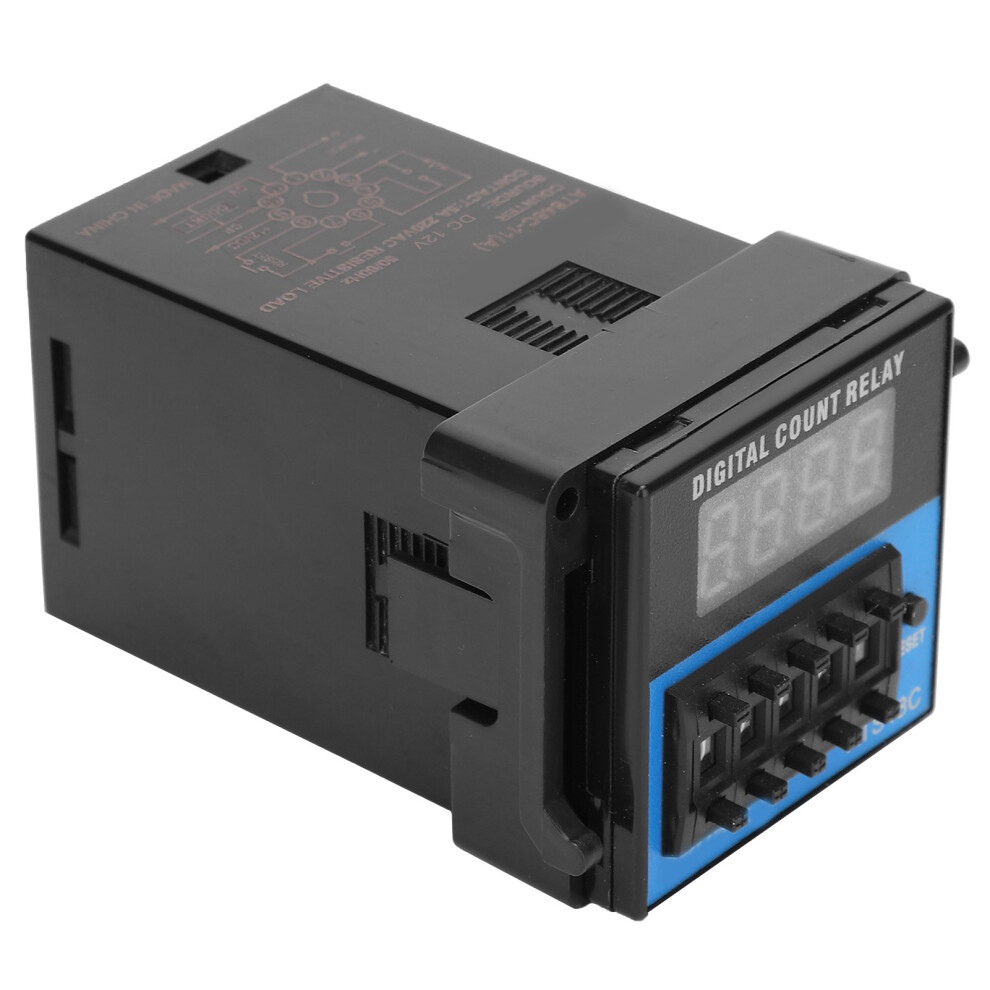

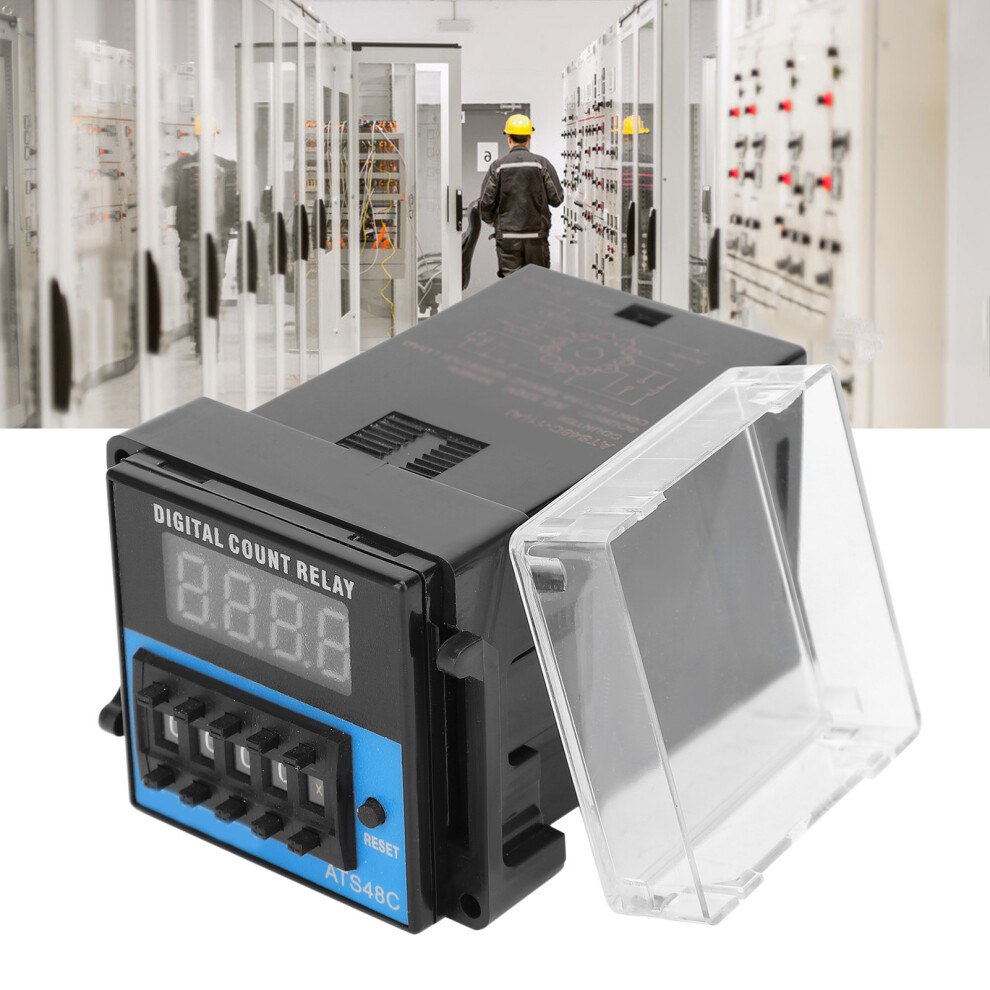

ATS48C11(A) Digital Time Relay 9999 Counts, LED Display, 12V Rectangular Panel
New
Hurry only 1 left
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 126,000 Trustpilot reviews and an 'Excellent' rating
£14.76
£20.79
29% off!
FREE Delivery
1%
What is instant Cashback?
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Sat 13th - Tue 16th Jun
There is 1 other seller
Returns: 30 days
180-day payment protection
Most Popular in Timer Plugs
Description & Details
Summary
- Power off memory data, save the current count value after power off, continue to accumulate after power on next time.
- High accuracy, wide delay range, reliable action performance and digital setting function of delay time.
- Using high‑quality contacts, which has strong conductivity and large carrying current, reliable to use.
- Serve as a delay control parts in industrial automation control systems and machinery and equipment.
- Features cycle delay, flexible adjustment, flexible control mode, strong anti‑interference performance, low working power consumption, and large contact capacity.
ATS48C11(A) Digital Time Relay 9999 Counts, LED Display, 12V Rectangular Panel Description
ATS48C11(A) Time Relay LED Digital Tube Display Cycle Delay AntiInterference(DC12V )
Condition:
Item Type: Time Relay
Material: Plastic
Color: As picture shown
Model: ATS48C (save the current count value after power off, continue to accumulate after power on next time)
Power Supply Voltage: 85-110% Of Rated Voltage
Power Consumption: 5W
Contact Capacity: AC220V 5A
DC30V 5A (Resistive)
Mechanical Life: 100,000 Times
Electrical Life: 100,000 Times
Ambient Temperature: -10 - +50
Altitude: <2000m
Delay Control Accuracy: 0.3%0.05 seconds
Display Mode: 0.36 inch size red LED digital tube displays the count value.
Counting Method: Count up (1, 2, 3.... to the set value), count down (from the set value...... 3, 2, 1)
Counting Range: 1-9999, 10-99990, 100-999900, adjusted by dialing the counting unit on the panel.
Counting Signal: No voltage contact signal, allowable counting frequency 30 times per second.

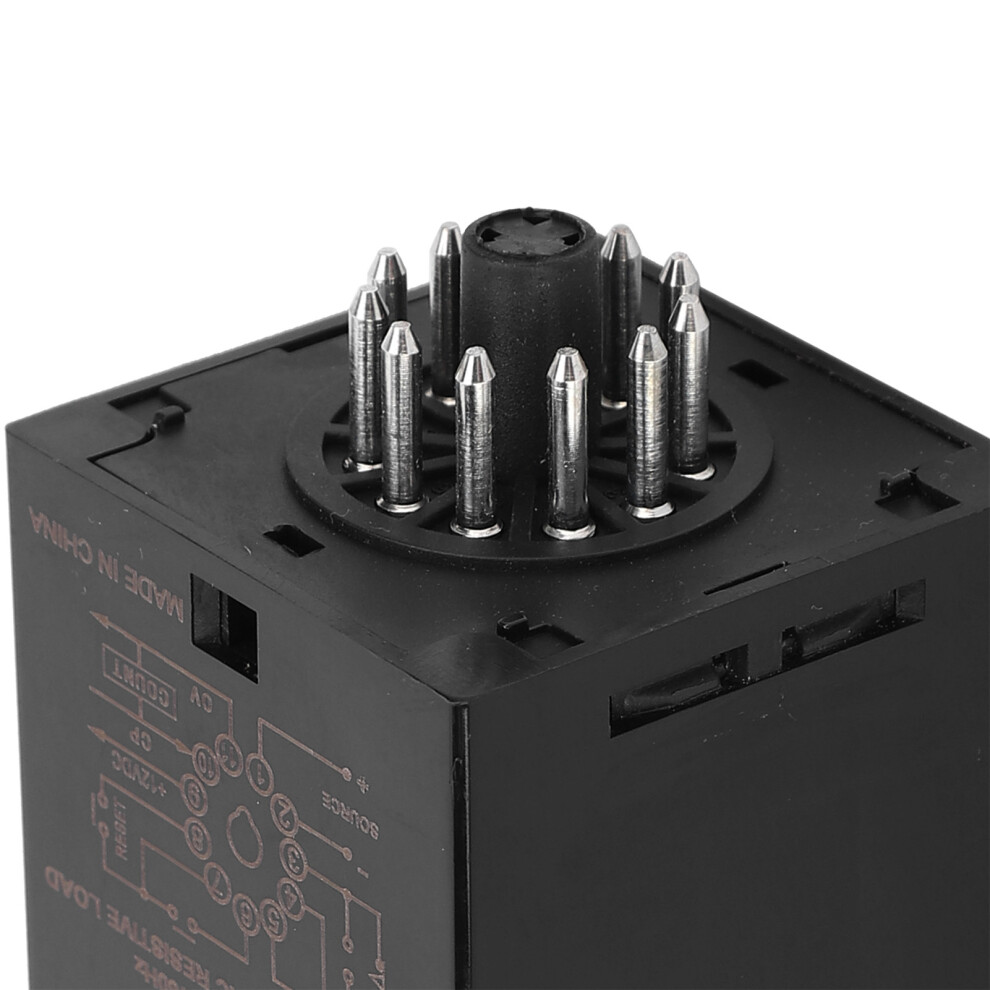

Contact Attributes: 1 set of normally open and normally closed conversion contacts, with a capacity of 5A220VAC (resistive), and an electrical life of 100,000 times.
Installation Size:
Panel Installation: Cut-out size: Approx. 45 x 45mm/1.8 x 1.8in
Rail Type Installation: Approx. 35mm/1.4in rail
Device Type Installation: Hole distance: Approx. 33mm/1.3in, installation screw: 2-M420mm
Details
| OPC | PQCBYFW |
|---|---|
| Codes | 7901379613651 (EAN) |
| Links | Digital Timer Plugs |
