(AU) 1080P 8CH AHD/IPC DVR Support ONVIF CCTV Security System

(AU) 1080P 8CH AHD/IPC DVR Support ONVIF CCTV Security System Description

1、Support for VGA and for HDMI high‑definition output display. 2、Support for ONVIF protocol to connect to third party devices (network mode). 3、Support multiple cloud technologies, realize networks penetration, front and back end docking, and push alarm information to mobile phones. 4、Supporting Web, CMS, central platform management software for MYEYE, and providing SDK development. 5、Support remote monitoring of various mobile phones and ipads(for ios, for android). 6、Remote access, with its own domain name service function (ARSP), one‑click to enable remote monitoring. 7、Standard coaxial control, easy to achieve the back end control front end. 8、Support AHD / TVI / CVI / CVBS / PVI / IP signal 6‑in‑1 access. 9、The networks mode supports "Full Netcom", compatible with all major brands of IPC, crossed‑segment, and one‑key networking with the same IP.
Condition: Brand New

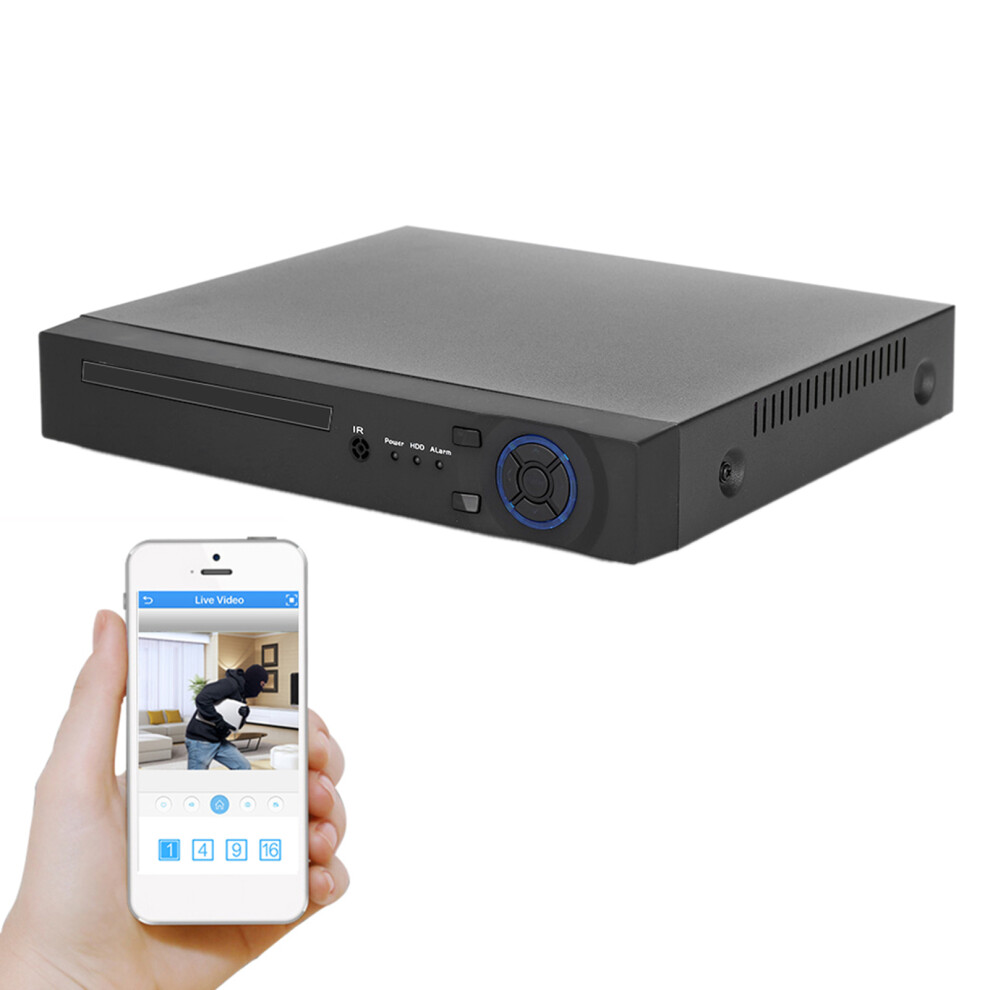

Item Type: Digital Video Recorder
Material: Metal
Color: As picture
System: Main Processors: Industrial-grade Embedded Chip Hi3520D V300
Video:
Codec Standard: H.265
Surveillance Quality: VGA, for HDMI HD
Preview Ability: 8x1080N
Coding Ability: 8x1080N@12fps
Decoding Capability: 8x1080N@12fps
Mode Input:
Coaxial: 8x1080N；4x1080P
Mixed: 2x1080P(coaxial) + 2x1080P (networks); 4x1080N(coaxial)+4x960P(networks)
Networks: 16x1080P; 9x1080P; 16x960P; 4x5M
Motion Detection: 192 (16 x 12) Detection Areas Can Be Set for Each Screen; Multi-level Sensitivity Can Be Set
Degrees (limited to Local Channels)
Audio:
Audio Compression: G.711A
Intercom: Support
Video:
Recording Method: Manual> Alarm> Dynamic Detection> Timing
Video Query: Time Point Search, Calendar Search, Event Search, Channel Search
Video Storage: Local Hard Disk, Networks
Video Backup: Networks Backup, USB Mobile Hard Disk, USB Burning, SATA Burning

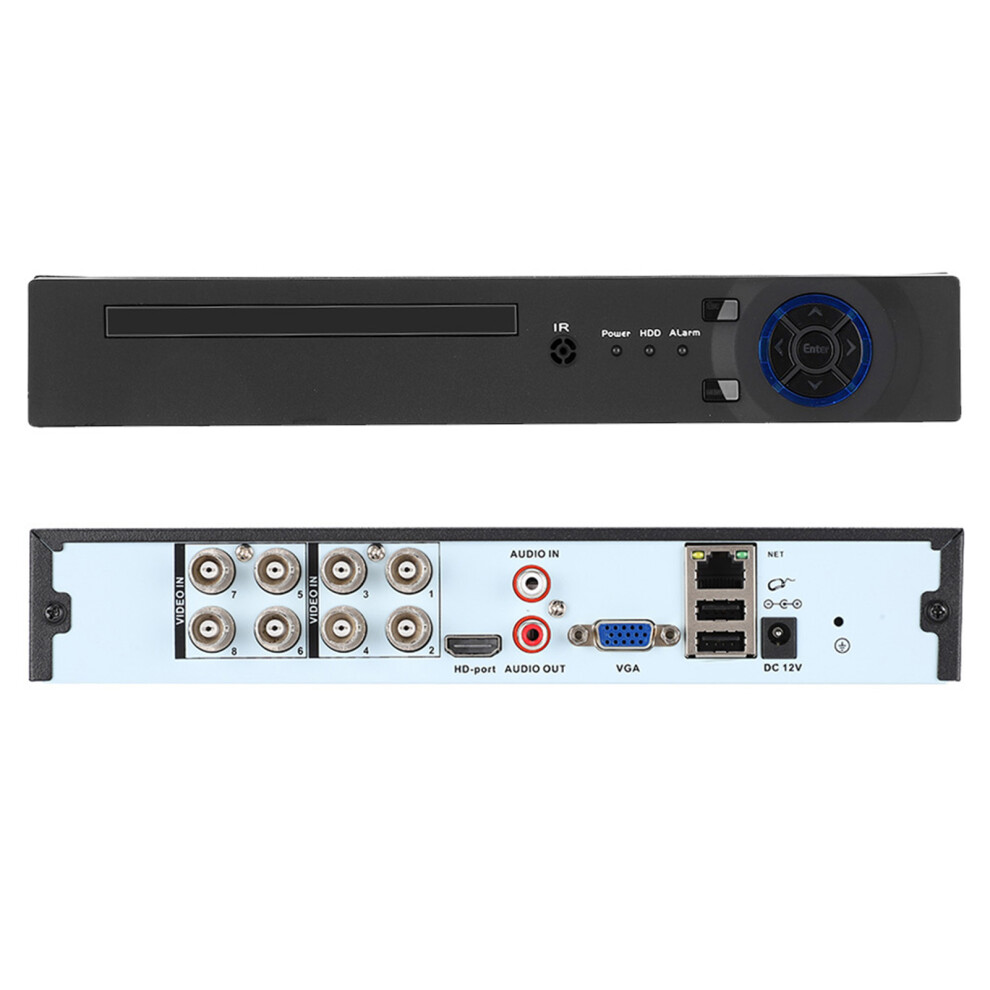

Interface: Video Input: 8 Channels BNC
Video Output: 1 Channel VGA, 1 Channel for HDMI
Loop-Through Output: No
Audio I / O: 1（4）/1
Alarm I / O: 0/0
Network Interface: RJ45 10M/100M Adaptive Ethernet Port
Expand Interface: 2 USB Interfaces
Hard Disk Interface: 1 SATA Interface (Each Supports Up to 8T)
Power Supply: 12V/2A
Working Environment: Temperature 0 -+ 55 , Humidity: 10% -90%, Atmospheric Pressure: 86kpa-106kpa

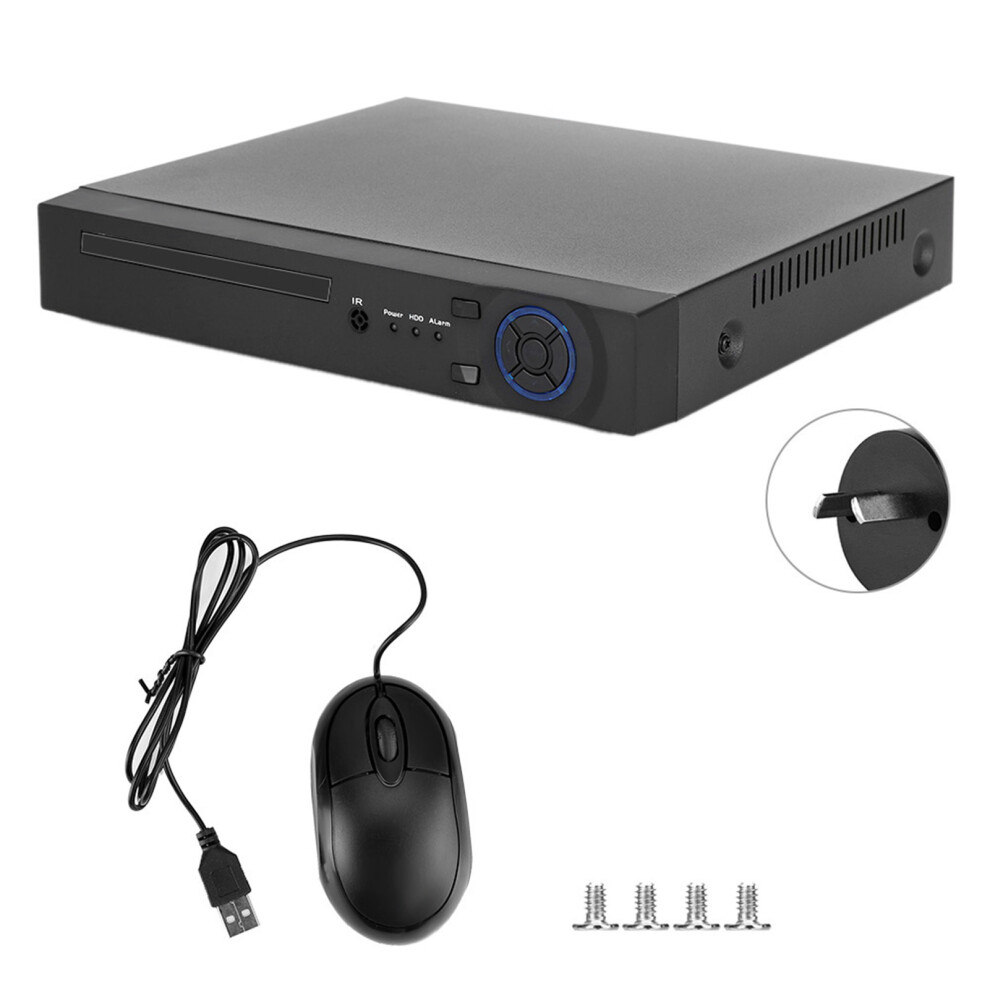

1 x Digital Video Recorder
1 x Power Supply
1 x Mouse
1 x Instruction
4 x Mounting Screws
