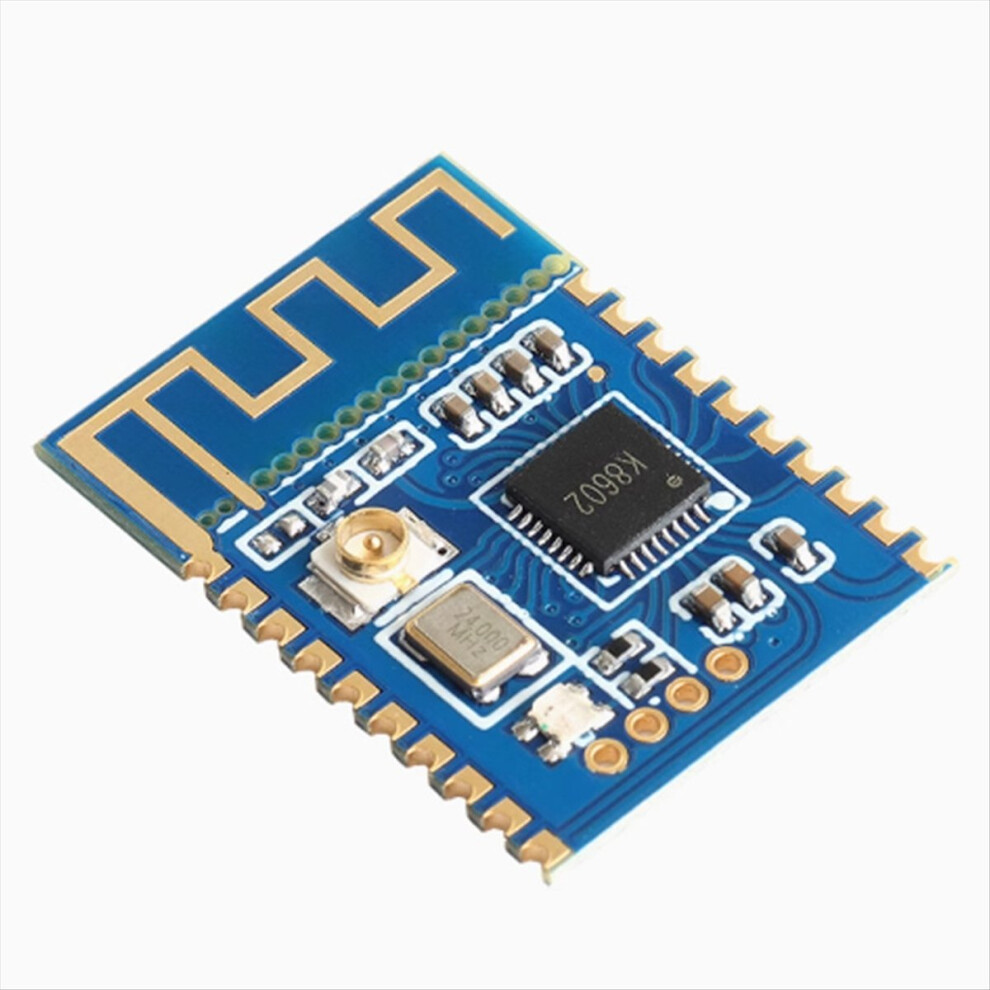

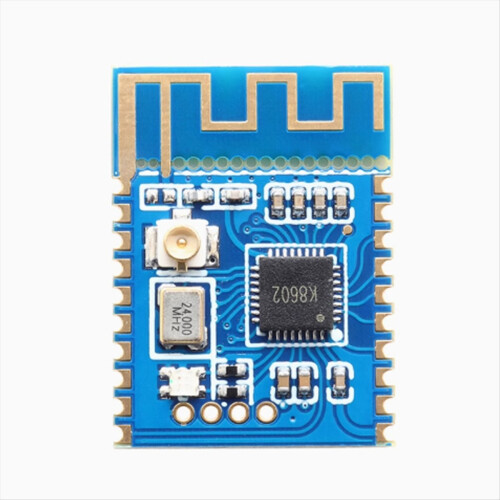

Audio Module 2.4G High Fidelity Wireless Stereo Module

Audio Module 2.4G High Fidelity Wireless Stereo Module Description

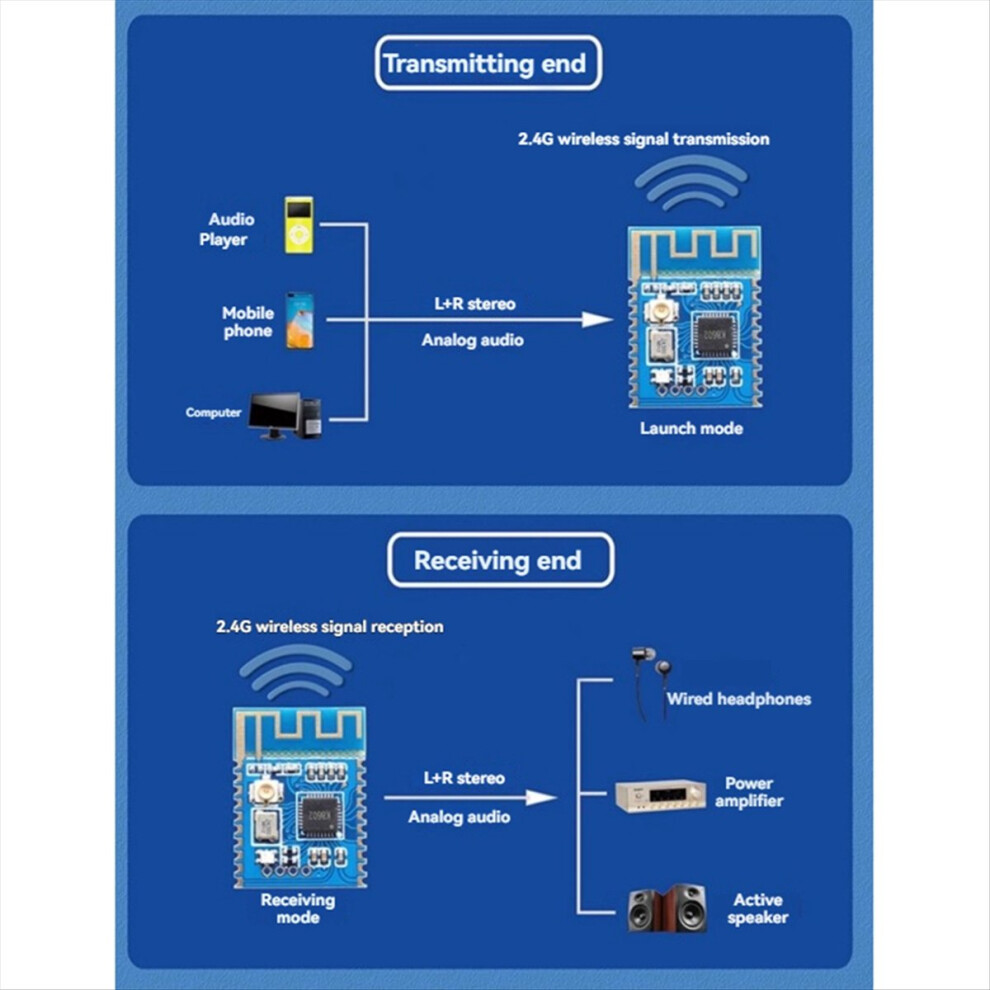

This high-fidelity wireless stereo audio transceiver module integrates both wireless stereo audio transmission and reception.
To stable wireless transmission, this module utilizes an adaptive frequency hopping algorithm. When it detects channel congestion, it automatically switches to a relatively free channel to continue communication.
To address signal confusion, this module uses an 8-bit address code to distinguish between receivers and transmitters. Connections are established only when the address code of the receiving module matches that of the transmitting module; otherwise, no connection is established.
This module utilizes a proprietary 2.4G wireless communication protocol and codec algorithm, employing a "broadcast" transmission mode and supporting multiple receivers (., an unlimited number of receivers can simultaneously receive signals within the transmitter's coverage area).
This module is widely used in applications requiring wireless audio transmission and DIY wireless speaker modifications.

Dimensions:15.5x21mm
Weight:1g
Operating Voltage: 3.5-5V
Operating Current: 30-40mA
Standby Current: 2uA
Signal Coverage Radius: less than equal 50m
Output Power: +8dBm
Frequency Range: 2402-2480MHz
Audio Dynamic Range: 104dB
Audio Total Harmonic Distortion and Noise: -70dB
Audio Frequency Response: 20Hz-20kHz
Sampling Rate: 24Bit/48kHz
Audio Signal-to-Noise Ratio: 95dB
Audio Input and Output Signal Amplitude: less than equal 2Vpp
Number of Channels: 2 Channels (Stereo)
Transmission Delay: 100mS
Color:As Shown
Material:PCB

Package Contents:
1 * Audio module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
