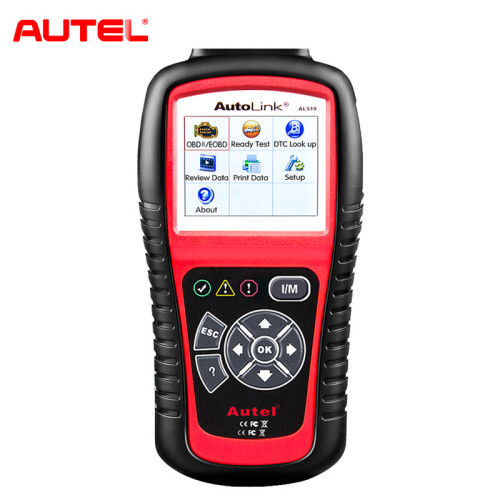

Autel AutoLink AL519 OBD2 EOBD Auto Diagnostic Tool CAN Fault Code Reader Scanner

Autel AutoLink AL519 OBD2 EOBD Auto Diagnostic Tool CAN Fault Code Reader Scanner Description

Autolink AL519
The AL519 OBDII/EOBD Scanner supports all 10 modes of OBDII test for a complete diagnosis. Featuring the unique patented One-Click I/M Readiness Key, TFT color display and built-in speaker, the AutoLink AL519 is truly the ultimate in power and affordability, allowing users to do their jobs faster. In addition, thousands of troubleshooter code tips help technicians to save diagnosis and repair time.

Features:
Works on ALL 1996 and newer vehicles (OBDII / CAN) – domestic and import. Supports all OBD2 protocols: KWP2000, ISO2000, ISO9141, J1850 VPW, J1850 PWM and CAN and can work on almost all OBDII compliant vehicls- post 1996 for cars sold in the U.S., post 2006 for EU-based and post 2009 for Asia-based cars.
Features the unique patented One-Click Readiness Key for quick State Emissions readiness check and drive cycle verification
Bright color coded LEDs and built-in speaker provide both visual and audible tone for readiness verification
Retrieves generic (P0, P2, P3 and U0), manufacturer specific (P1, P3 and U1) codes and pending codes
Easily determines the cause of the Check Engine Light(MIL)
Turns off Check Engine Light (MIL), clears codes and resets monitors
Displays DTC definition on the TFT color screen
Views freeze frame data
Displays monitor and I/M readiness status (emissions)
Reads live PCM datastream
Displays live O2 sensor test data
Graphs data (1996 and newer vehicles)
Reads, stores and playbacks live sensor data
Enhanced OBDII Mode 6
Troubleshooter code tips guide technicians to the root cause of a trouble code faster, saving diagnosis and repair time
Retrieves vehicle information (VIN, CIN and CVN)
Multilingual menu and DTC definitions-English, Spanish and French, etc.
Internet updateable and upgradeable with lifetime free software updates

Enhanced New Features: AL519 OBDII diagnostic tool features patented One-Click Smog Check, easy-to-read AVOmeter to test voltage, continuity and current at the fingertip, capable of diagnosing 12V charging systems, starting systems and condition of discharged battery, memory/battery backup for data review and data printing via PC for further analysis. AL519 is ultimate in power and afford ability, allowing DIYers to do their repairs faster.

Specification:
Display TFT color display (320 x 240 dpi)
Operating Temperature 0 to 60°C (32 to 140 °F)
Storage Temperature -20 to 70°C (-4 to 158 °F)
External Power 8.0 to 18.0 V power provided via vehicle battery

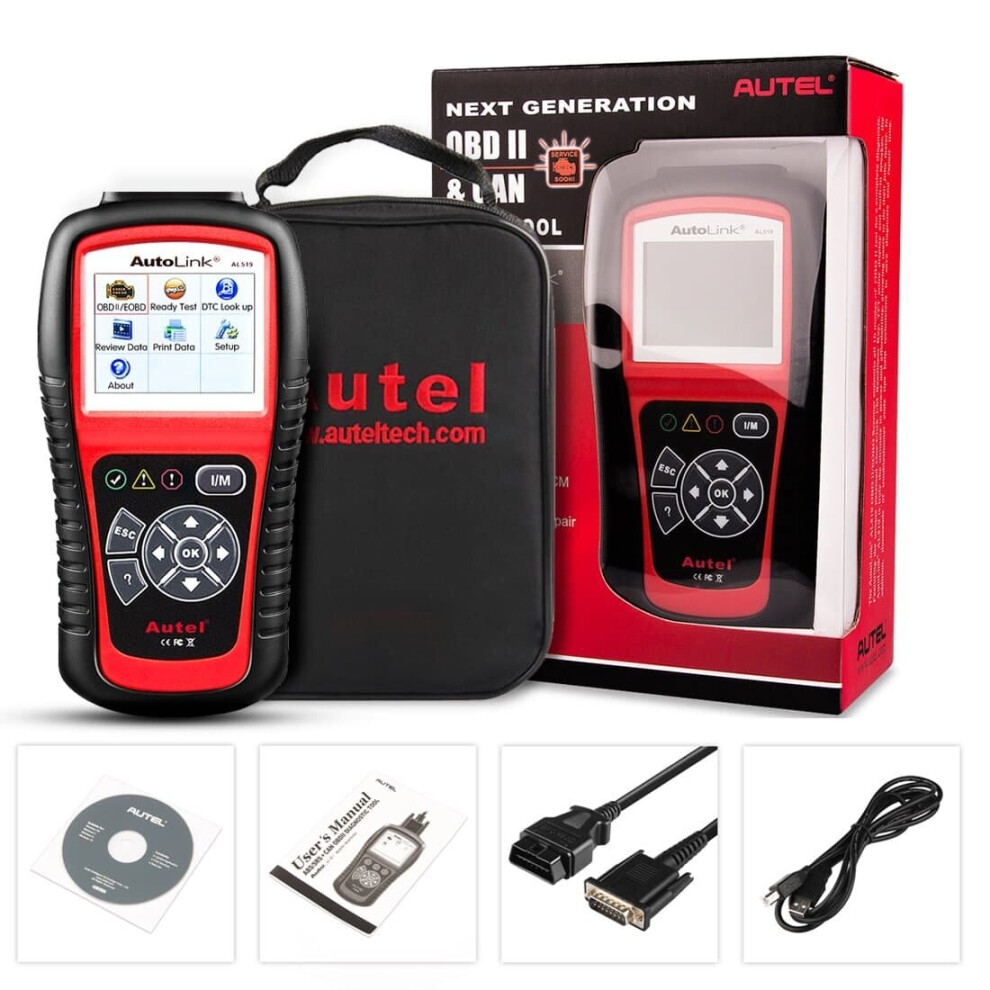

Package List:
1 x Auto Link® AL519
1 x User's manual
1 x USB cable
1 x OBDII Cable
1 x Carry case
