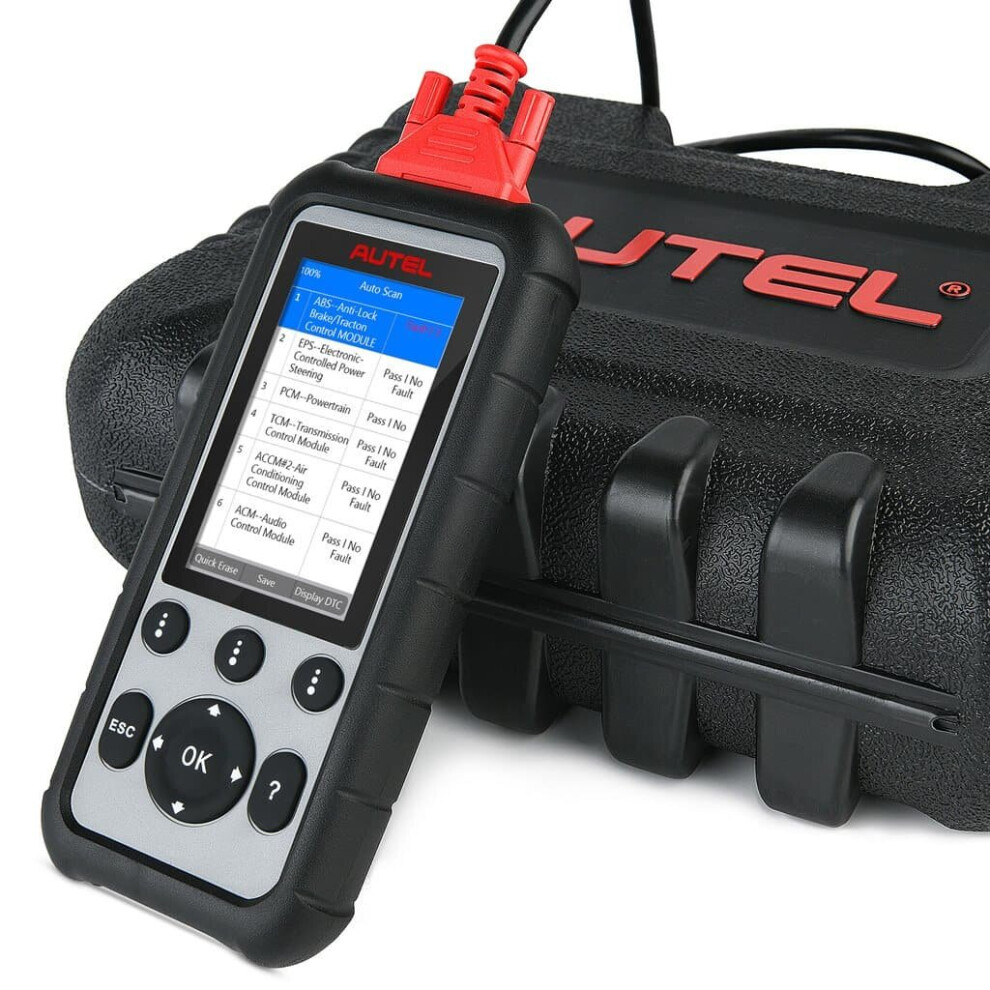

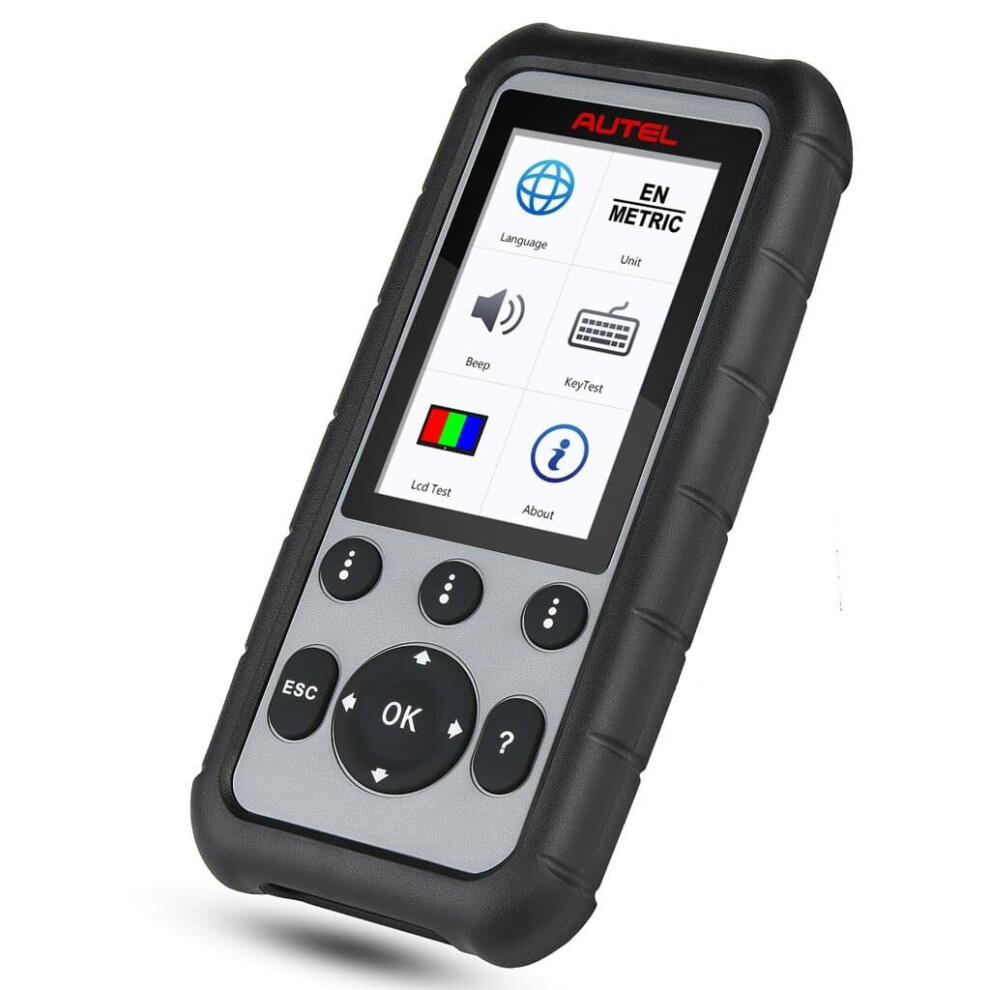

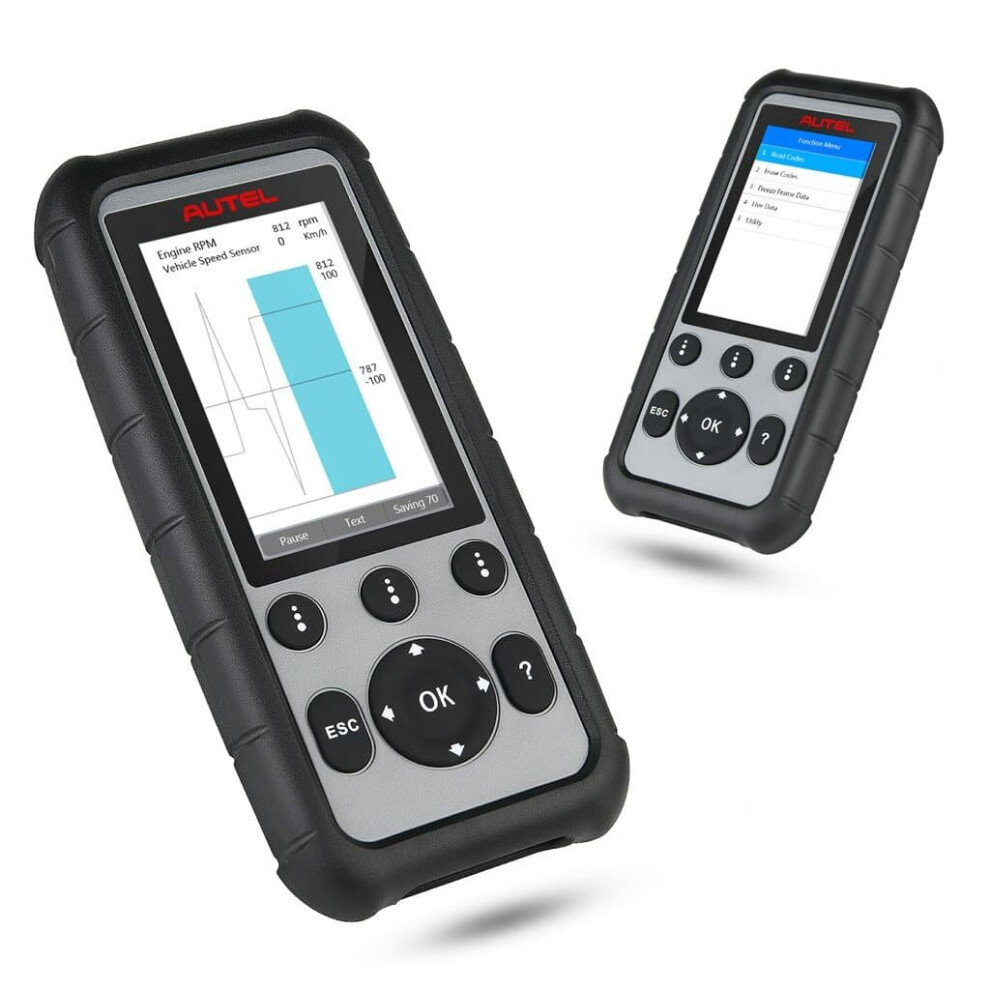

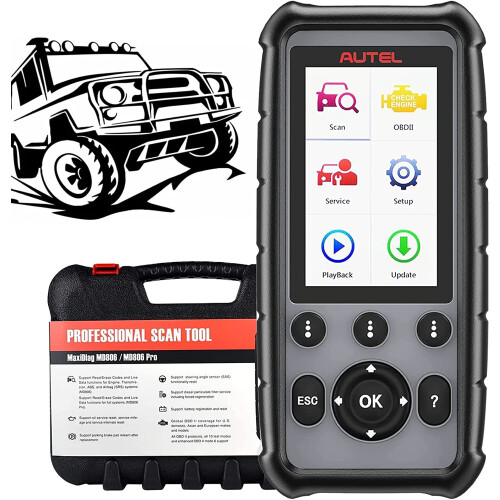

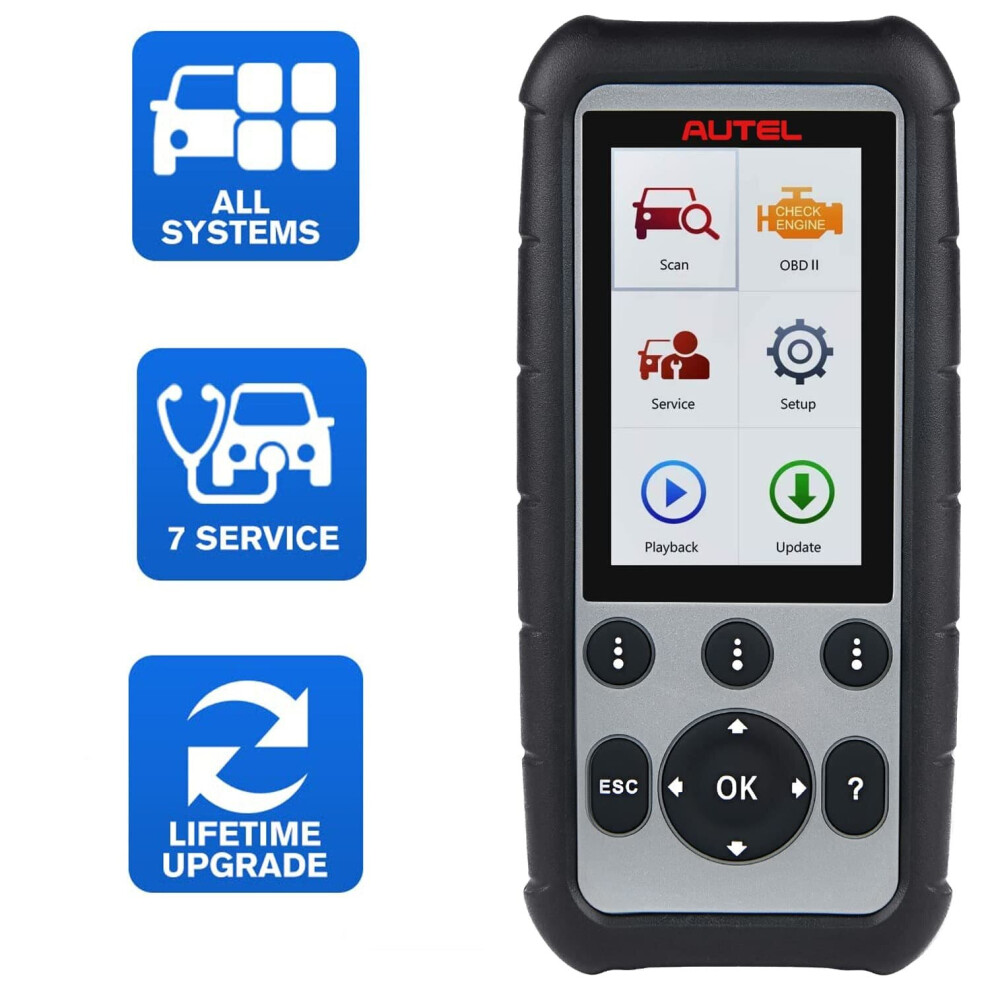

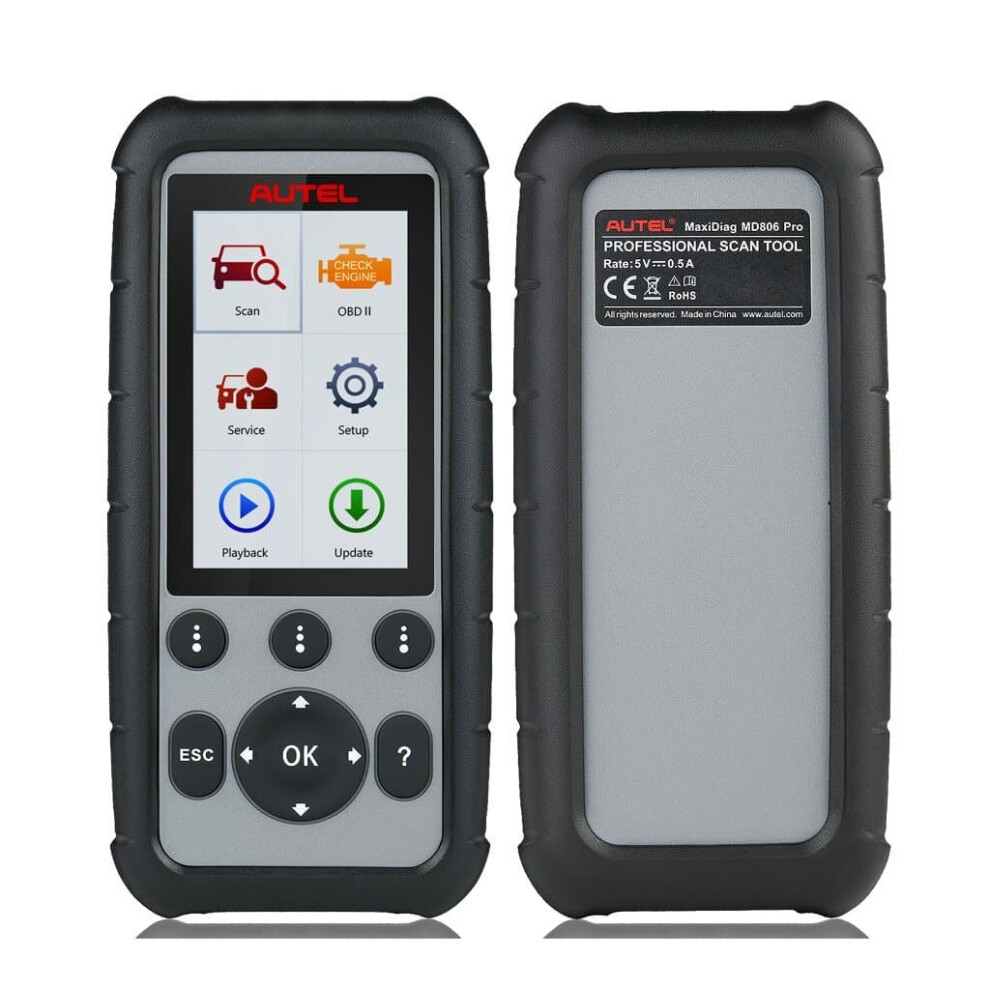

Autel MaxiDiag MD806 PRO All Systems Auto Diagnostic Tool OBD2 Code Reader Scanner ABS SRS Engine Transmission With EPB SAS DPF BMS Oil Reset Service

Autel MaxiDiag MD806 PRO All Systems Auto Diagnostic Tool OBD2 Code Reader Scanner ABS SRS Engine Transmission With EPB SAS DPF BMS Oil Reset Service Description

The MaxiDIAG MD806 Pro is built to take your diagnostic experience to a whole new level. Loaded with oil service reset, battery registration and reset, parking brake pad relearn after replacement, steering angle sensor relearn and diesel particulate filter regeneration functions, MD806 Pro can access ALL available modules for the best diagnosis operations.Lifetime Free Update.
Features:
1. All System Diagnoses
Guide Directly to the Fix and Eliminate Guesswork, MD806 PRO allows you to:
①Retrieve ECU information of tested control units including unit type, version numbers, and other specifications;
②Read & Erase DTCs to locate problem areas and clear the codes easily;
③View live data of each parameter item;
④Get access to all vehicle systems and subsystems, such as Engine; Automatic Transmission; Suspension; Audio; IMMO Immobilizer; Air Conditioning; Auto Headlamp; ACC; Car Radio Audio; Car Door Windows etc. To perform a comprehensive scanning process on ECUs to locate the faulty systems and retrieve the DTCs related.
⑤Read and clear trouble codes for Special Functions
⑴OLS - Support Oil Service Reset
⑵BMS - Support Battery Registration and Reset
⑶DPF - Diesel Particulate Service Including Forced Regeneration
⑷SAS - Reset Steering Angle Sensor Functionality
⑸EPB - Relearn Parking Brake Pad After Replacement
⑹Odometer - Reset Service Mileage And Service Intervals

2. Designed with full OBD2 Functions
Read and clear detected diagnostic trouble codes and turn off the Check Engine Light;
Read I/M readiness status to have a vehicle inspected for state emissions compliance;
View graphical live data of vehicle's computer module(s) for easy analyses;
View the vehicle's operating parameters at the moment a DTC is detected;
Show the last results of the O2 sensor test in the graphic display for troubleshooting;
Read the results of on-board diagnostic monitoring tests for specific components/systems;
Component Test: Allow initiating a leak test for the vehicle's EVAP system;
Retrieve the vehicle information of VIN, CINs, and CVNs completely.
3. SupportsMuti-Language:
Englsih, French, German, Spanish, Portuguese, Swedish, Italian, New Zealand, Polish, Swedish, Russian, Traditional Chinese, Japanese
4. Wide Vehicle Coverage
MD806 Pro supports Global OBD II coverage for U.S. domestic, Asian and European makes and models. All OBD II protocols, all 10 test modes and enhanced OBD II mode 6 support.

Specification:
Processor: ARM® Thumb® Processor running at up to 400 MHz
Memory: 32MB, 166 MHz
Display: 4.0 inch LCD with 800x480 resolution
Connectivity: Mini USB: 2.0，Micro SD Card (16GB)
Power Consumption: 1.7 W
Tested Battery Life: Around 4.5 hours of continuous use
Operating Temp.: -10°C to 60°C (14°F to 140°F)
Storage Temp.: -20°C to 70°C (-4°F to 158°F)
Operating Humidity: 5%-95% non-condensing
Housing: Strong plastic housing with protective rubber boot
Dimensions 202 mm x 92 mm x 35 mm (8.35” x 3.62” x 1.4”)
Weight: 313 g (0.69 lb.)

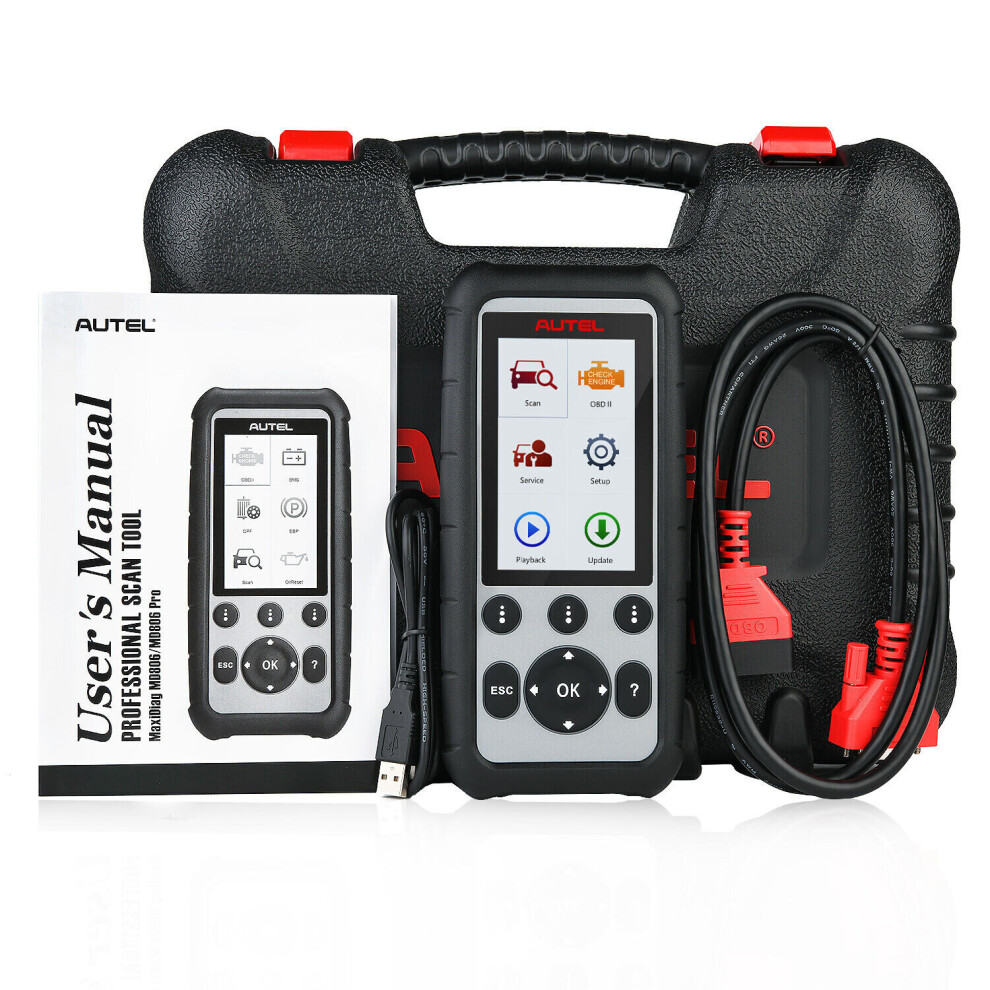

Package List:
1x MD806 Pro Main Unit
1x User Manual
1x OBD II Cable
1x USB Cable
1x Micro SD Card
1x Quick Guide
1x Carry Case
