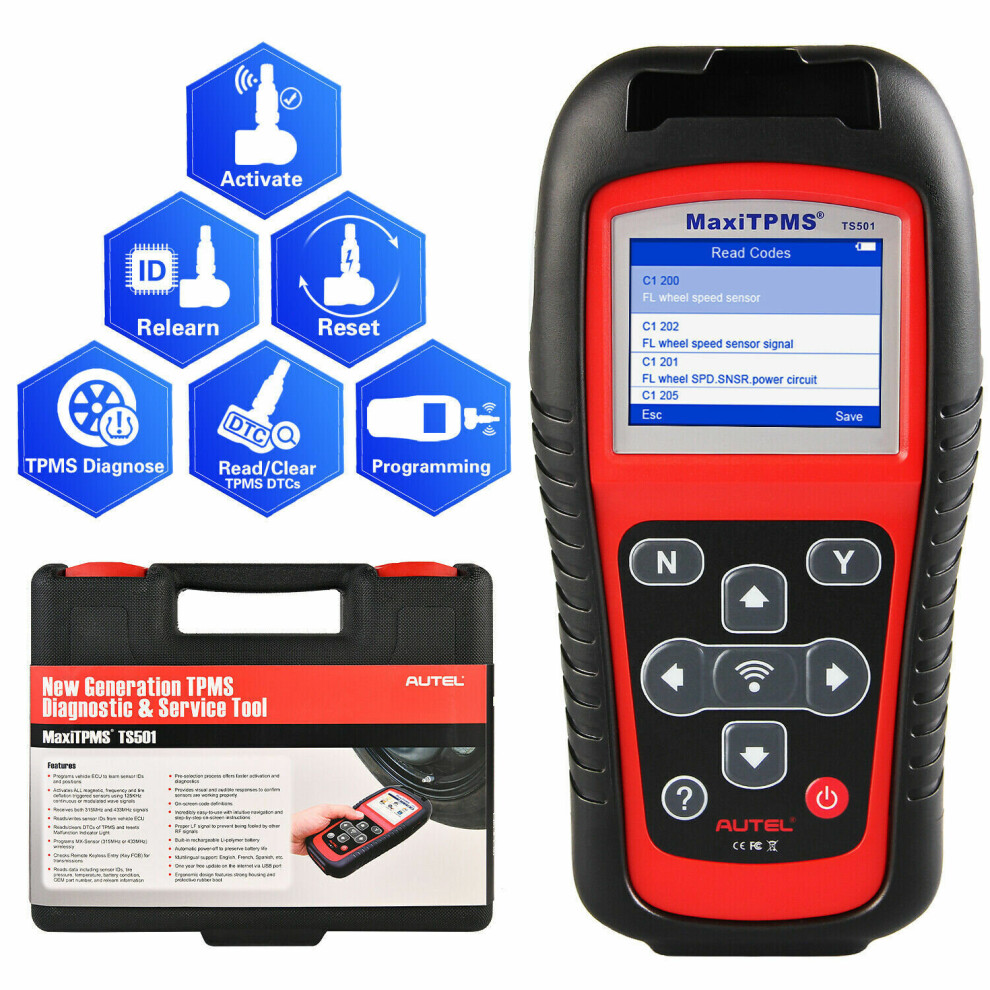

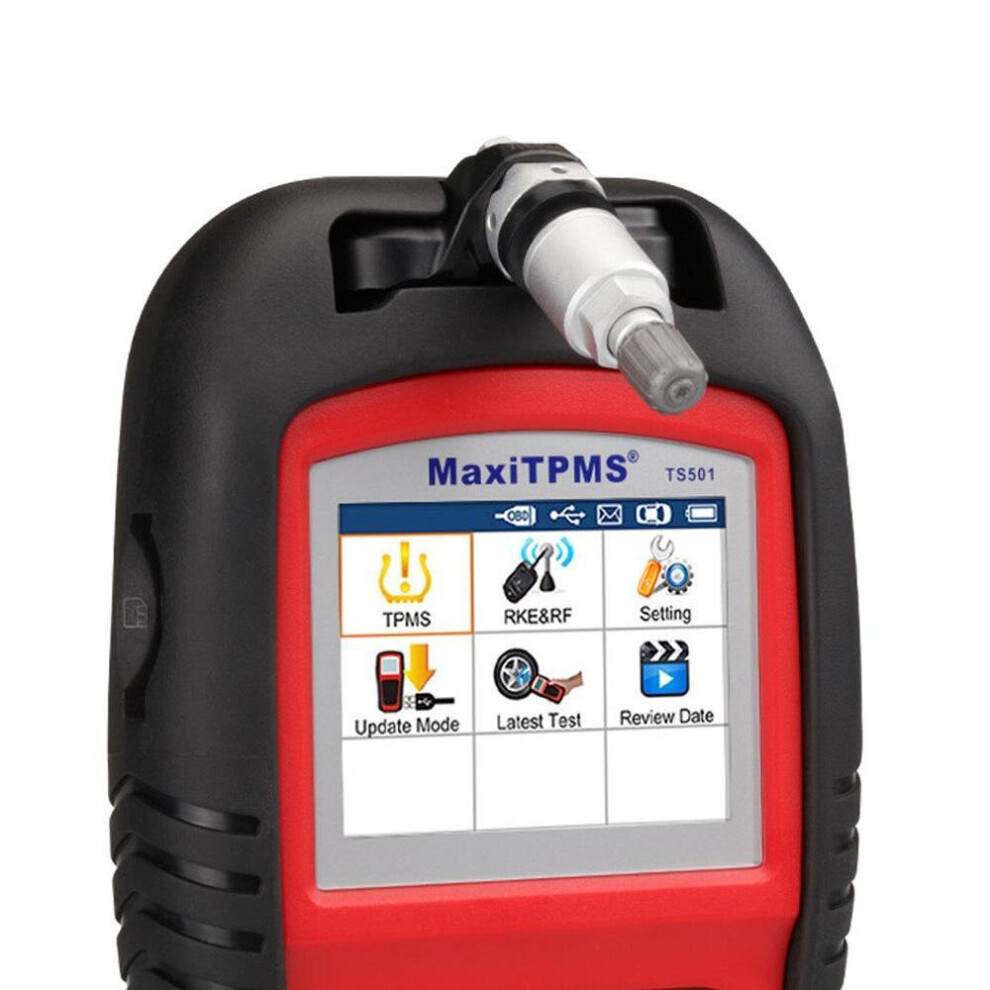

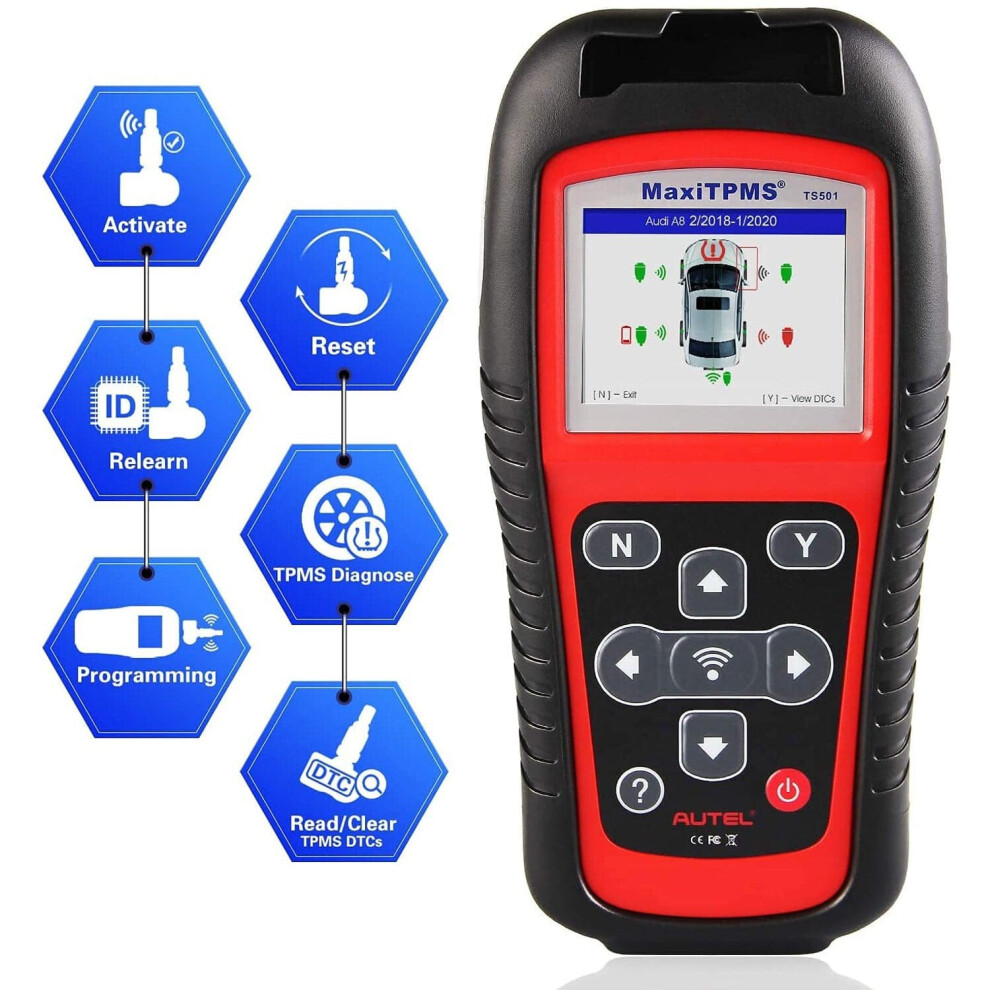

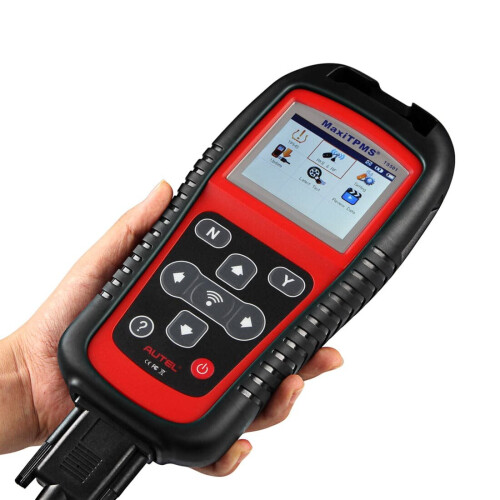

Autel MaxiTPMS TS501 TPMS Auto Diagnostic Scanner Code Reader Tire Pressure Sensor Programming Activation Tool

Autel MaxiTPMS TS501 TPMS Auto Diagnostic Scanner Code Reader Tire Pressure Sensor Programming Activation Tool Description

Autel TS501 TPMS Diagnose
The MaxiTPMS TS501 is capable of wirelessly diagnosing TPMS problems as well as activate any known OEM / Universal TPMS sensors,  ID clone or reprogram sensors to the vehicle's ECU, and turn off warning lights.

Note: The Autel TPMS tool can program the MX-Sensor which was manufactured by Autel only!

Introduction:
Activate All Sensors / TPMS Diagnose: TS501 is the upgraded version of TS401/TS408. It is specially designed to activate all known OEM/Universal TPMS sensors, can diagnose newest models up to 2020 with frequent updates.
TS501 provides users with direct access to the vehicle's ECU through OBD II connection, thus allowing users to repro/gram sensor IDs and retrieve/clear TPMS DTCs, helping technicians to quickly find out faulty TPMS and turn off MILs.
Professional TPMS programming Diagnostics Tool:
TS501 enables all car enthusiasts to program sensor data to Autel MX-Sensors with ease, saving you the money and trip to a dealership.
With TS501, you can program AUTEL MX-Sensor (315/433MHz) with 4 programming options: Copy By Activation, Copy By Manual Input, Auto Create and Copy by OBD( Not available with TS408) to replace the faulty sensor with low battery life or one that is not functioning well.
Relearn All TPMS Sensors: To turn off the TPMS warning light after replacement, you need to relearn the sensors to the vehicle! Autel TS501 TPMS Relearn Tool provides 3 ways of on-tool relearn precedures to relearn both OE and aftermarket sensors: Stationary Relearn, Automatic Relearn & OBD Relearn.
NOTE: TS501 has added Relearn by OBD comparing with TS408.
Complete TPMS System Scan Tool: TS501 will activate TPMS sensors, Read sensor data, TPMS diagnose, one step for complete TPMS health check, Read/clear TPMS DTCs; on-screen DTC description, Scan TPMS sensor ID and copy ID into MX-Sensor, Manual input OE ID into MX-sensor, pro/gram MX-Sensor by auto creating sensor ID, Read Sensor ID by OBD and copy ID into MX-Sensor, Relearn by OBD function, Relearn procedure guide on the tool, Check Key FOB.
Free Lifetime Software update - Excellent Tech-support - Multiple Languages:
TS501 comes with Review Data function, which allows user to view and print out saved data of the latest TPMS diagnostic recordings by the service tool. Please send the device serial number to us if you need to authorize languages.

Autel MaxiTPMS TS501 Features:
Programs vehicle ECU to learn sensor IDs and positions
Activates magnetic, frequency and tire deflation triggered sensors using 125 kHz continuous or modulated wave signals
Receives 315 MHz, 433.92 MHz and 309MHz signals
Reads sensor ID from vehicle ECU
Reads/clears codes of TPMS system and resets malfunction indicator light
Built-in rechargeable Li-ion battery
On-screen code definitions
Simplifies the diagnostic process including four and five wheel
vehicles by showing vehicle graphs
Decodes sensor data and provides visual and audible
responses to confirm sensors are working properly
Interprets data including sensor ID, tire pressure, temperature,
battery status and OE part no.
Pre-selection process offers faster activation and diagnostics
Accurate diagnosing results - a tool users can trust
Lifetime free upgrade on the internet via USB port
Easy-to-use with intuitive navigation and step-by-step on-screen

Specifiocation:
Display: TFT color display (320 x 240 dpi)
Power: 3.7 V Li-polymer battery; 2400mAh
Operating Temp: 0 to 50°C (32 to 122°F)
Storage Temp: -20°C to 70°C (-4°F to 158°F)
Dimensions (W x H x D): 202.2 mm (7.96"") x 106.7 mm (4.20"") x 37.7 mm (1.48"")
Connectivity: Mini USB 2.0*1
Weight: 0.4 kg (0.88 lb.)
Warranty: 1 year
Software Update: Lifetime Free

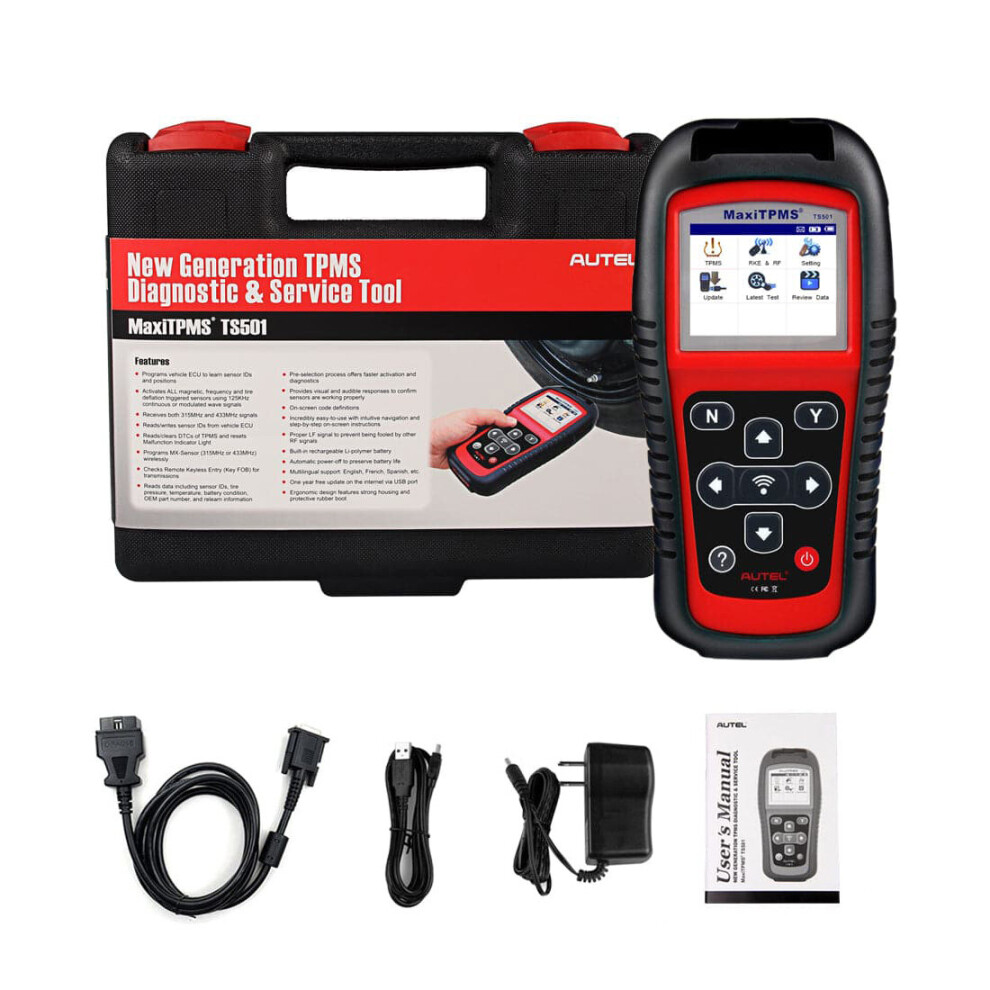

Packing Included
MaxiTPMS TS501 tool
OBDII cable
Molded plastic case
USB cable
User manual
