Terminal Block Junction Box 2-Level Single Phase Junction Case 215 Terminal Distribution Box Din Rail Terminal Case with Transparent Cover Distribution Protection Box
Features:

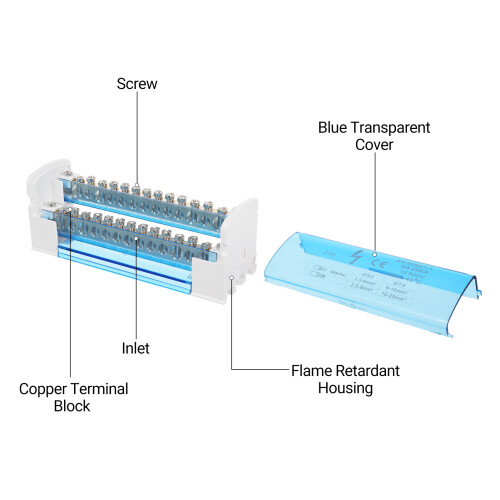

With brass conductive and flame retardant housing, the maximum withstand current is 125A.
Professional power design, with isolation barrier between the terminal blocks to prevent touching and causing short circuit.
Small body with many splitting heads, which saves wiring space to the greatest extent.

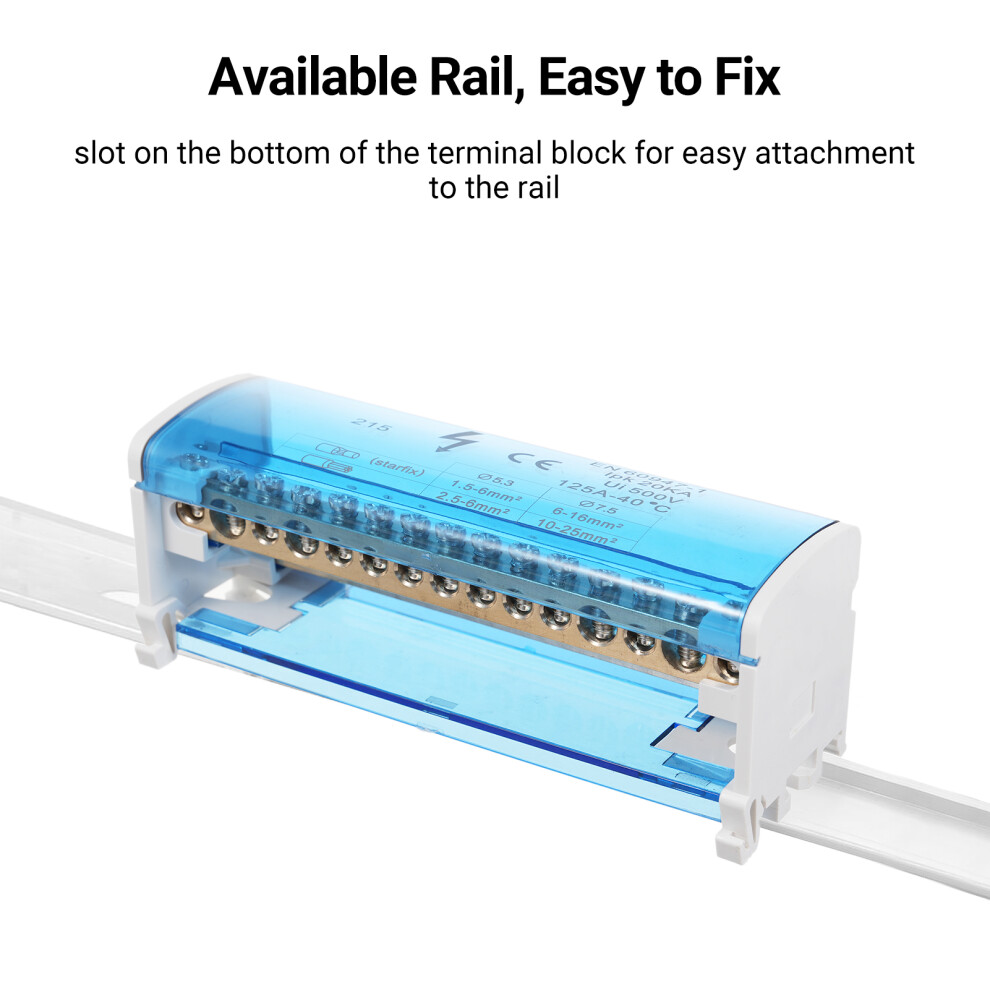

Adopt Din rail installation method, fast and convenient to install.
Transparent dust cover design, dust-proof insulation, you can know the internal wiring state without opening the cover.
Specifications:
Model: JH8207, JH8211, JH8215, JH8407, JH8411, JH8415 (Optional)
Shell Material: PA nylon
Fire Rating: UL94V-2 flame retardant
Screw Material: Iron plated with blue and white zinc
Working Temperature: -30-110
Rated Voltage: 500V
Rated Current: 125A
Hard Wire Diameter: 1.5~6mm²
                                   6~16mm²
Soft Wire Diameter: 2.5~6mm²
                                 10~25mm²
Item Size: 131 * 44 * 50mm / 5.15 * 1.73 * 1.97in
Item Weight: 197g / 6.94oz
Package Weight: 217g / 7.65oz
Package Size: 13.6 * 5 * 6cm / 5.35 * 1.97 * 2.36in
Package List:
1 * Terminal Distribution Box
