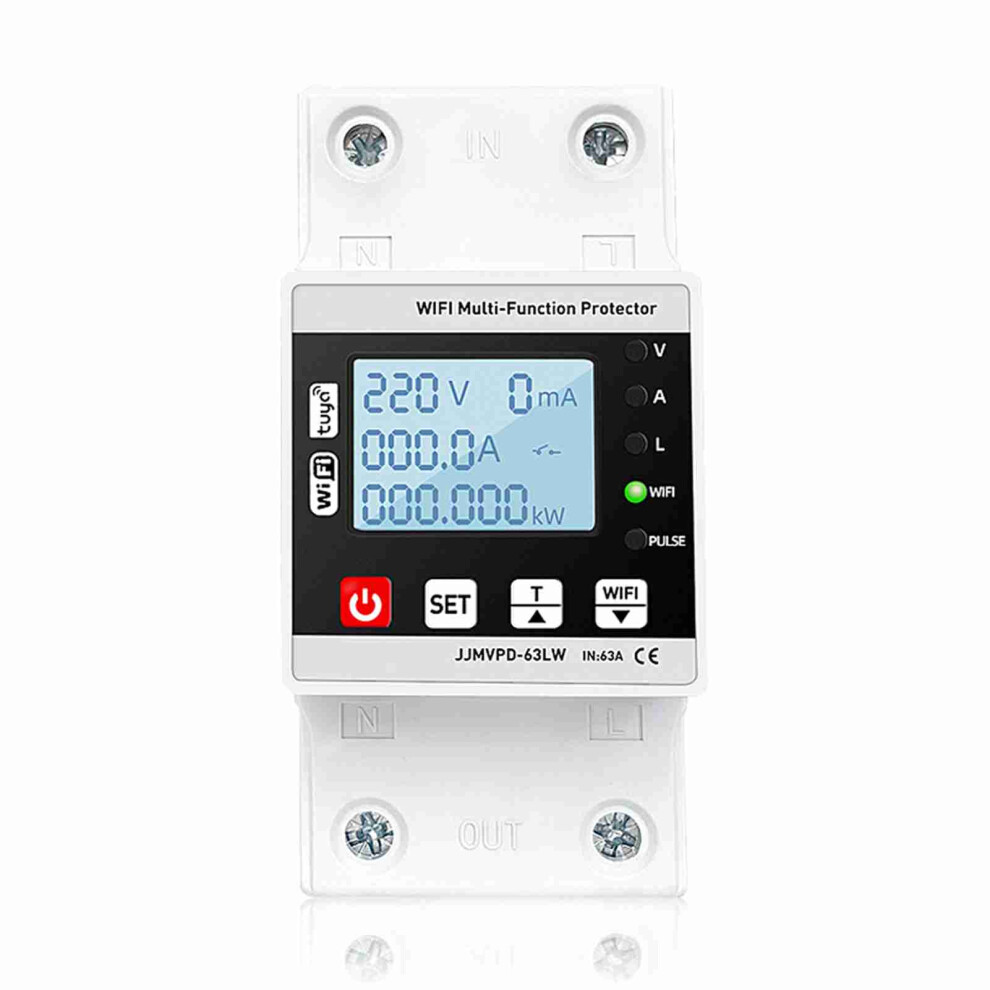

Automatic Reclosing Protector, Over/Under Voltage & Current, 96x45x68mm

Automatic Reclosing Protector, Over/Under Voltage & Current, 96x45x68mm Description

Automatic Reclosing Protector Multifunctional Overvoltage Undervoltage Intelligent Reclosing Protector
This is a kind of quality intelligent leakage protecting switch, that integrates an overvoltage protector, undervoltage protector, and overcurrent protector leakage protector. When over voltage, under voltage, over current, or leakage occurs in the line, this product can immediately cut off the power supplys to prevents electrical equipment from burning. The over voltage, under voltage, over current and leakage protections values of this product can be set by yourself and can be adjusted according to the actual local situation.
Specifications:
Name: Automatic Reclosing Protector
Material: plastics
Type: for Tuya Wifi version
Over voltage protecting value: 230-300V, default 270V
Under voltage protecting value: 140-210V, default 170V
Over current protecting value: 1-63A, default 40A
Leakage protecting value: 10-99mA, default 30mA
Electricity delay: 1-500S, default 10S
Over voltage resume figure: 225-295V, default 265V
Under voltage resume figure: 145-215V, default 175V
Over current resume figure: 0.5-62.5A
Continues protecting times: 1-20 times, default off
Time delay value: 0.1-30s, default 1s
Own power consumption: 2W
Electrical mechanical lifespan: 100,000 times

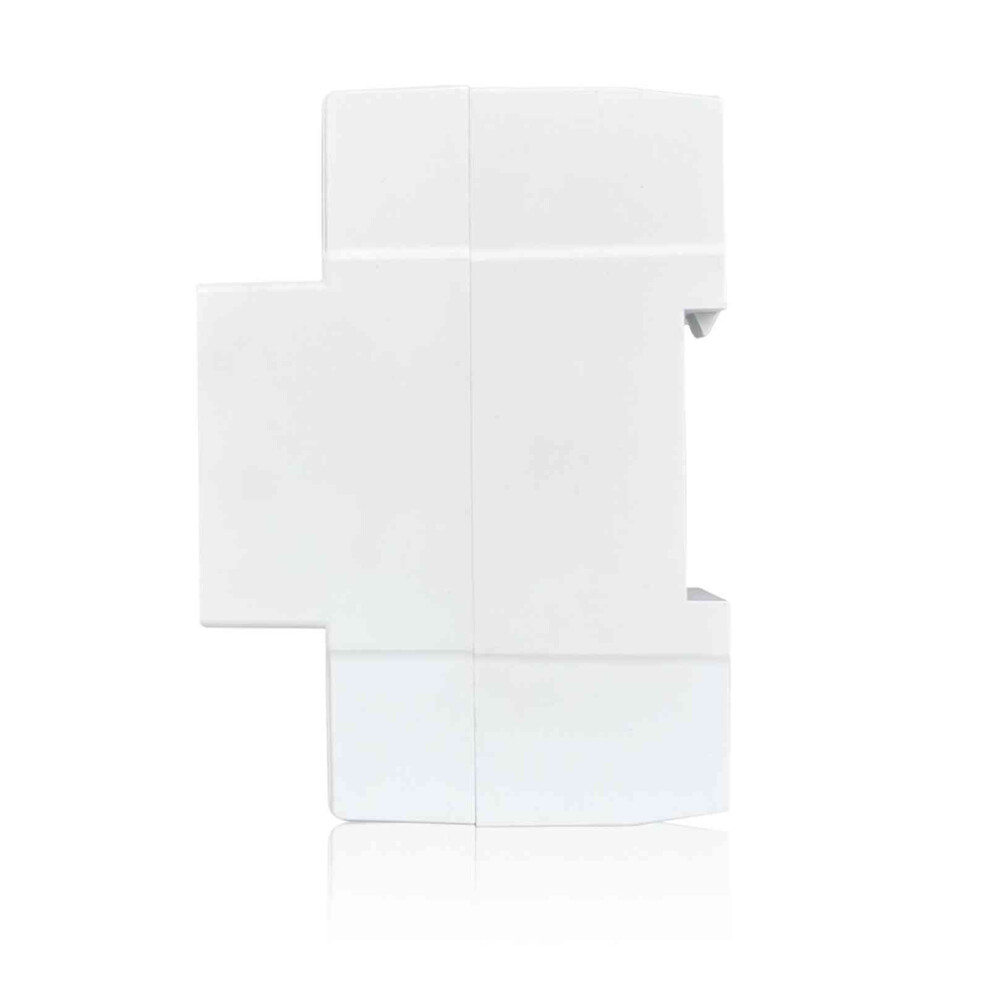

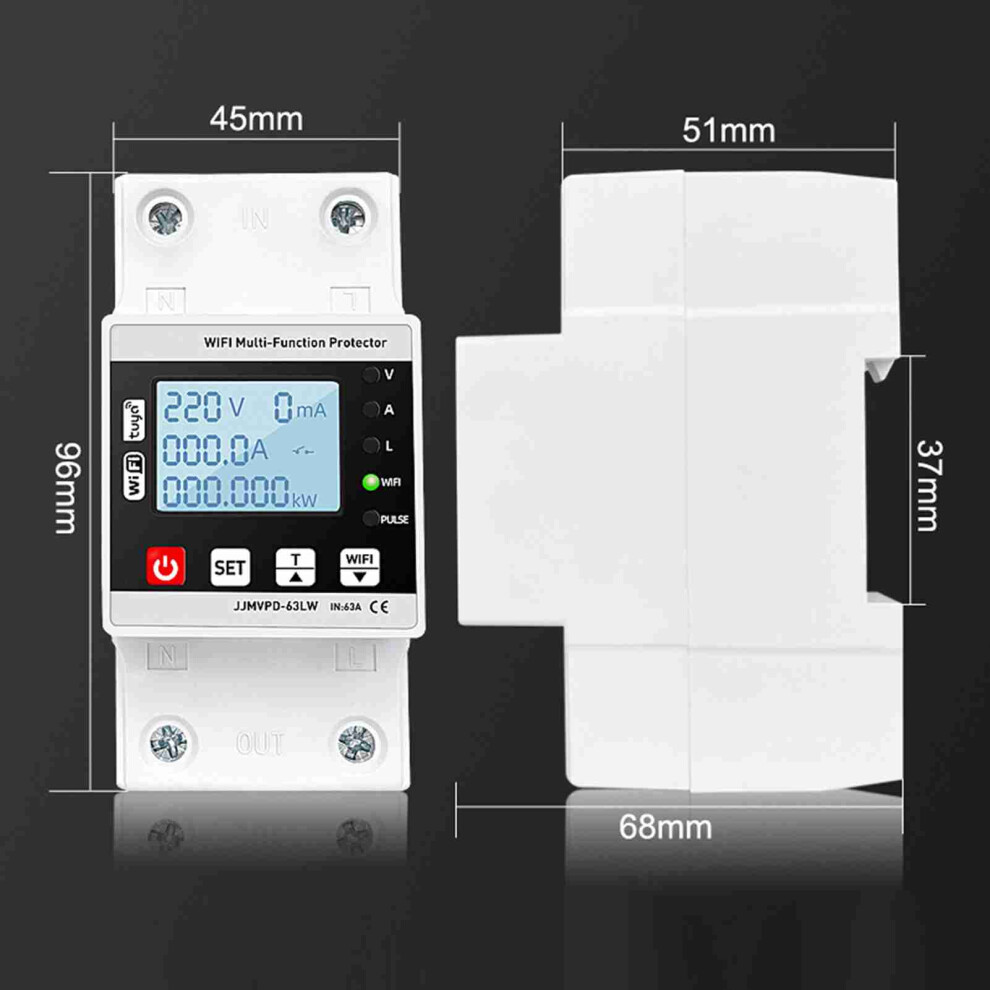

Item size: 96 * 45 * 68mm / 3.78 * 1.77 * 2.68in
Package size: 77 * 100 * 50mm / 3.03 * 3.94 * 1.97in
Package weight: 200g / 7.05ounce
