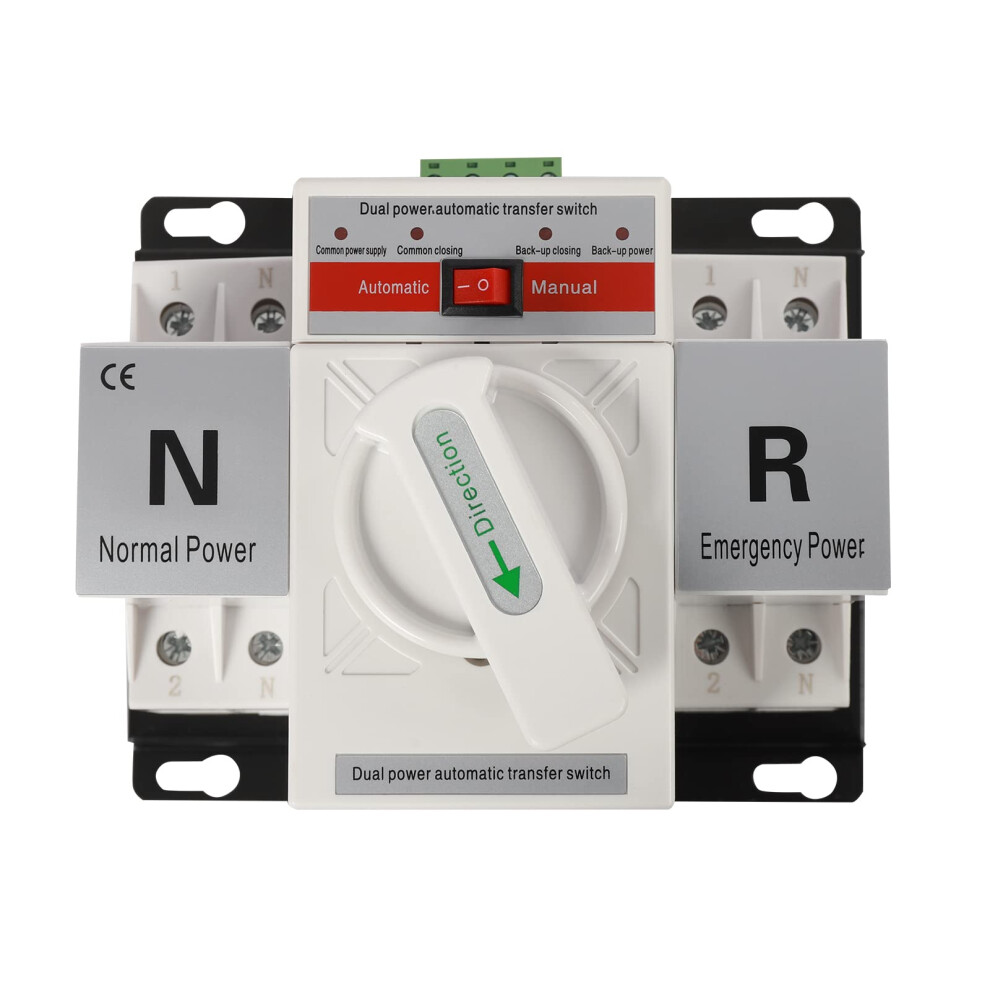

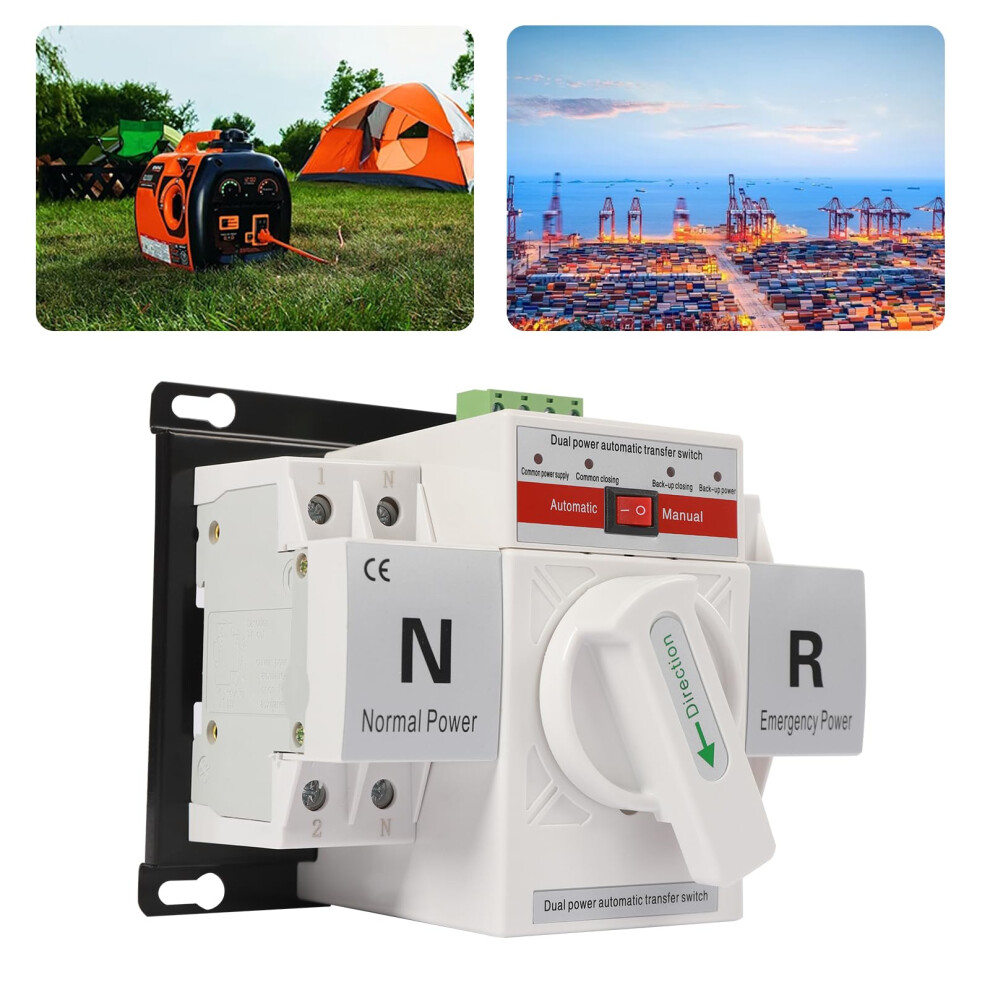

Automatic Transfer Switch 63A 2 Pole Dual Power Generator Changeover with Manual Override and Indicators

Automatic Transfer Switch 63A 2 Pole Dual Power Generator Changeover with Manual Override and Indicators Description

Dualpower Automatic Transfer Switch GCQ263/2 Overview Reliable dualpower automatic transfer switch designed for AC 110V systems. Automatically detects power status and switches between main and standby sources in 2 seconds or less. Compact, durable construction for residential and commercial backup power applications. Key benefits Fast automatic transfer: switches between normal and standby power in 2 seconds or less to minimize interruption. Broad compatibility: supports AC 50 Hz and 60 Hz, rated voltage 110V, rated current up to 63A, 2pole 2wire systems using live and neutral conductors. Dual power support: works with municipal mains as the normal source and standby sources such as solar inverters, street lamp circuits, battery inverters, or other AC 110V supplies. Clear status feedback: indicator light display shows operating status at a glance. Flexible installation: mount horizontally or vertically using screw mounting. Compact footprint fits small distribution panels. Important features and specifications Model: GCQ263/2 Rated current: 63A Poles: 2P (live and neutral) Voltage: 110V Frequency: 50/60 Hz Conversion time: 2 s Operation modes: automatic and manual Conversion mode: self cast ATS level: CB level Use level: AC33iB Protective functions: overvoltage, overcurrent, overheating, and short circuit protection Display: indicator light Mounting hole size: M6; installation type: screw Mount orientation: horizontal or vertical Ambient temperature range: 5 to 40 C / 41 to 104 F Installation altitude: up to 2000 m / 6561.68 ft Materials: plastic housing and red copper internal contacts Color and style: white, modern rectangular design Dimensions and weight Product size: 15 x 13.5 cm / 5.91 x 5.31 inch Installation dimension: 12.8 x 11.8 cm / 5.04 x 4.65 inch Package size: 19 x 18.5 x 15 cm / 7.48 x 7.28 x 5.91 inch Net weight: 1 kg / 2.2 lbs Gross weight: 1.15 kg / 2.54 lbs Package contents 1 Dualpower Automatic Transfer Switch GCQ263/2 1 English manual Typical applications Home backup power: automatically switch to a battery or solar inverter when municipal power fails to maintain essential circuits. Commercial and public buildings: provide reliable transfer for hotels, restaurants, schools, banks, and shopping centers to reduce downtime. Street lighting and remote systems: integrate with street lamp power or other local AC 110V sources for continuous operation at sites without stable mains. Why choose this model This transfer switch combines a compact footprint, straightforward installation, and fast automatic switching for AC 110V dual power systems. Its protective functions and manual override option offer operational flexibility for a variety of residential and light commercial uses.
