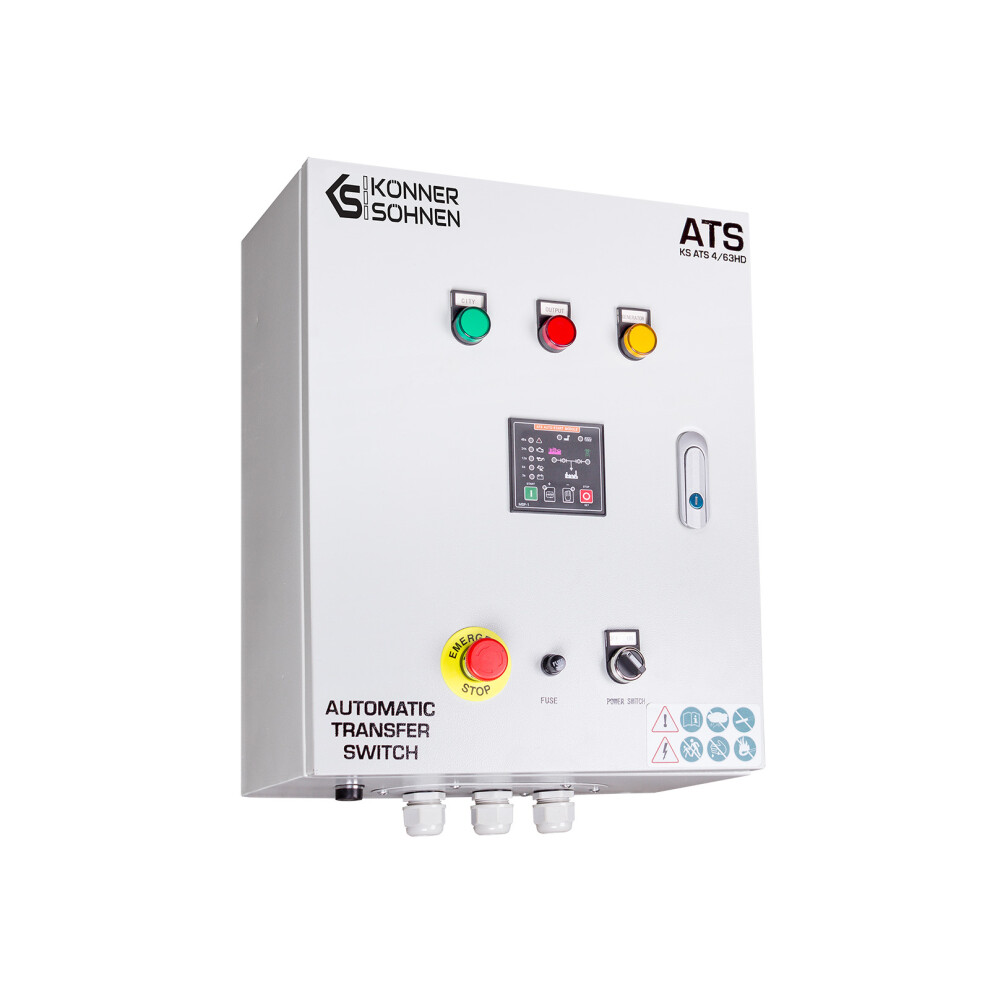

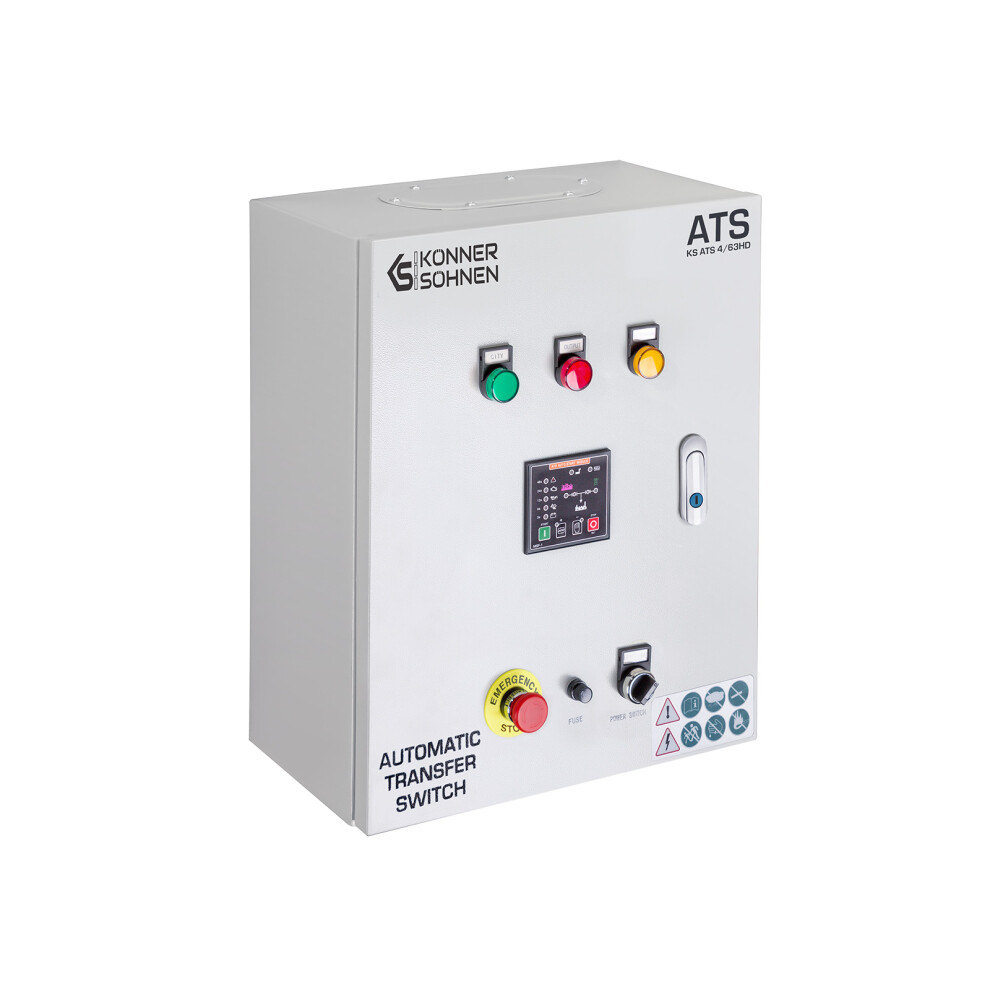

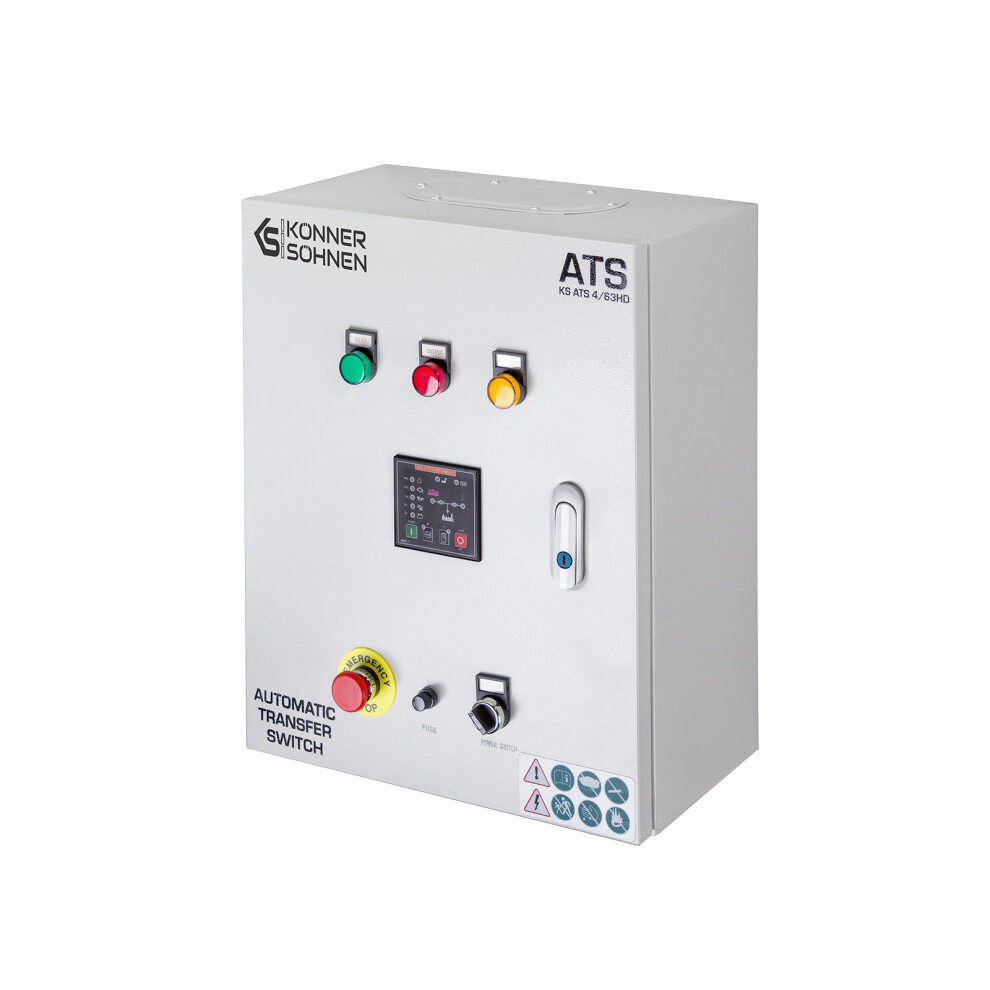

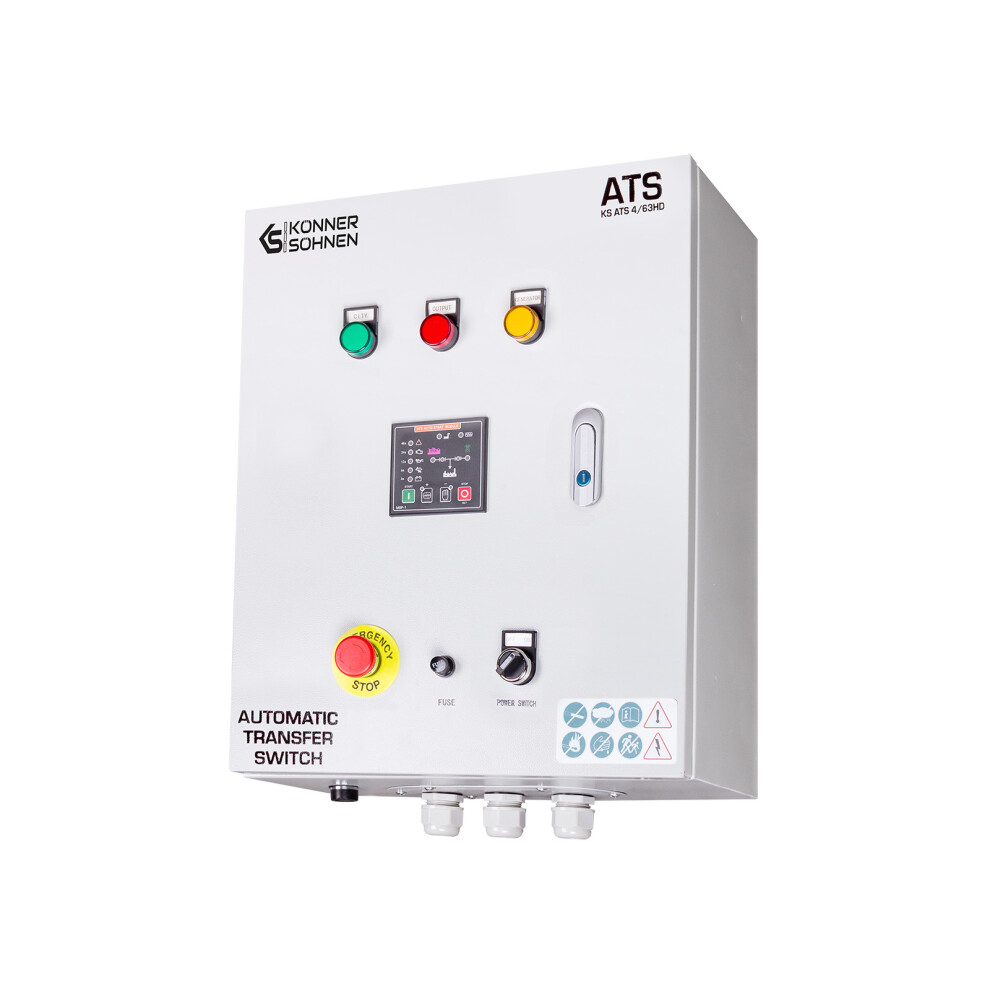

Automatic transfer switch KS ATS 4/63HD for generators Könner & Söhnen
Brand Könner & Söhnen
New
Hurry only 1 left
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 132,000 Trustpilot reviews and an 'Excellent' rating
£254.00
FREE Delivery
1%
Earn £2.54 instantly
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Thu 27th - Sat 29th Aug
Returns: 30 days
180-day payment protection
You might also like
Description & Details
Summary
- Automatic/manual operation
- Programming of engine starting time after power outage
- Programming of engine warm-up time before connecting to consumer
- Setting of starter operation time
- Battery charging when the generator is off
Automatic transfer switch KS ATS 4/63HD for generators Könner & Söhnen Description
Universal KS ATS 4/63HD ATS (Automatic Transfer Switch) unit for 230 V and 400 V consumers, automatic generator start/stop, programmable logic controller
The KS ATS 4/63HD ATS (Automatic Transfer Switch) unit from the German brand “Könner & Söhnen” automatically starts the generator and transfers load to it when the main power source is turned off and automatically stops the generator when the central power supply is restored. It is compatible with diesel generators that are equipped with a universal 6-pin connector for an automatic transfer switch unit (ATS input). The ATS unit has a PLC for programming the engine starting time after power outage, the engine warm-up time before connecting power consumers as well as for signaling errors. It has a generator emergency stop button. The ATS unit can operate both in automatic and in manual mode.
The KS ATS 4/63HD ATS unit is compatible with all Könner & Söhnen diesel generators with the abbreviation “ATSR” in the article number.
The KS ATS 4/63HD ATS unit has the following features:
-
The universal design with a 6-pin control cable connector allows the use of the ATS unit with both single-phase and three-phase networks.
-
It is equipped with a motor-operated switch.
-
Multifunction programmable logic controller - automatic/manual operation, programming of engine starting time after power outage, programming of engine warm-up time before connecting the appliances, setting of starter operation time, engine performance monitoring.
-
Generator emergency stop button provides additional protection.
-
Keeps the battery charged.
KS ATS 4/63HD specifications
Battery voltage: 8.0 – 18 V/DC.
Rated voltage: 230/400 V
Rated power 230V: 14.4 (28.8) kVA
Rated current 230V: 63 (125) А
Rated power 400V: 43.4 kVA
Rated current 400V: 63 А
Operating temperature range: -10 °С to +55 °С; relative humidity: ≤60%. Storage conditions: -10 °С to +70 °С; relative humidity: ≤60%.
IP rating: IP41
Insulation class: AC 1.5 KV / 1 min 1 mA
Maximum battery charging current from the built-in power supply: 2 А.
Control cable length: 4.4 m.
Dimensions: 400 х 320 х 190 mm.
Net weight: 8.4 kg.
Gross weight: 8.8 kg.
Details
| OPC | PG6QPQB |
|---|---|
| Brand | |
| Codes | 4260405362455 (EAN) |
Detailed Product Information
| Weight | 8.4kg |
|---|---|
| Height | 19cm |
| Length | 40cm |
| Width | 32cm |
